Installation Procedure

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  1. Install the mounting bracket to the cowl panel with the 3 screws.

    Tighten

    Tighten the cruise control module bracket screws to 4.5 N.m (40 lb. in).

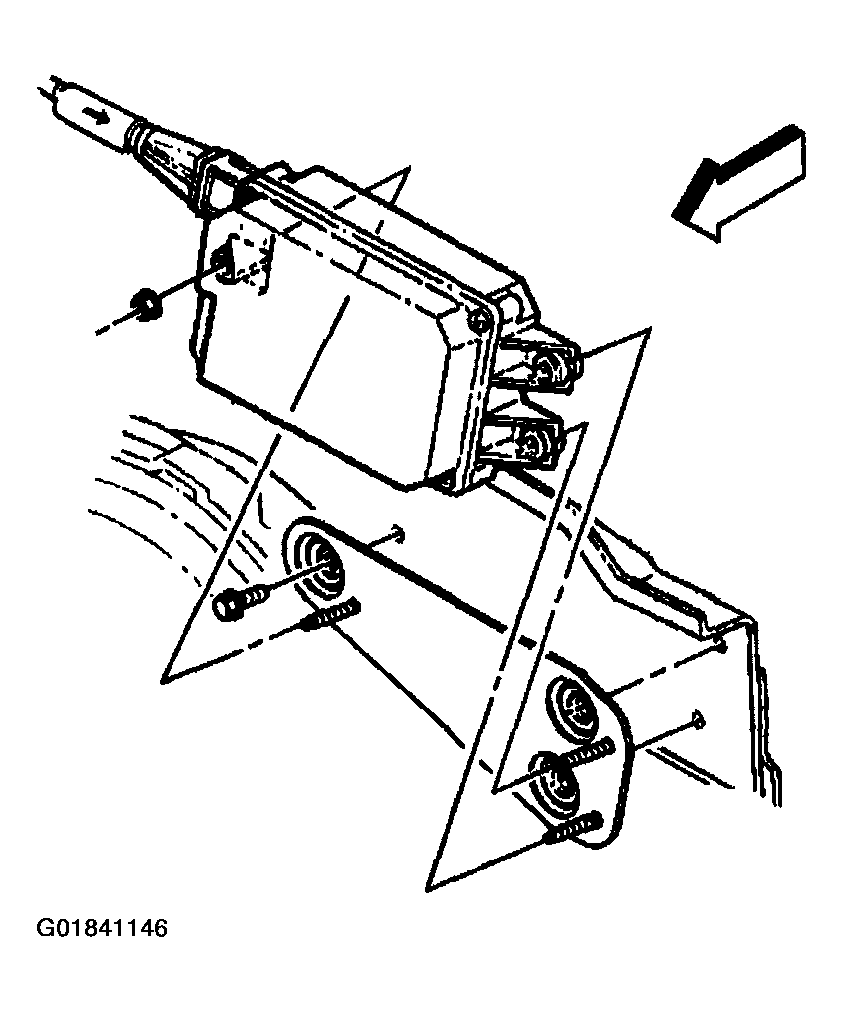

    Fig 1: Locating Cruise Control Module Mounting Nuts & Mounting Bracket Screws
    G01841146Courtesy of GENERAL MOTORS CORP.
  2. Install the cruise control module to the vehicle.
  3. Install the 3 nuts that retain the cruise control module to the mounting bracket.

    Tighten

    Tighten the cruise control module nuts to 9.0 N.m (6.6 lb. ft).

  4. Connect the electrical connector.
  5. Install the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (2.2L)  or CRUISE CONTROL CABLE REPLACEMENT (4.3L) .
  6. Connect the battery negative cable.
  7. Test the systems operation.
