Memory Seat Module

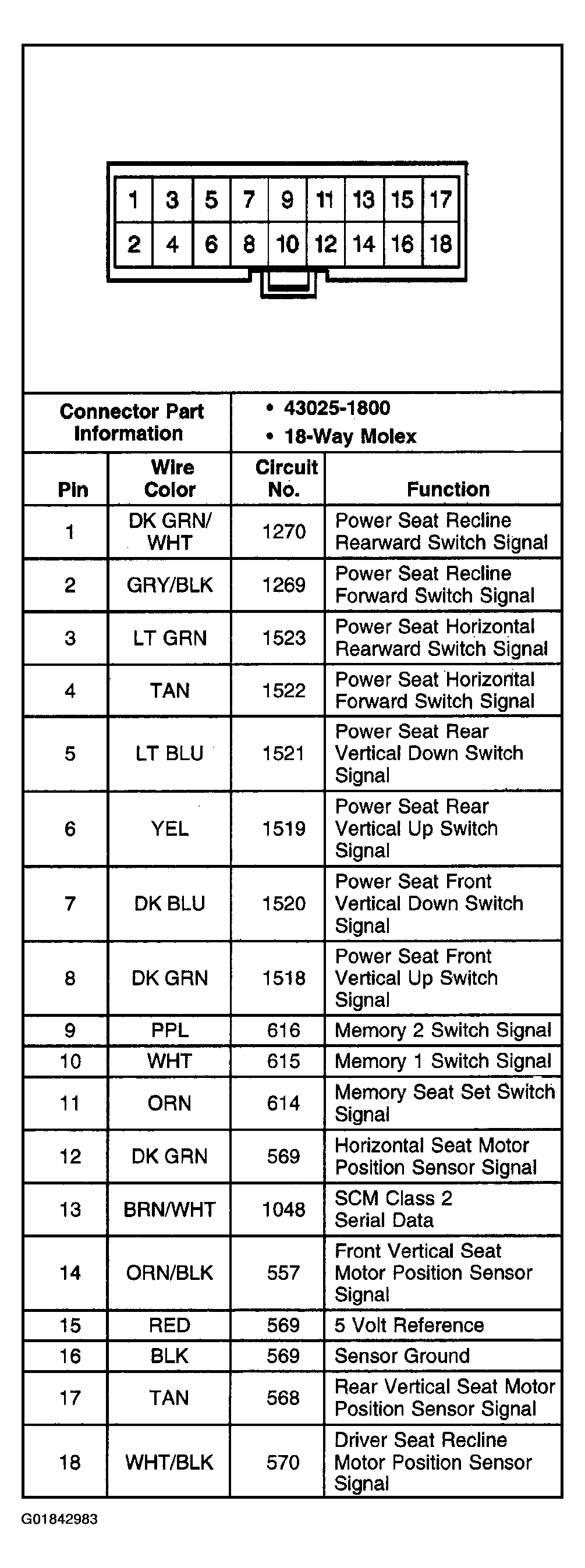

Fig 1: Memory Seat Module - Driver C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
