Exterior Lights References

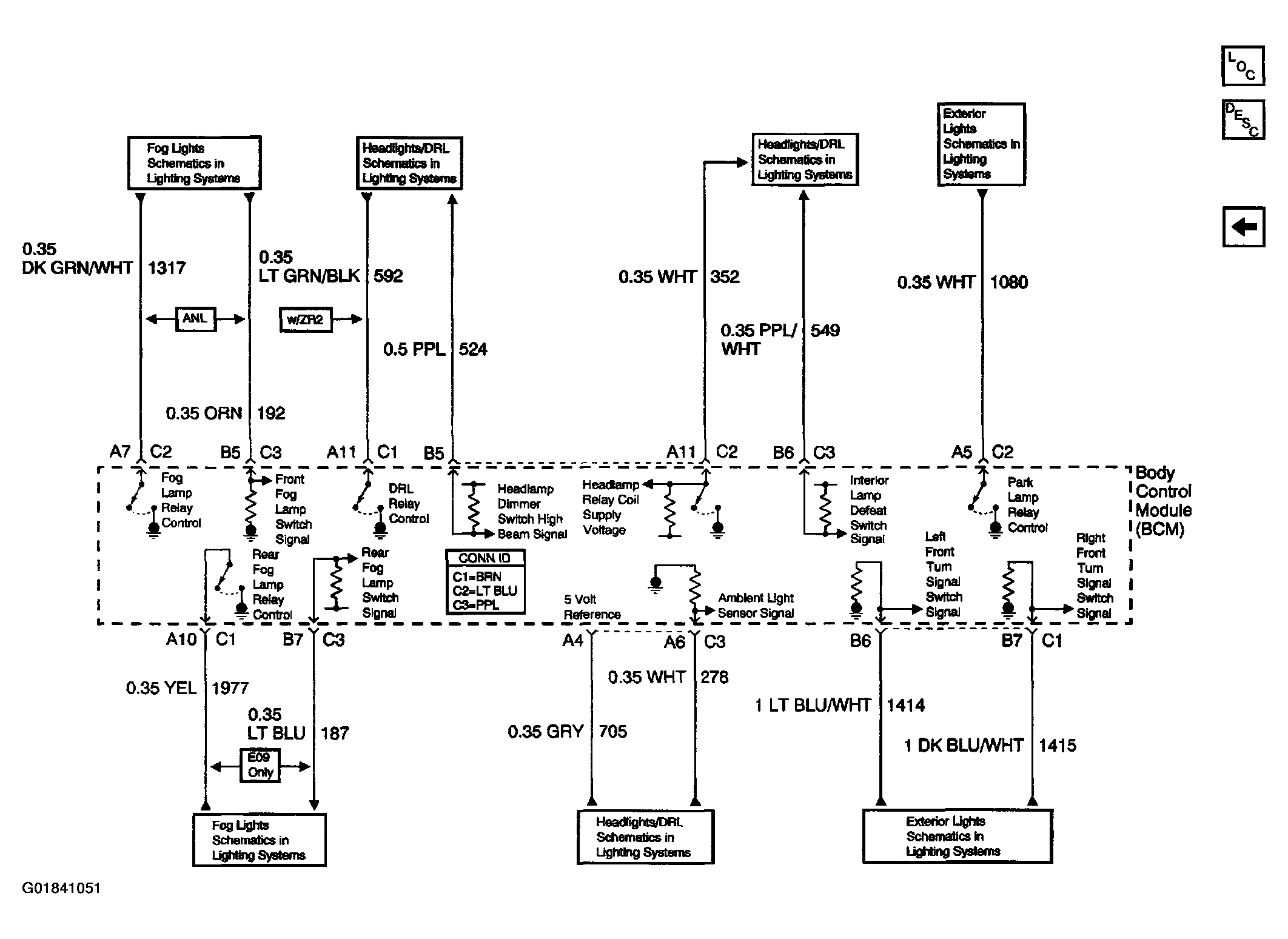

Fig 1: Body Control Module Schematics (Exterior Lights References)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
