IP Wiring Component Views

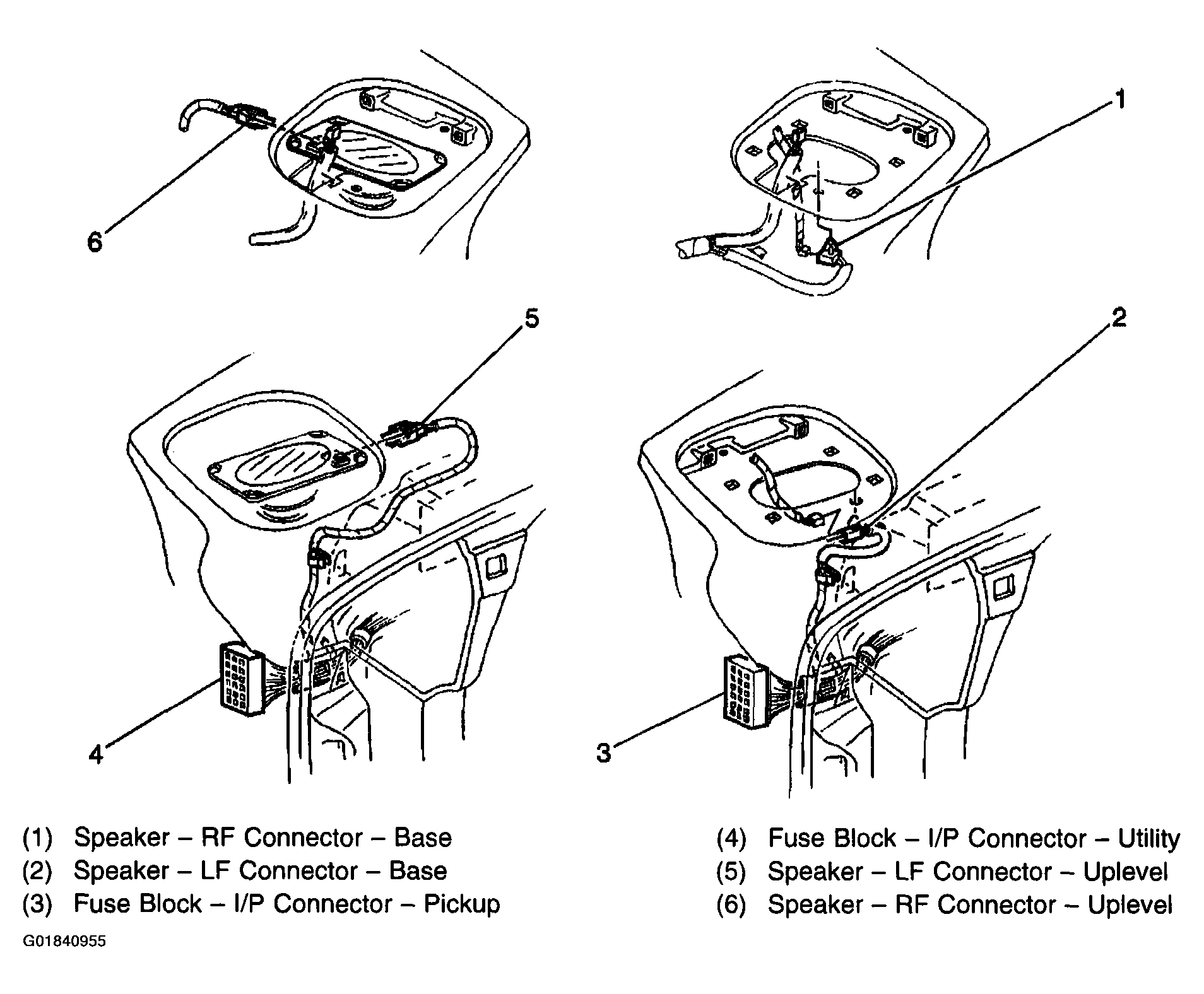

Fig 1: IP Wiring Harness, Speaker Connectors
G01840955Courtesy of GENERAL MOTORS CORP.

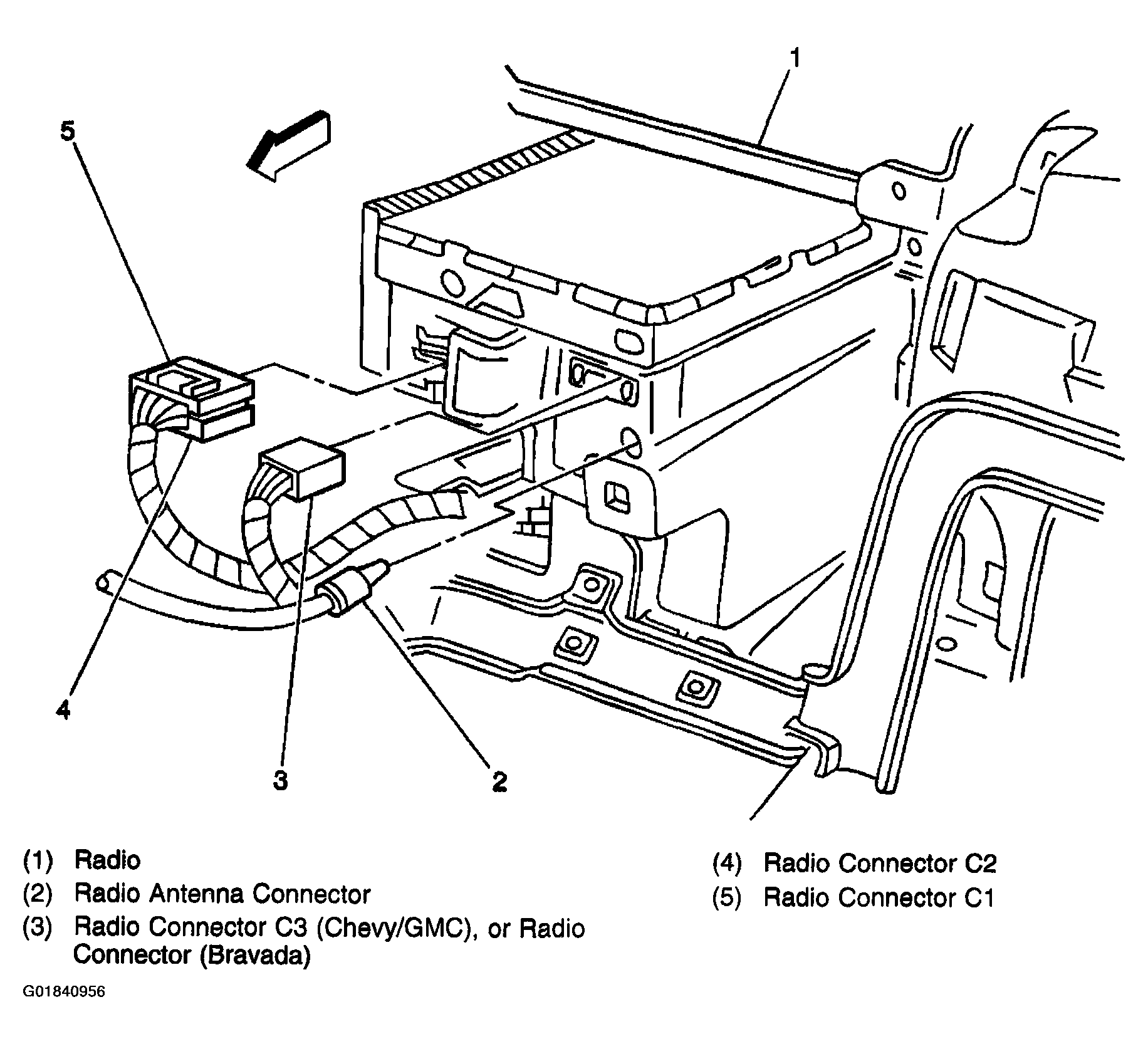

Fig 2: IP Wiring To Radio
G01840956Courtesy of GENERAL MOTORS CORP.
