Theft Deterrent System Component Views

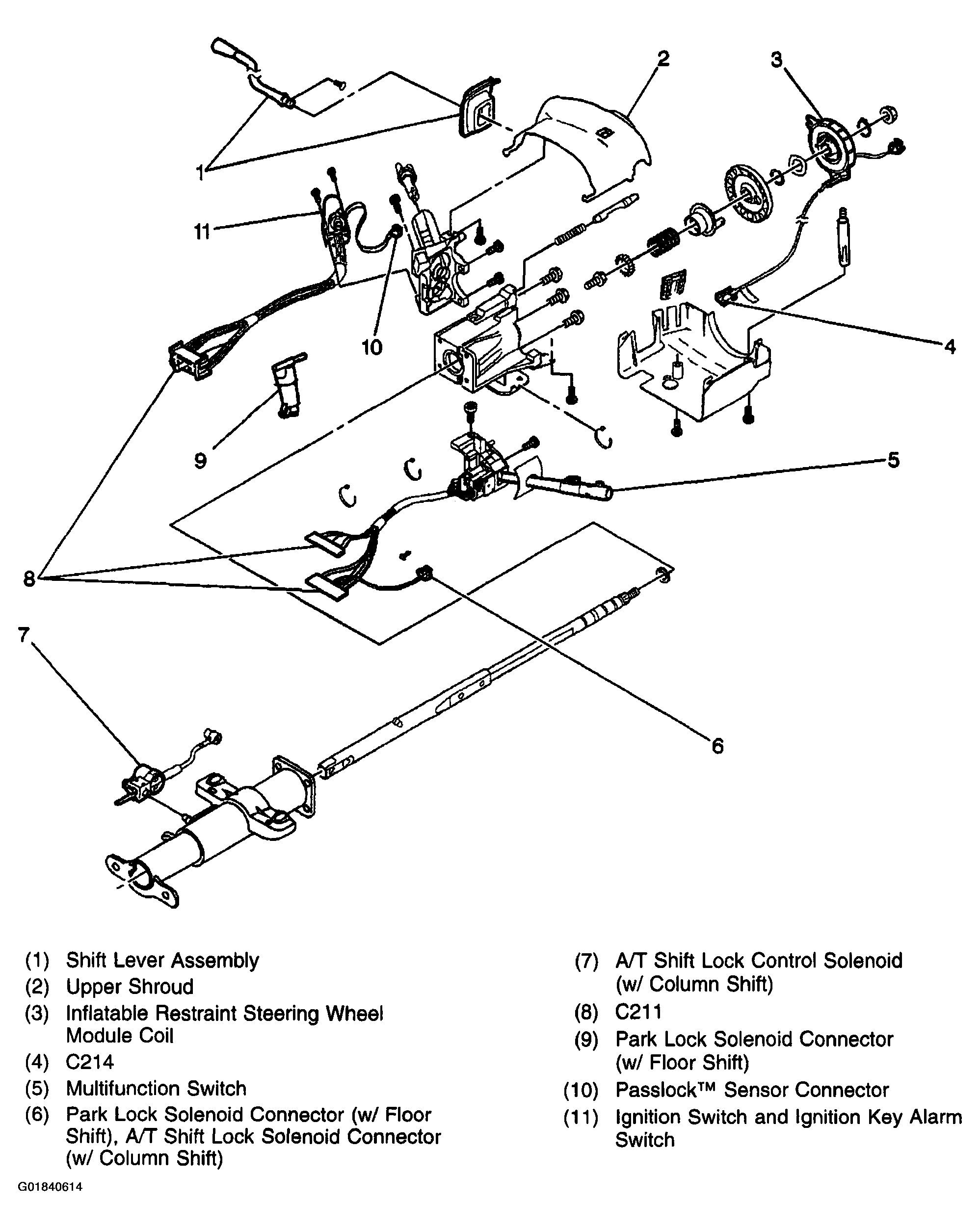

Fig 1: Steering Column Components
G01840614Courtesy of GENERAL MOTORS CORP.

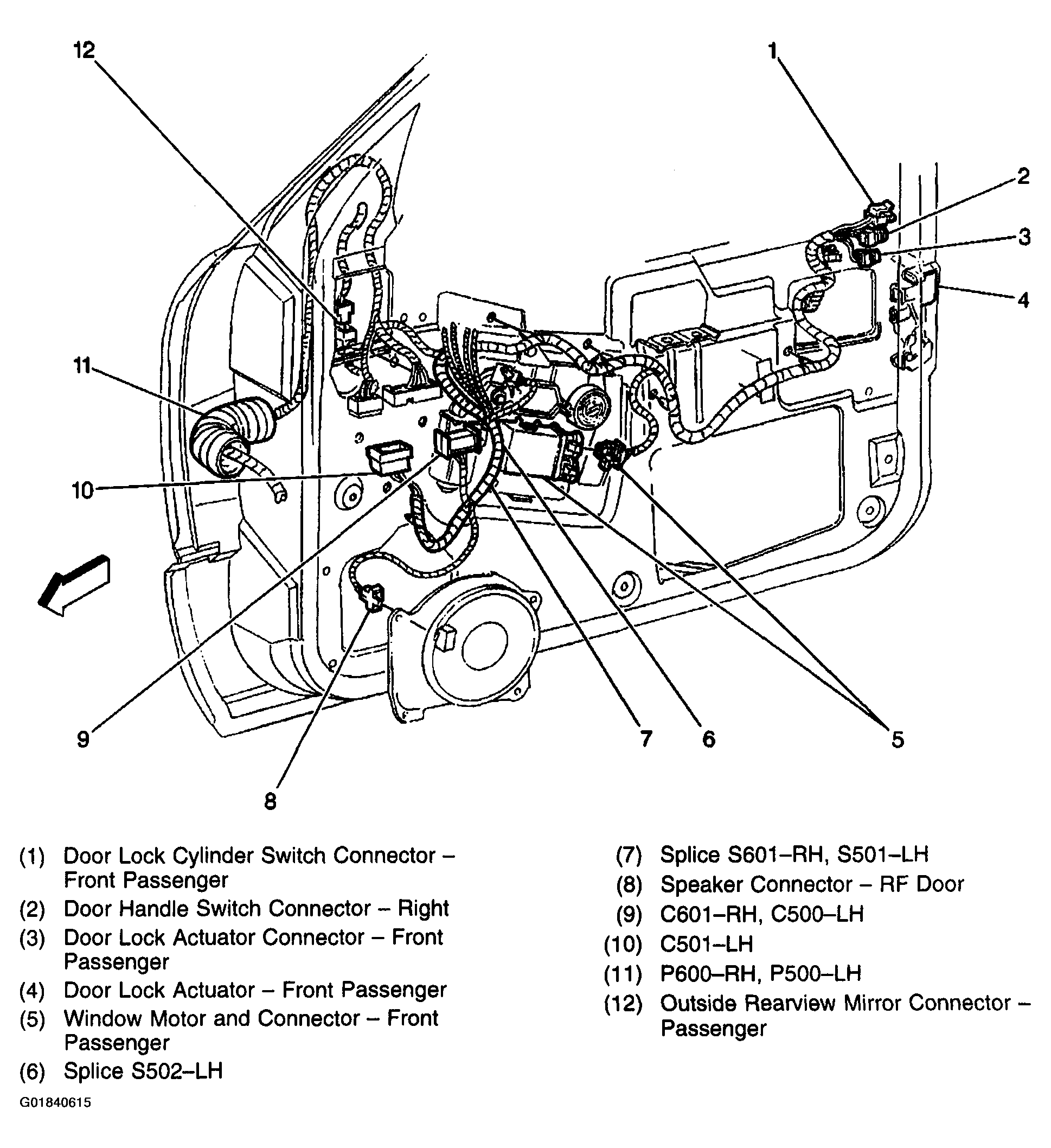

Fig 2: Front Door Components (Passenger Door Shown; Driver Similar)
G01840615Courtesy of GENERAL MOTORS CORP.
