Installation Procedure

  1. Install the switch assembly to the trim panel by snapping the switch into the plastic retaining clips.

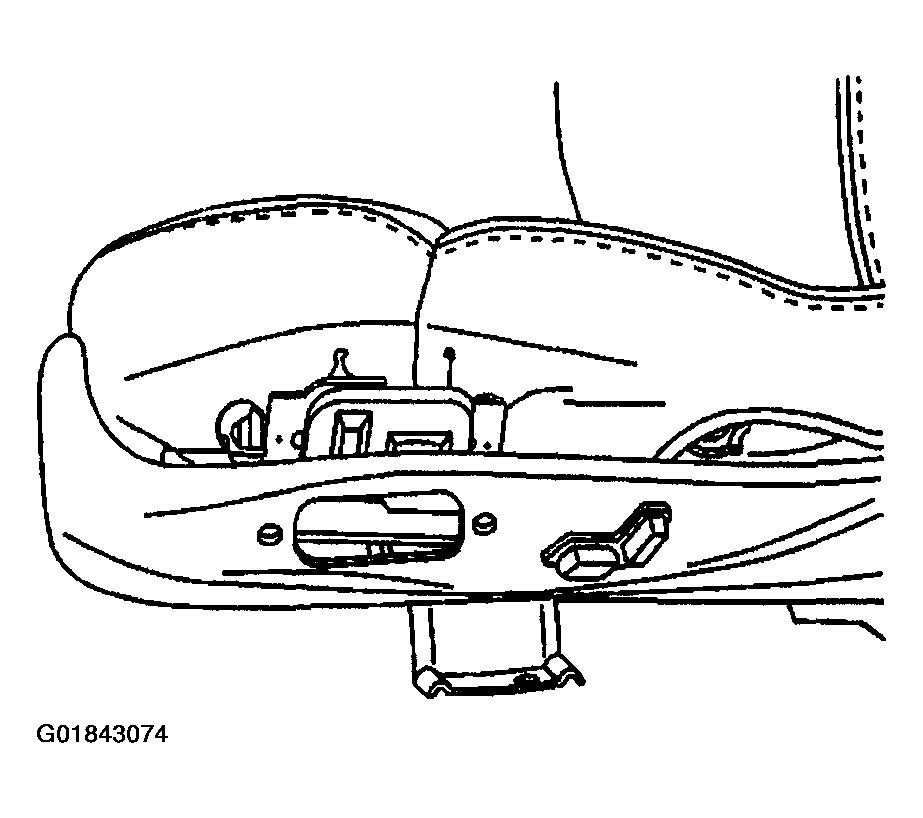

    Fig 1: Locating Lumbar Switch
    G01843074Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector to the switch.

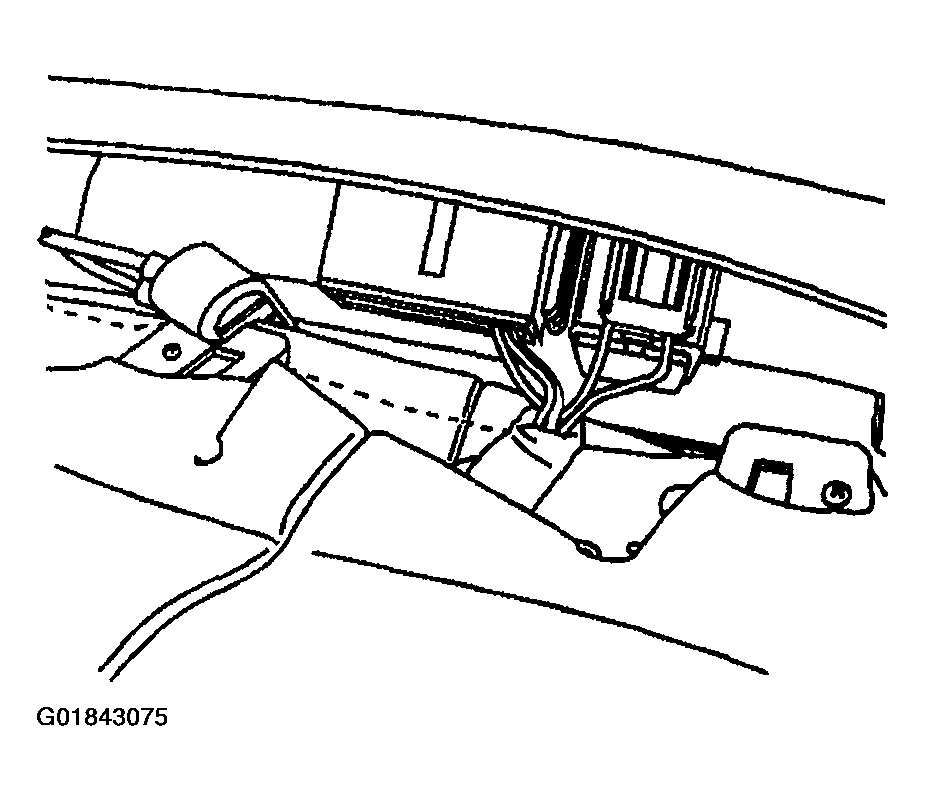

    Fig 2: Locating Lumbar Switch Electrical Connector
    G01843075Courtesy of GENERAL MOTORS CORP.
  3. Install the trim panel to the seat with 3 screws.
  4. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET  or SEAT REPLACEMENT - BENCH .

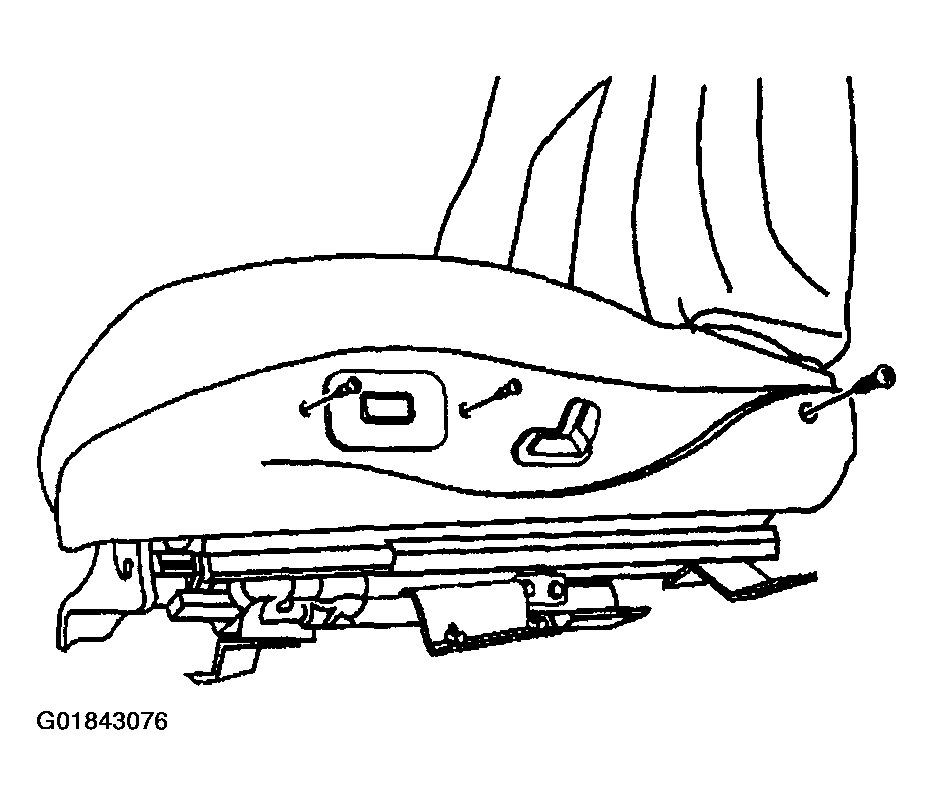

    Fig 3: Locating Trim Plate
    G01843076Courtesy of GENERAL MOTORS CORP.
