Power Seats Schematics

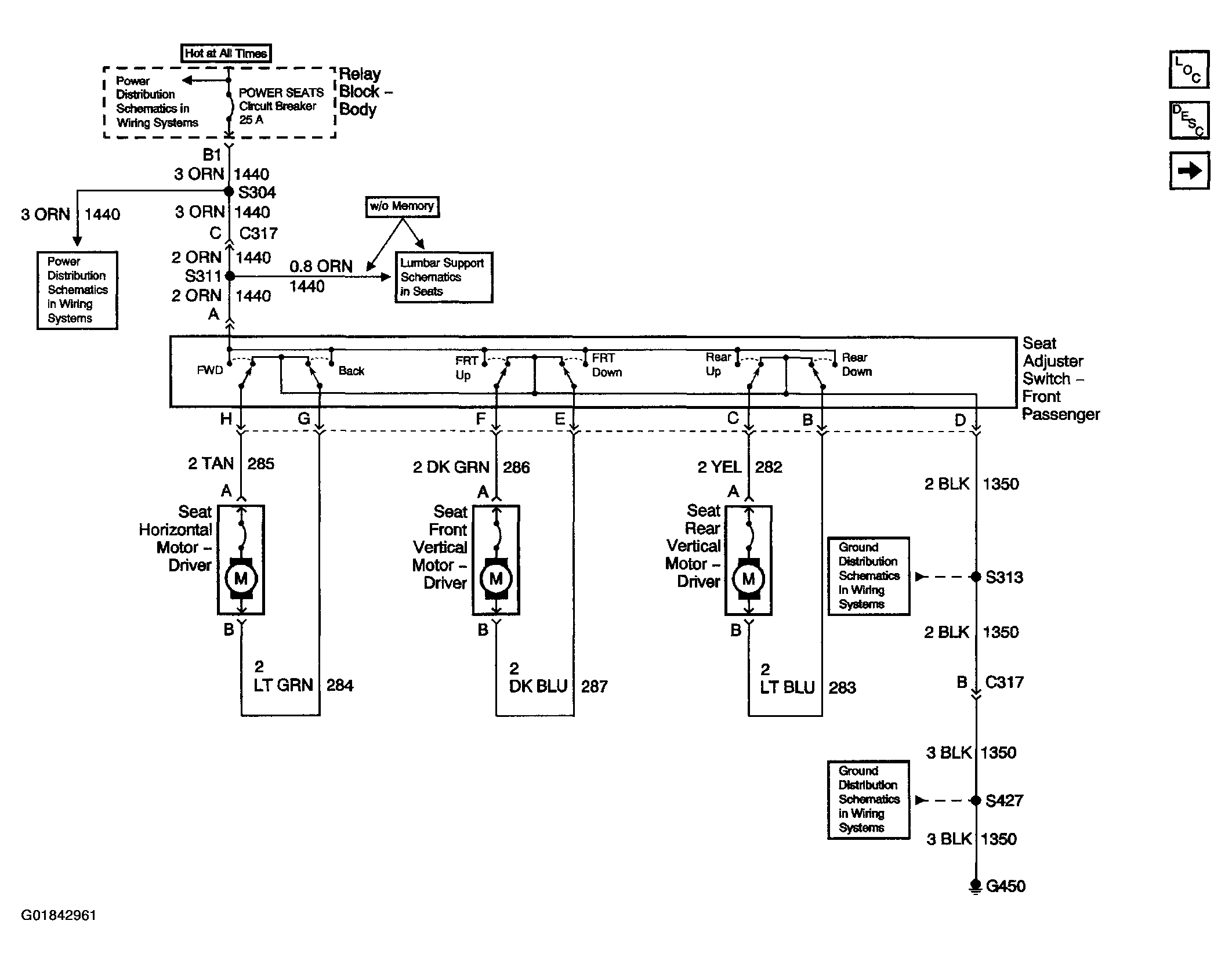

Fig 1: Power Seats Schematics (6-Way Left Power Seat)
G01842961Courtesy of GENERAL MOTORS CORP.

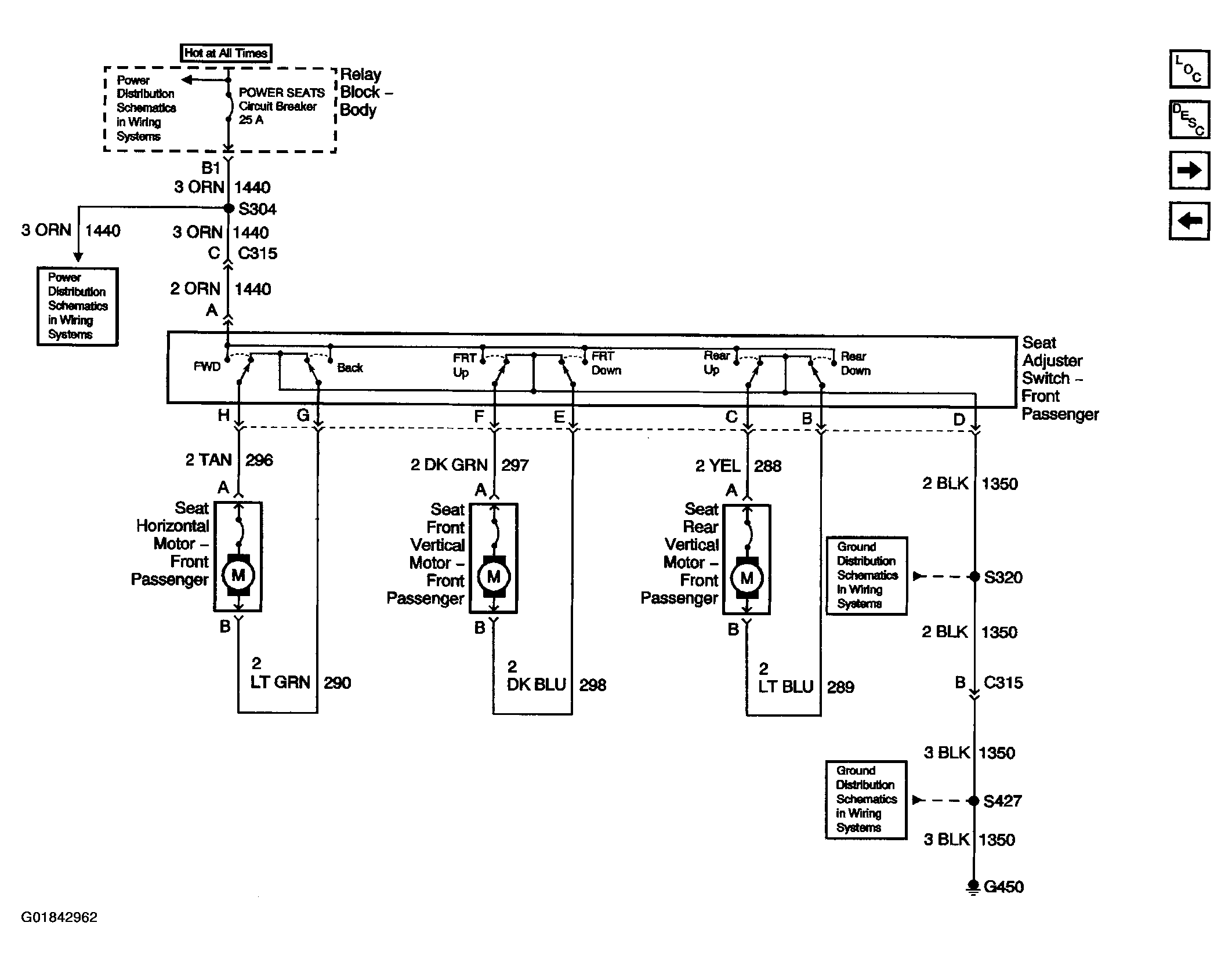

Fig 2: Power Seats Schematics (6-Way Right Power Seat)
G01842962Courtesy of GENERAL MOTORS CORP.

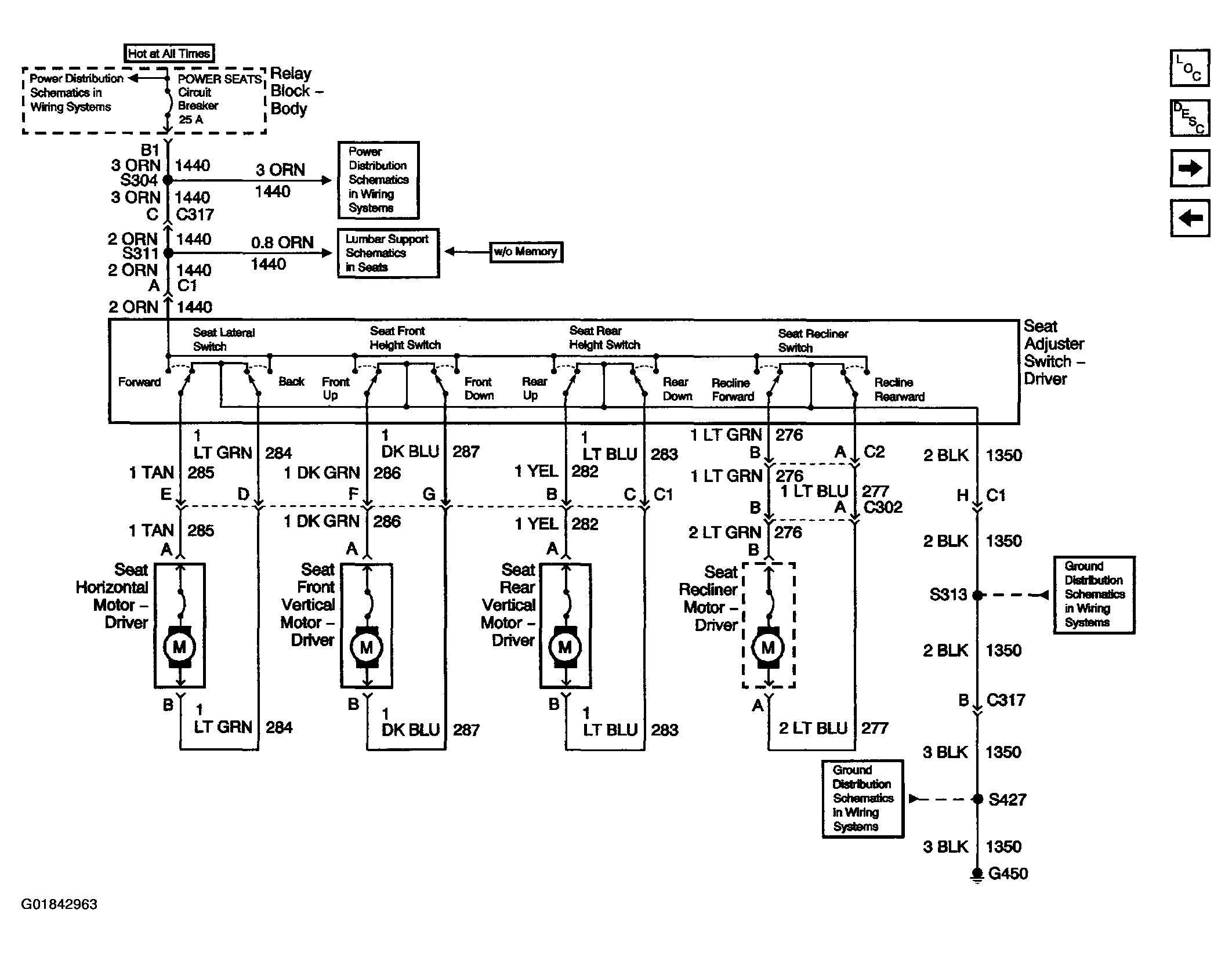

Fig 3: Power Seats Schematics (8-Way Left Power Seat)
G01842963Courtesy of GENERAL MOTORS CORP.

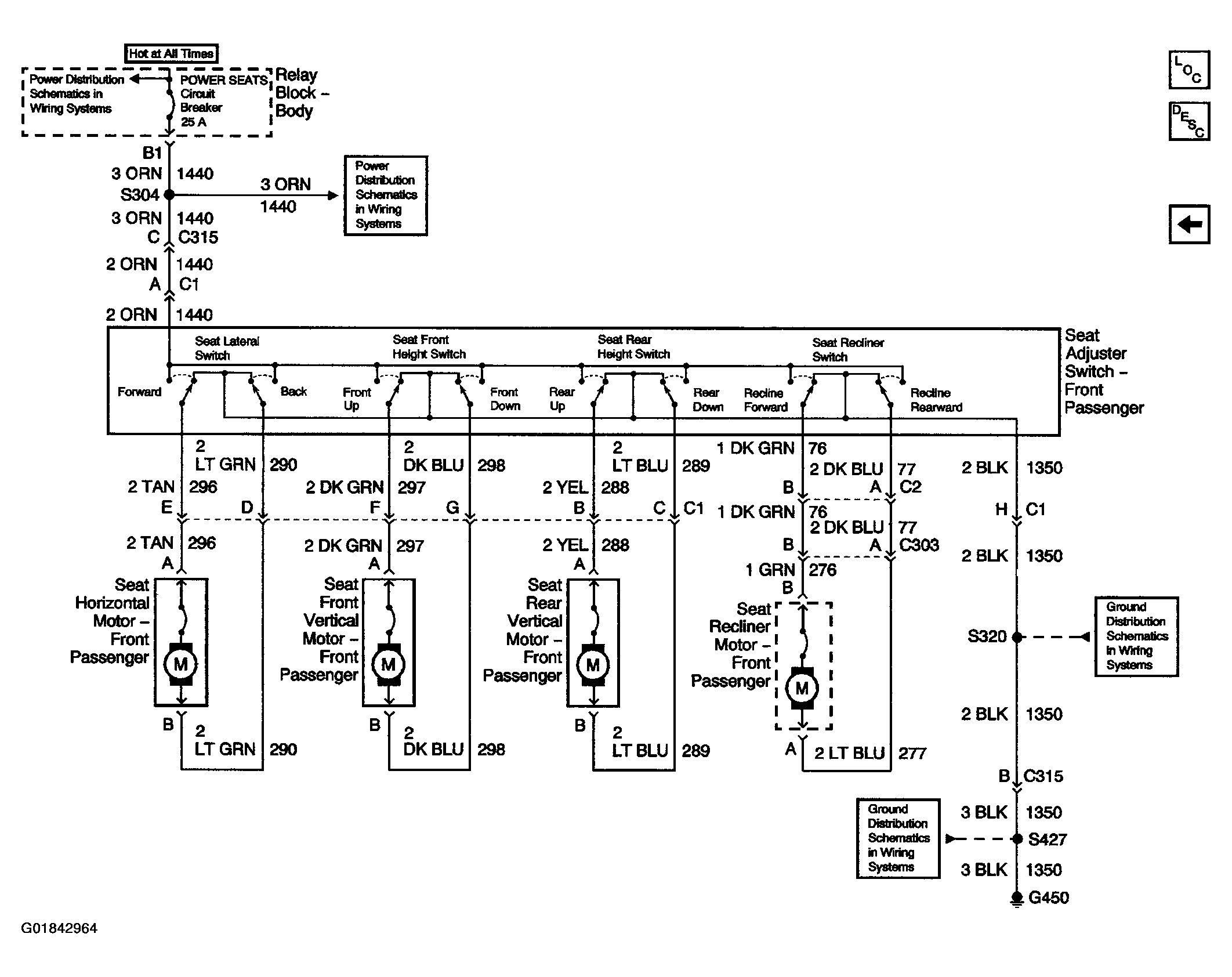

Fig 4: Power Seats Schematics (8-Way Right Power Seat)
G01842964Courtesy of GENERAL MOTORS CORP.
