Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
Remove the instrument panel cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages and Console.
Disconnect the cruise control module electrical connector.
Remove the following components from the vehicle:
- The cruise control module mounting bolt
- The cruise control module

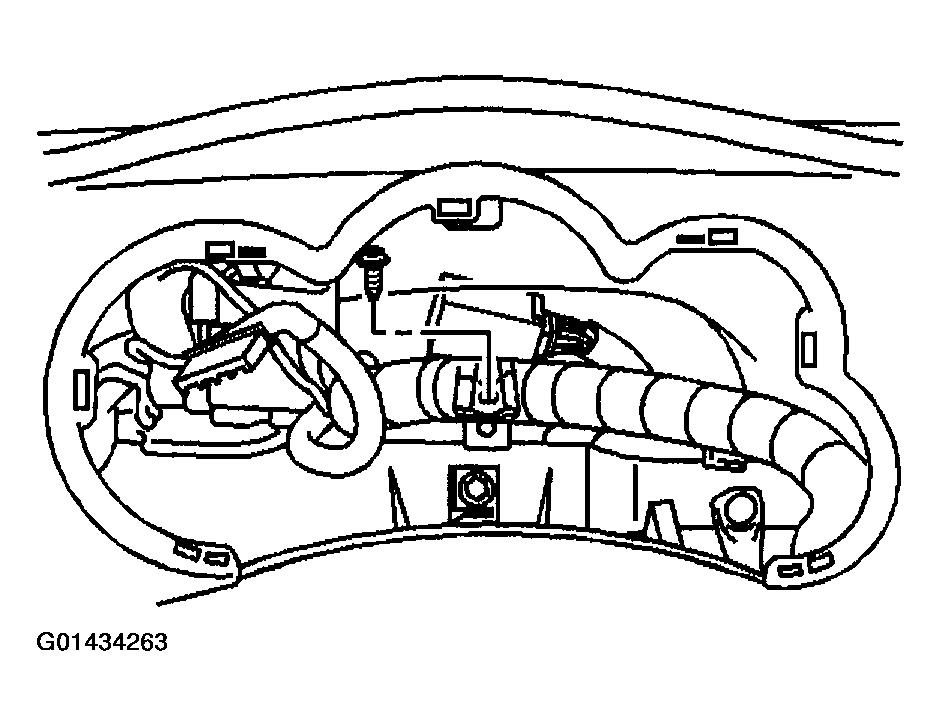

  Fig 1: Removing Cruise Control Module
  Courtesy of GENERAL MOTORS CORP.
