Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tool storage tray (4) to the vehicle.
  2. Install the bolts (5) to the tool storage tray (4).
  3. Install the rear storage compartment (3).
  4. Install the rear accessory panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR  .
  5. Install the child tether anchors (6). Refer to CHILD RESTRAINT TETHER ANCHOR REPLACEMENT in Seat Belts.
  6. Install the tool storage access panel (8).

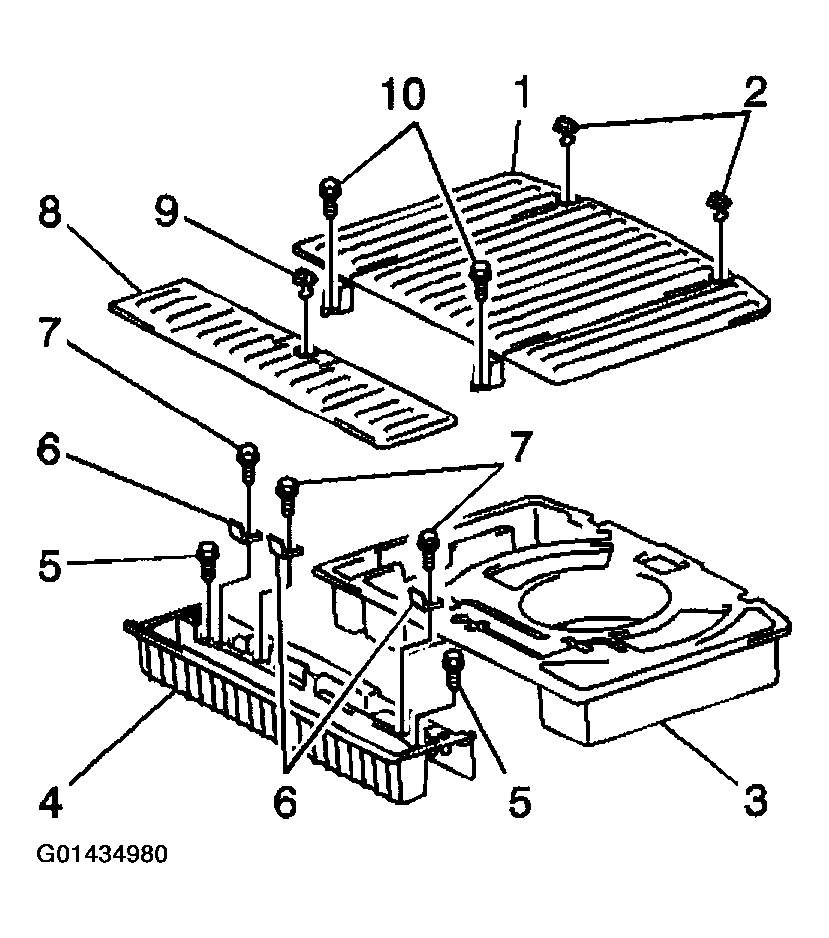

    Fig 1: Installing Tool Storage Tray To Vehicle
    G01434980Courtesy of GENERAL MOTORS CORP.
