Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

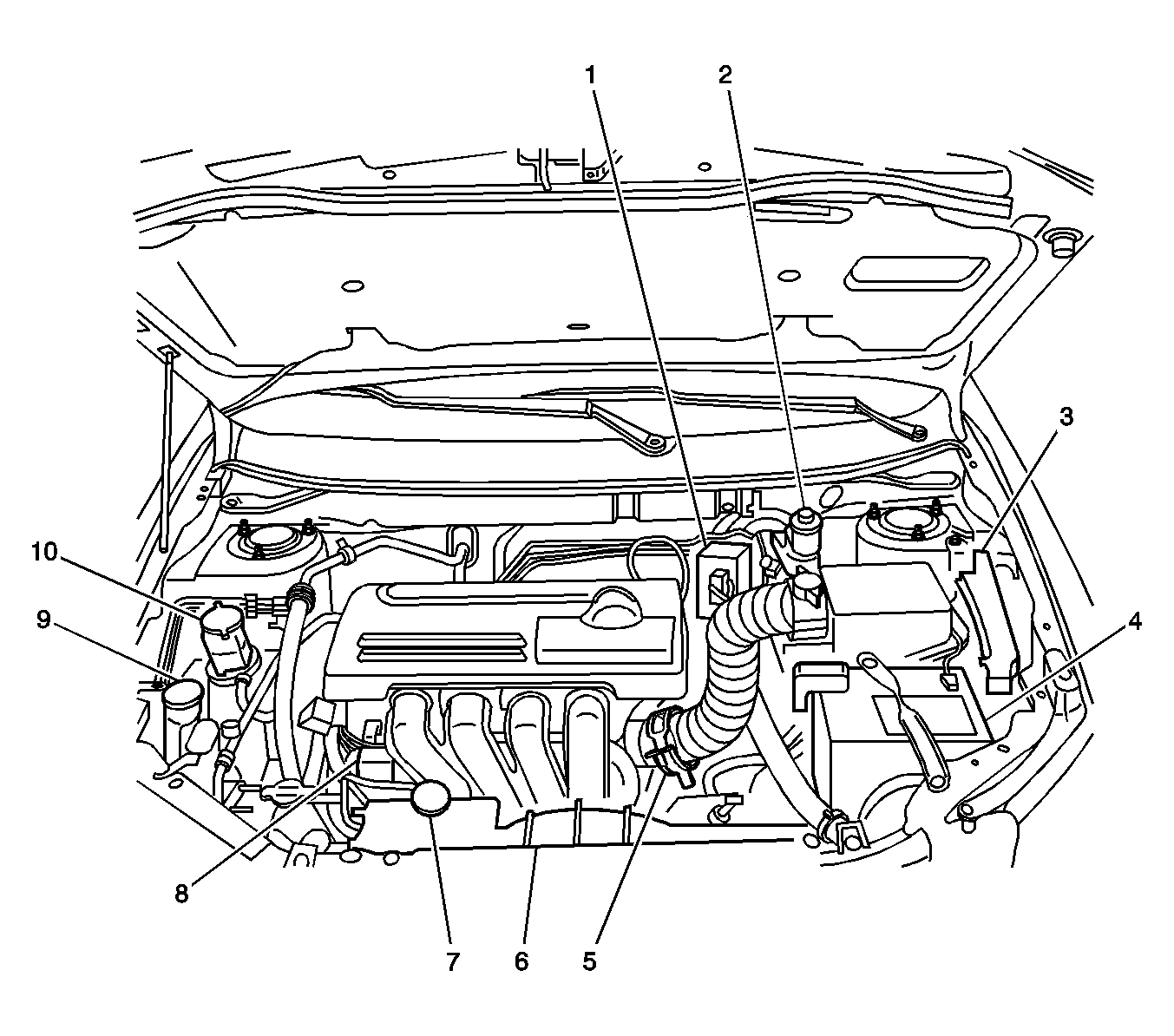

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cruise Control Servo |
| 2 |
Brake Fluid Reservoir |
| 3 |
Underhood Fuse Block |
| 4 |
Battery |
| 5 |
Throttle Linkage |
| 6 |
Radiator Fan (Behind Radiator) |
| 7 |
Engine Coolant Reservoir |
| 8 |
Generator |
| 9 |
Windshield Washer Pump |
| 10 |
Power Steering Fluid Reservoir |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cruise Control Actuator |
| 2 |
Instrument Panel Cluster |
| 3 |
Cruise Control Module |
| 4 |
Engine Control Module |
| 5 |
Cruise Control Switch |
| 6 |
Stop Lamp Switch |
| 7 |
Clutch Switch |
| 8 |
Park/Neutral Position Switch |
