Cruise Control Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Cruise Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-12094 WHT
Pin	Wire Color	Function
1	-	Not Used
2	BK/WH	Cruise Control Module Feed Circuit
3	GN/WH	Brake Signal
4	BU	PNP Switch Signal
5	GN/RD	Cruise Indicator Control
6	BU	Cruise Interrupt Signal
7	RD/BU	Servo Control
8	GN/OR	Magnetic Clutch Control
9	-	Not Used
10	PK/BK	Serial Data
11	GN/YE	Cruise On-Off Signal
12	PU/WH	VSS Input
13	BU/WH	Idle Signal
14	RD/YE	Overdrive Signal
15	RD/GR	Servo Control
16	WH/BK	Ground

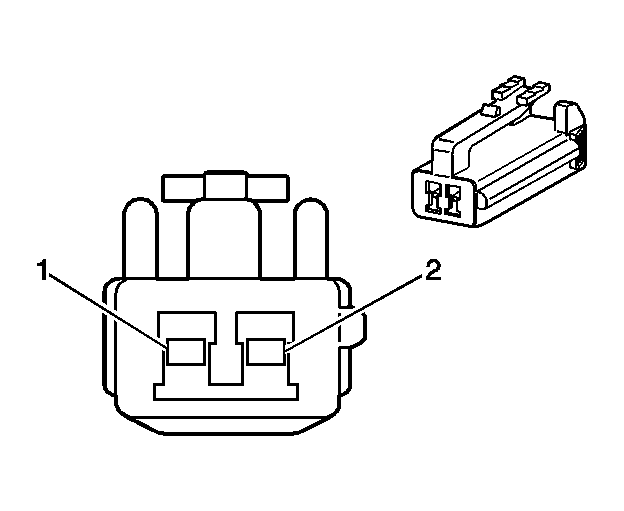

Cruise Control Release Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-10906 WHT
Pin	Wire Color	Function
1	RD/WH	Cruise Control Release Switch Feed Circuit
2	BU	Cruise Control Release Switch Signal Circuit

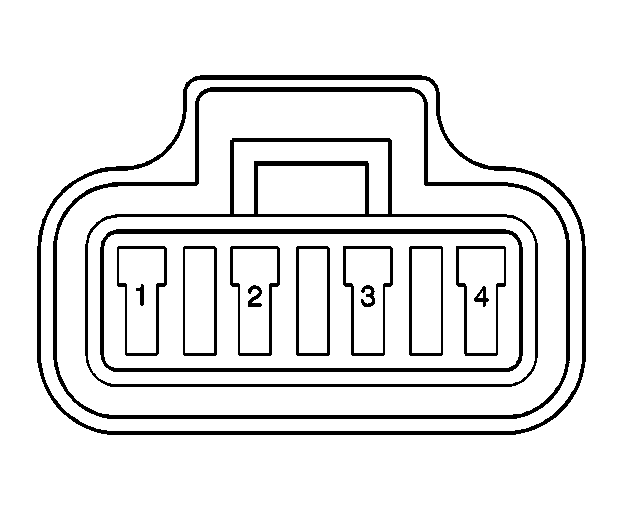

Cruise Control Servo Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-11150 BLK
Pin	Wire Color	Function
1	RD/GN	Servo Control
2	RD/BU	Servo Control
3	RD/YE	Magnetic Clutch Control
4	WH/BK	Ground

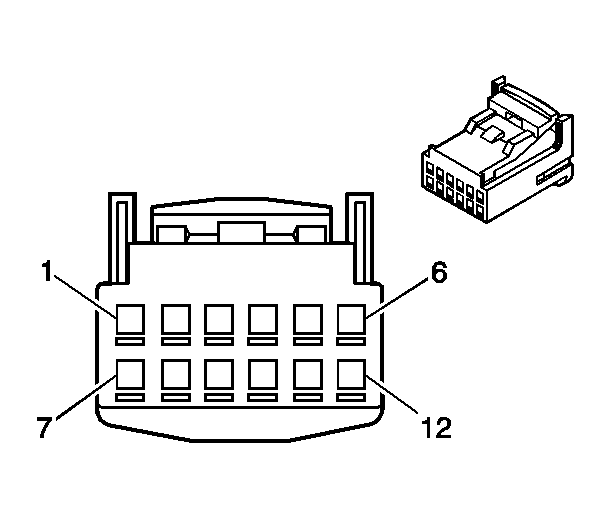

Cruise Control/Horn Switch Connector End View - C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-12183 BLK
Pin	Wire Color	Function
1	GN/YE	Horn Switch-Relay Control
2	GN/YE	Cruise On-Off Signal
3	WH/BK	Ground
4-12	-	Not Used

Cruise Control/Horn Switch Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-12183 BLK
Pin	Wire Color	Function
1	WH	Horn Switch-Relay Control
2	RD	Cruise On-Off Signal
3	WH	Ground
4-12	-	Not Used

Stop Lamp Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		90980-11118 BLU
Pin	Wire Color	Function
1	GN/WH	Stop Lamp Switch Signal Circuit
2	RD/WH	Stop Lamp Switch Feed Circuit
3	GN/OR	Cruise Control Servo Interrupt Circuit
4	RD/YE	Cruise Control Module Interrupt Circuit
