Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

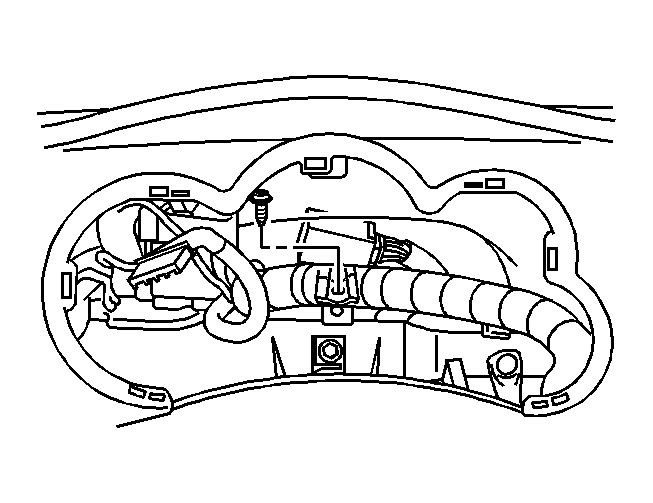

Fig 1: Install Cruise Control Module To IP

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the cruise control module to the IP. Secure the module with the mounting bolt.
Tighten: Tighten the cruise control module mounting bolt to 10 N.m (89 lb in).
Connect the cruise control module electrical connector.
Install the instrument panel cluster assembly. Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages and Console.
Install the instrument panel cluster trim plate. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
