Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

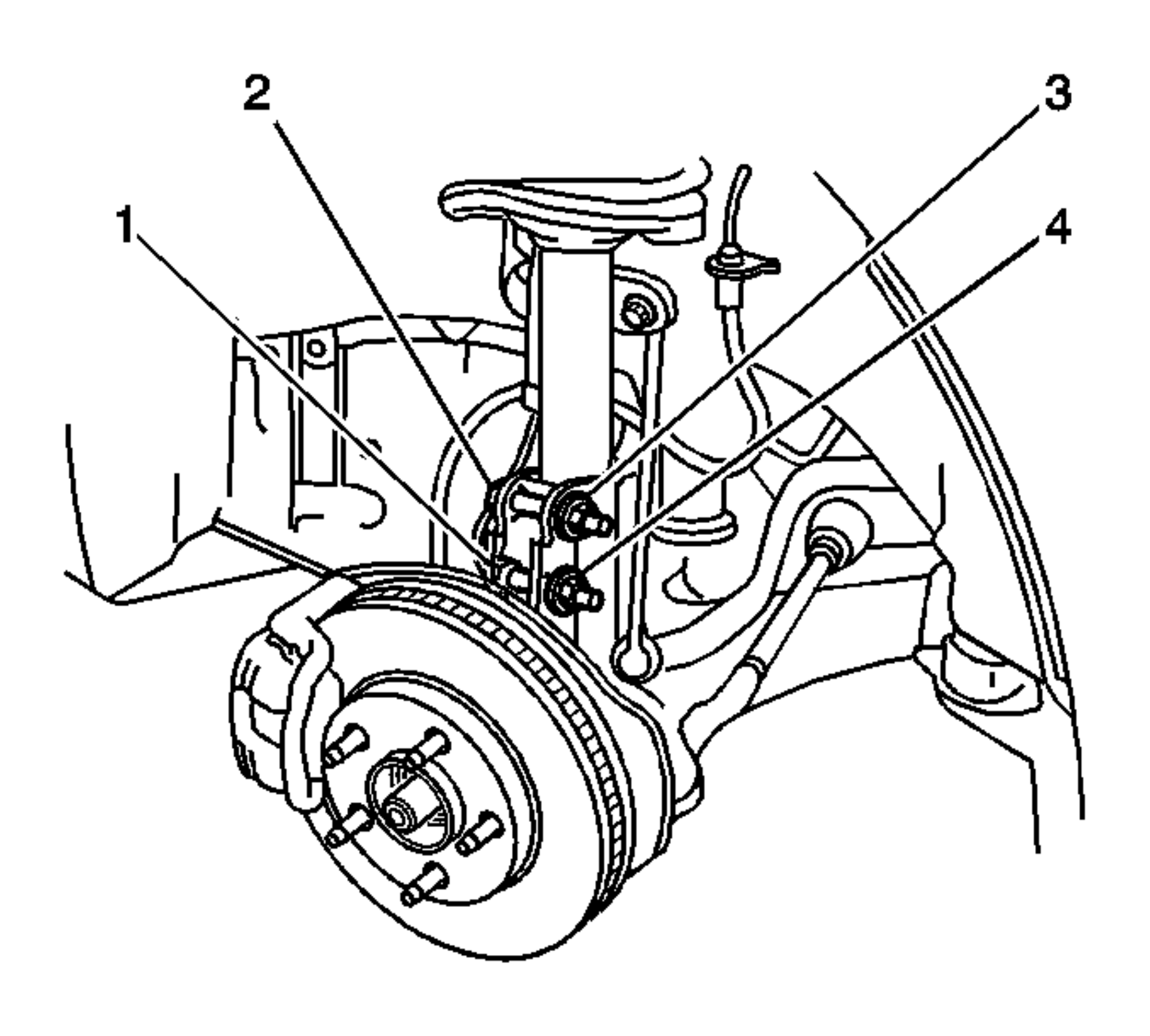

- Install the 2 bolts (1,2) and the 2 nuts (3,4) to the lower side of the strut assembly:
- Install the top of the strut assembly and the 3 nuts to the strut tower.
Tighten: Tighten the nuts to 39 N.m (28.8 lb ft).
- Tighten the nuts and the bolts on the lower side of the strut assembly.
Tighten: Tighten the nuts and bolts to 220 N.m (162.3 lb ft).
- If the vehicle has ABS, install the ABS wheel speed sensor to the knuckle. Refer to Wheel Speed Sensor Replacement - Front in Antilock Brake System.

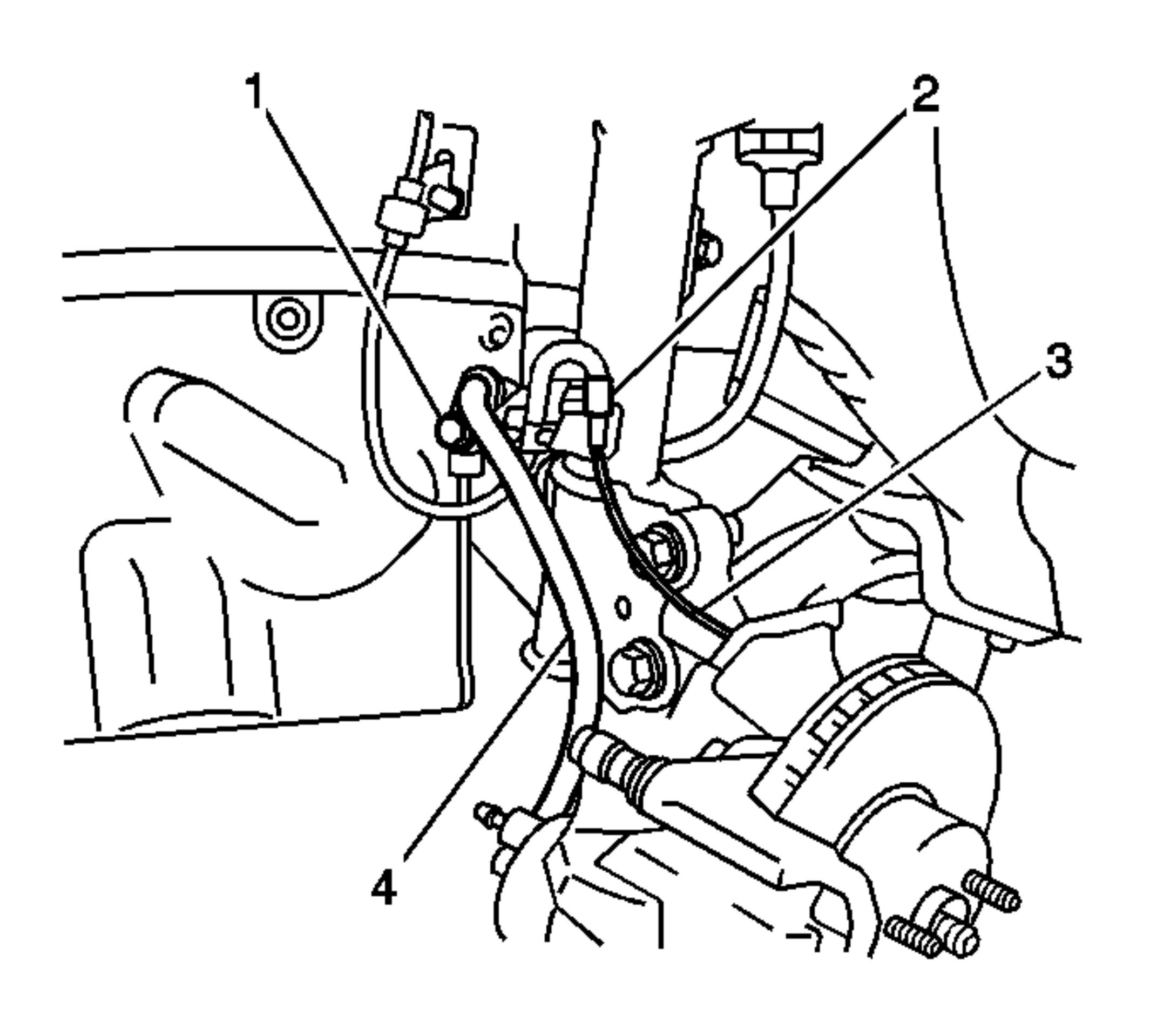

- Install the bolt (1) in order to retain the front brake hose to the bracket on the strut.
Tighten: Tighten the bolt to 29 N.m (21.4 lb ft).

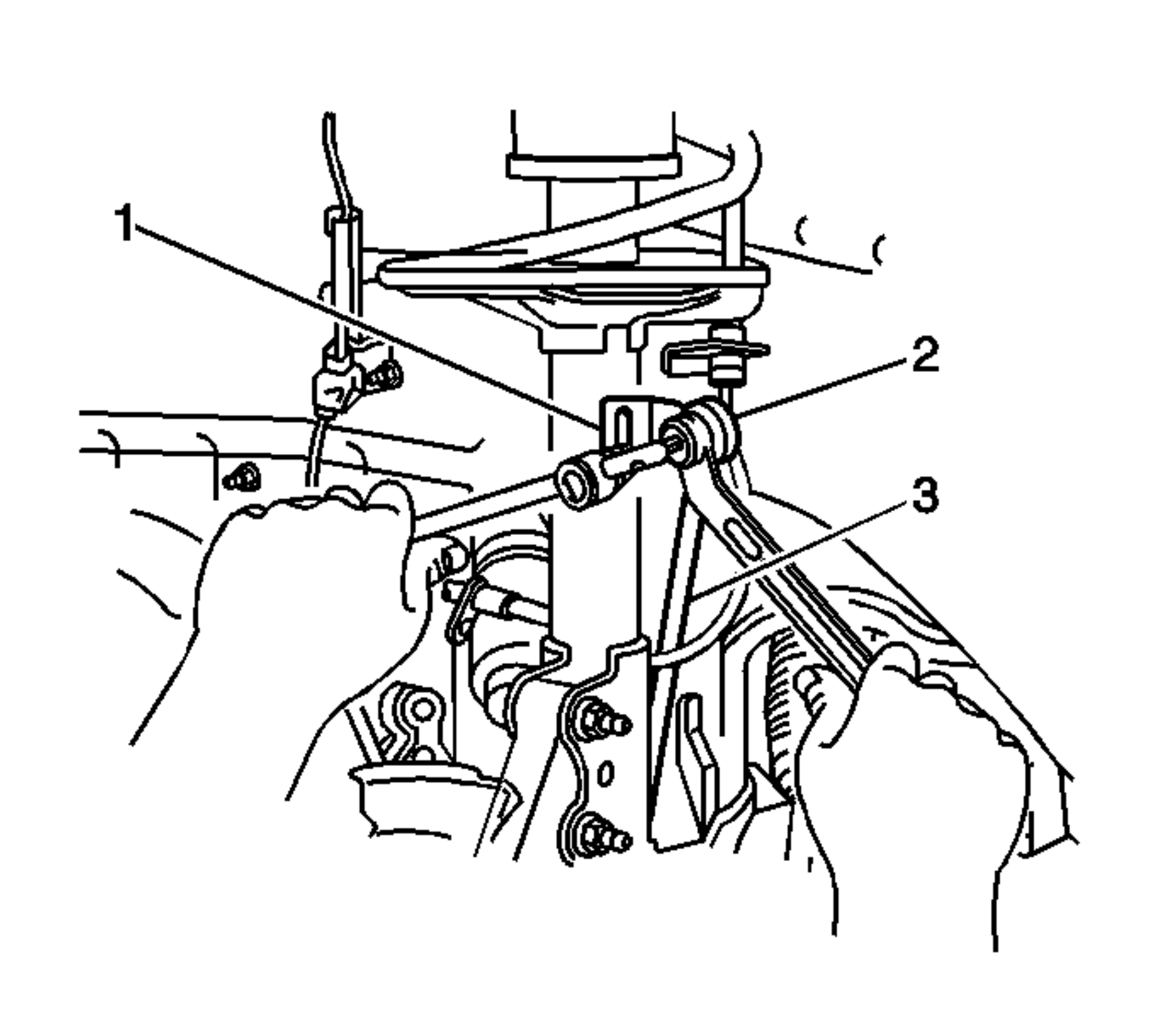

- Install the nut and the stud to the bracket (1) in order to connect the link (3) to the strut. Use a wrench in order to hold the front stabilizer shaft link stud.
Tighten: Tighten the nut to 74 N.m (54.6 lb ft).
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Lower the vehicle.
- Measure the front wheel alignment. Adjust the alignment if necessary. Refer to Measuring Wheel Alignment in Wheel Alignment.
NOTE:
Care should be taken to avoid scratching or cracking the spring coating when handling the front suspension coil spring. Damage can cause premature failure.
IMPORTANT:
Do not tighten the nuts or the bolts.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
