Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the coil spring and upper mounting plate to the J 45400.
Turn the spring compressor forcing screw (1) until the coil spring is compressed.
Install the shock absorber to the shock module.

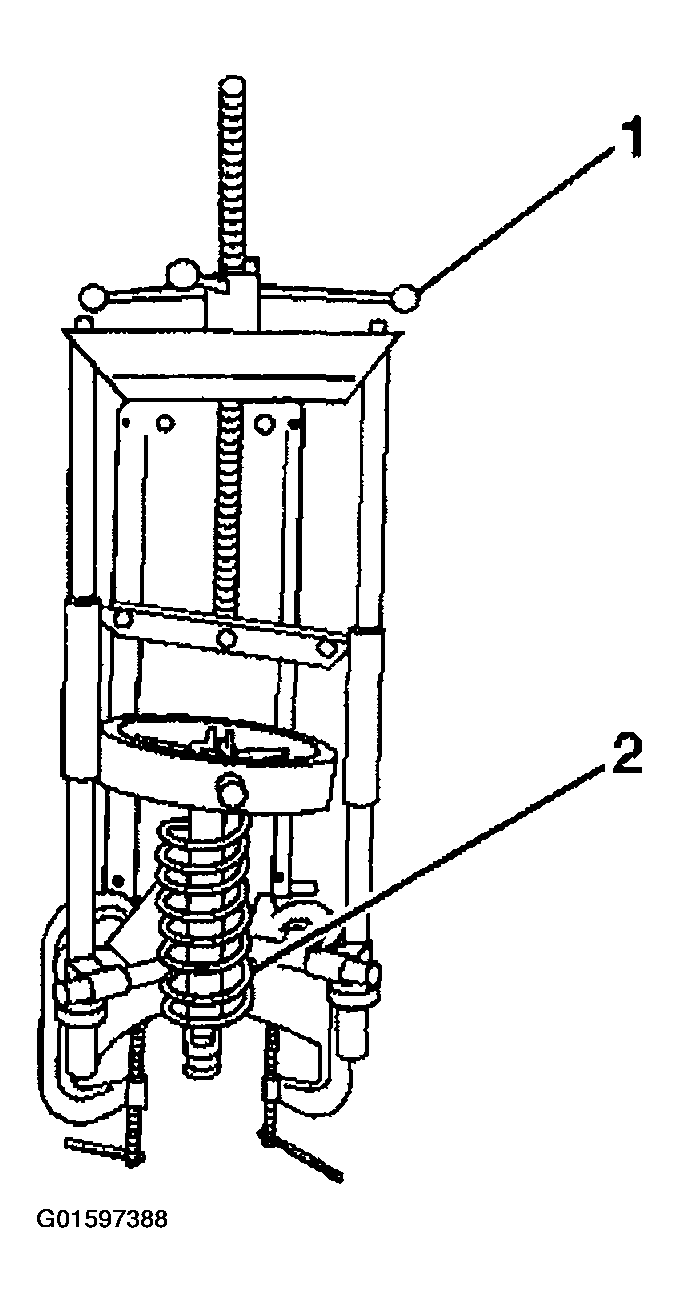

Fig 1: Turning Spring Compressor Forcing Screw
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the shock absorber retaining nut.
Tighten

Tighten the shock absorber retaining nut to 45 N.m (33 lb ft).

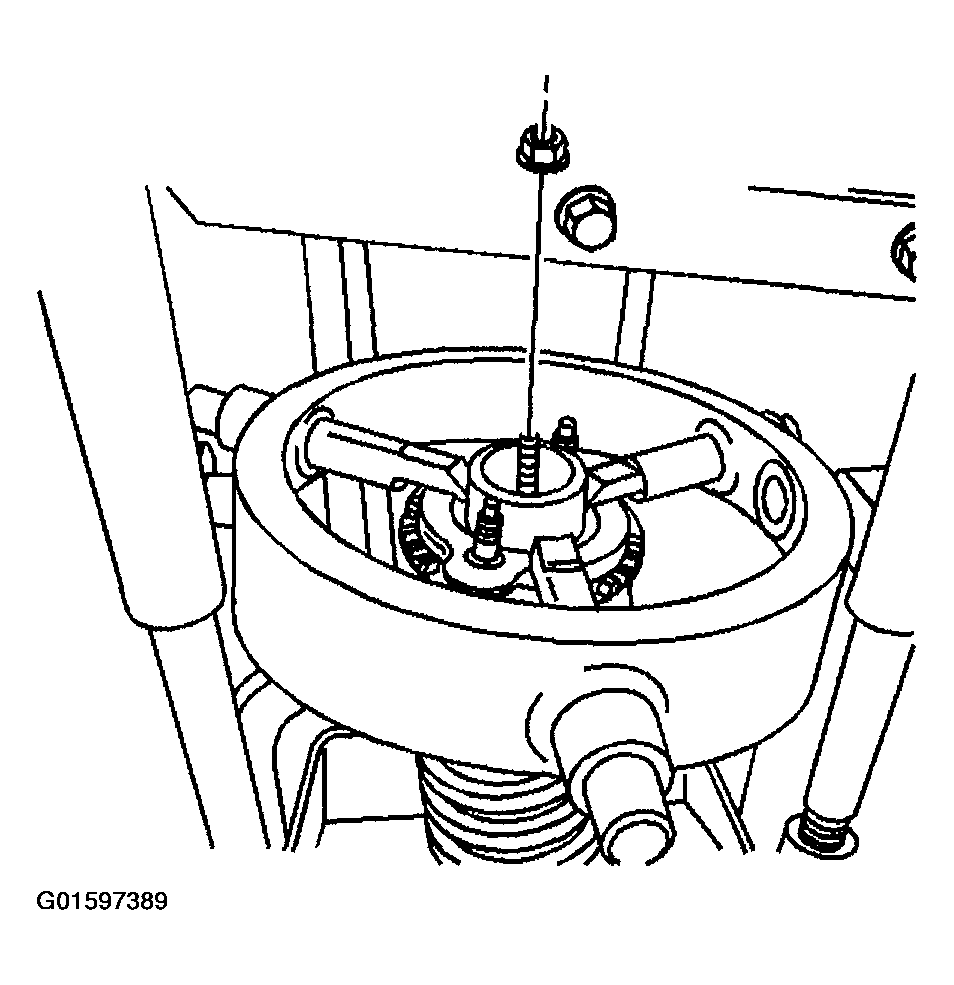

Fig 2: Installing Shock Absorber Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Remove the shock module (2) from the J 45400 (1).
Remove the pieces of heater hose from the shock module spring.

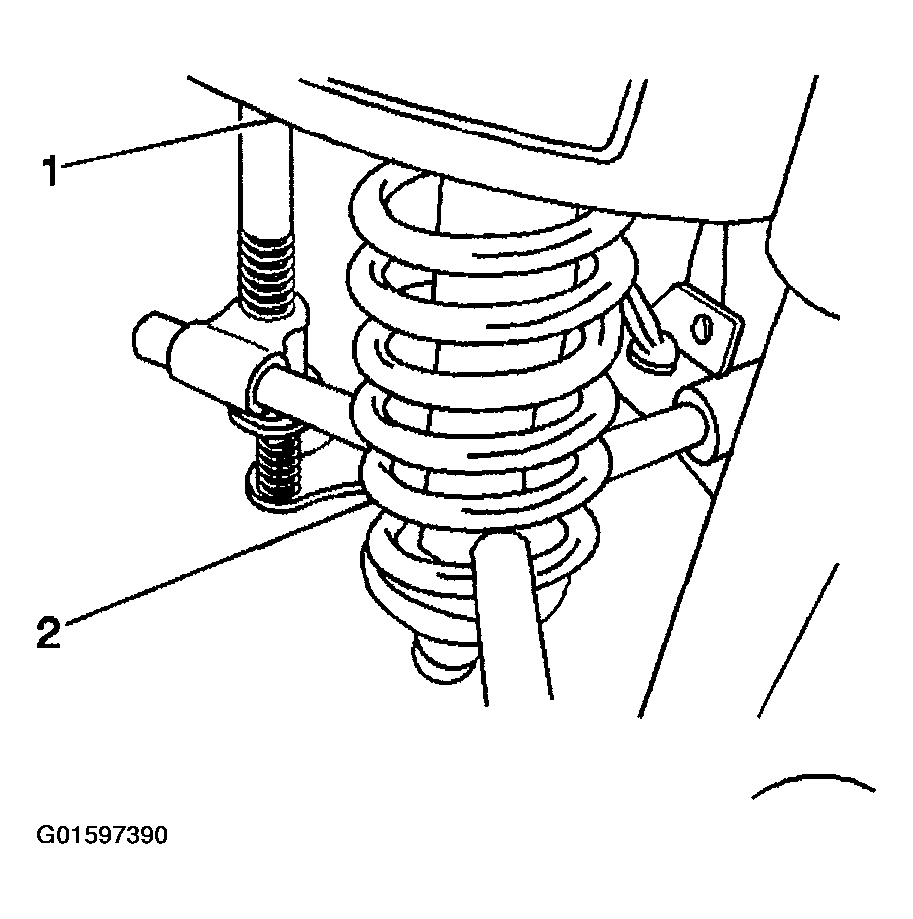

Fig 3: Removing Shock Module From Tool
Courtesy of GENERAL MOTORS CORP.
Install the shock module yoke to the shock absorber.
Install the shock module yoke to shock absorber pinch bolt and nut.
Tighten

Tighten the shock module yoke to shock absorber pinch bolt to 70 N.m (52 lb ft).
Install the shock module to the vehicle. Refer to SHOCK MODULE REPLACEMENT .
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.

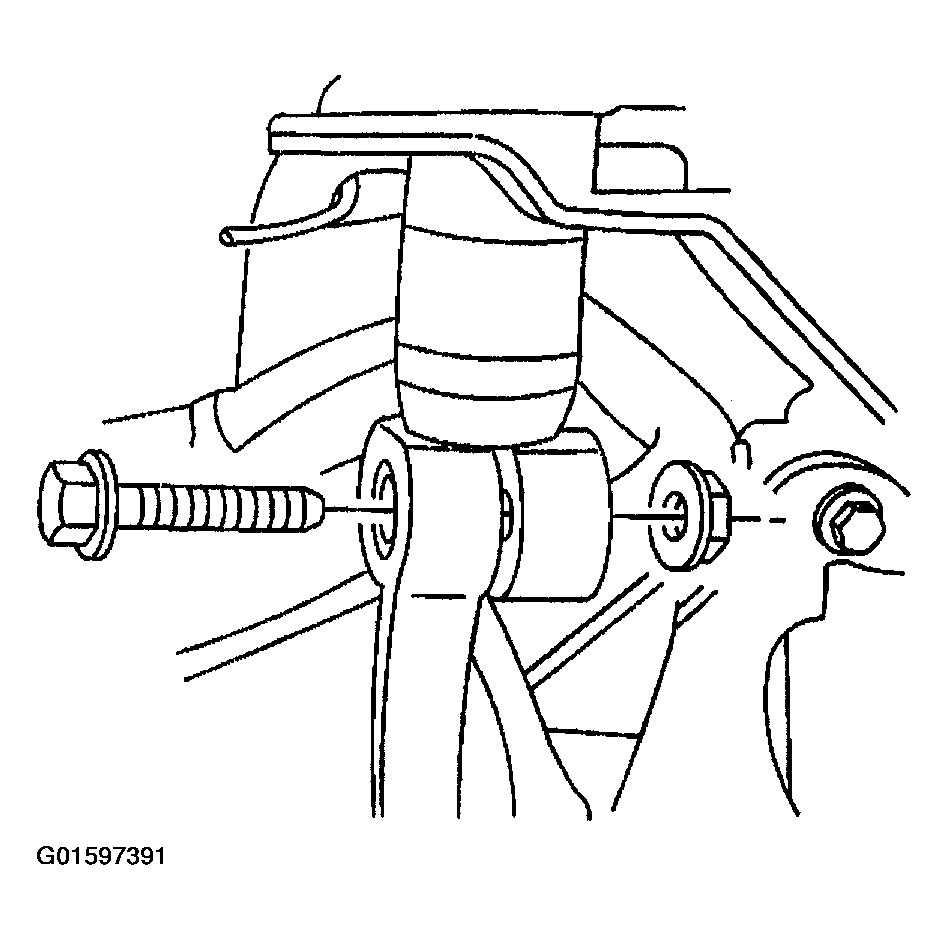

Fig 4: Installing Shock Module Yoke To Shock Absorber Pinch Bolt And Nut
Courtesy of GENERAL MOTORS CORP.
