Power Seat Systems Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Seat, LF
2	Power Seat Switches
3	Memory Seat Module

Fig 2: Memory/Heated Seat Switches Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Trim Panel, LF
2	Memory Seat Switch
3	Heated Seat Switch

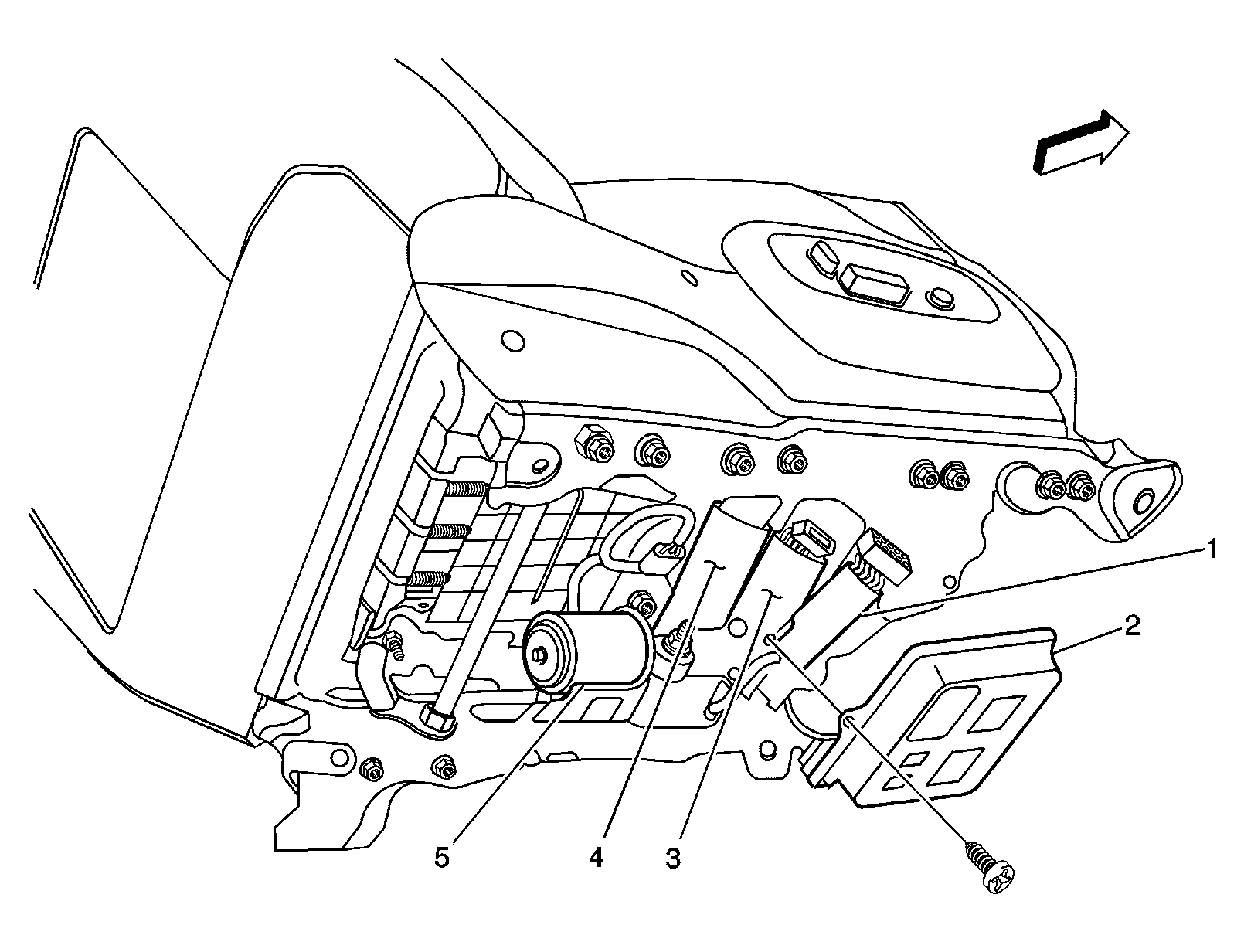

Fig 3: Front Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward-Rearward Motor
2	Heated Seat Module-Passenger
3	Vertical Motor, Front
4	Vertical Motor, Rear
5	Recline Motor

Fig 4: Passenger Seat Lumbar Actuators, Driver Seat Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Actuator-Vertical
2	Lumbar Position Sensor-Vertical
3	Lumbar Actuator-Horizontal
4	Lumbar Harness to Seat Back Harness Connector, C324
5	Seat Cushion

Fig 5: Passenger Heated Seat Elements, Driver Seat Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Element
2	Seat Cushion Heater Element (Under Seat Cover)
3	Seat Cover, Partially Removed
