Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .
  2. Remove the armrest, if equipped. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  3. Remove the seat back cover. Refer to Seat Back Cover And Pad Replacement-Rear   .
  4. Remove the bolts (1,2) that retain the latch assembly to the seat frame.
  5. Unsnap the recliner cables from the folding mechanism.
  6. Remove the seat back latch assembly from the seat frame.

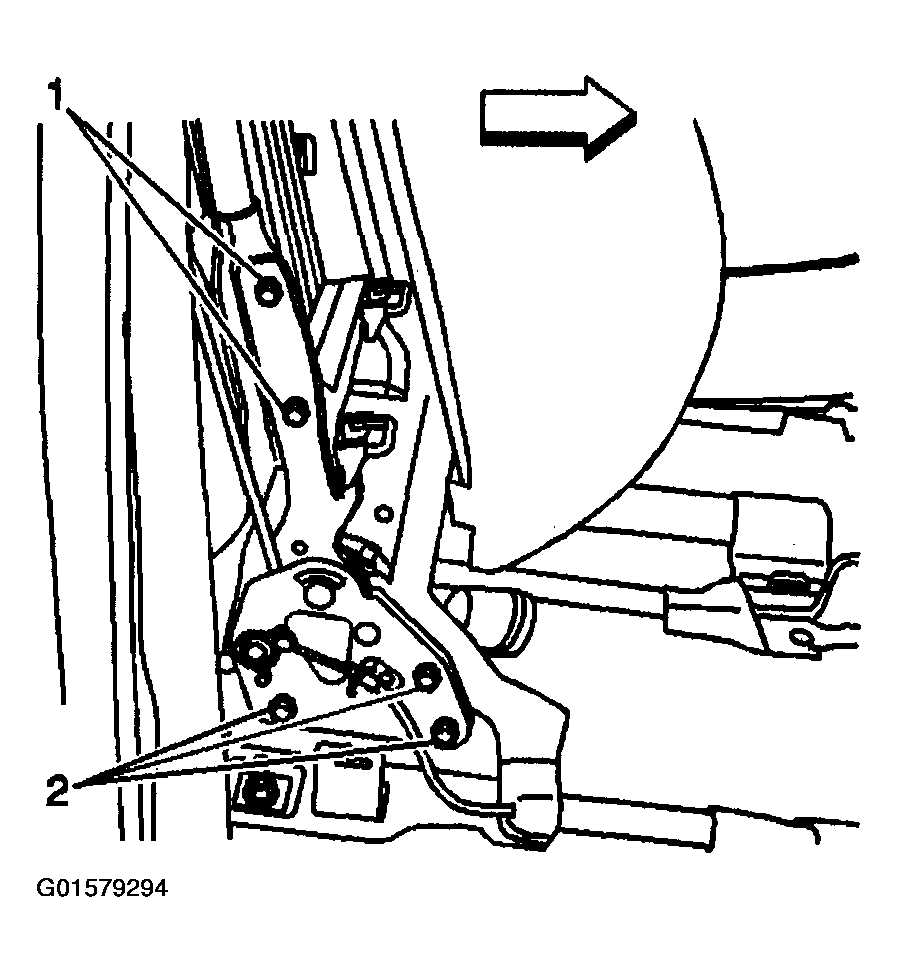

    Fig 1: Rear Seat Back Latch
    G01579294Courtesy of GENERAL MOTORS CORP.
