Stationary Windows Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connector (Headliner Harness)
2	Inside Rearview Mirror
3	Outside Moisture Sensor

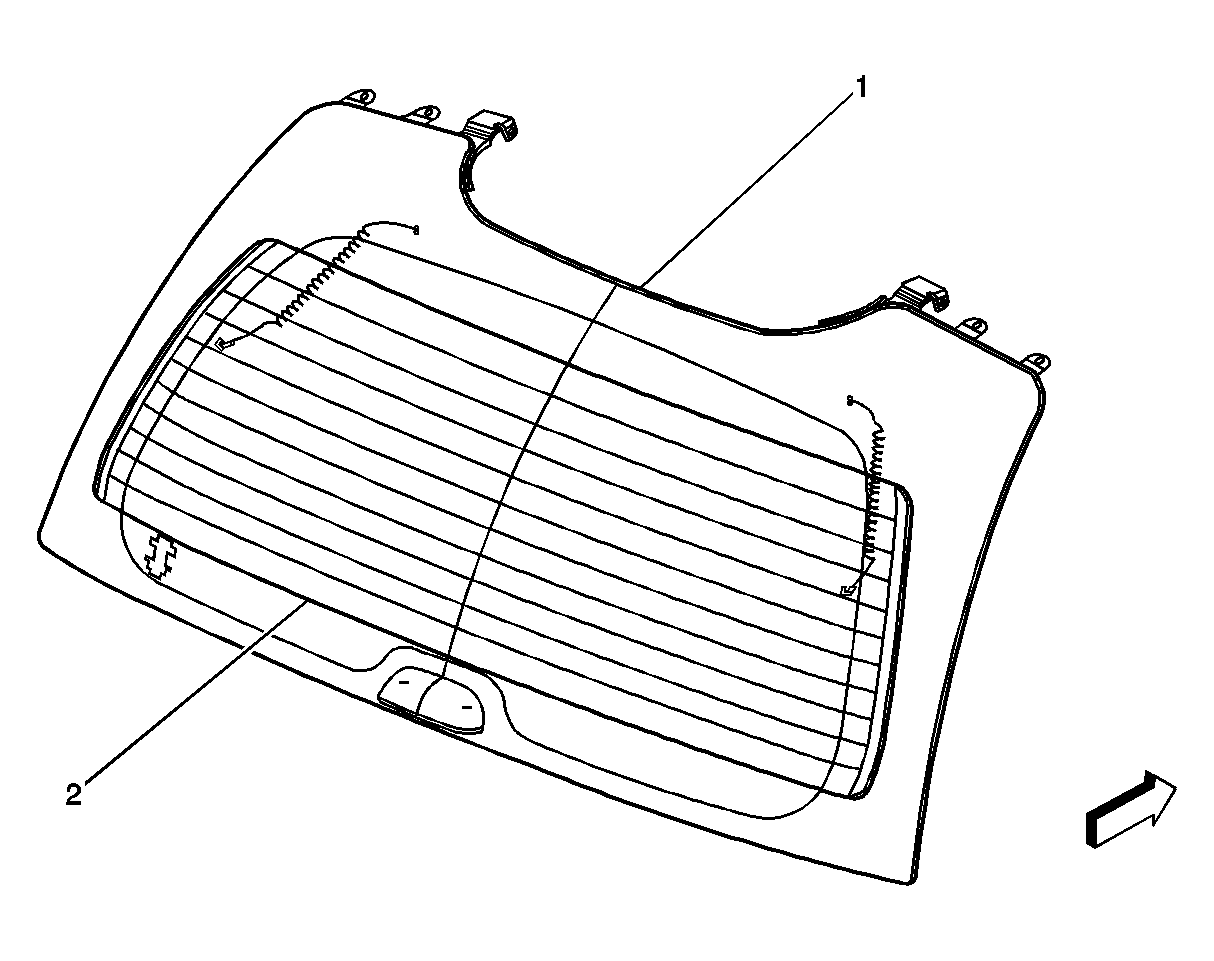

Fig 2: Rear Window Defogger Grid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftglass
2	Rear Window Defogger Grid
