Hybrid Energy Storage Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

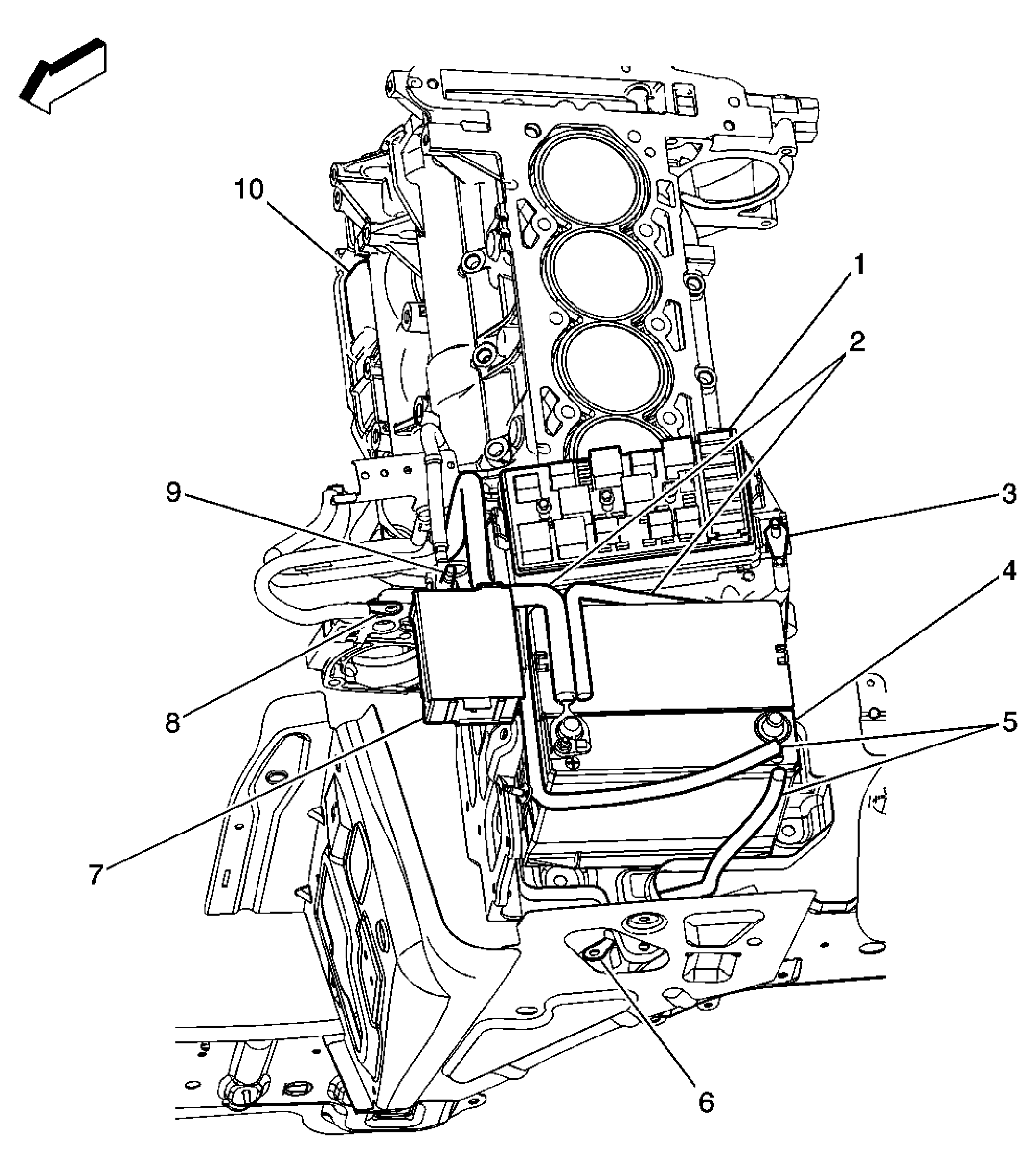

Fig 1: Left Side of Engine Compartment (1 Of 2)
GM1760371Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Positive Cables (12V)
3 Positive Battery Voltage
4 Battery - 12V
5 Negative Battery Cables
6 G103
7 Fuse Block - Underhood - Auxiliary
8 G105
9 Positive Battery Voltage
10 Engine Block

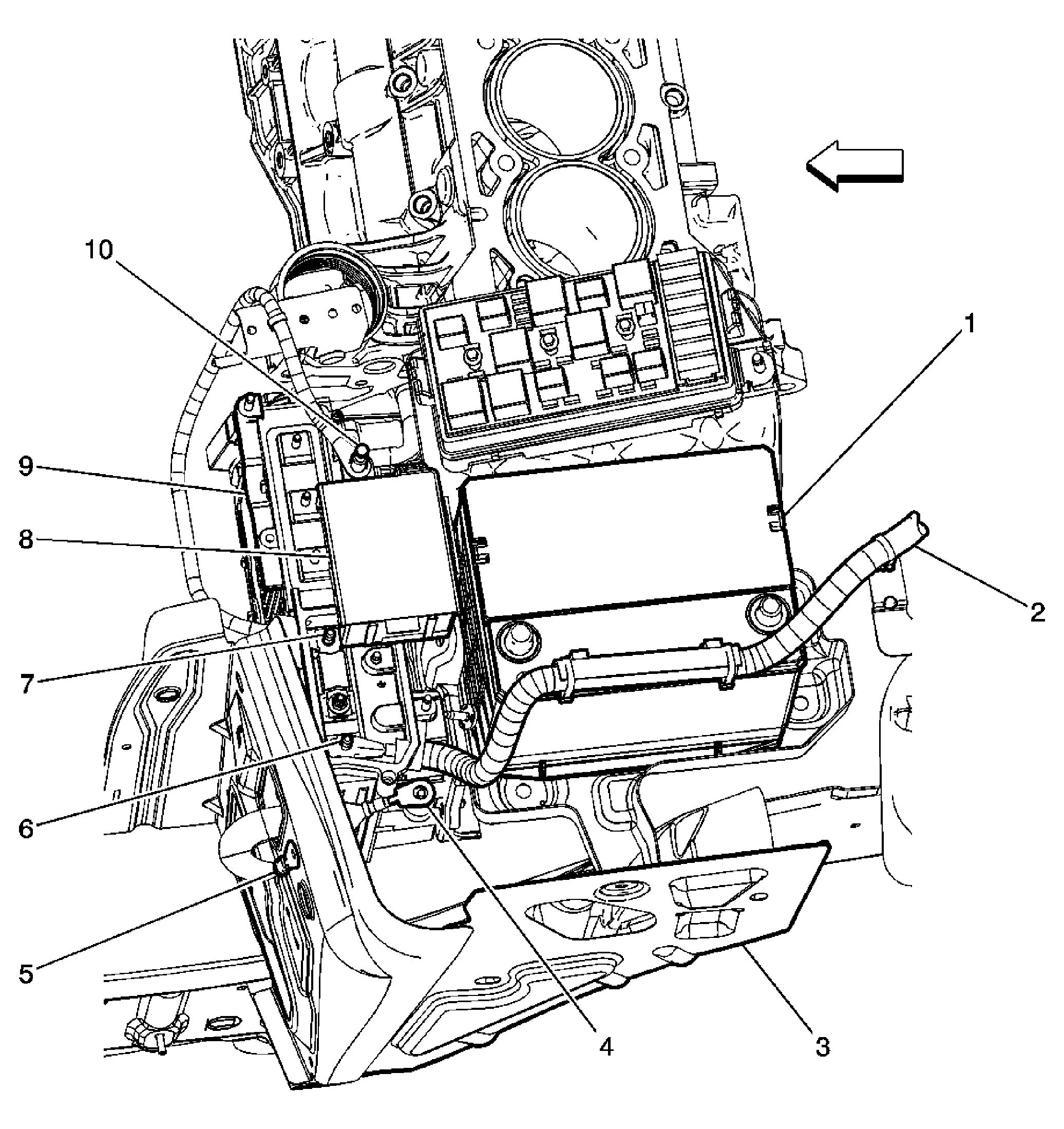

Fig 2: Left Side of Engine Compartment (2 Of 2)
GM1760381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery - 12V
2 Cable -36V
3 Wheel Well Panel - LF
4 PEB Case Ground
5 G?? PEB Ground
6 Positive Voltage - 36V
7 Positive Voltage - 36V
8 Fuse Block Underhood - Auxiliary
9 PEB Housing
10 Positive Voltage - 36V

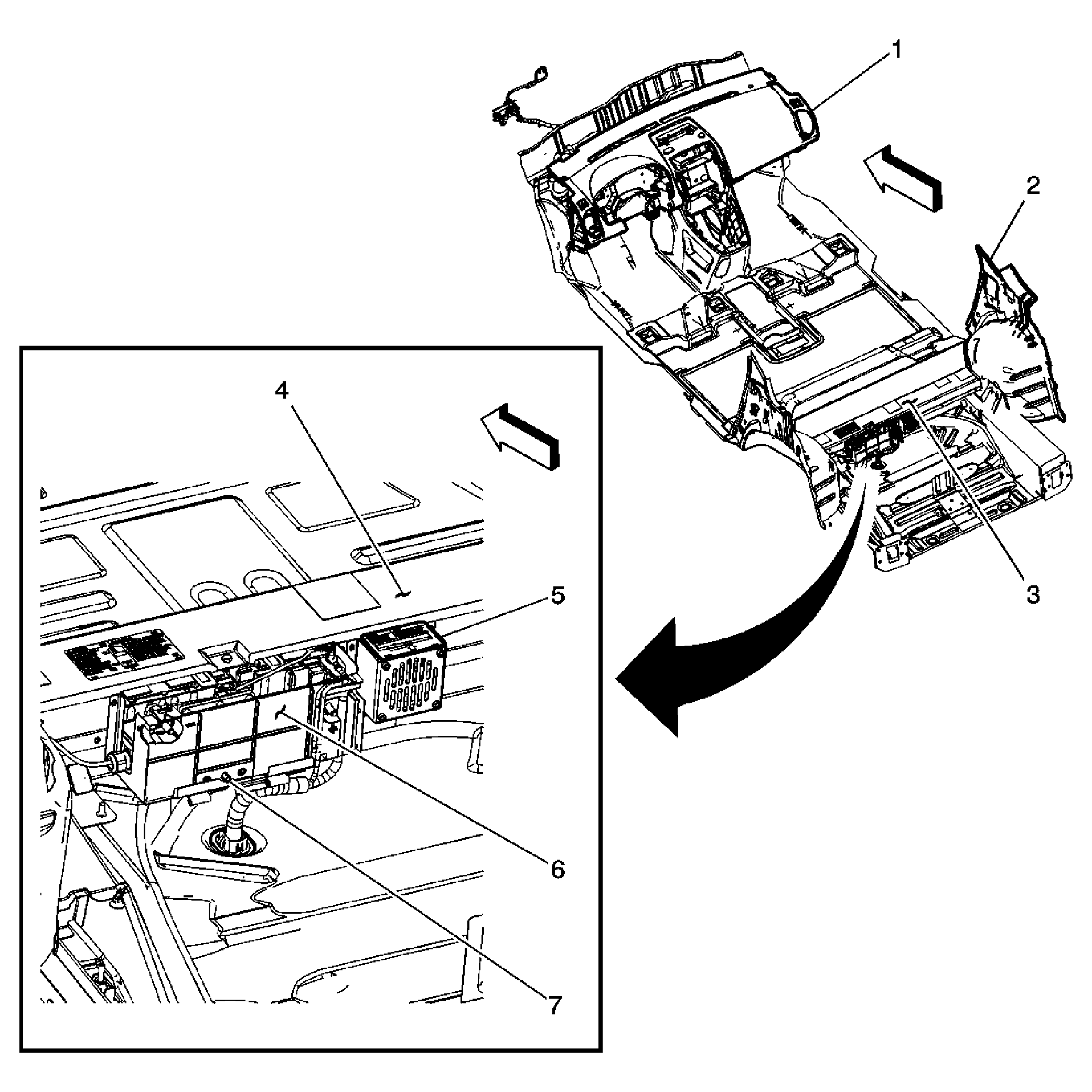

Fig 3: Above the Spare Tire
GM1760395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Wheel Well - RR
3 Generator Battery - 36V
4 Generator Battery - 36V
5 Generator Battery Vent Fan
6 Generator Battery Disconnect Control Module
7 Generator Battery Service Disconnect Switch
