Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

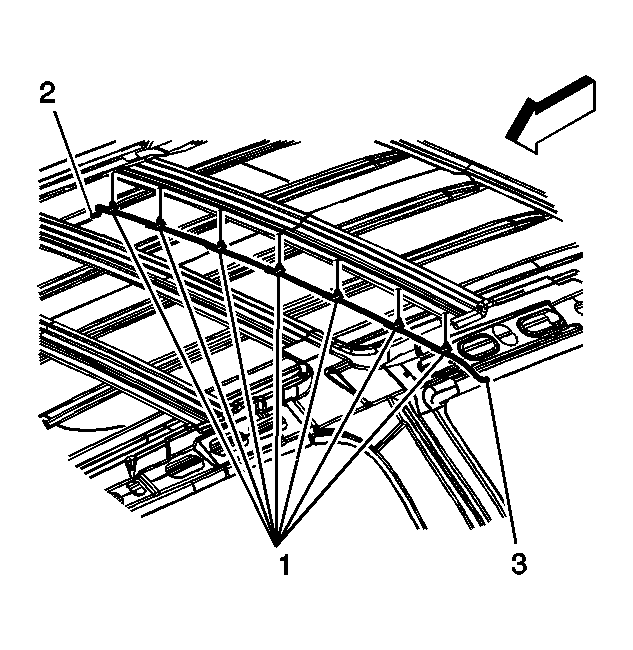

    Fig 1: Radio Antenna Module Cable (Between Both Modules)
    GM798115Courtesy of GENERAL MOTORS CORP.
  1. Install the cable to the roof cross member by pushing in the retainer clips (1).
  2. Connect the cable connector to the radio antenna module (2).
  3. Connect the cable connector to the radio control module (3).
  4. Install the headliner. Refer to HEADLINER REPLACEMENT .
