Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

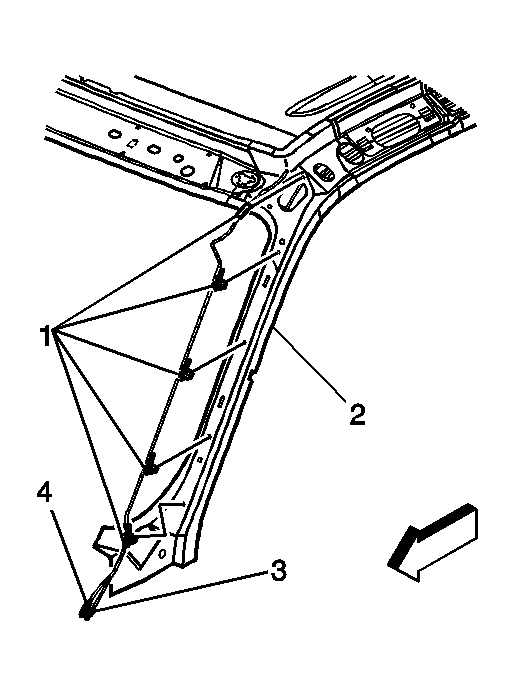

    Fig 1: Installing Cable Clips To A-Pillar & Cable To Radio
    GM798111Courtesy of GENERAL MOTORS CORP.
  1. Install the cable clips (1) to the A-pillar.
  2. Connect the electrical wire connector (4).
  3. Connect the cable (3) to the radio.

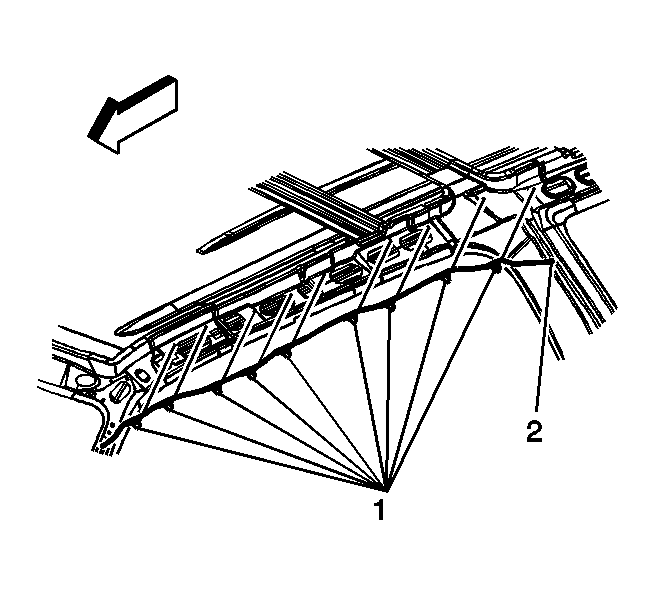

    4. Fig 2: Installing Cable Clips To Roof & Cable To Radio Antenna Module
    GM798113Courtesy of GENERAL MOTORS CORP.
  4. Install the cable clips (1) to the roof.
  5. Connect the cable (2) to the radio antenna module.
  6. Connect the wire connector to the radio antenna module.
    7. NOTE: Refer to FASTENER NOTICE .
  7. Install the bolt retaining the radio antenna module to the roof.

    Tighten:  Tighten the retaining bolt to 9 N.m (80 lb in).

  8. Install the headliner. Refer to HEADLINER REPLACEMENT .
  9. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P UPPER) .
