Propshaft Speed Sensor Connector End View - Rear

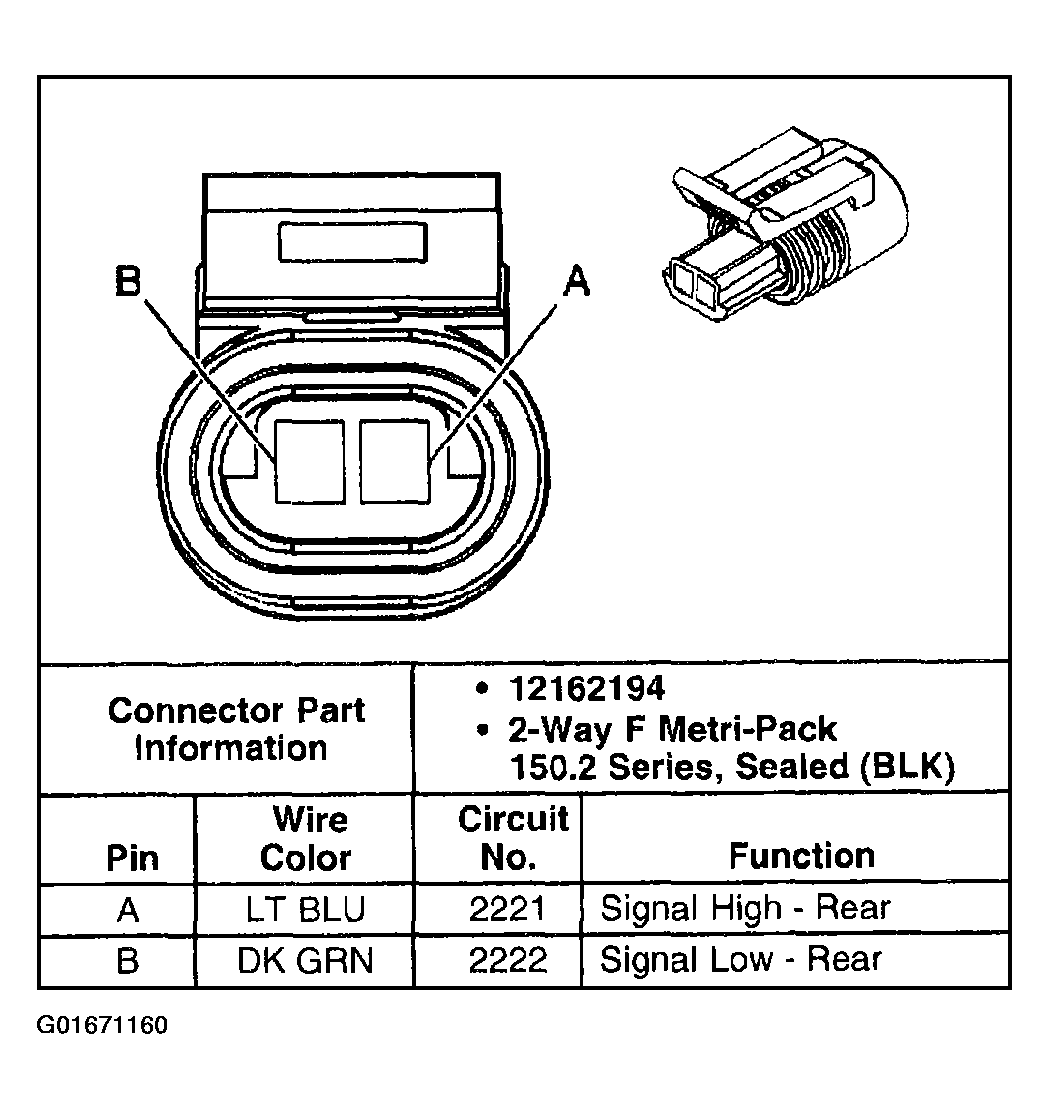

Fig 1: Propshaft Speed Sensor Connector End View - Rear
G01671160Courtesy of GENERAL MOTORS CORP.
