Installation Procedure

Important:  When installing the control switch, a snap should be felt or heard when it is properly seated.

  1. Install the electrical connectors in the transfer case control switch.
  2. Install the automatic transfer case switch into the instrument panel.

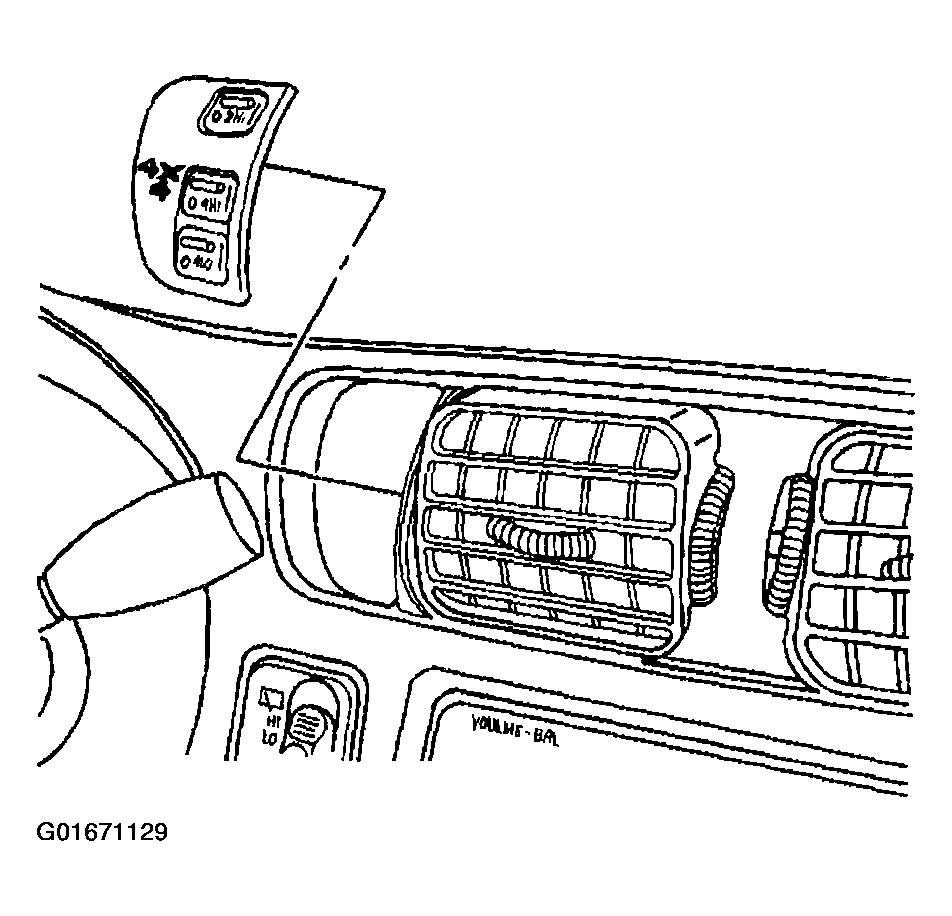

    Fig 1: Installing Automatic Transfer Case Switch Into Instrument Panel
    G01671129Courtesy of GENERAL MOTORS CORP.
