Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor Connector End View

GM334413Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11107
  • WHT
Pin Wire Color Function
1 GN/YE Daytime Running Lamps Control Module - Sensor Supply Voltage
2 - Not Used
3 GN/WH Daytime Running Lamps Control Module - Sensor Ground
4 GN/BK Daytime Running Lamps Control Module - Sensor Signal
Backup Lamp Switch (Manual Transmission) Connector End View

GM334916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11250
  • GRY
Pin Wire Color Function
1 RD/WH Backup Lamp Feed Circuit
2 RD/BK Backup Lamp Control Circuit
Center High Mounted Stop Lamp Connector End View

GM334414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11148
  • WHT
Pin Wire Color Function
1 GN/WH Brake Signal
2 WH/BK Ground
Cigar Lighter Illumination Lamp Connector End View

GM334414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11148
  • GRY
Pin Wire Color Function
1 WH/BK Illumination Negative
2 GN Illumination Positive
Daytime Running Lamps (DRL) Control Module Connector End View

GM820223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12034
  • WHT
Pin Wire Color Function
A RD/BK Low Beam Control
B WH/BK Ground
1 RD/BK Battery Voltage
2 GN/OR Fog Lamp Relay Control
3 RD Headlamps ON Indicator Control
4 RD/YE Headlamp Relay Control
5 RD Headlamps ON/Low Beam Position
6 YE Generator Load Signal
7 WH/BK Ground
8 RD/WH Brake Signal
9 RD/BK Park Brake Switch Signal
10 RD/WH Ignition Voltage
11 WH/RD DIM Relay Control
12 GN/BK TAIL Relay Control
13 GN/WH Park Lamps Signal
14 RD/WH High Beam/Flash Signal
15 - Not Used
16 GN/RD Ambient Light Sensor Ground
17 GN/OR Ambient Light Sensor Signal
18 GN/YE Ambient Light Sensor Supply Voltage
Flasher Relay Connector End View

GM899504Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10799
  • BLK
Pin Wire Color Function
1 RD/WH Ignition Voltage
2 GN/YE LH Turn Signal Supply Voltage Circuit
3 GN/BK RH Turn Signal Supply Voltage Circuit
4 GN/WH Battery Voltage
5 GN/RD Left Turn Signal/ Signal
6 GN/OR Right Turn Signal/ Signal
7 WH/BK Ground
8 YE/BK Hazard Switch Control Circuit
Front Dome Lamp Connector End View

GM820083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10908
  • WHT
Pin Wire Color Function
1 RD/YE Front Dome Lamp Control Circuit
2 BU/WH Front Dome Lamp Feed Circuit
3 - Not Used
Hazard Switch Connector End View

GM334473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10801
  • BLK
Pin Wire Color Function
1 WH/BK Ground
2-3 - Not Used
4 YE/BK Hazard Control Circuit
5-7 - Not Used
8 GN Illumination Lamp Positive
9 WT/BK Illumination Lamp Negative
10 - Not Used
I/P Lamp Dimmer Connector End View

GM820659Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11989
  • BLK
Pin Wire Color Function
1 RD/WH Courtesy Lamps Control Circuit
2 GN Instrument Panel Illumination Supply Voltage
3 BK Instrument Panel Cluster
4 GN Instrument Panel Lamp Dimmer Feed Circuit
5 WH/RD Instrument Panel Cluster
6 - Not Used
7 WH/BK Ground
8 RD/BK Front and Rear Dome Lamp Control Circuit
Left Backup and Rear Fog Lamp Connector End View

GM820094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11132
  • GRY
Pin Wire Color Function
1 RD Rear Fog Lamp Feed Circuit
2 RD/BK Backup Lamp Feed Circuit
3 WH/BK Ground
Left Fog Lamp Connector End View

GM820254Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-98038
  • GRY
Pin Wire Color Function
A WH/BK Ground
B RD Fog Lamp Feed Circuit
Left Front Park/Turn Lamp Connector End View

GM334421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11020
  • GRY
Pin Wire Color Function
1 GN Park Lamp Feed Circuit
2 WH/BK Ground
3 GN/BK Turn Signal Feed Circuit
Left Headlamp Connector End View

GM334948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11314
  • BLK
Pin Wire Color Function
1 RD/BK Low Beam Control
2 RD/WH High Beam Control
3 RD/WH Headlamp Supply Voltage
Left License Plate Lamp Connector End View

GM334414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11148
  • GRY
Pin Wire Color Function
1 WH/BK Ground
2 GN License Plate Lamp Feed Circuit
Left Rear Turn Lamp Connector End View

GM335004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10825
  • GRY
Pin Wire Color Function
1 WH/BK Ground
2 GN/BK Turn Lamp Feed Circuit
Left Tail/Stop Lamp Connector End View

GM820083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10908
  • WHT
Pin Wire Color Function
1 WH/BK Ground
2 GN Tail Lamp Feed Circuit
3 GN/WT Stop Lamp Feed Circuit
Park/Neutral Position (PNP) Switch Connector End View

GM820186Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11784
  • GRY
Pin Wire Color Function
1 - Not Used
2 RD/BK Backup Lamp Supply Voltage
3 RD/WH PNP Switch Feed Circuit
4 LT GN 2nd Gear Position Signal
5 - Not Used
6 BK Start Position Signal
7 BU Drive Position Signal
8 LT GN/BK Low Position Signal
9 RD PNP Switch Feed Circuit
Rear Dome Lamp Connector End View

GM820083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10908
  • WHT
Pin Wire Color Function
1 RD/YE Rear Dome Lamp Control Circuit
2 BU/WH Rear Dome Lamp Feed Circuit
3 - Not Used
Right Backup and Rear Fog Lamp Connector End View

GM820094Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11132
  • GRY
Pin Wire Color Function
1 RD Rear Fog Lamp Feed Circuit
2 RD/BK Backup Lamp Feed Circuit
3 WH/BK Ground
Right Fog Lamp Connector End View

GM820254Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-98038
  • GRY
Pin Wire Color Function
A WH/BK Ground
B RD Fog Lamp Feed Circuit
Right Front Park/Turn Lamp Connector End View

GM334421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11020
  • WHT
Pin Wire Color Function
1 GN Right Park Lamp Feed Circuit
2 WH/BK Ground
3 GN/WH Right Turn Signal Feed Circuit
Right Headlamp Connector End View

GM334948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11314
  • BLK
Pin Wire Color Function
1 RD/BK Low Beam Feed Circuit
2 RD/WH High Beam Feed Circuit
3 RD Ground
Right License Plate Lamp Connector End View

GM334414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11148
  • GRY
Pin Wire Color Function
1 WH/BK Ground
2 GN Right License Plate Lamp Feed Circuit
Right Rear Turn Lamp Connector End View

GM335004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10825
  • GRY
Pin Wire Color Function
1 WH/BK Ground
2 GN/YE Turn Lamp Feed Circuit
Right Tail/Stop Lamp Connector End View

GM820083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-10908
  • WHT
Pin Wire Color Function
1 WH/BK Ground
2 GN Tail Lamp Feed Circuit
3 GN/WH Stop Lamp Feed Circuit
Stop Lamp Switch Connector End View

GM334422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11118
  • BLU
Pin Wire Color Function
1 GN/WH Stop Lamp Switch Signal Circuit
2 RD/WH Stop Lamp Switch Feed Circuit
3 GN/OR Cruise Control Servo Interrupt Circuit
4 RD/YE Cruise Control Module Interrupt Circuit

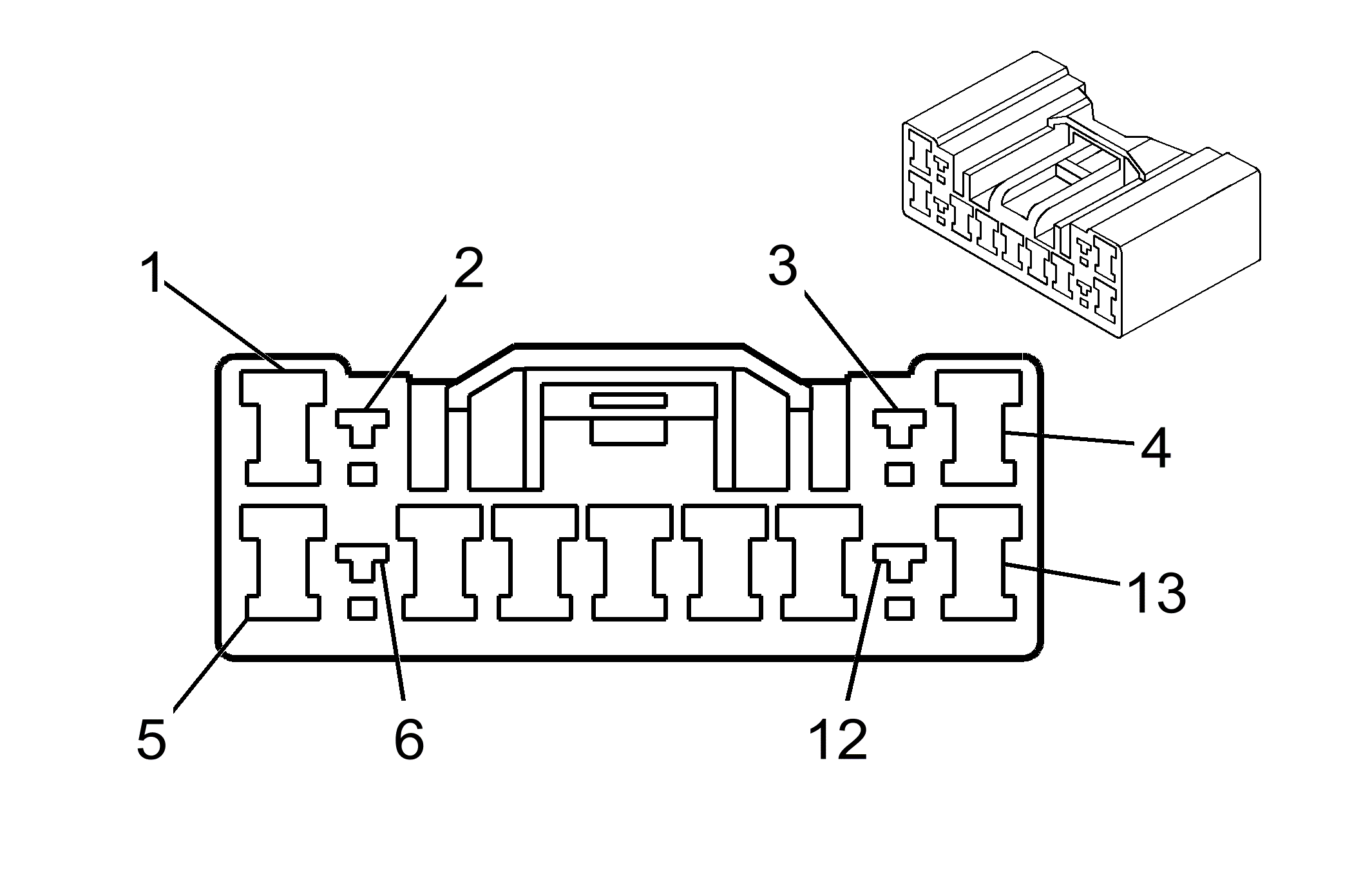

Turn Signal/Headlamp Switch Connector End View

GM820208Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12007
  • WHT
Pin Wire Color Function
1 - Not Used
2 RD/YE Fog Lamp Relay Control-Fog Lamp Switch
3 - Not Used
4 GN/OR Fog Lamp Relay Control-DRL Control Module
5 GN/RD Left Turn Signal/ Signal
6 WH/BK Ground
7 GN/OR Right Turn Signal/ Signal
8 RD Low Beam Signal
9 RD/WH High Beam Signal
10 WH/BK Ground
11 WH/BK Ground
12 RD Low Beam ON Signal
13 GN/WH Park Lamps ON Signal
