Entertainment Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Radio Antenna Cable Component View (Chevrolet)
GM749963Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cowl
2 Radio Antenna Cable
3 Hood Hinge Bracket
Fig 2: Radio Antenna Cable Routing (Chevrolet Only)
GM749970Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna Cable
2 Air Distributor Duct
3 Instrument Carrier Support
Fig 3: Voice Recorder Component View
GM796587Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Overhead Console
2 Voice Recorder
3 C305
Fig 4: Speaker-RF Instrument Panel Component View
GM749968Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel (IP)
2 Speaker-RF IP

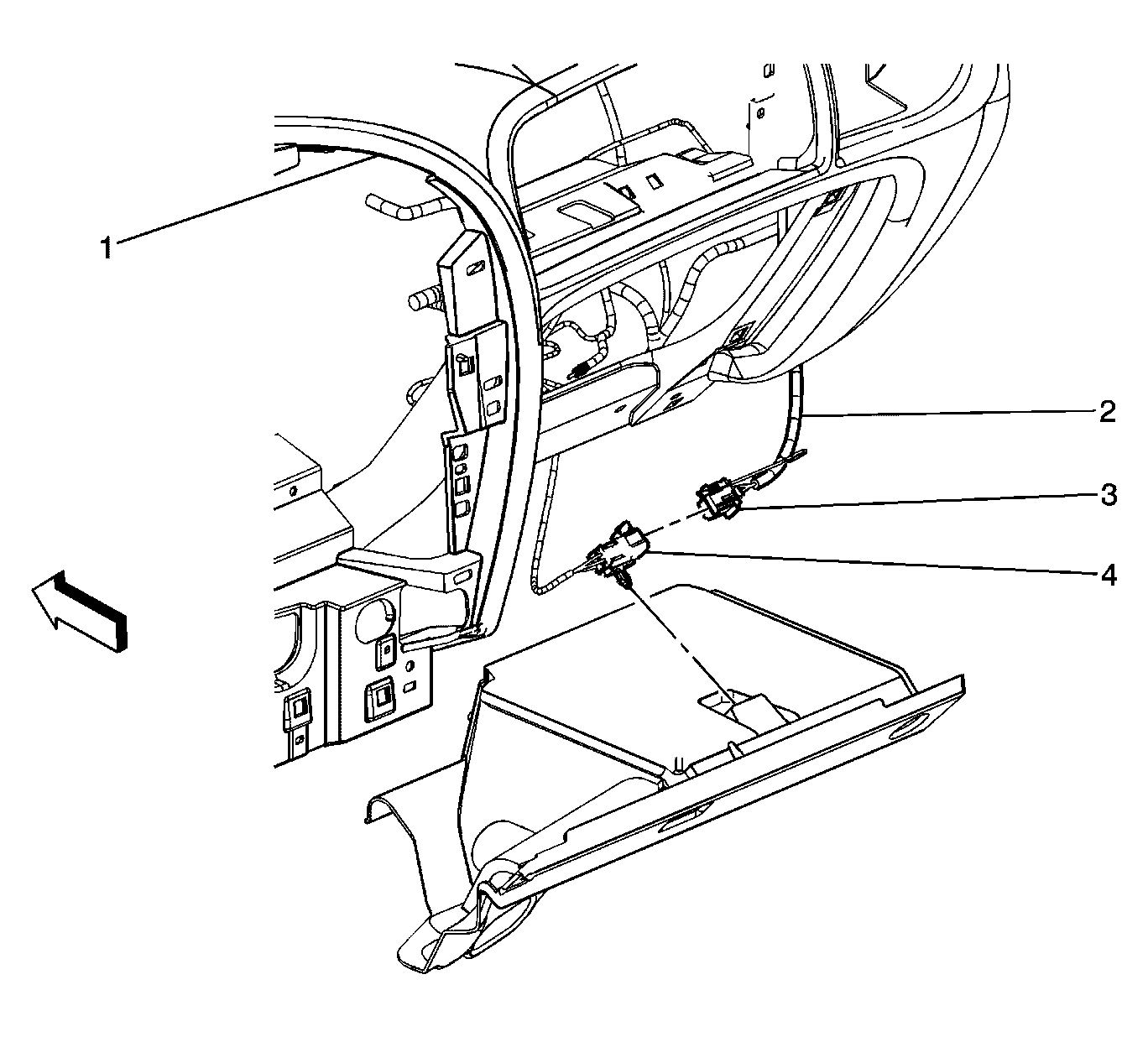

Fig 5: Instrument Panel Component View, Right Side
GM879165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Body Harness
3 C203, Body Harness
4 C203, I/P Harness

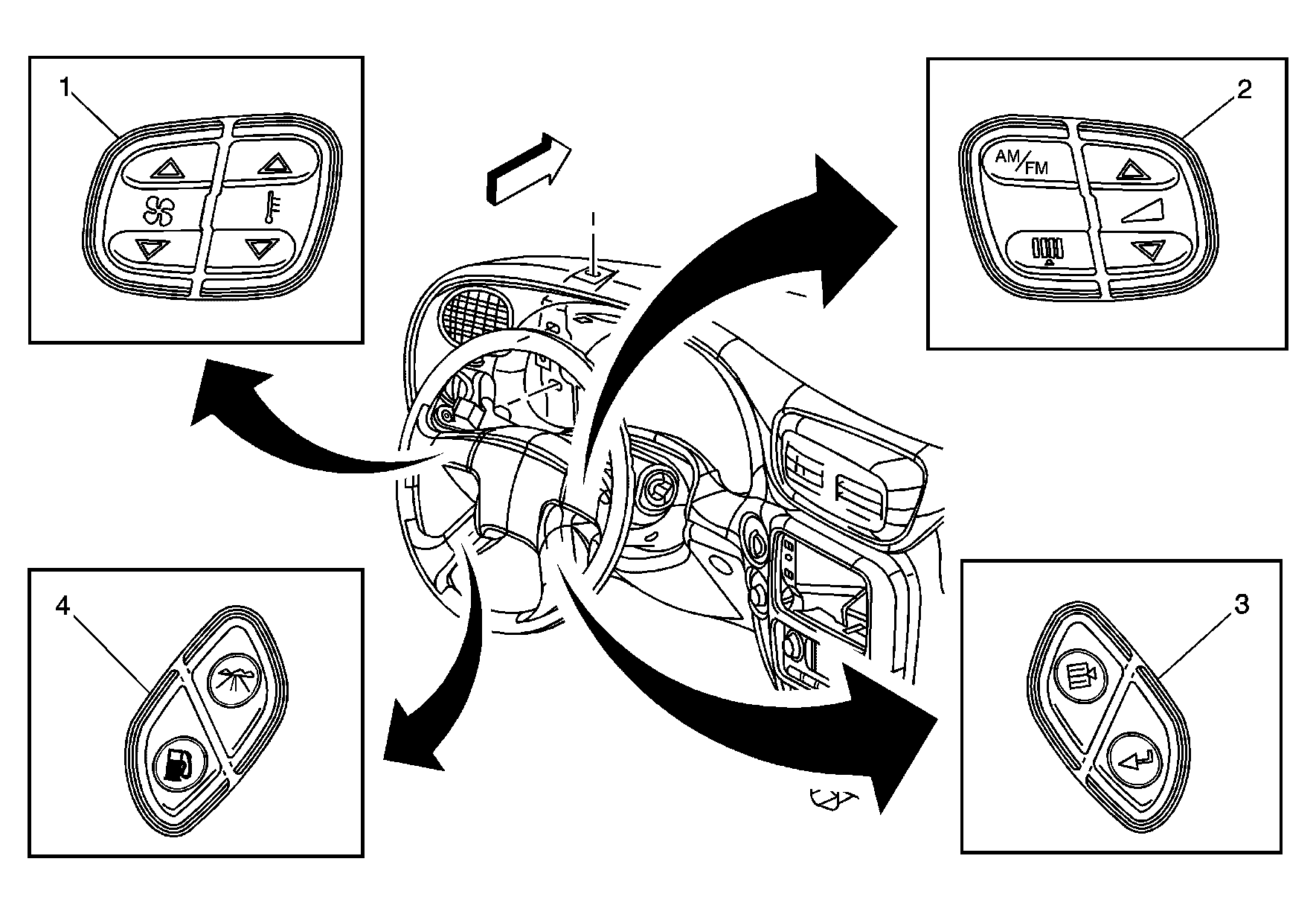

Fig 6: Steering Wheel Controls Component View
GM894975Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Control Switch
2 Radio Control Switch
3 Driver Information Switch
4 Driver Information Switch-Fuel/Trip
Fig 7: Radio Component View
GM749971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Radio Antenna
3 Radio
4 Instrument Panel Harness
Fig 8: Overhead Console Component View
GM906337Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cellular Microphone
2 Noise Reduction Microphone
3 Overhead Console
Fig 9: Digital Video Disc (DVD) Display Screen Component View
GM826163Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 DVD Display Screen
2 Overhead Console

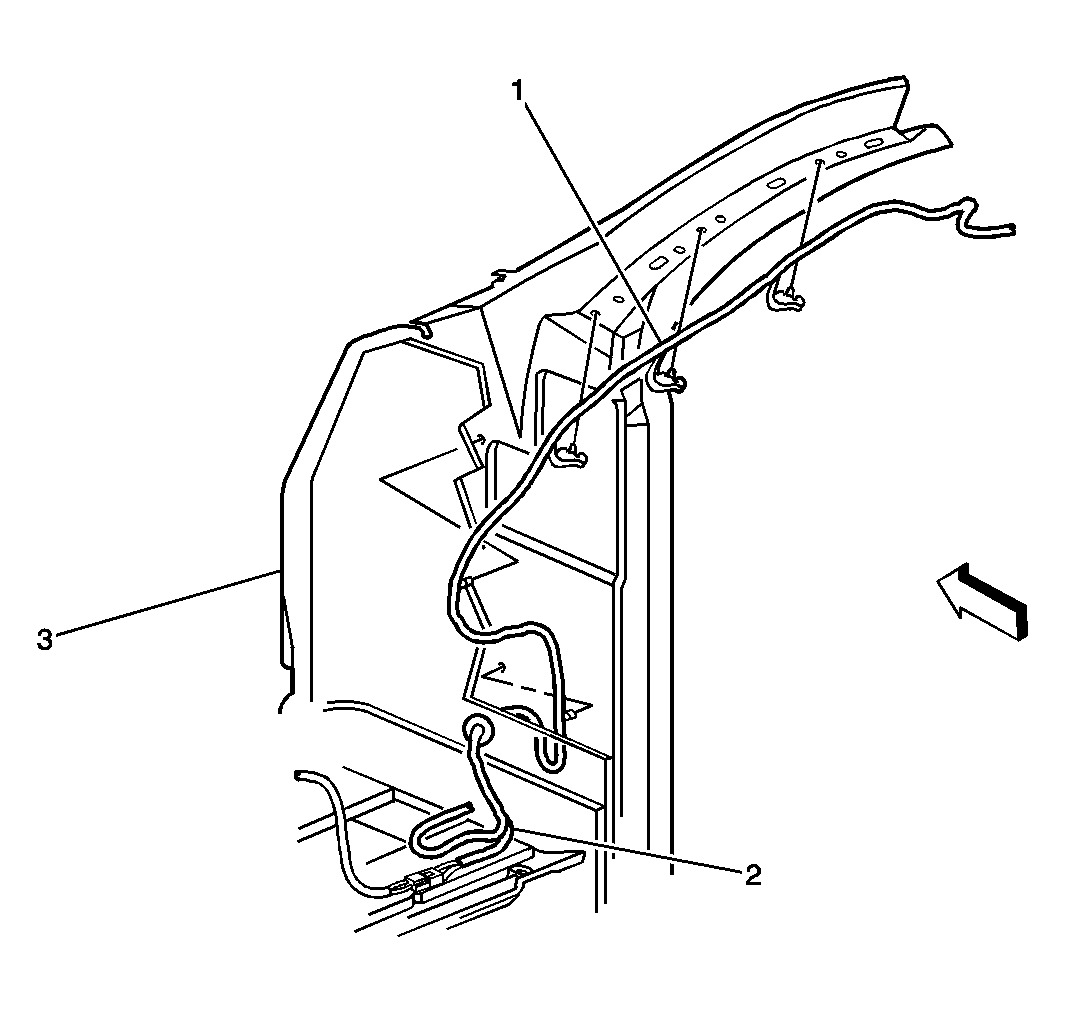

Fig 10: Radio Diversity Antenna Component View
GM749966Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner Harness
2 Diversity Antenna
3 A-Pillar
Fig 11: Speaker Component View-LF Door
GM749973Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-LF
2 Speaker-LF Door
Fig 12: Rear Seat Audio Component View (RSA)
GM749975Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Audio (RSA)
Fig 13: Speaker Component View-LR Door
GM749978Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-LR
2 Speaker-LR Door
Fig 14: Audio Amplifier Component View, Short Wheelbase Body Type VIN 3
GM749983Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Inner Lower Panel-Right
2 Audio Amplifier
Fig 15: Audio Amplifier Component View, Long Wheelbase Body Type VIN 6
GM825635Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Audio Amplifier
2 Body Side Inner Panel-Left

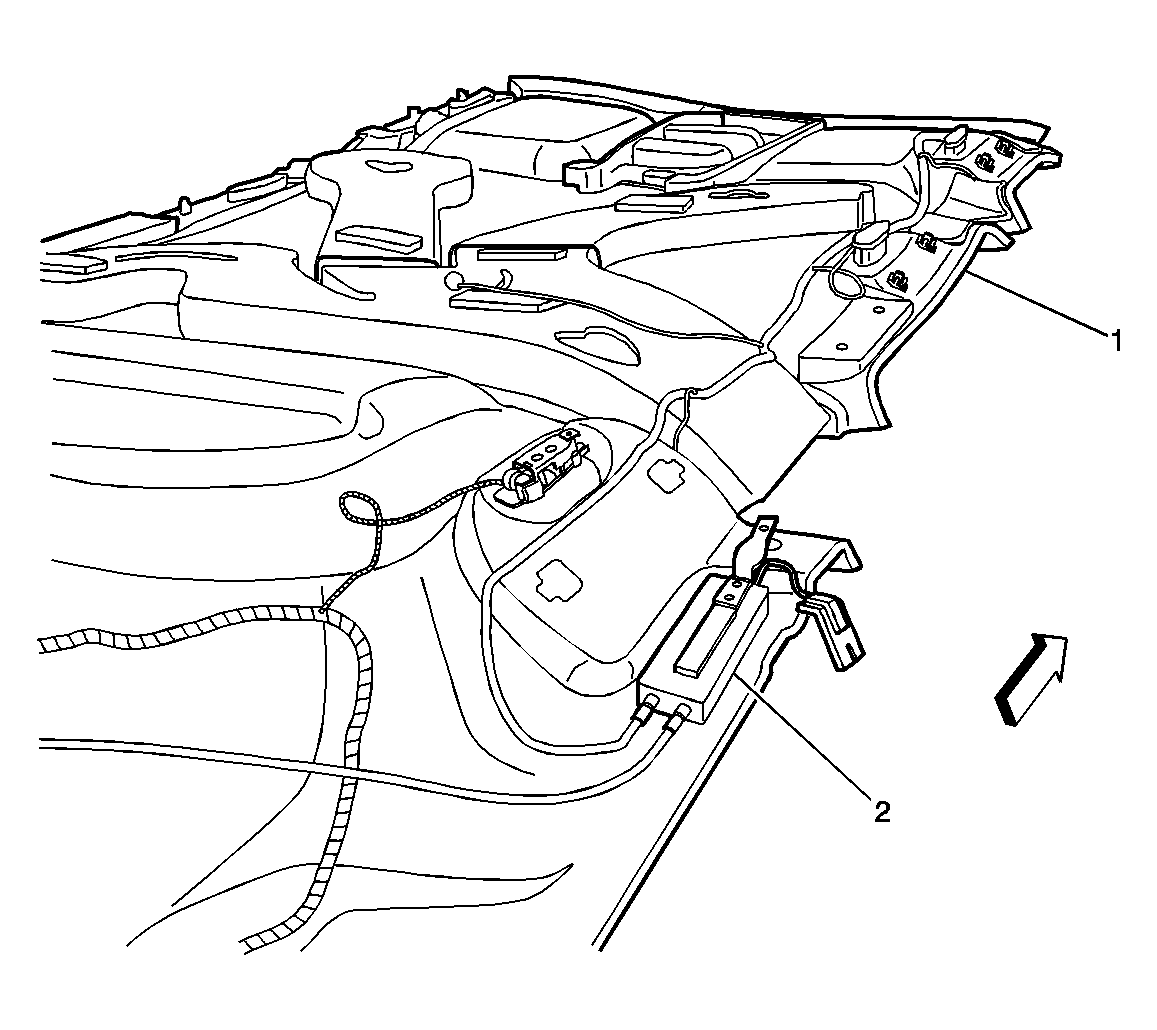

Fig 16: Radio Antenna Module Component View (Olds, GMC)
GM834093Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Radio Antenna Module

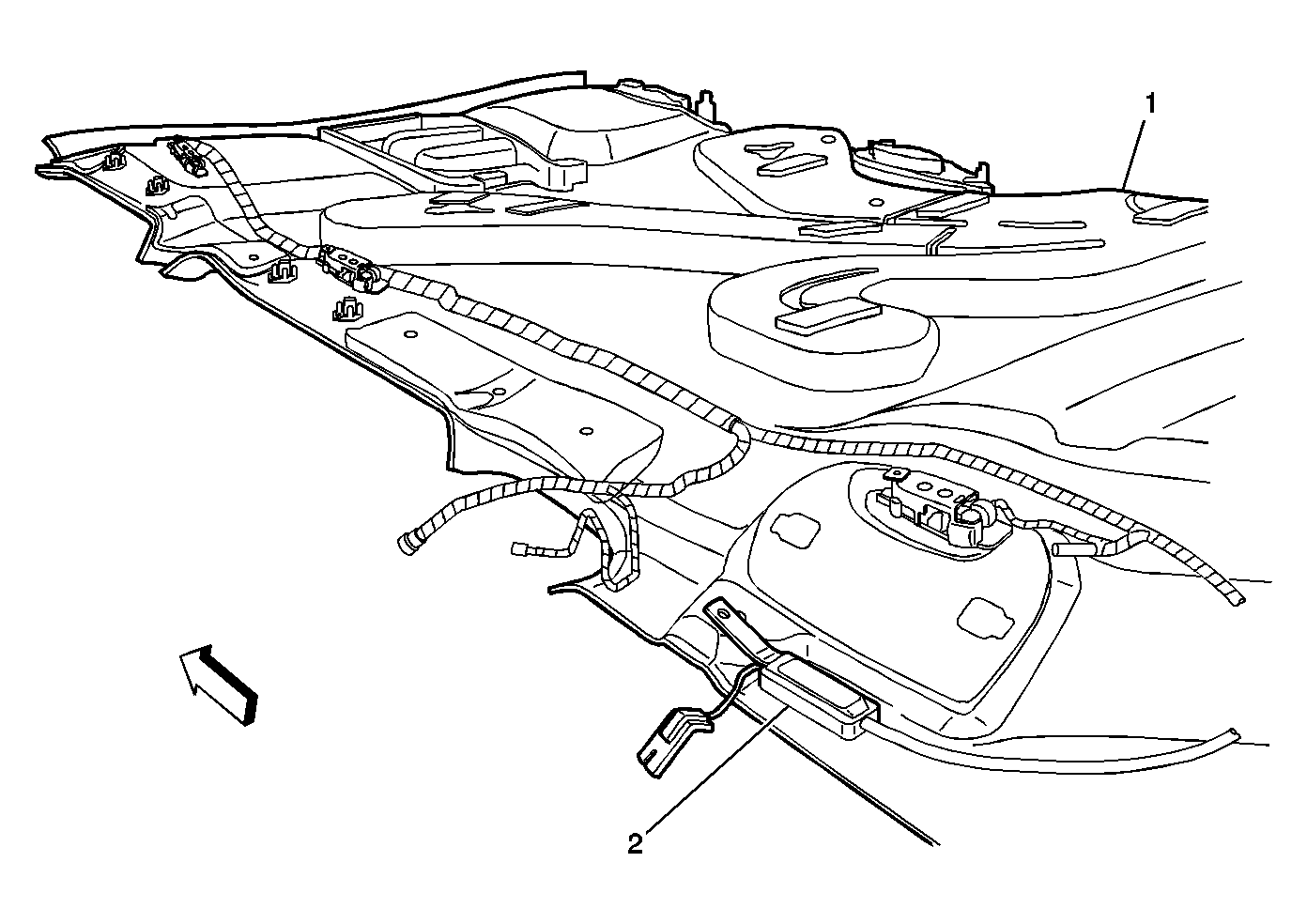

Fig 17: Radio Antenna Buffer Component View (Olds, GMC)
GM834092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Radio Antenna Buffer
