Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Front Lamps, GMC Components

Courtesy of GENERAL MOTORS CORP.

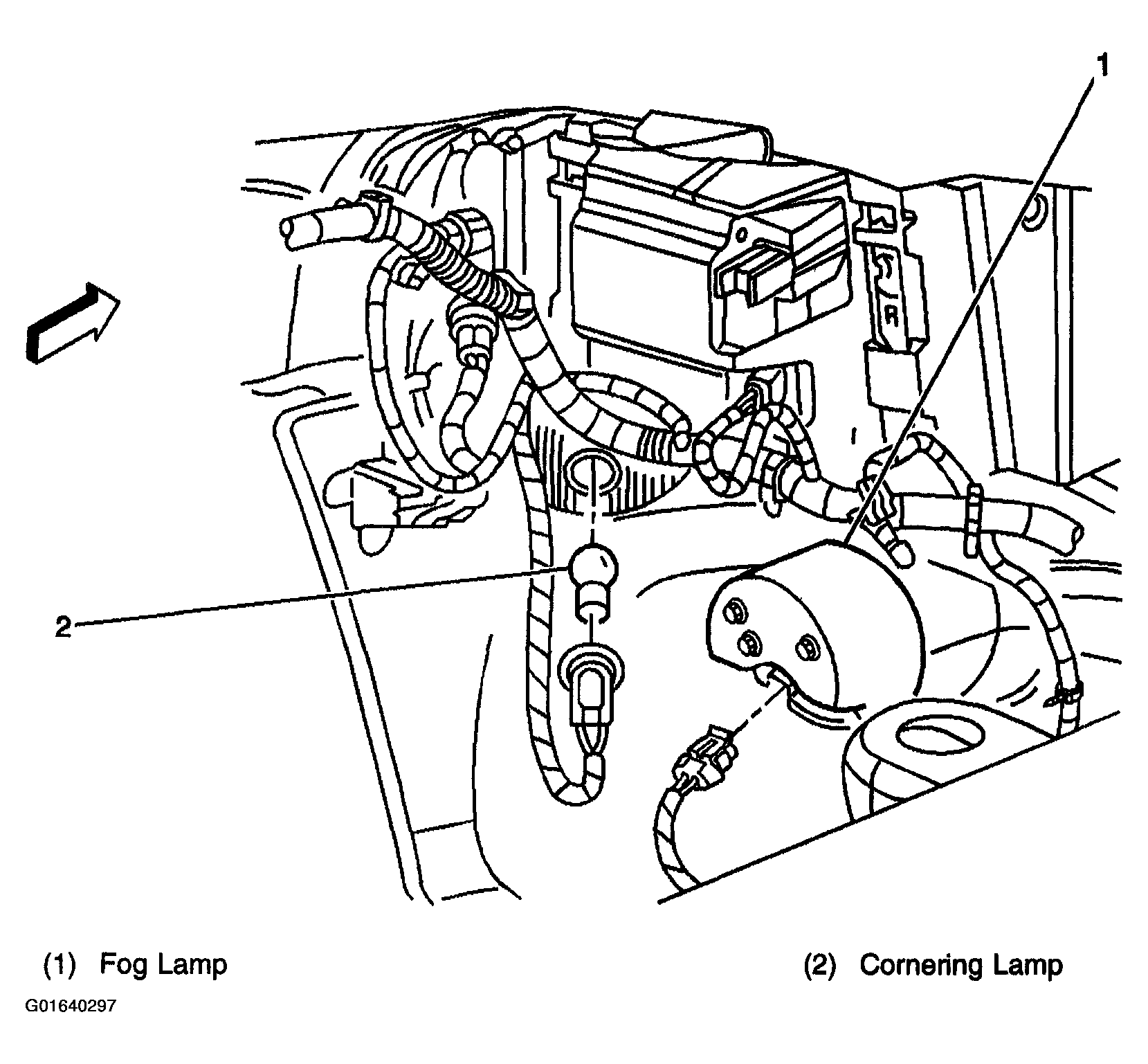

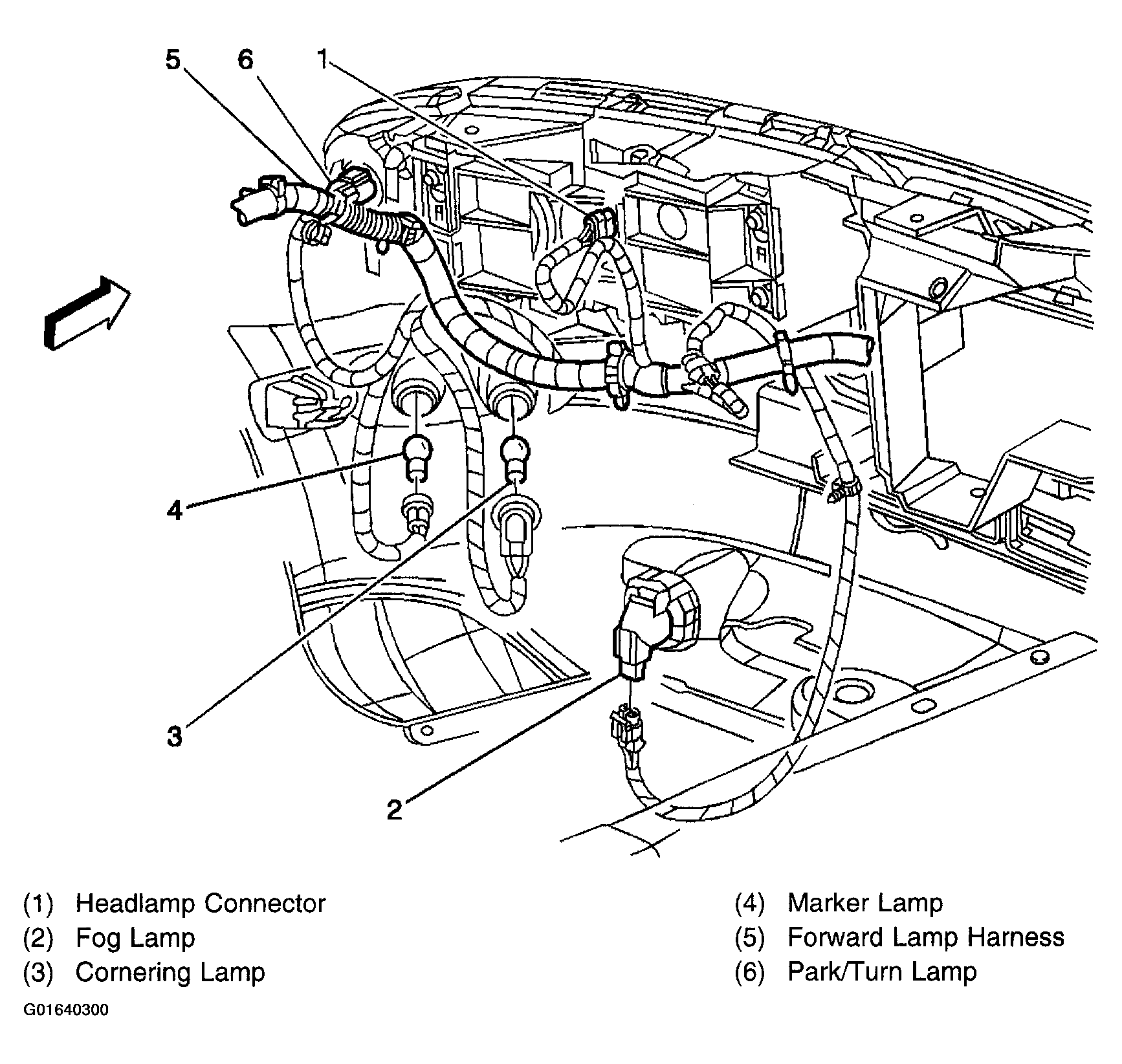

Fig 2: Locating Fog Lamp and Cornering Lamp, GMC Components

Courtesy of GENERAL MOTORS CORP.

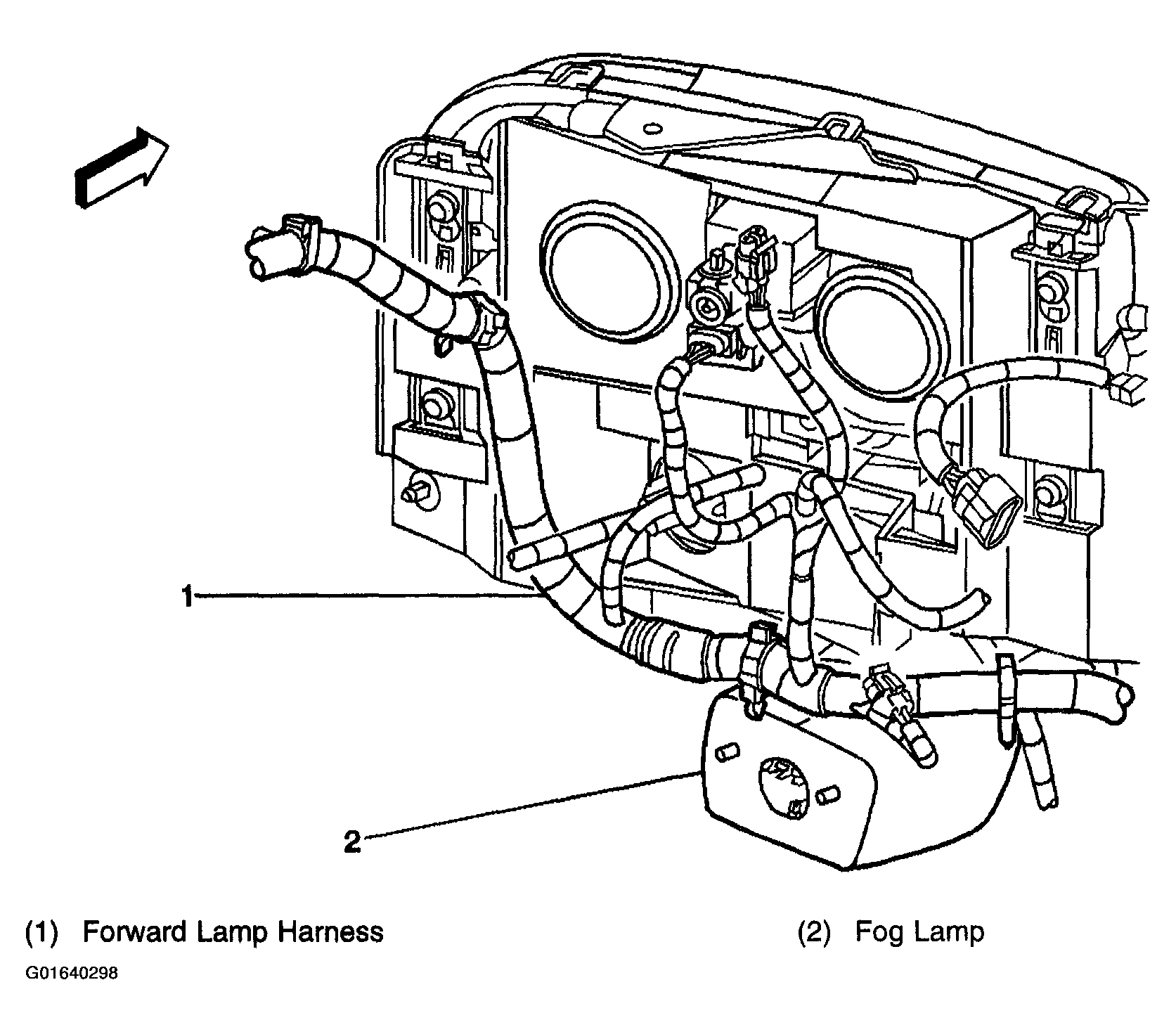

Fig 3: Locating Fog Lamp, Chevrolet Components

Courtesy of GENERAL MOTORS CORP.

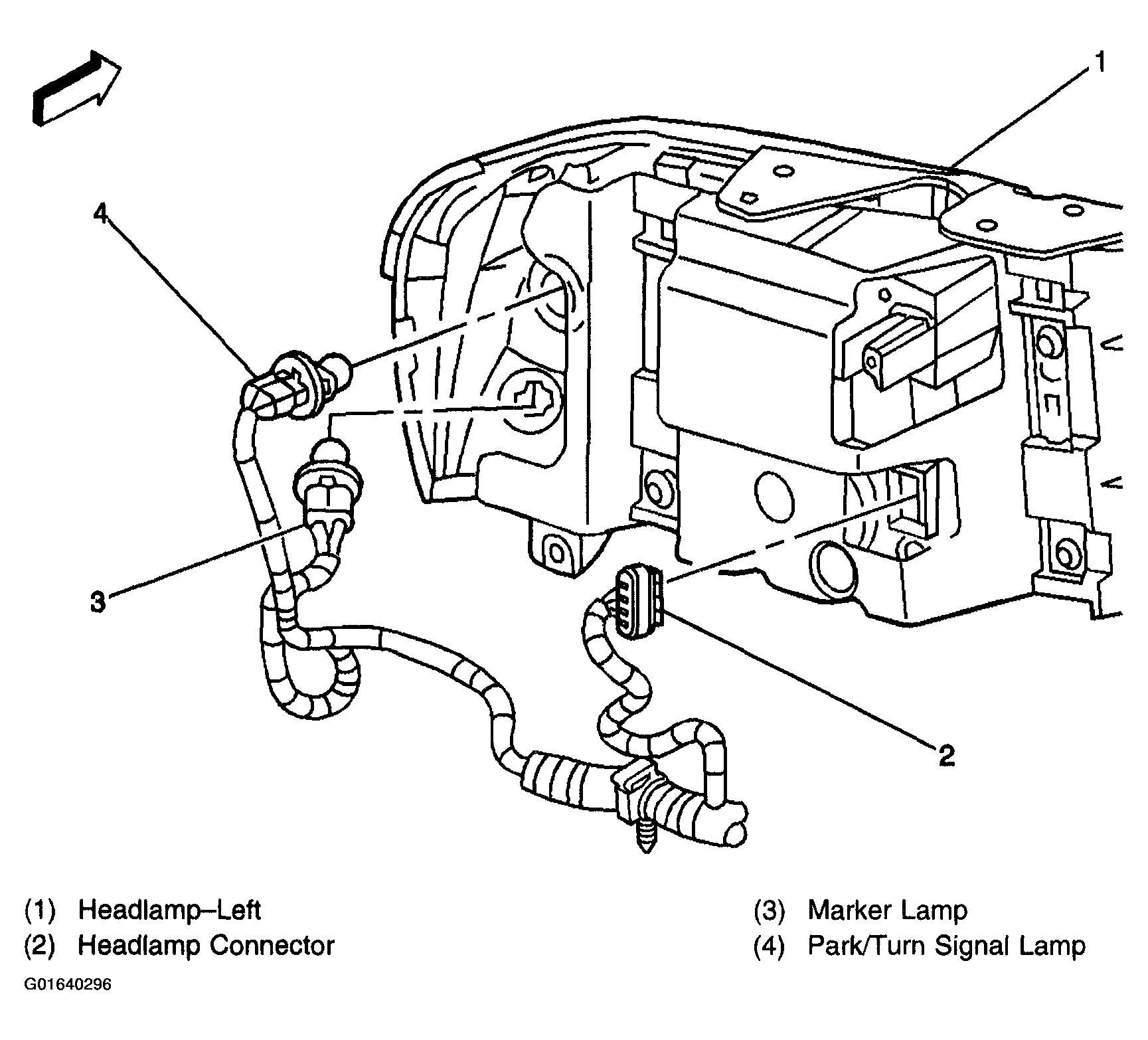

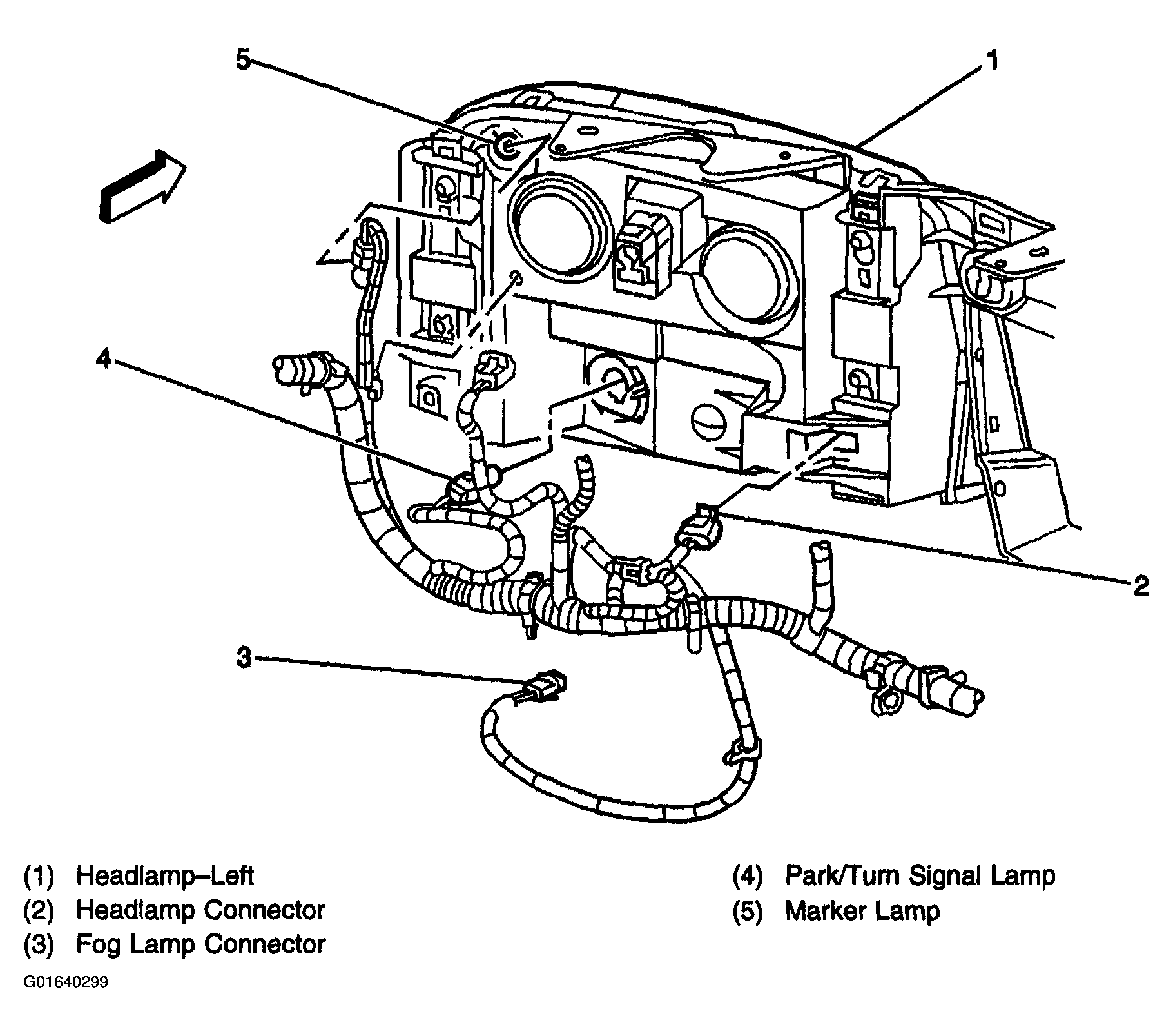

Fig 4: Locating Front Lamps, Chevrolet Components

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Front Lamps, Oldsmobile Components

Courtesy of GENERAL MOTORS CORP.

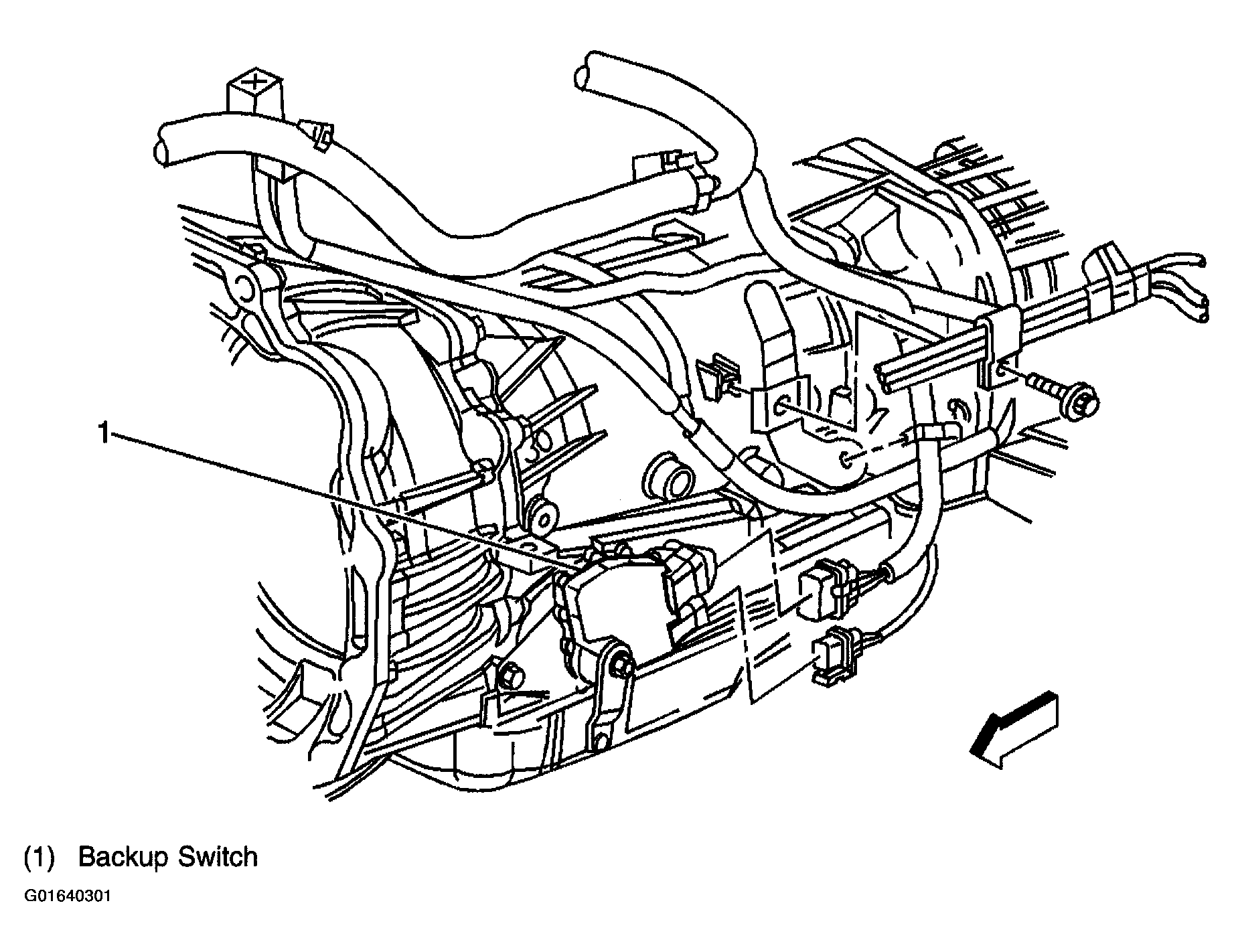

Fig 6: Locating Automatic Transmission, Left Side Components

Courtesy of GENERAL MOTORS CORP.

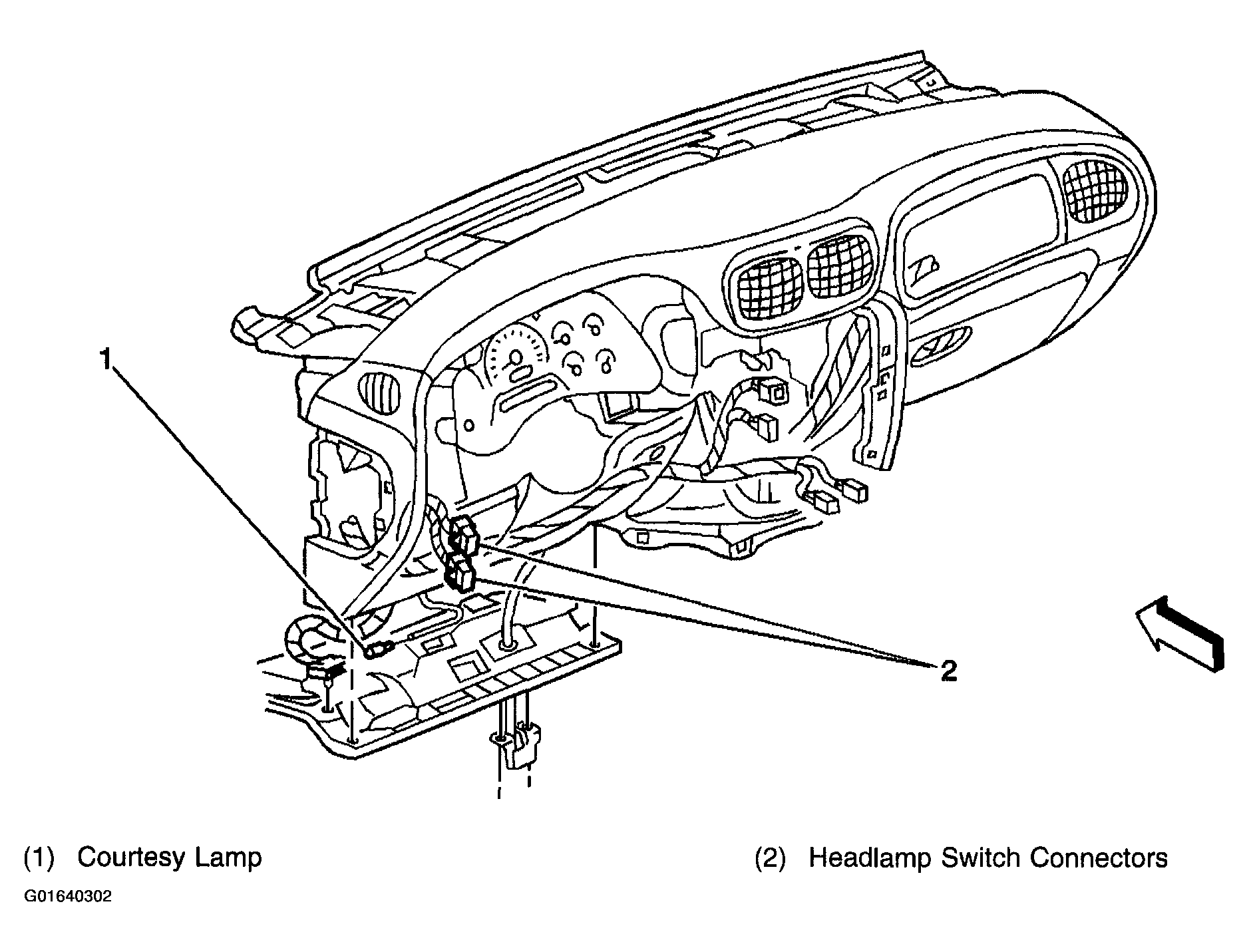

Fig 7: Locating Courtesy Lamp and Headlamp Switch Connectors Components

Courtesy of GENERAL MOTORS CORP.

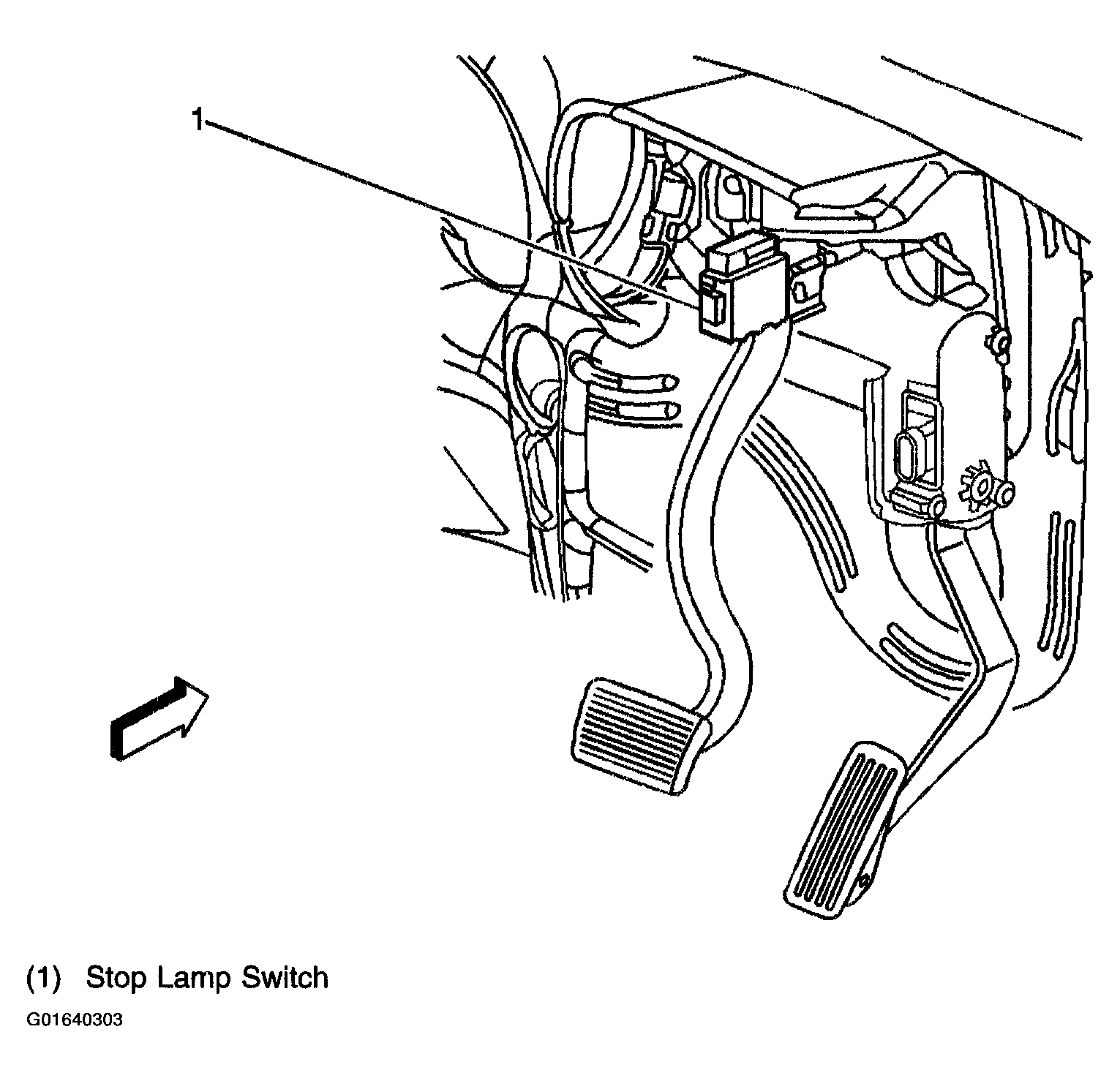

Fig 8: Locating Stop Lamp Switch Components

Courtesy of GENERAL MOTORS CORP.

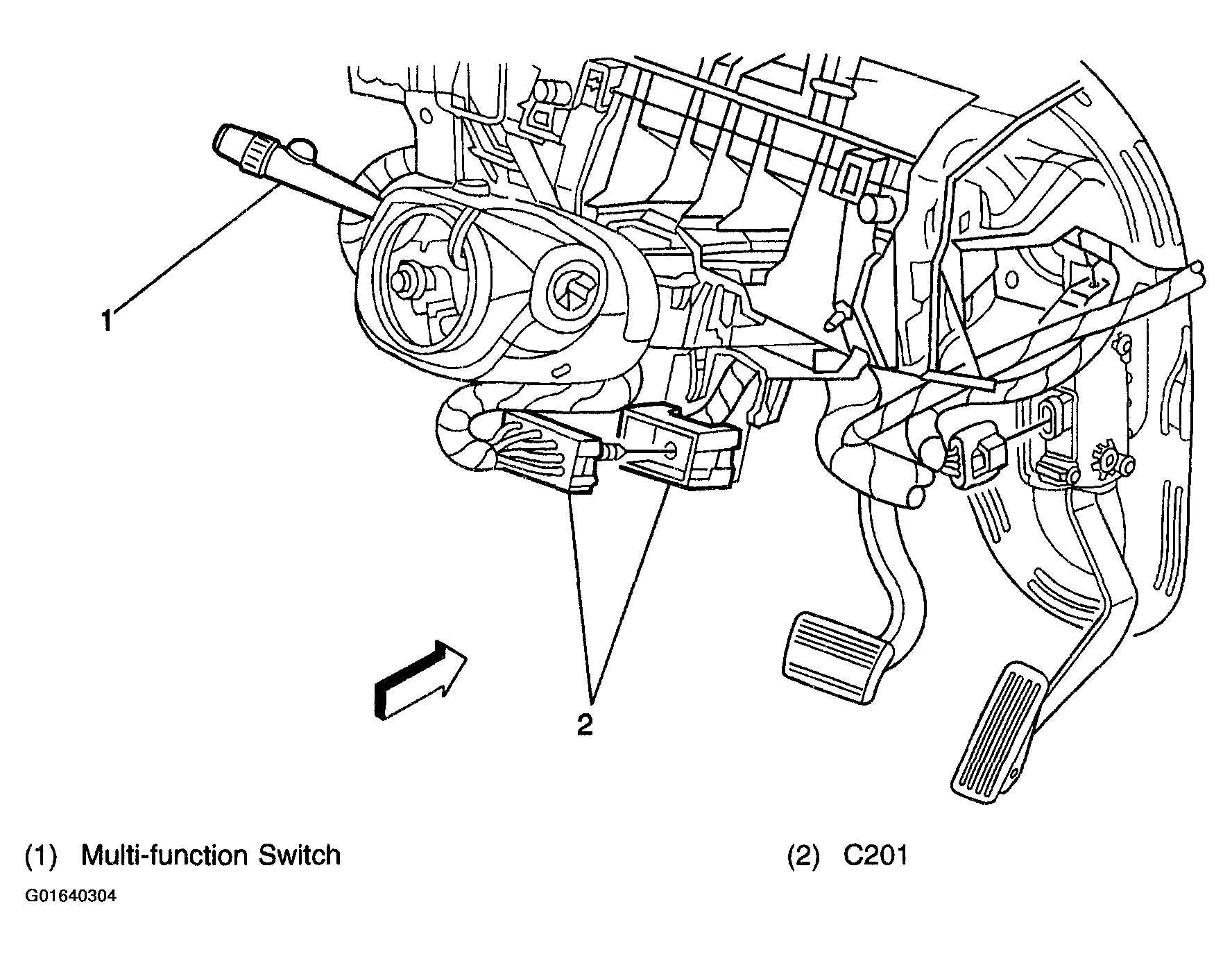

Fig 9: Locating Multi-function Switch Components

Courtesy of GENERAL MOTORS CORP.

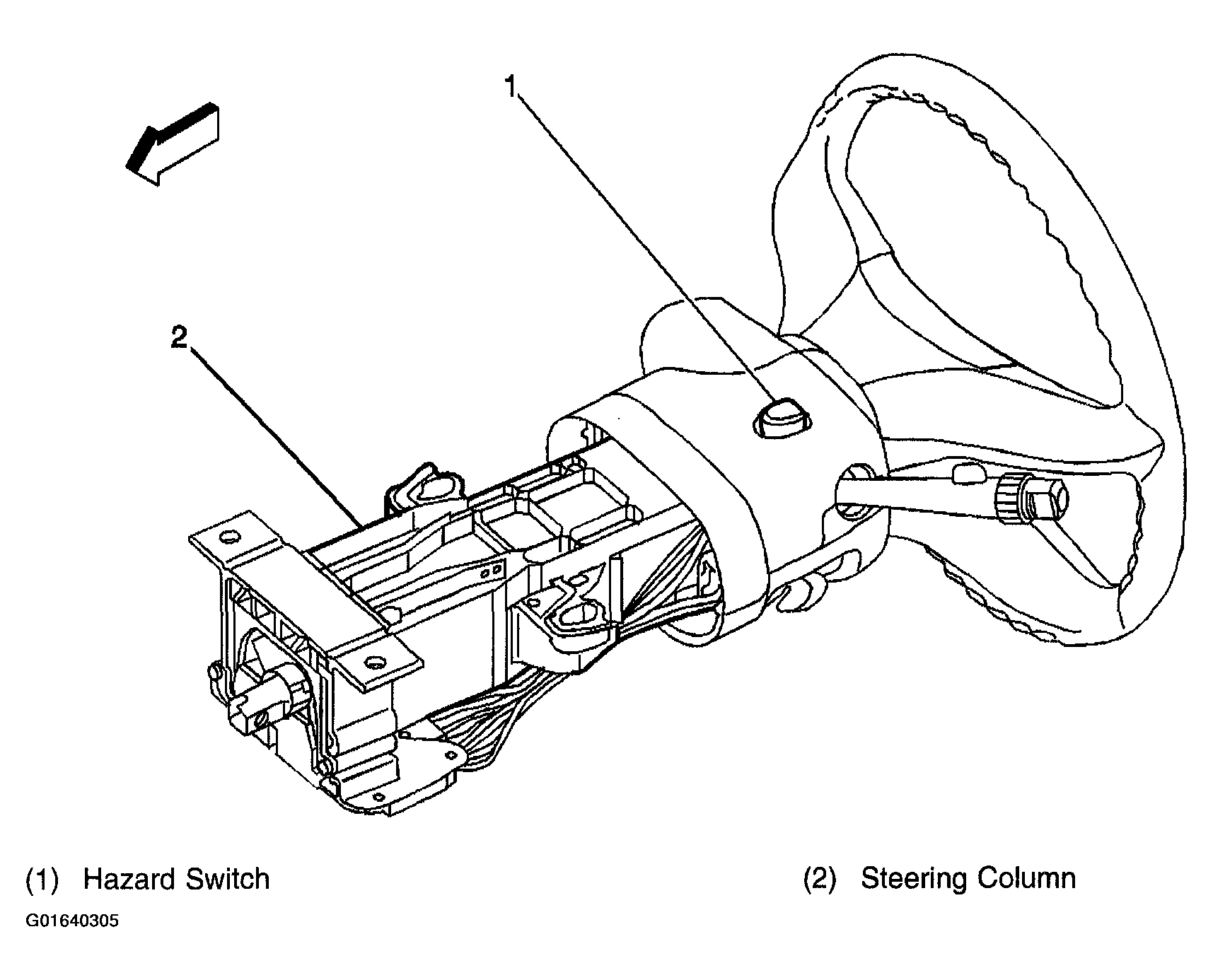

Fig 10: Locating Hazard Switch Components

Courtesy of GENERAL MOTORS CORP.

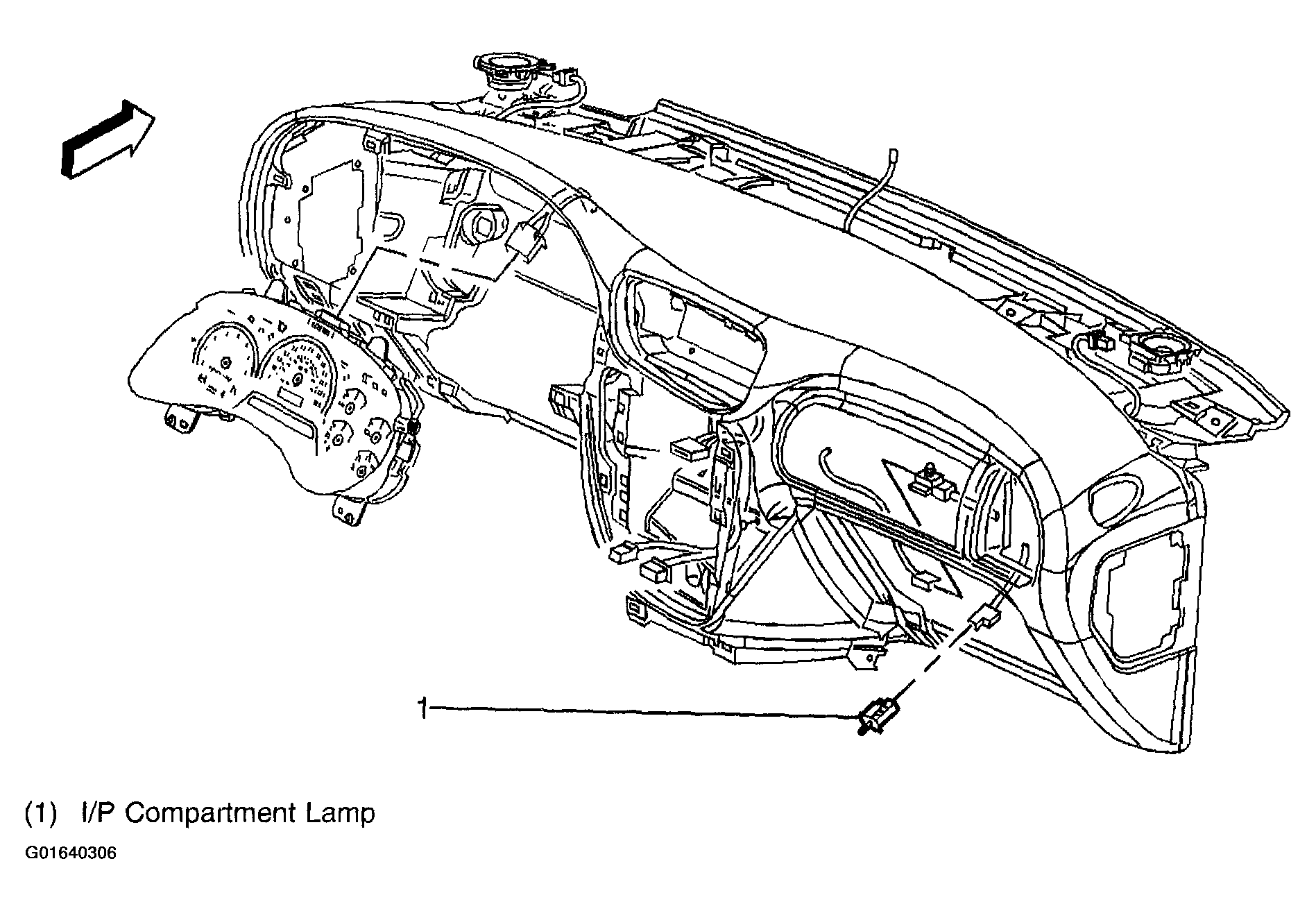

Fig 11: Locating I/P Compartment Lamp Components

Courtesy of GENERAL MOTORS CORP.

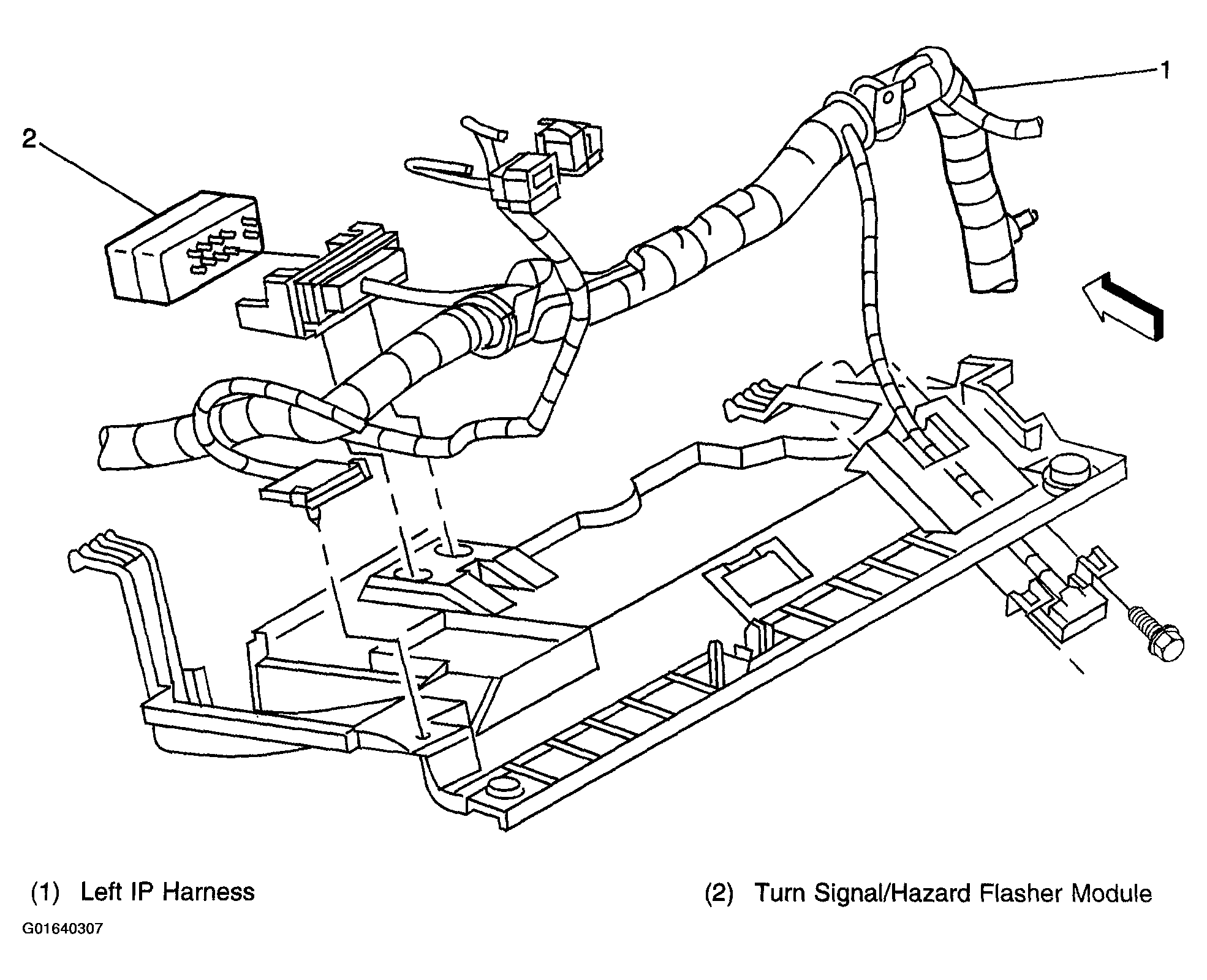

Fig 12: Locating Turn Signal/Hazard Flasher Module Components

Courtesy of GENERAL MOTORS CORP.

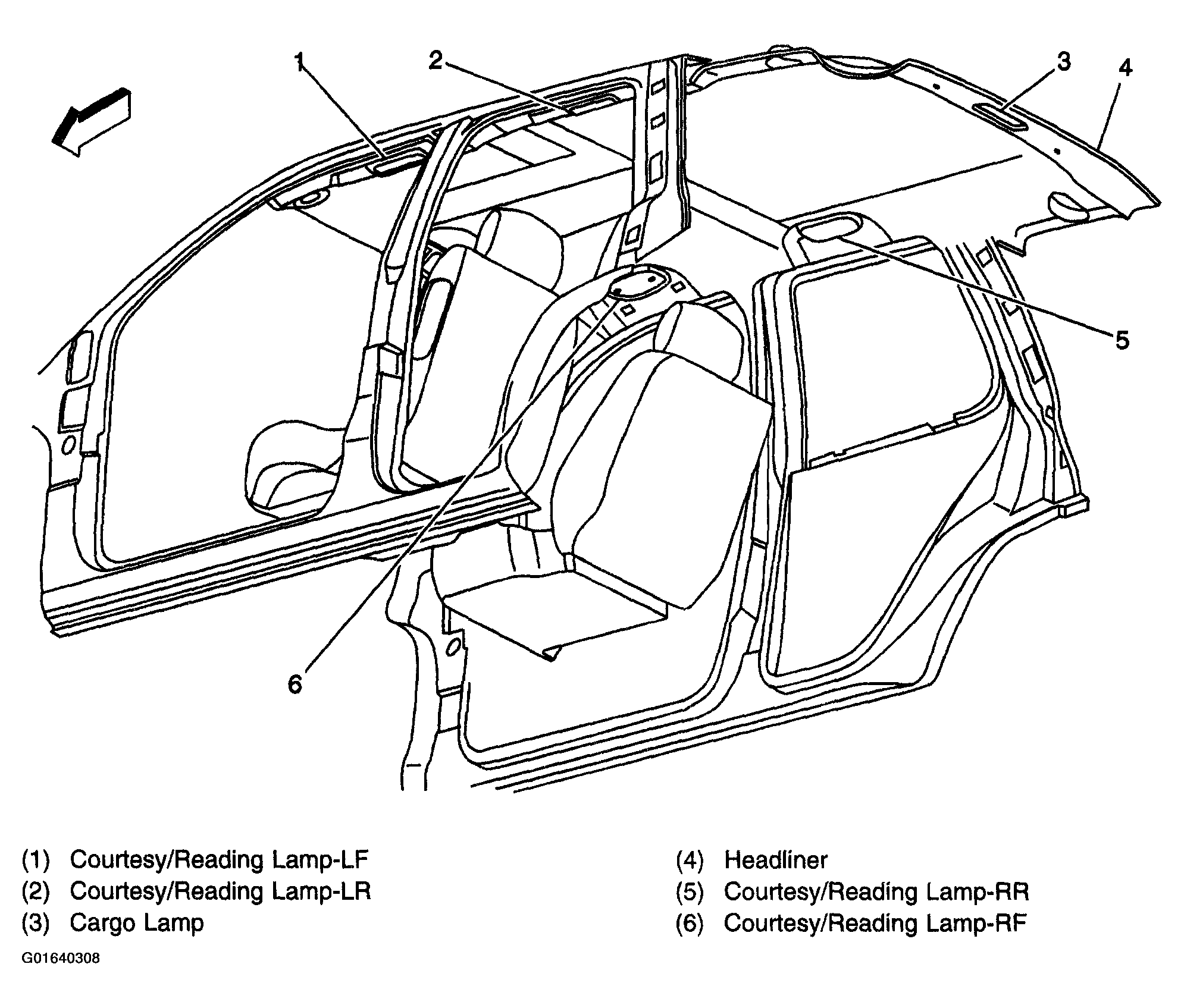

Fig 13: Locating Courtesy/Reading Lamps and Cargo Lamps (Short Wheelbase Shown, Long Wheelbase Similar)

Courtesy of GENERAL MOTORS CORP.

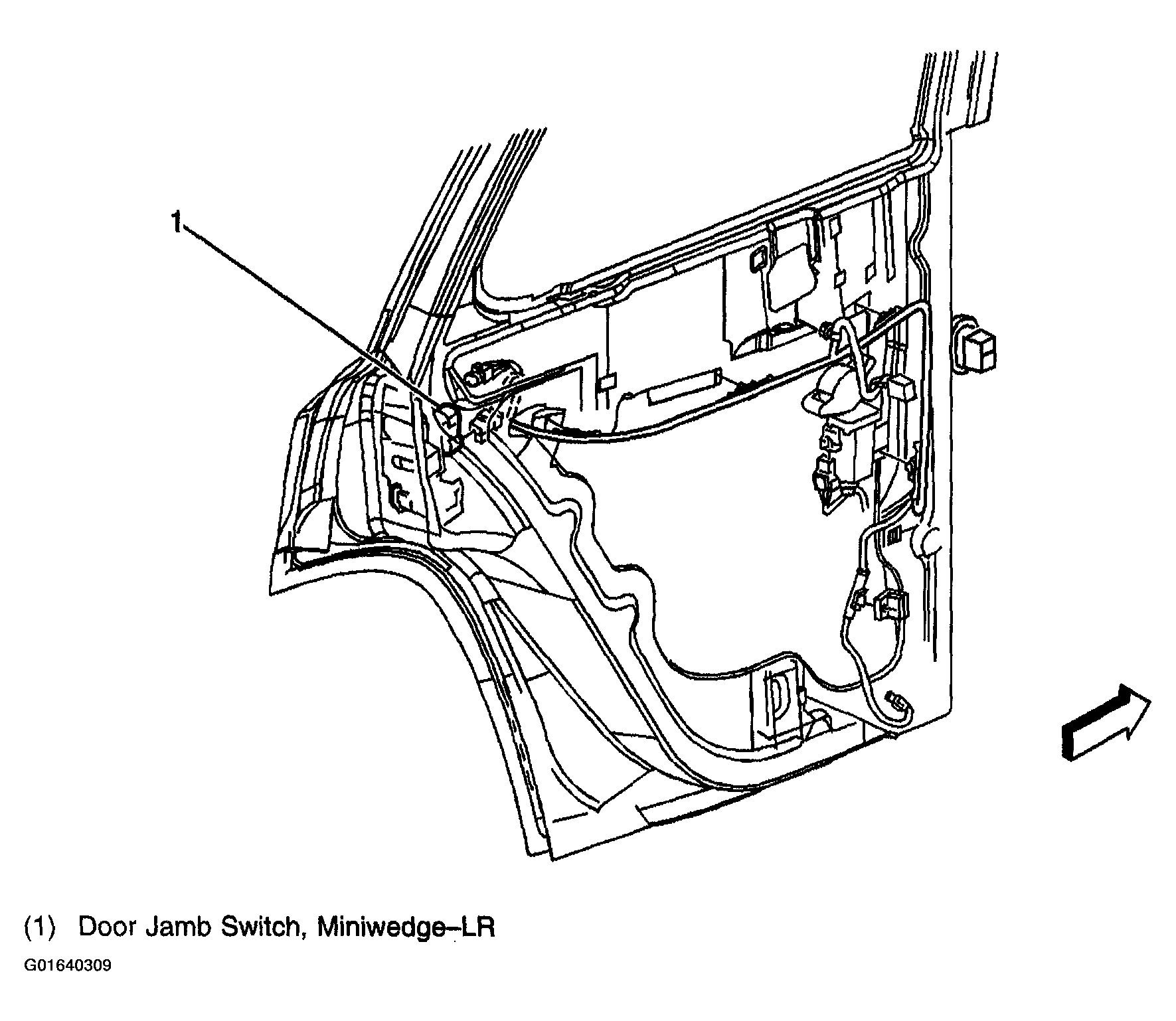

Fig 14: Locating Door Jamb Switch, Miniwedge-LR

Courtesy of GENERAL MOTORS CORP.

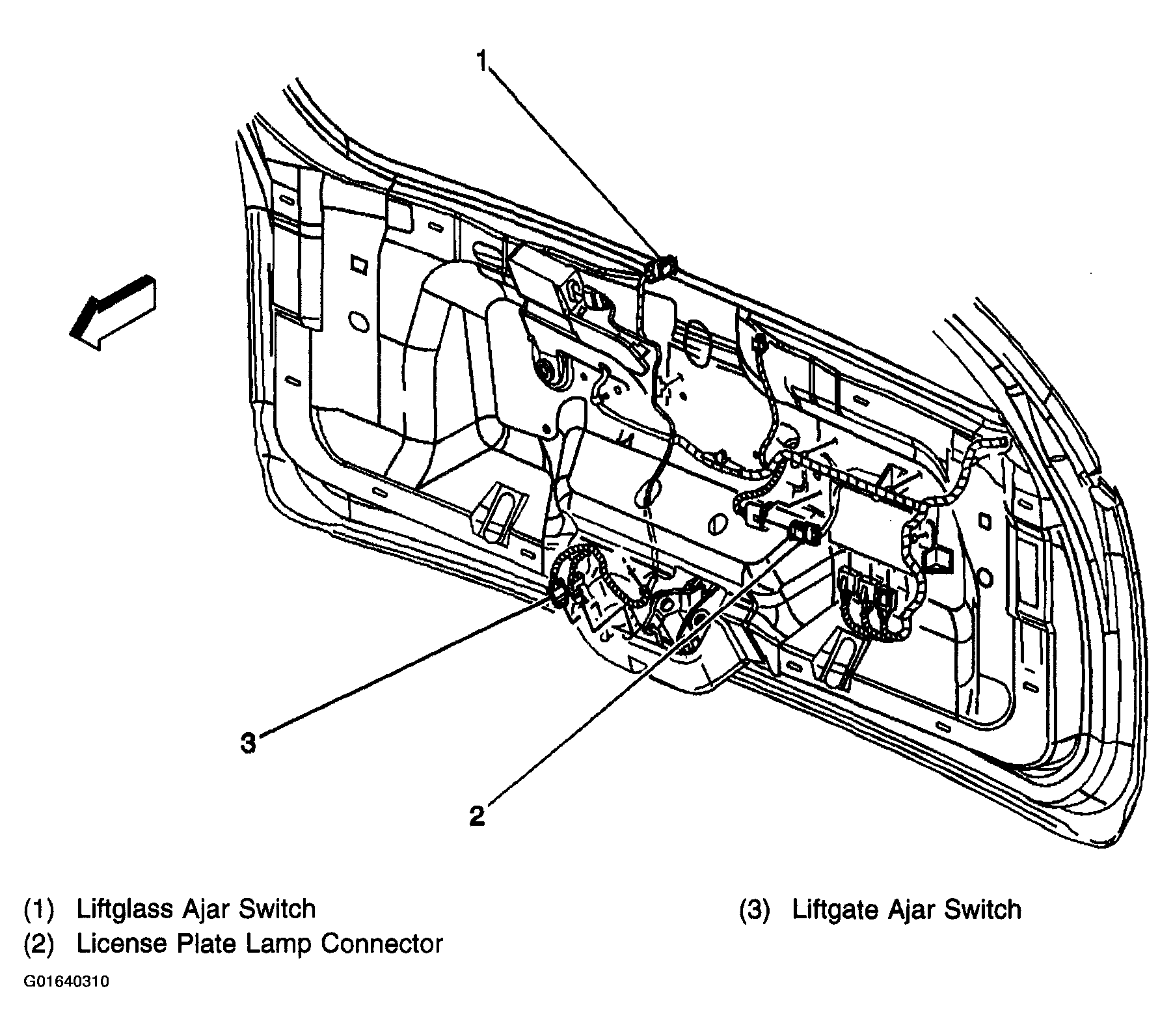

Fig 15: Locating Liftgate Ajar Switch Components

Courtesy of GENERAL MOTORS CORP.

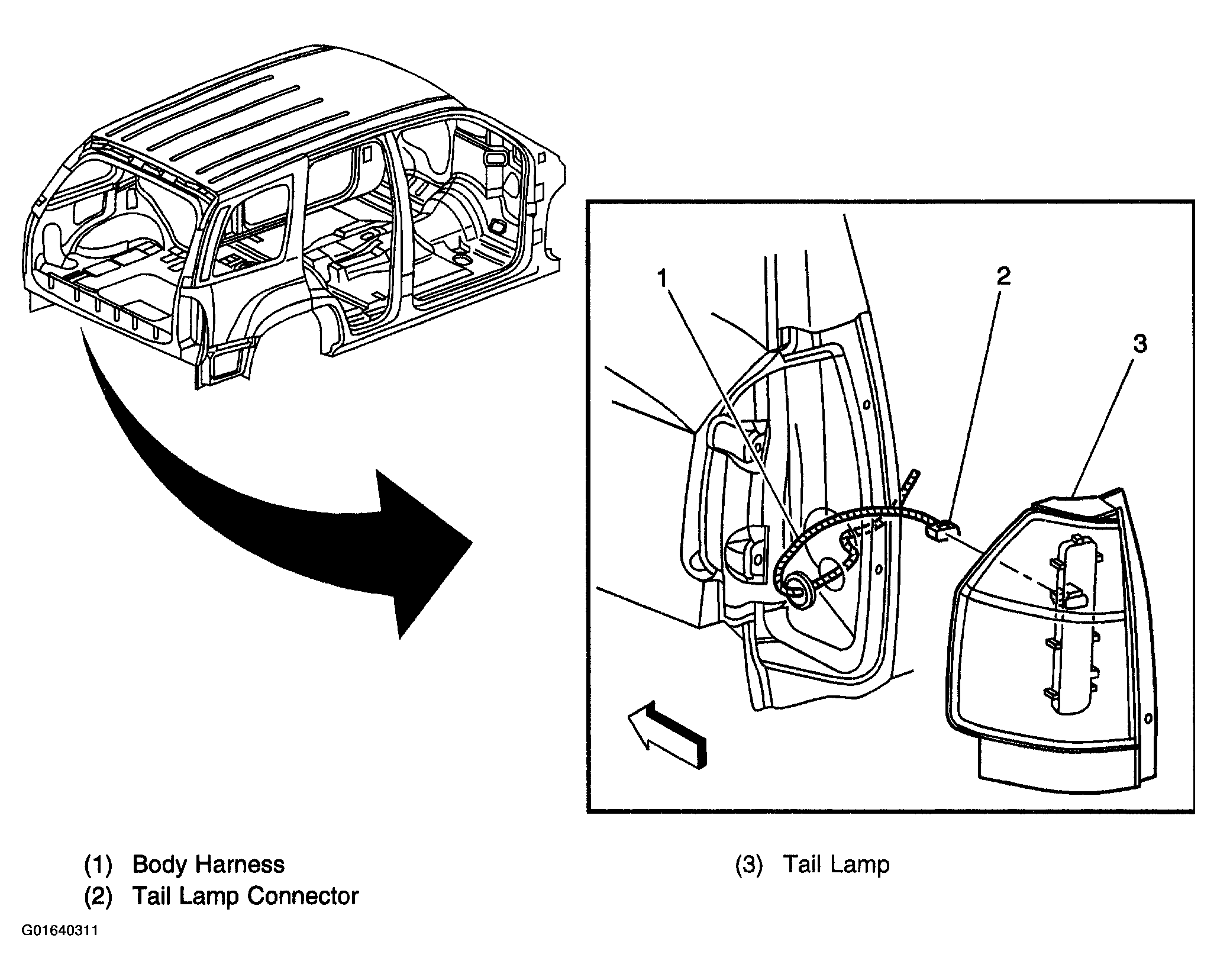

Fig 16: Locating Tail Lamp Components

Courtesy of GENERAL MOTORS CORP.

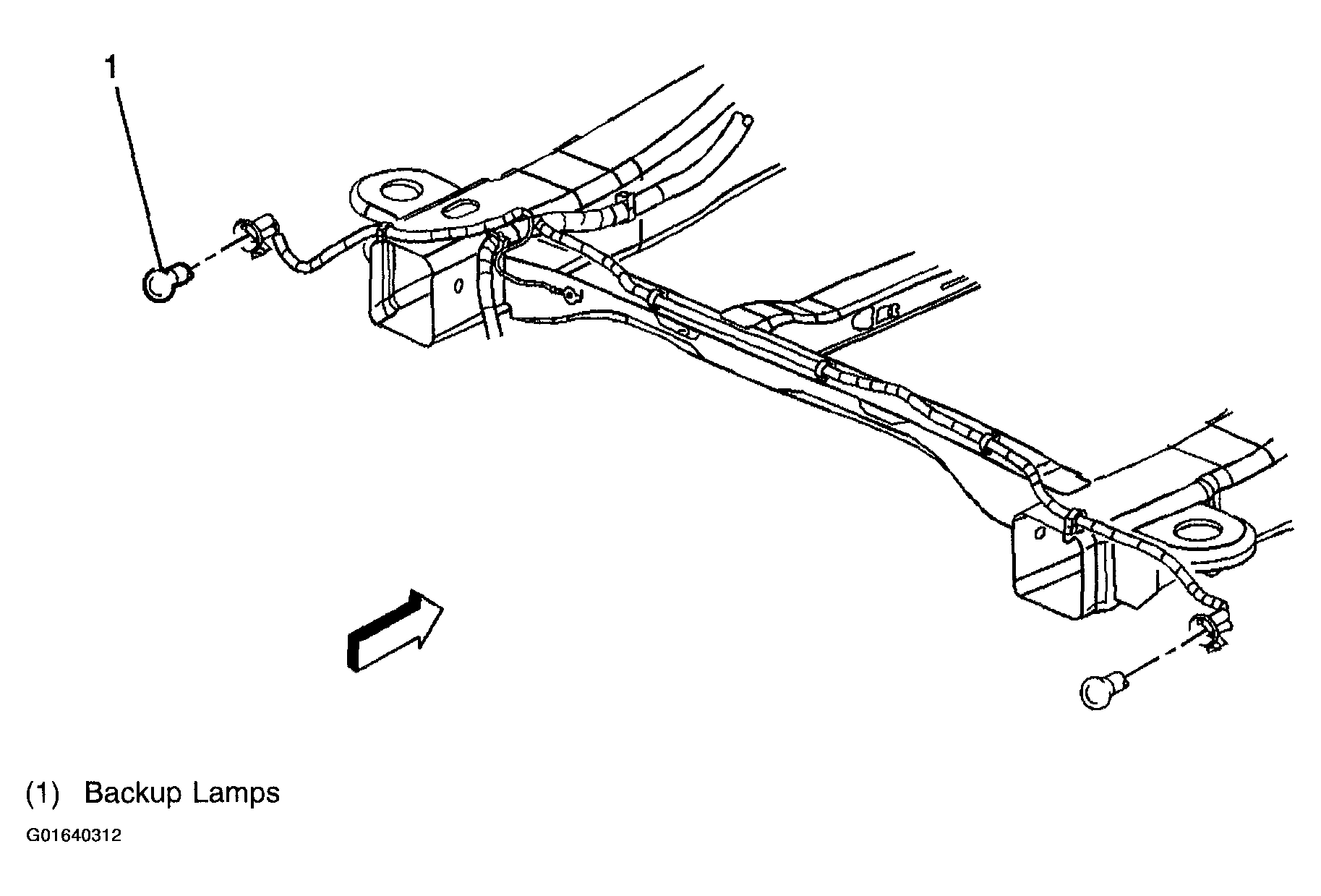

Fig 17: Locating Backup Lamps Components

Courtesy of GENERAL MOTORS CORP.

Fig 18: Locating Center High-Mounted Stop Lamp Components

Courtesy of GENERAL MOTORS CORP.

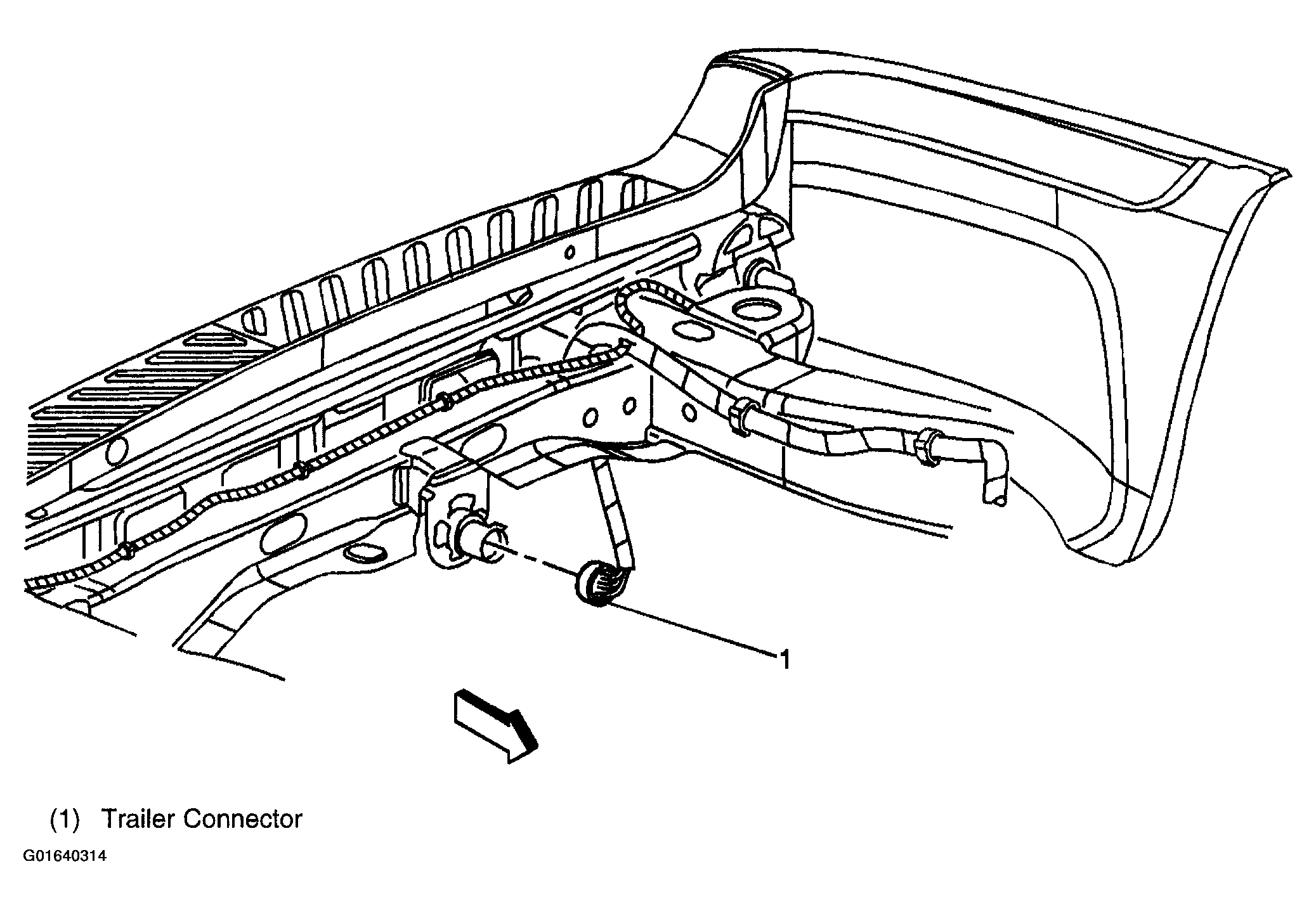

Fig 19: Locating Trailer Connector

Courtesy of GENERAL MOTORS CORP.
