Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

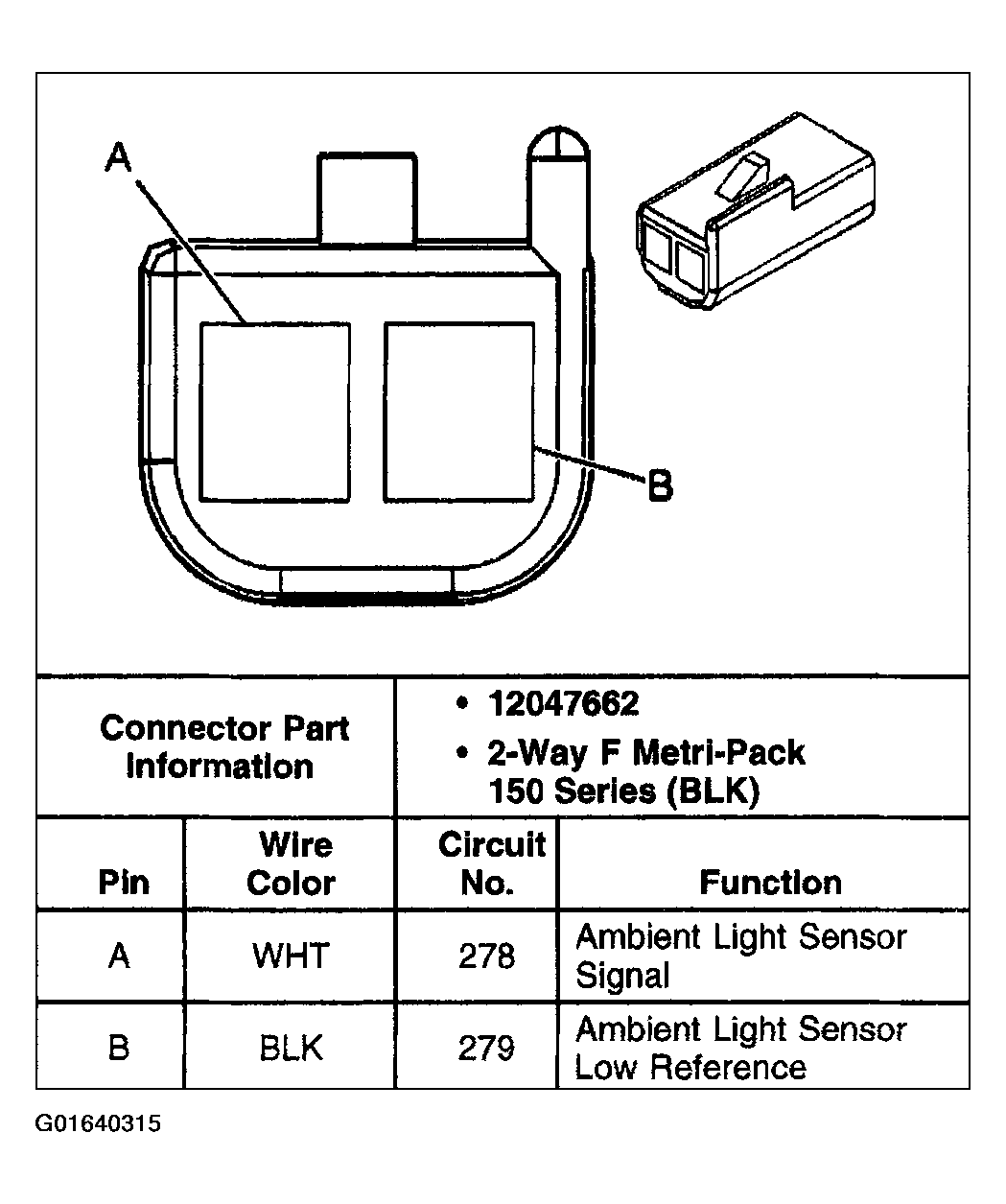

Fig 1: Locating Ambient Light Sensor (w/CJ3) Connector

G01640315

Courtesy of GENERAL MOTORS CORP.

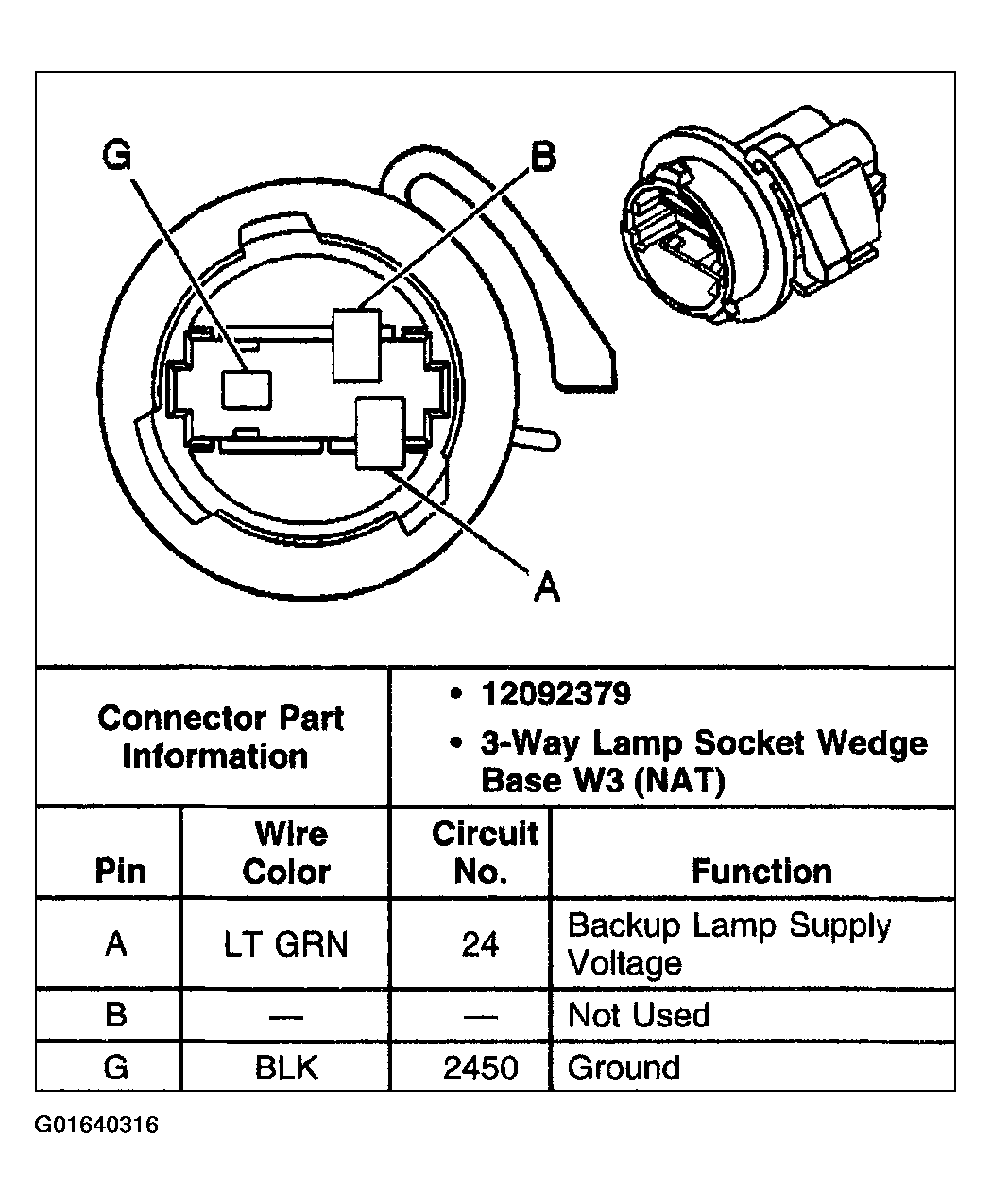

Fig 2: Locating Backup Lamp - Left (GMC) Connector

G01640316

Courtesy of GENERAL MOTORS CORP.

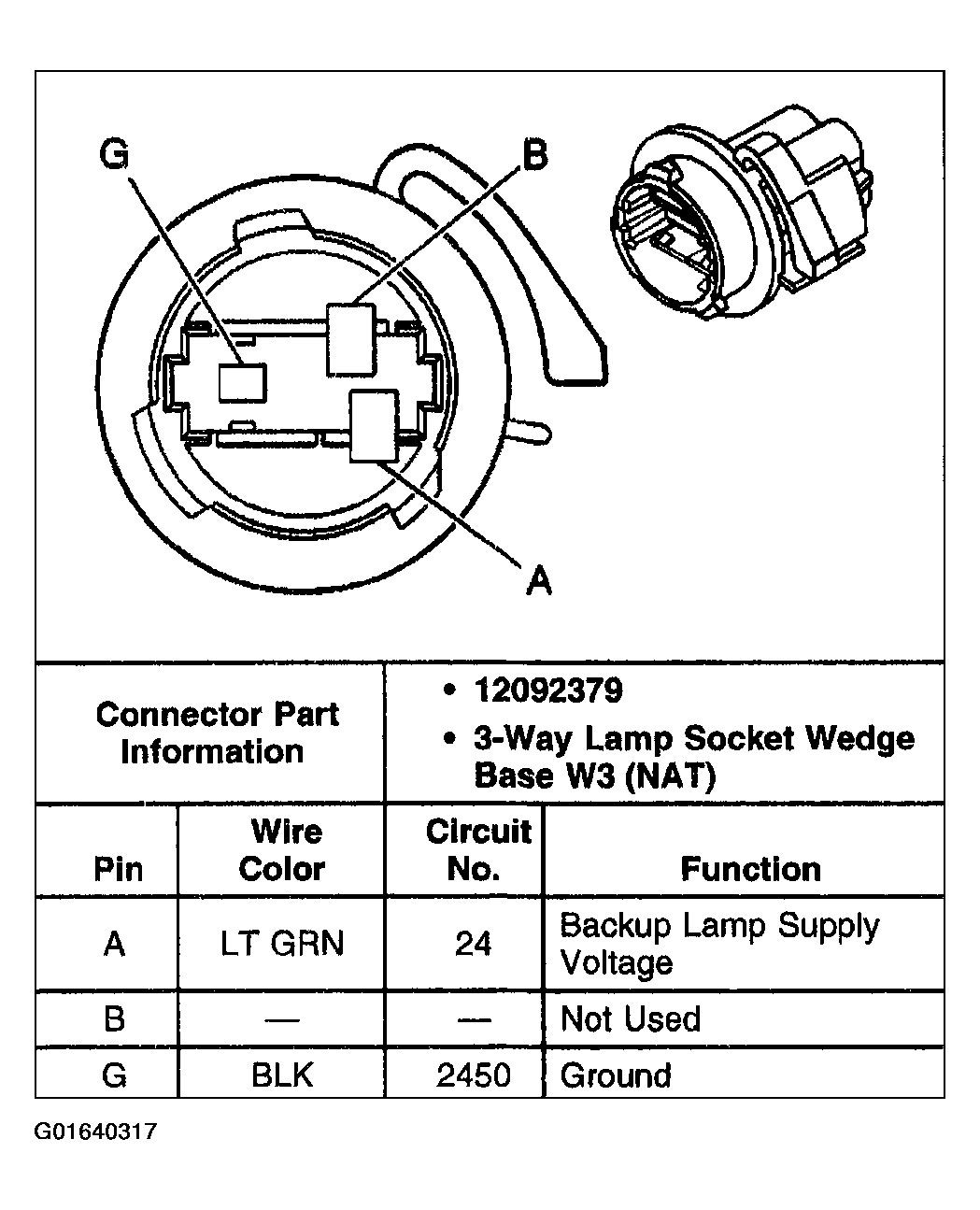

Fig 3: Locating Backup Lamp - Right (GMC) Connector

G01640317

Courtesy of GENERAL MOTORS CORP.

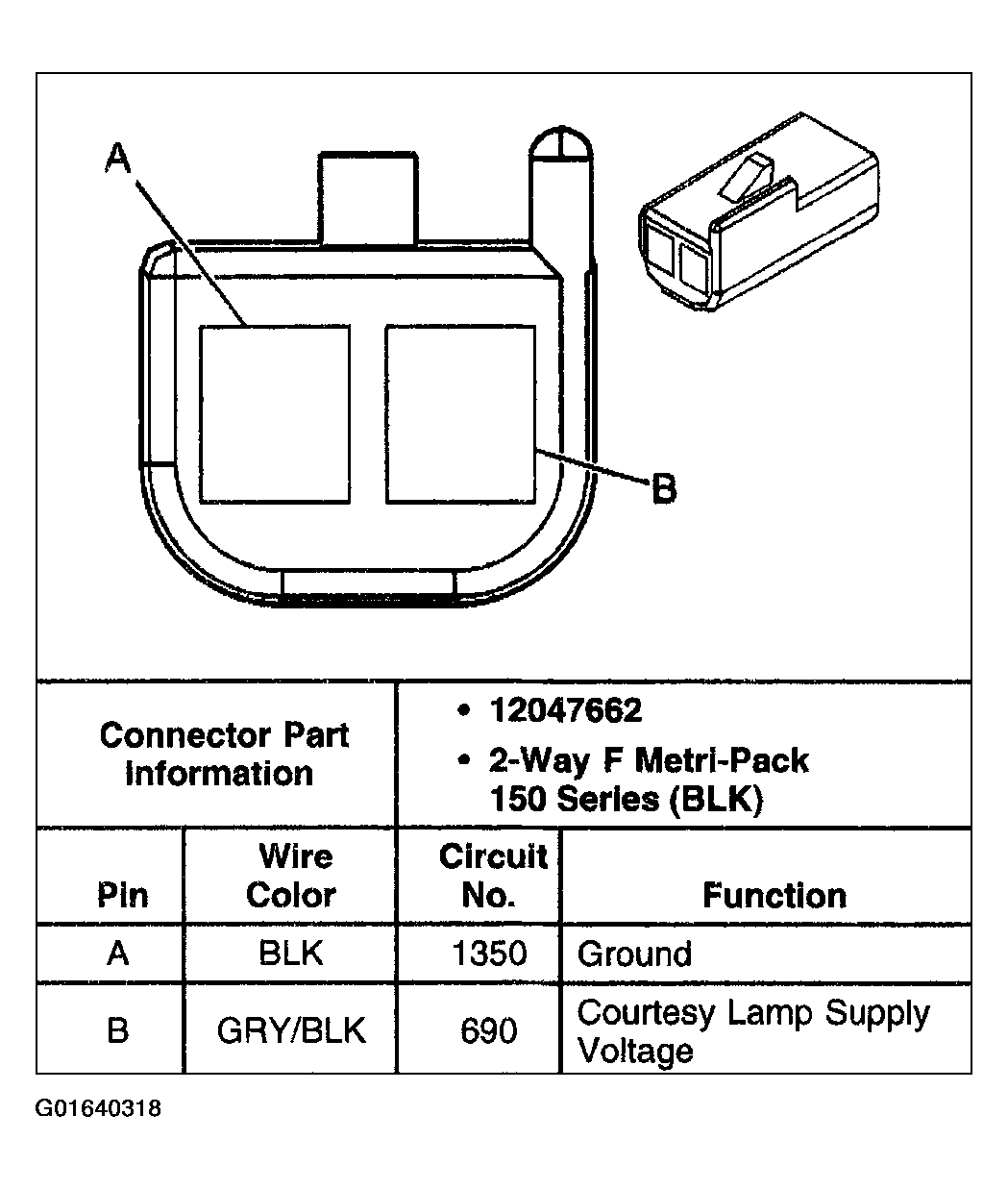

Fig 4: Locating Cargo Lamp Connector

G01640318

Courtesy of GENERAL MOTORS CORP.

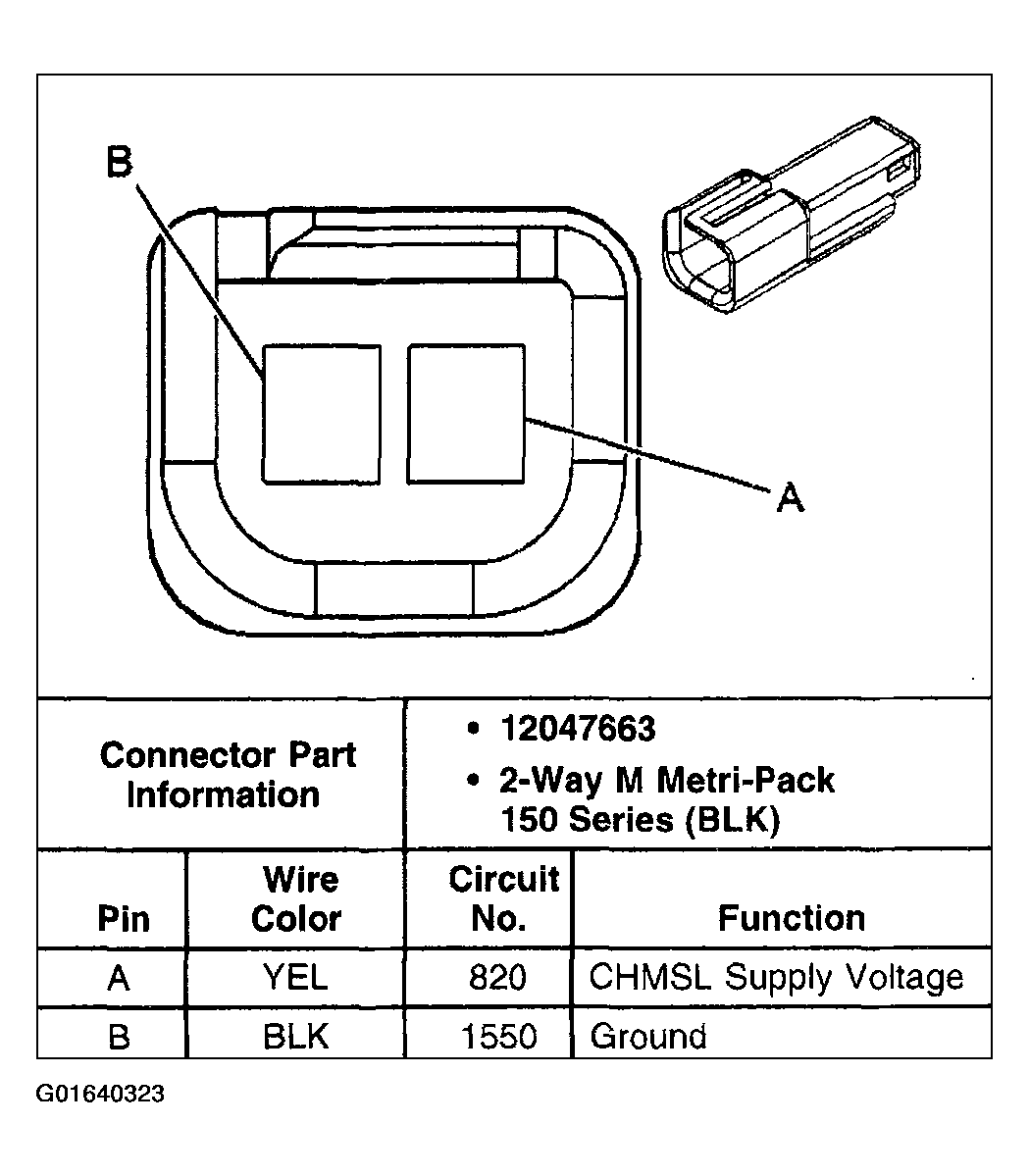

Fig 5: Locating Center High Mounted Stop Lamp (CHMSL)

G01640323

Courtesy of GENERAL MOTORS CORP.

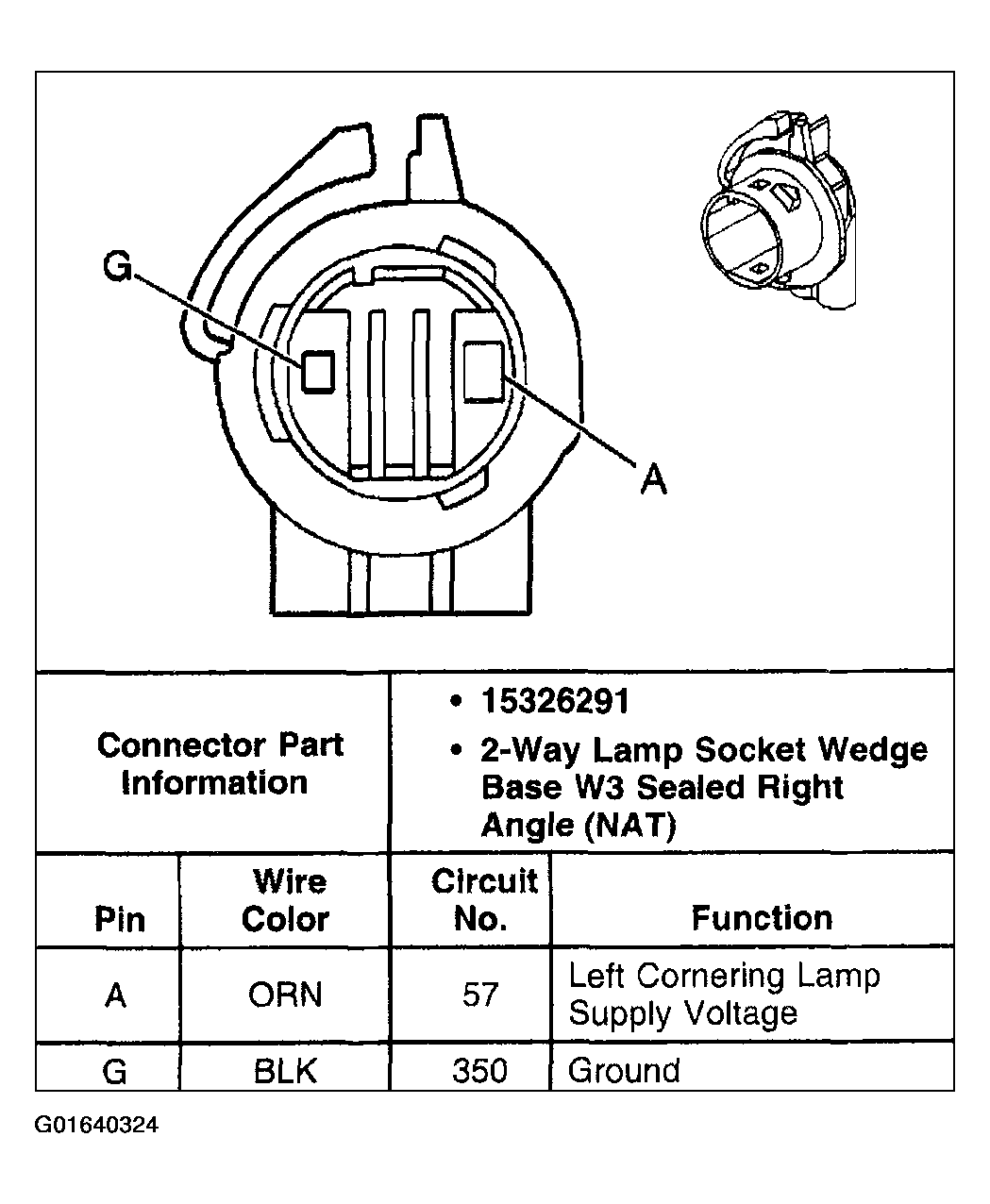

Fig 6: Locating Cornering Lamp - Left Connector

G01640324

Courtesy of GENERAL MOTORS CORP.

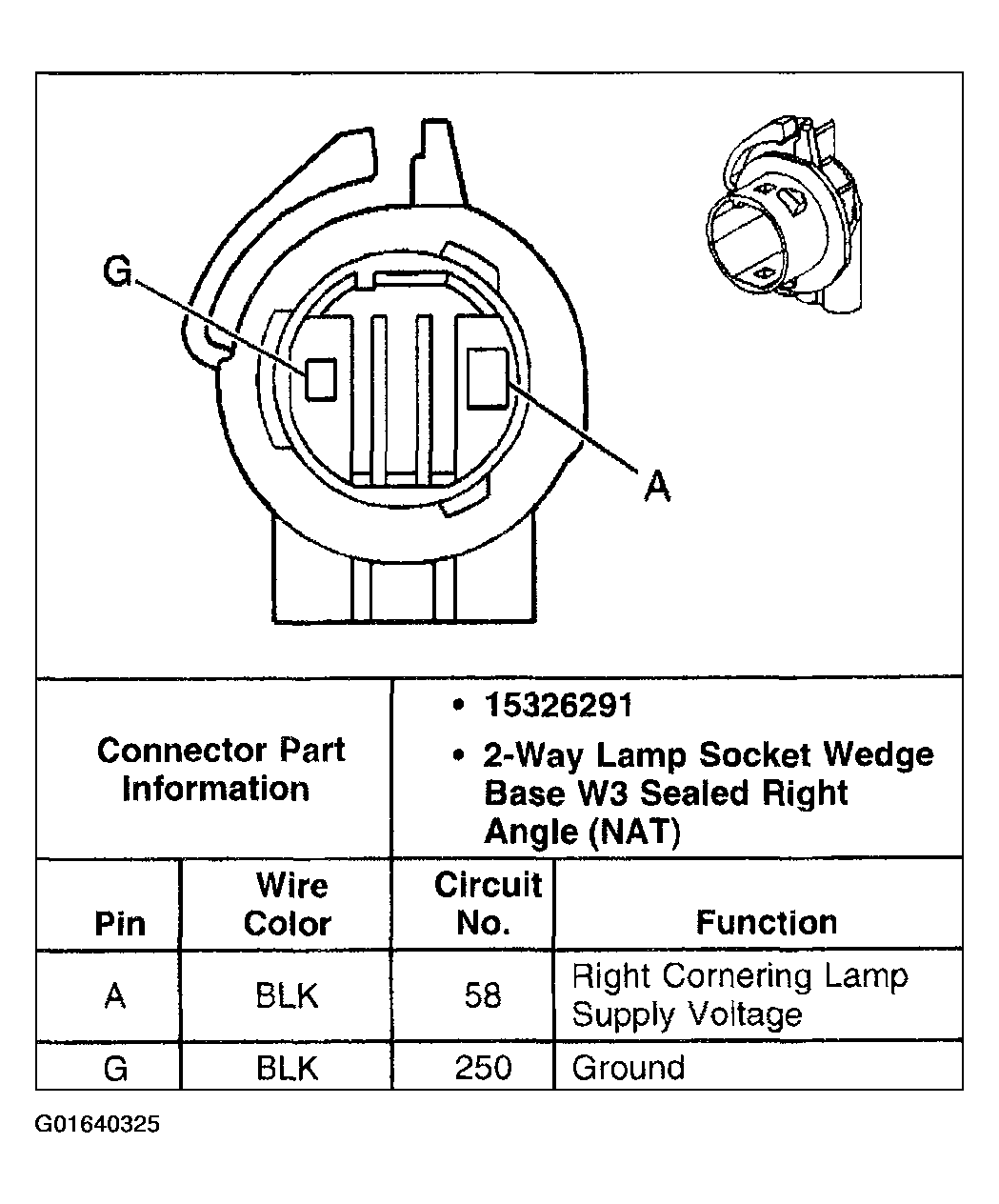

Fig 7: Locating Cornering Lamp - Right Connector

G01640325

Courtesy of GENERAL MOTORS CORP.

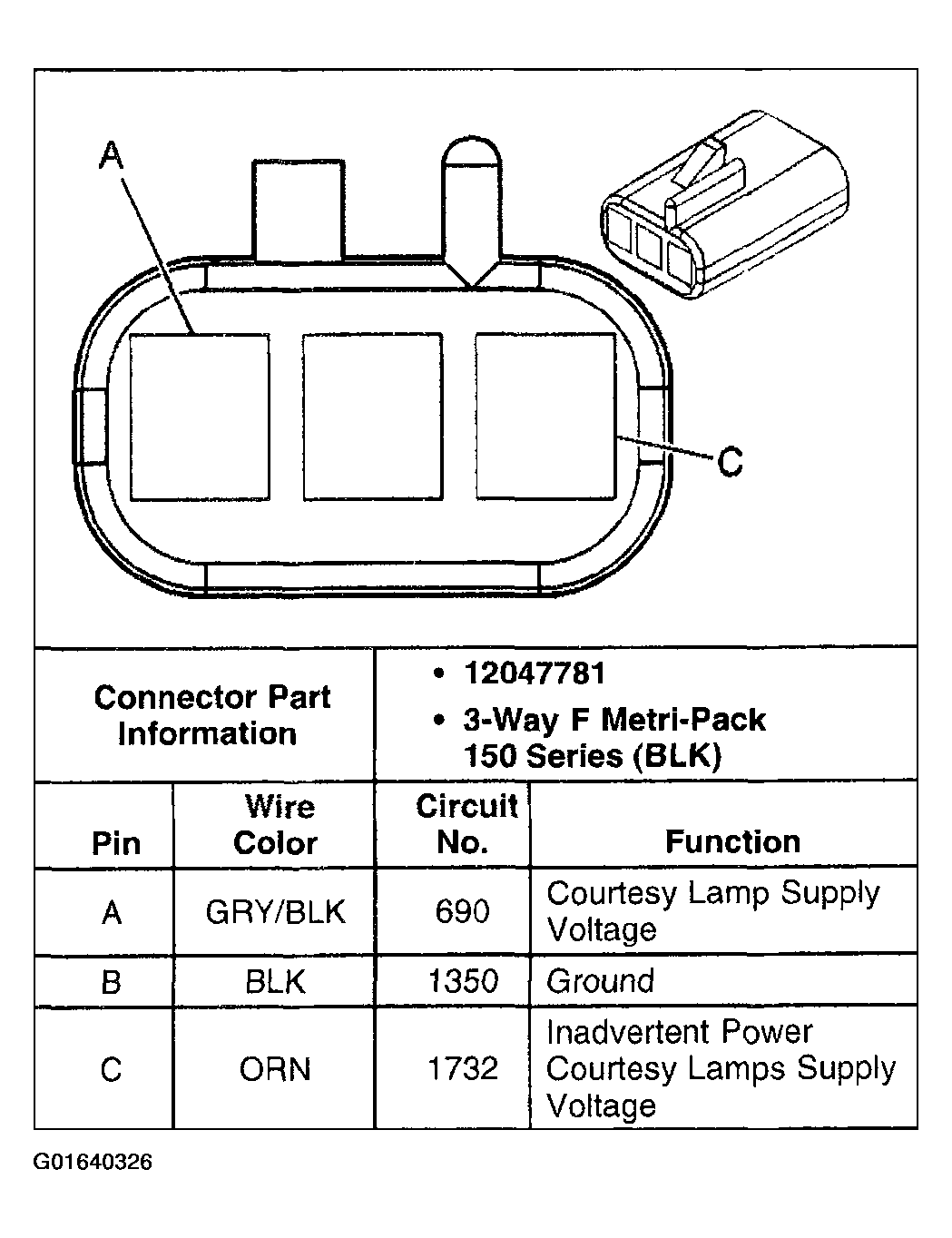

Fig 8: Locating Courtesy/Reading Lamp - LF Connector

G01640326

Courtesy of GENERAL MOTORS CORP.

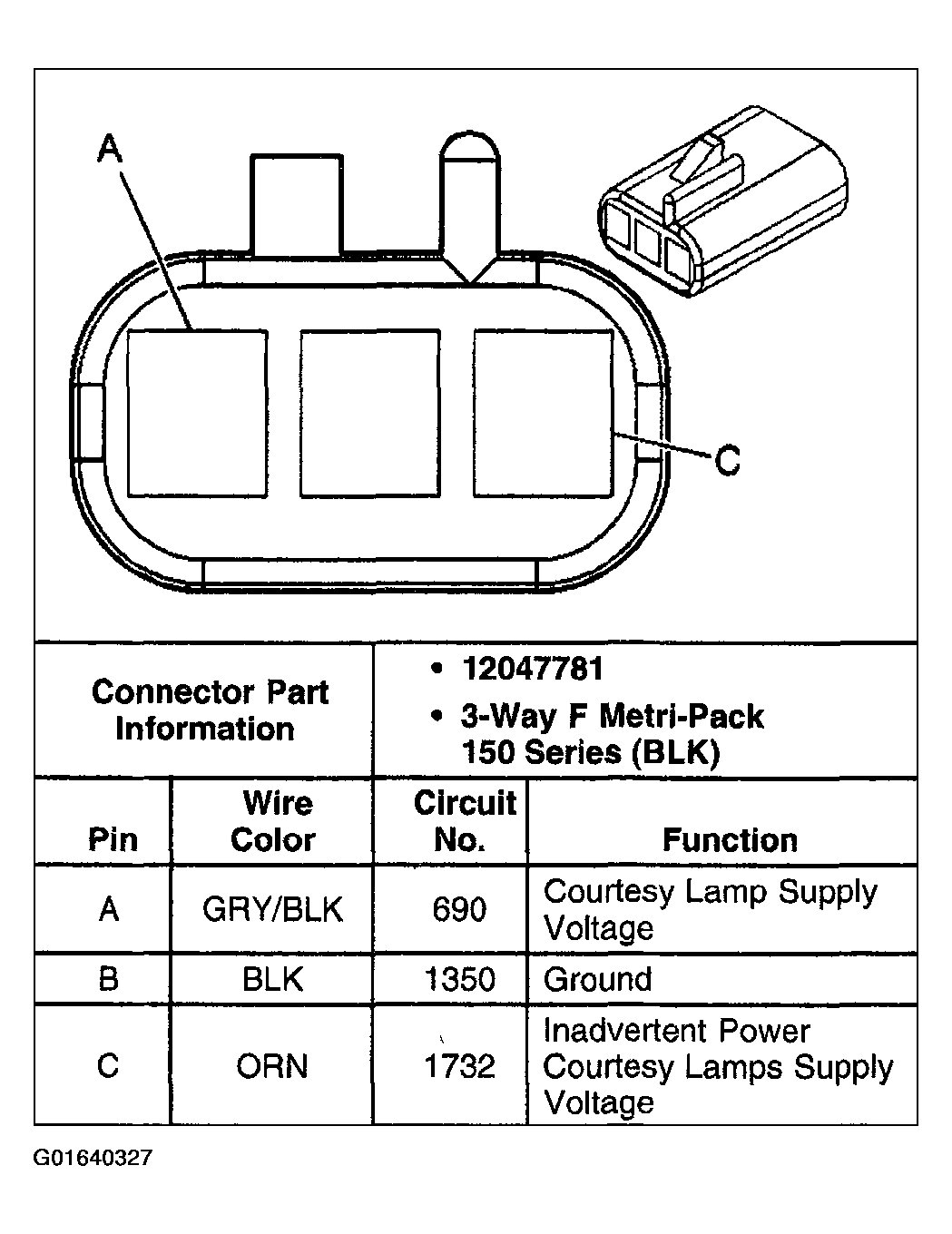

Fig 9: Locating Courtesy/Reading Lamp - Left Center (Body Type VIN 6)

G01640327

Courtesy of GENERAL MOTORS CORP.

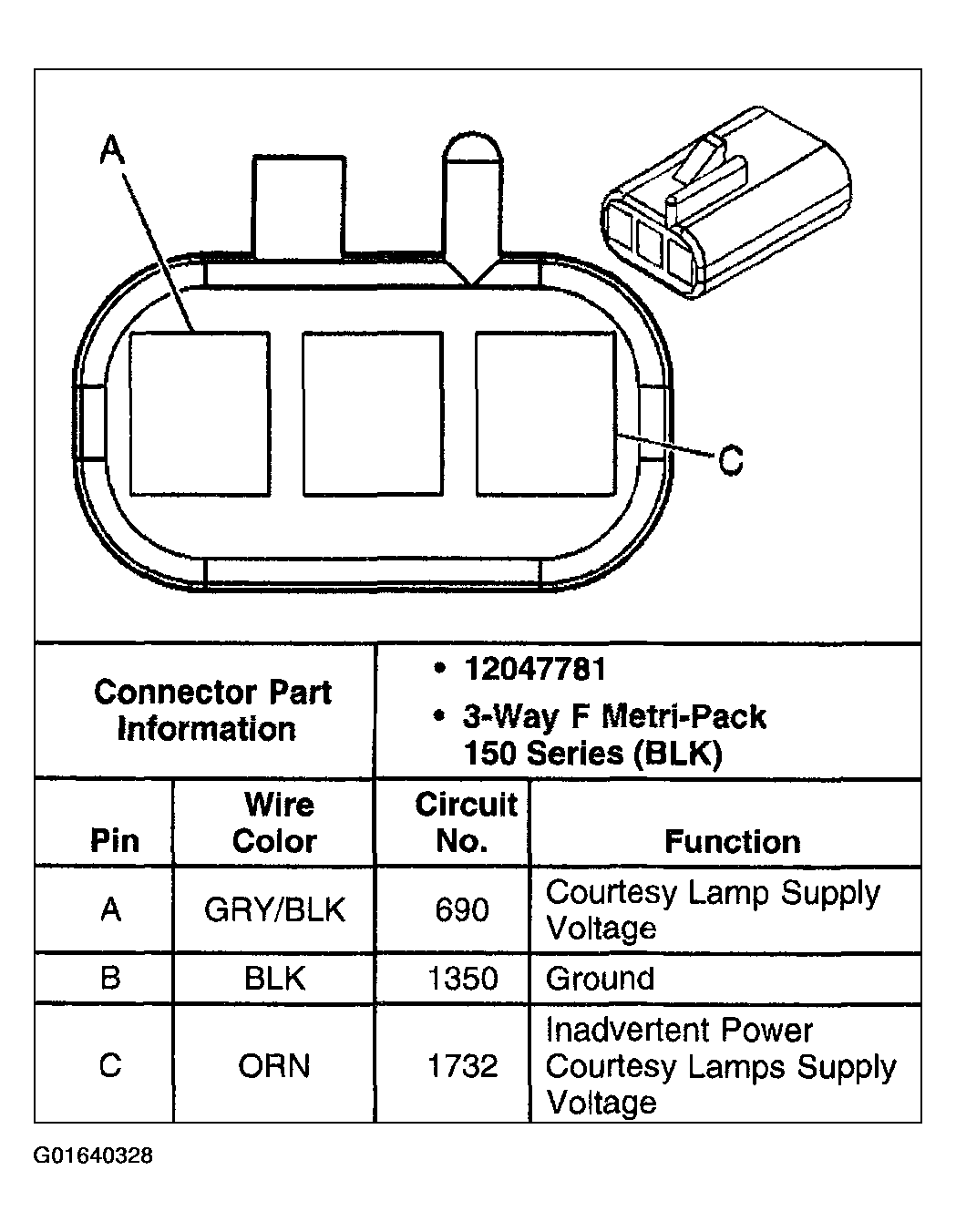

Fig 10: Locating Courtesy/Reading Lamp - LR

G01640328

Courtesy of GENERAL MOTORS CORP.

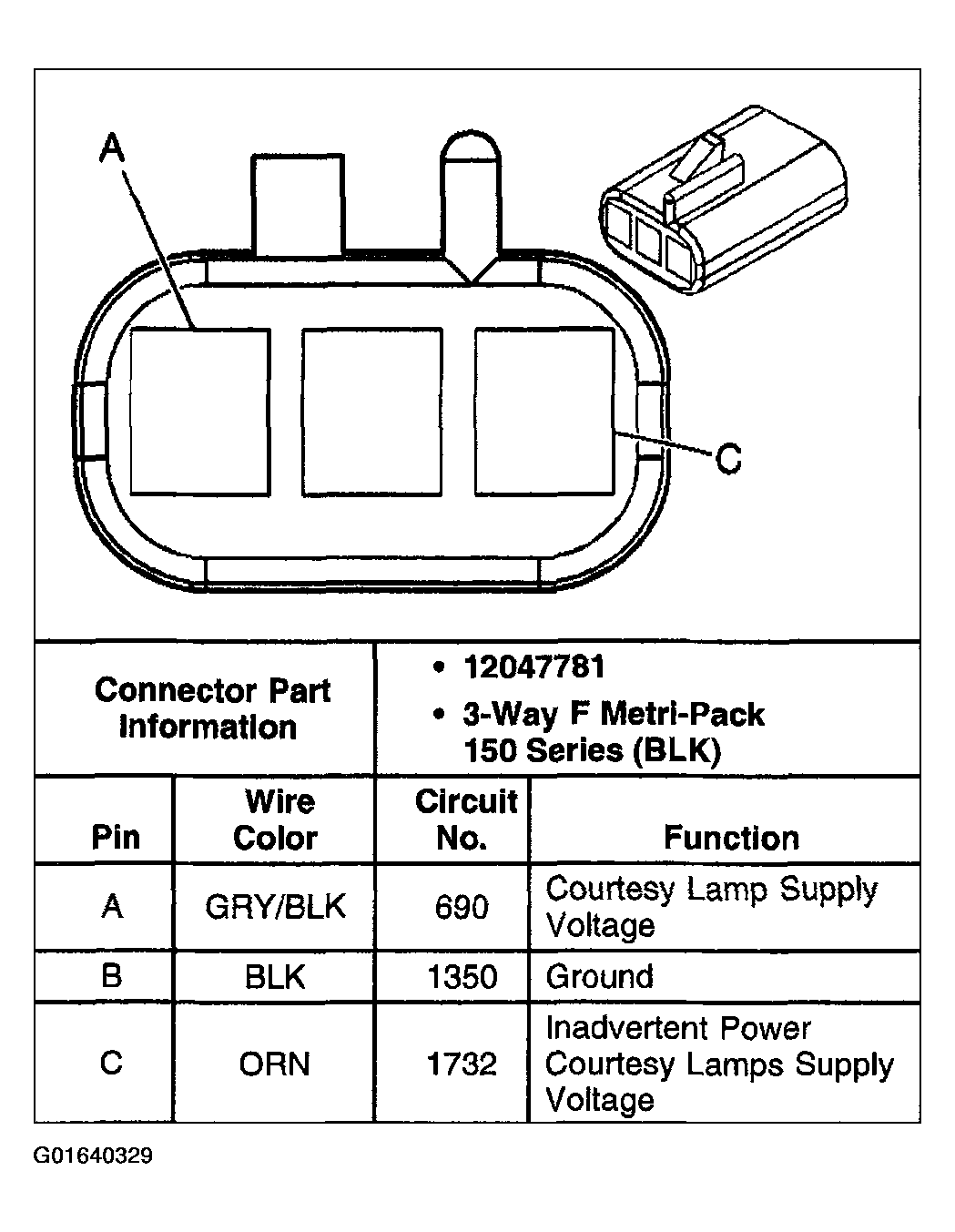

Fig 11: Locating Courtesy/Reading Lamp - RF

G01640329

Courtesy of GENERAL MOTORS CORP.

Fig 12: Locating Courtesy/Reading Lamp - Right Center (Body Type VIN 6)

G01640330

Courtesy of GENERAL MOTORS CORP.

Fig 13: Locating Courtesy/Reading Lamp - RR

G01640331

Courtesy of GENERAL MOTORS CORP.

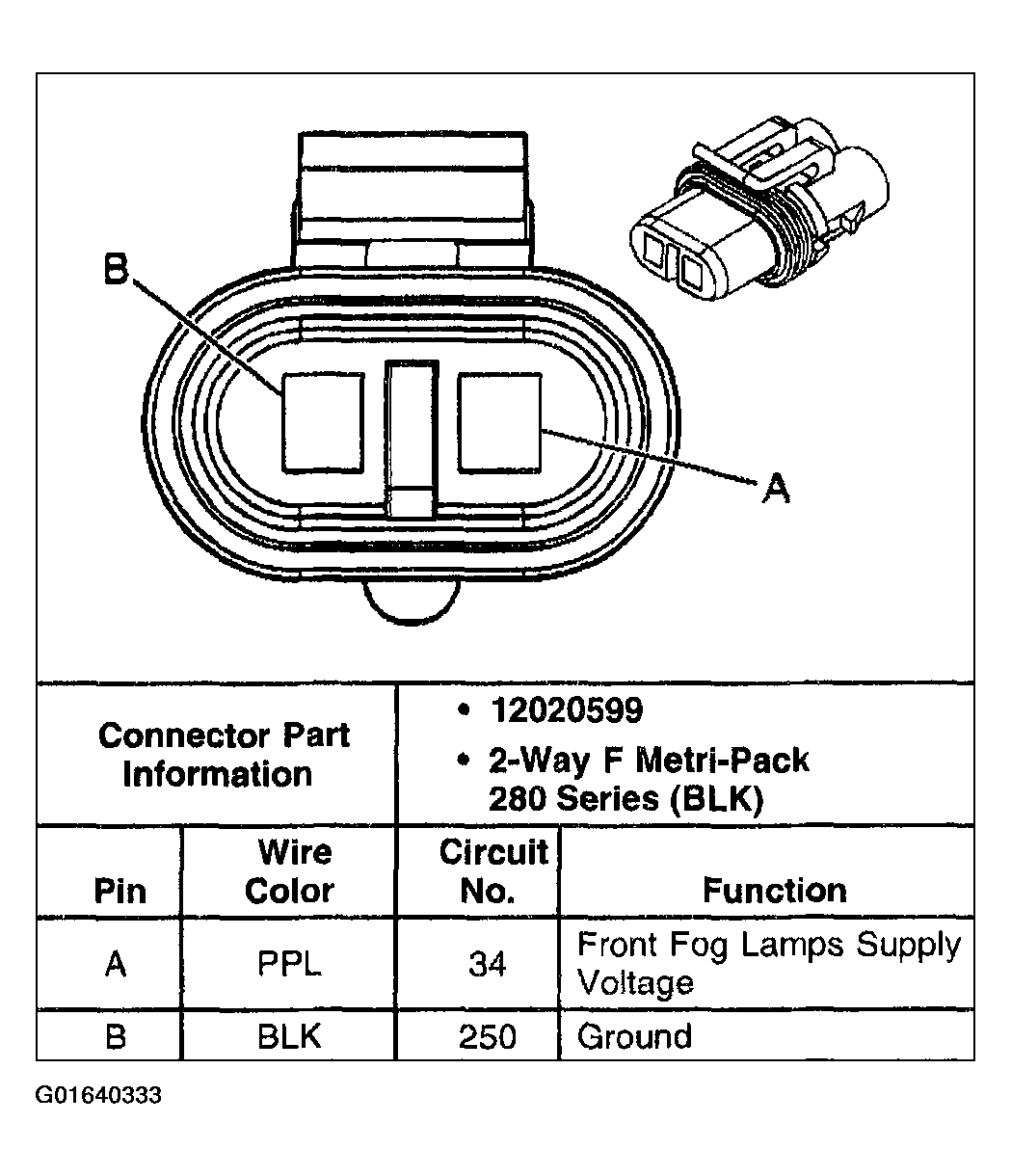

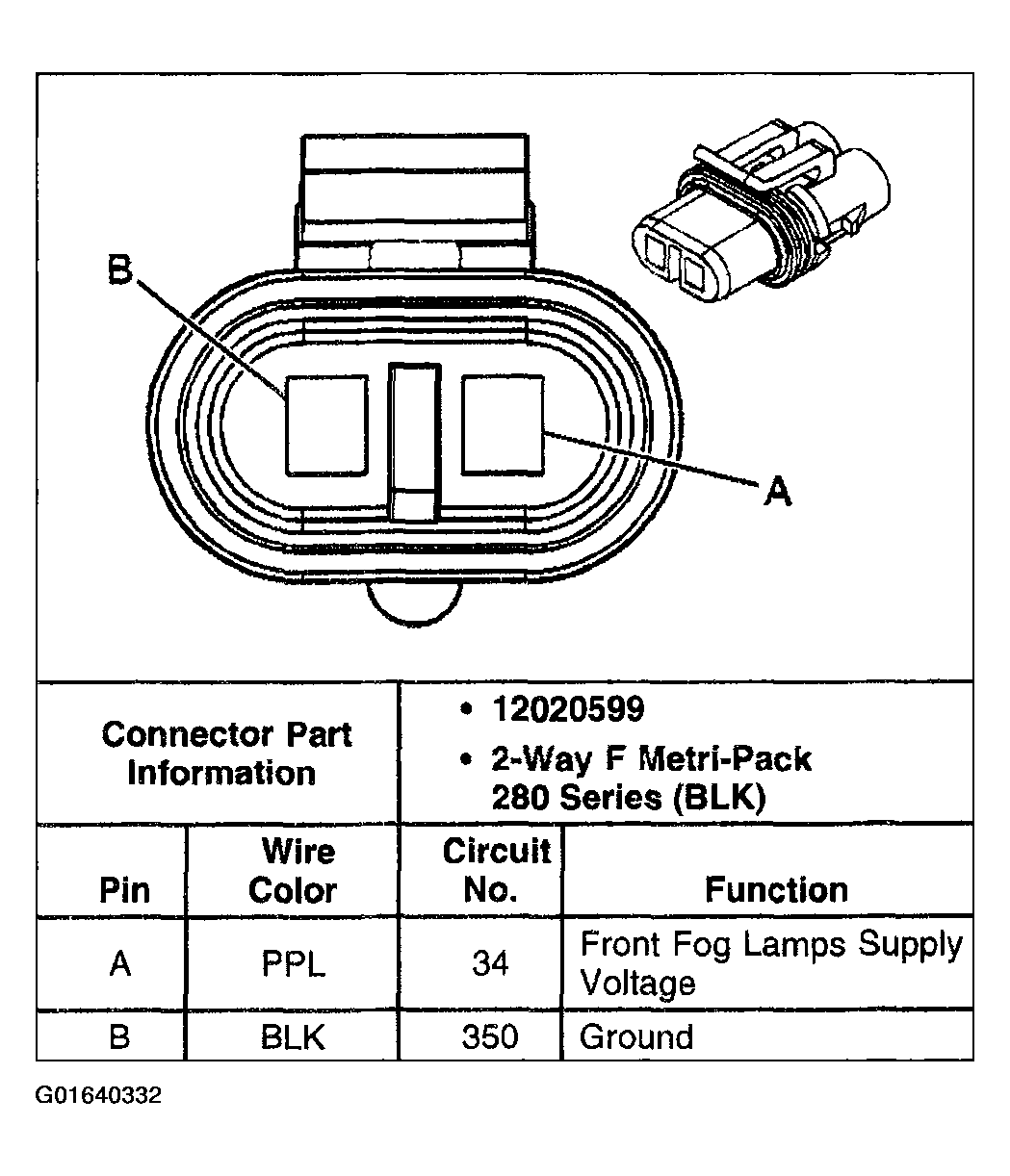

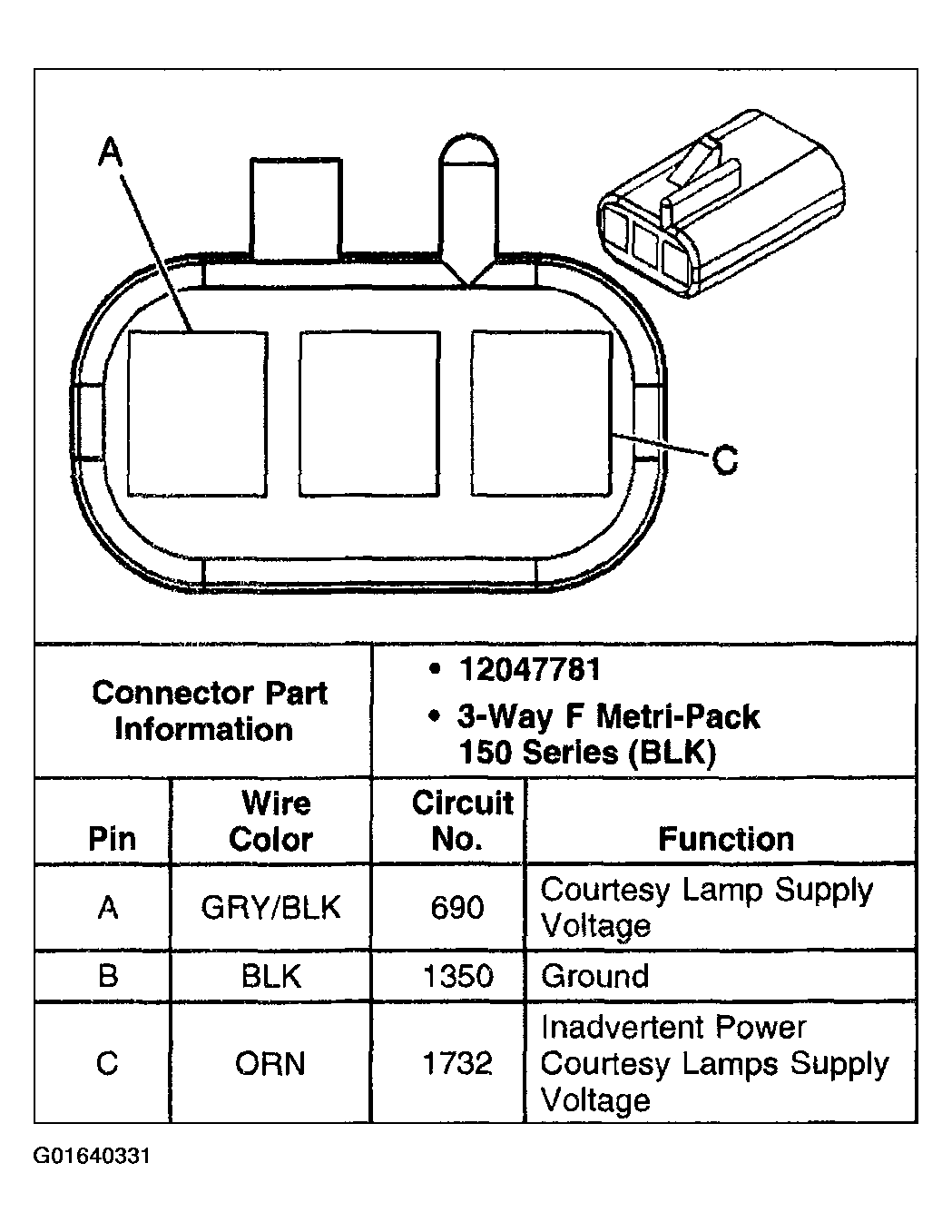

Fig 14: Locating Fog Lamp - LF

G01640332

Courtesy of GENERAL MOTORS CORP.

Fig 15: Locating Fog Lamp - RF

G01640333

Courtesy of GENERAL MOTORS CORP.

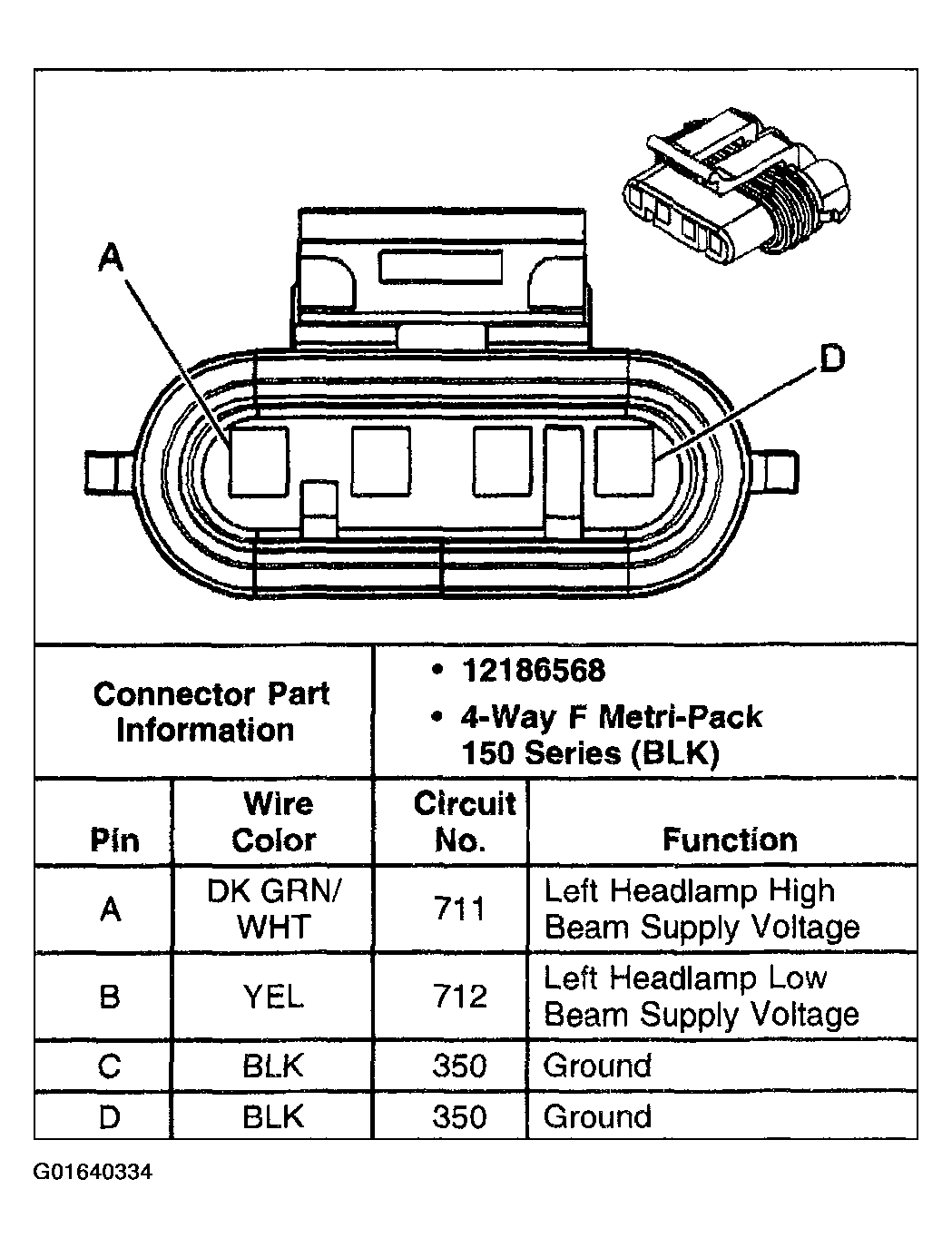

Fig 16: Locating Headlamp - Left

G01640334

Courtesy of GENERAL MOTORS CORP.

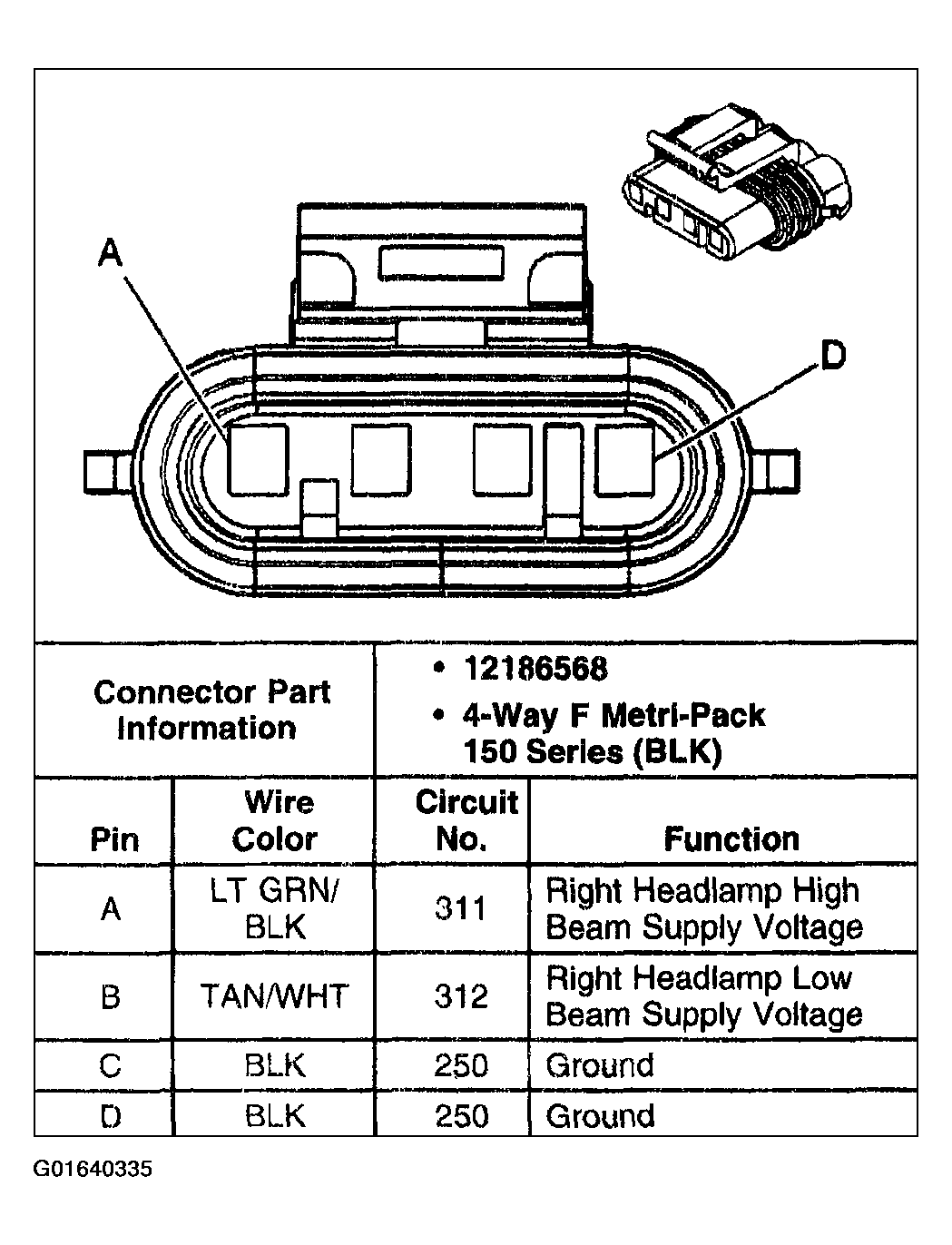

Fig 17: Locating Headlamp - Right

G01640335

Courtesy of GENERAL MOTORS CORP.

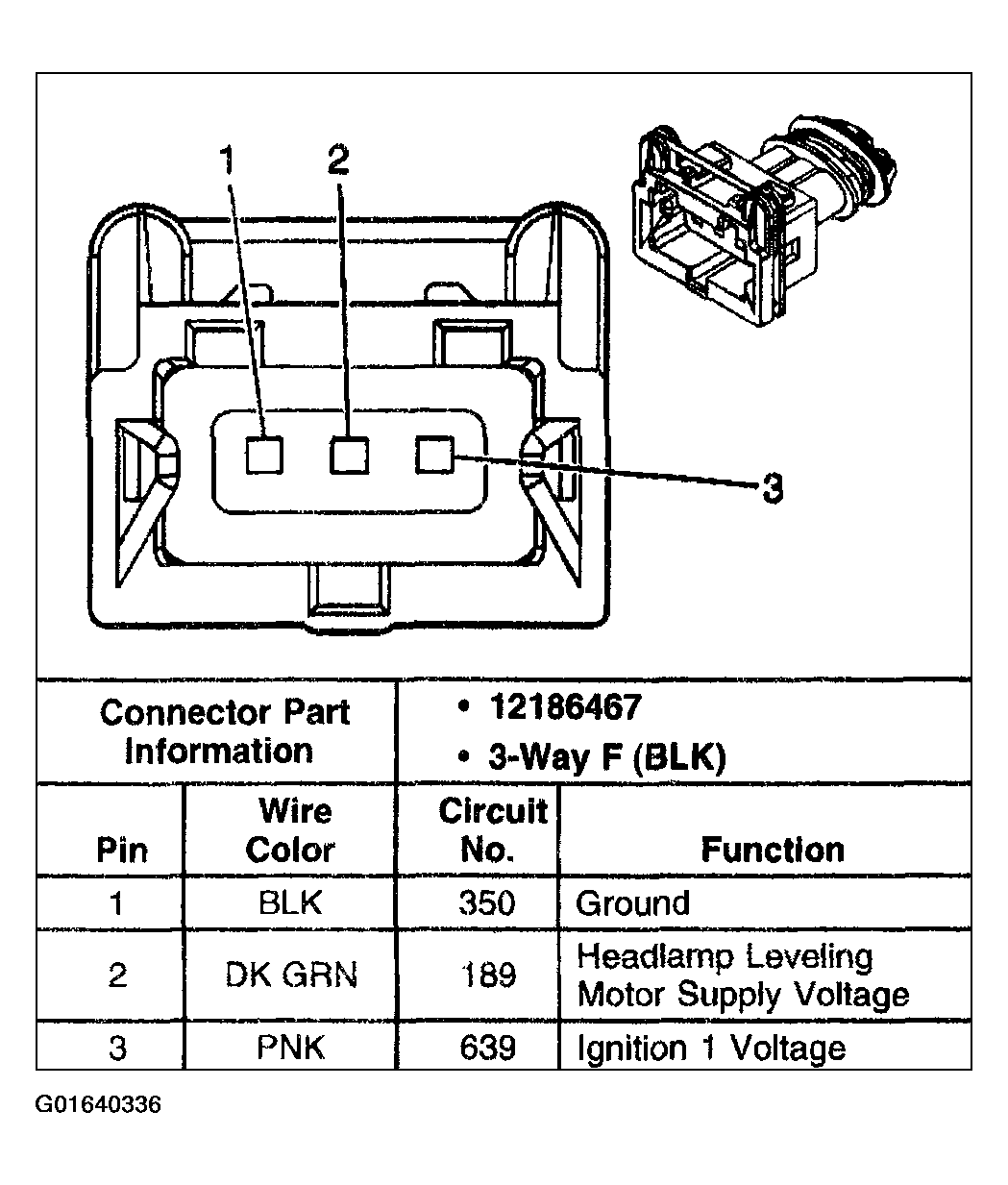

Fig 18: Locating Headlamp Leveling Actuator - Left (w/TR6)

G01640336

Courtesy of GENERAL MOTORS CORP.

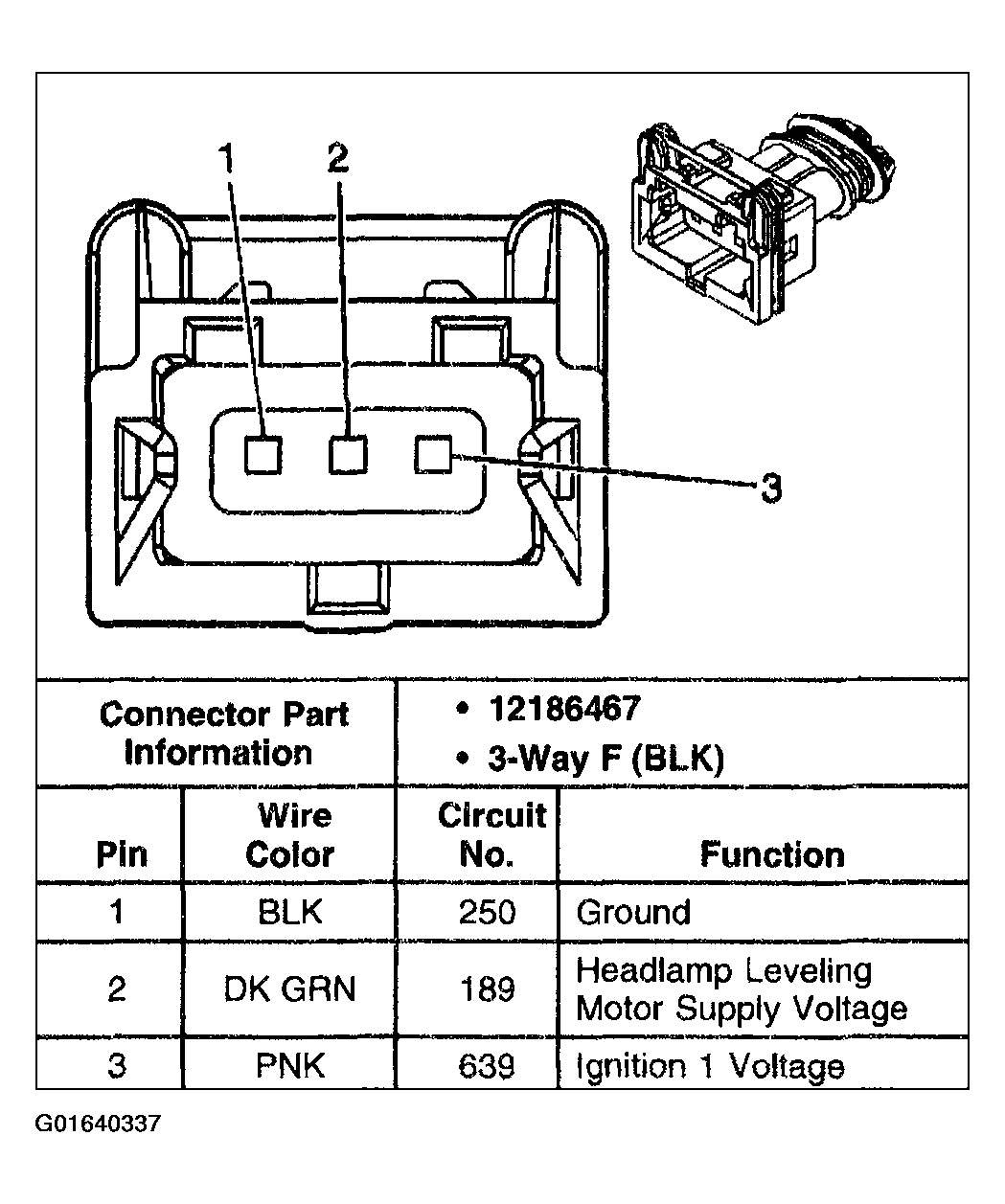

Fig 19: Locating Headlamp Leveling Actuator - Right (w/TR6)

G01640337

Courtesy of GENERAL MOTORS CORP.

Fig 20: Locating Headlamp Switch C1

G00411924

Courtesy of GENERAL MOTORS CORP.

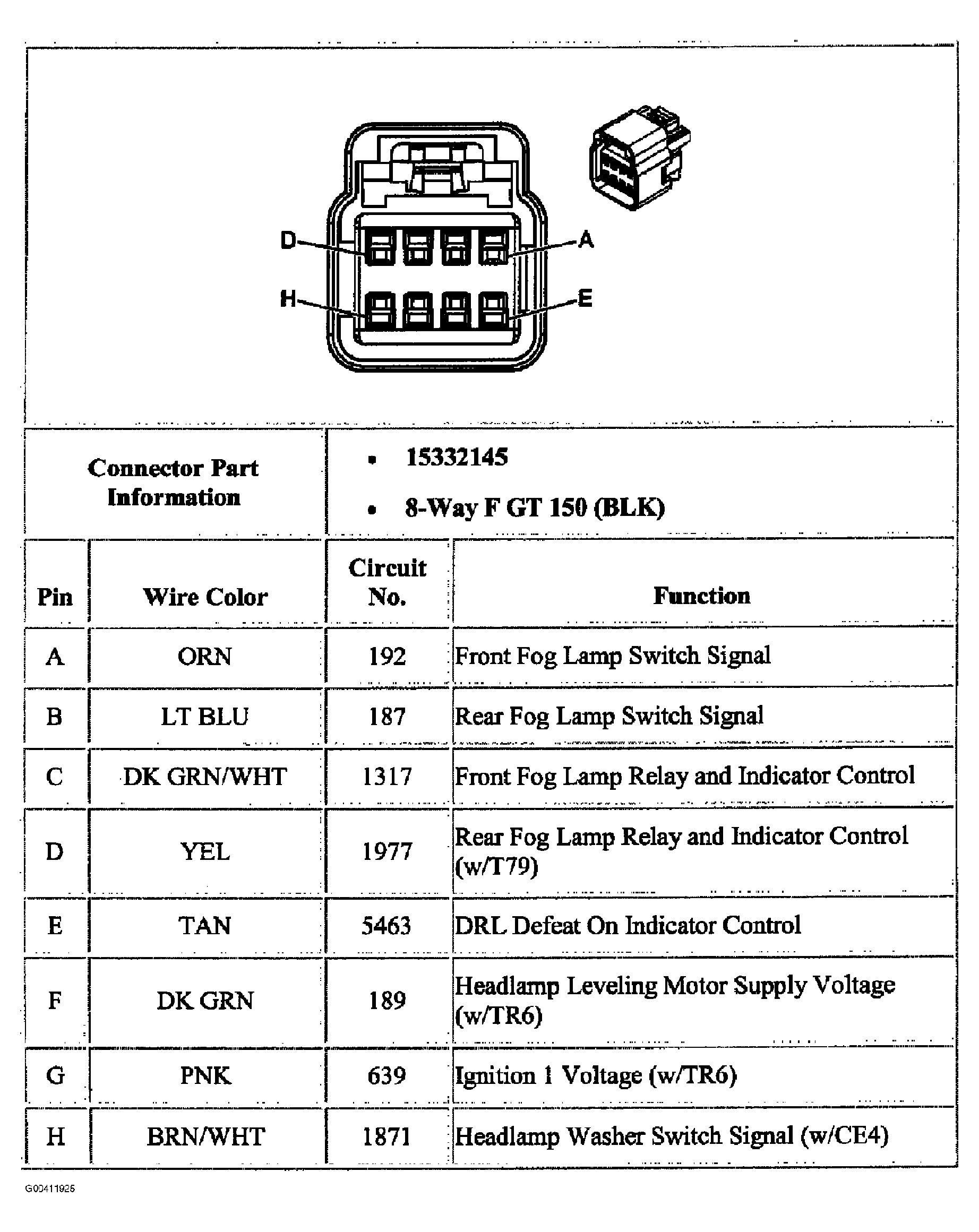

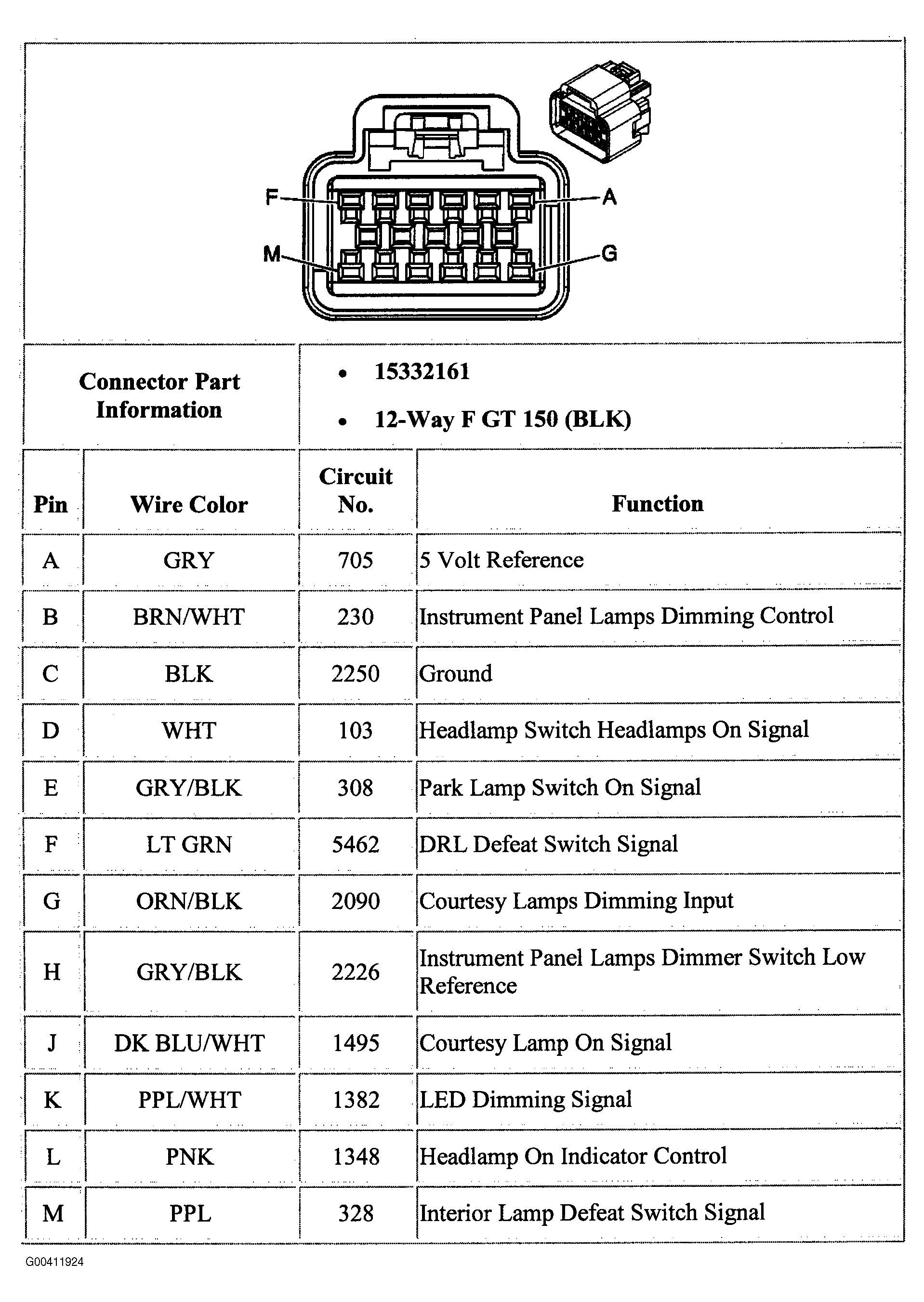

Fig 21: Locating Headlamp Switch C2

G00411925

Courtesy of GENERAL MOTORS CORP.

Fig 22: Locating License Lamp - Left Connector

G01640339

Courtesy of GENERAL MOTORS CORP.

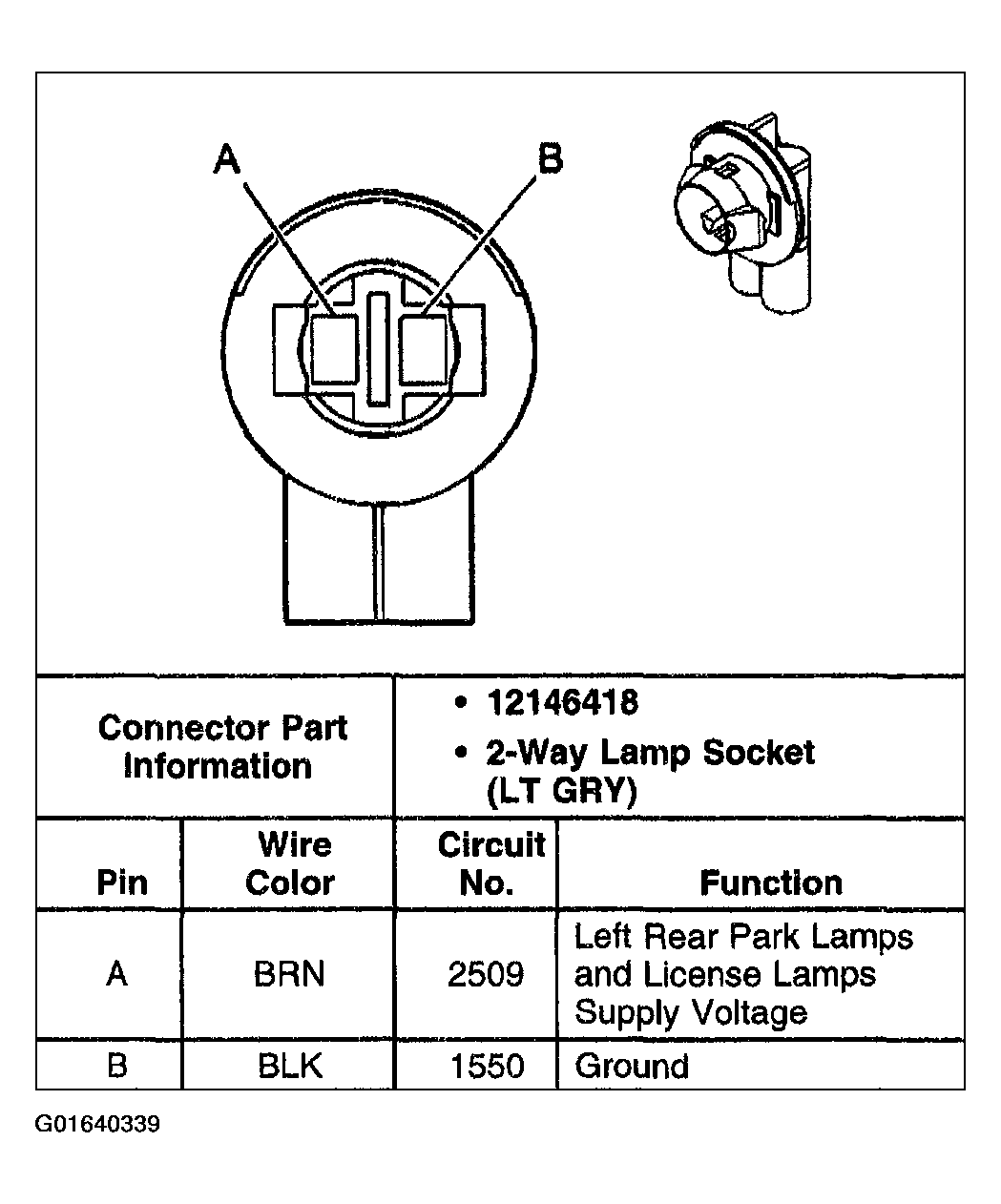

Fig 23: Locating License Lamp - Right Connector

G01640339

Courtesy of GENERAL MOTORS CORP.

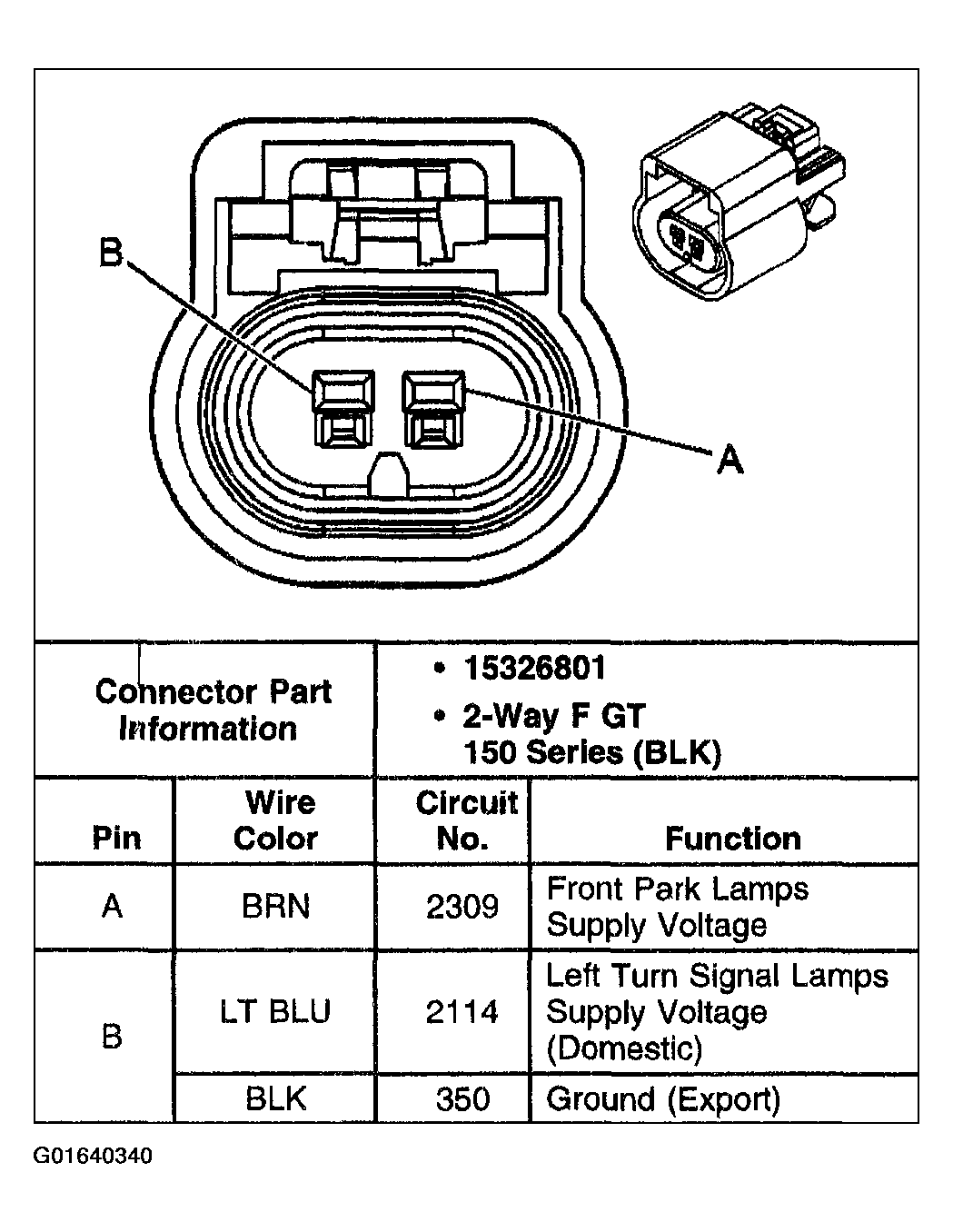

Fig 24: Locating Marker Lamp - LF (Chevrolet) Connector

G01640340

Courtesy of GENERAL MOTORS CORP.

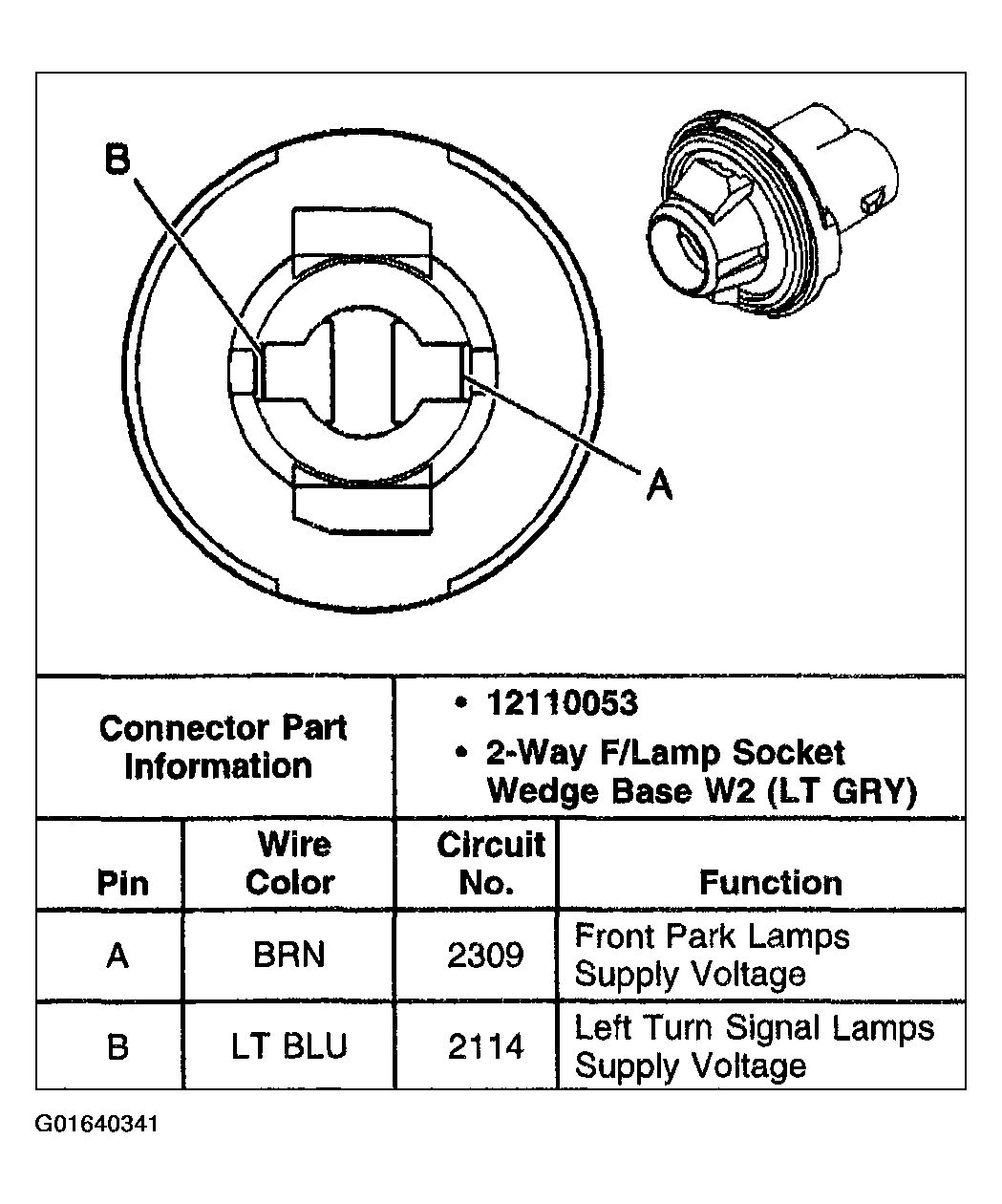

Fig 25: Locating Marker Lamp - LF (GMC/Oldsmobile) Connector

G01640341

Courtesy of GENERAL MOTORS CORP.

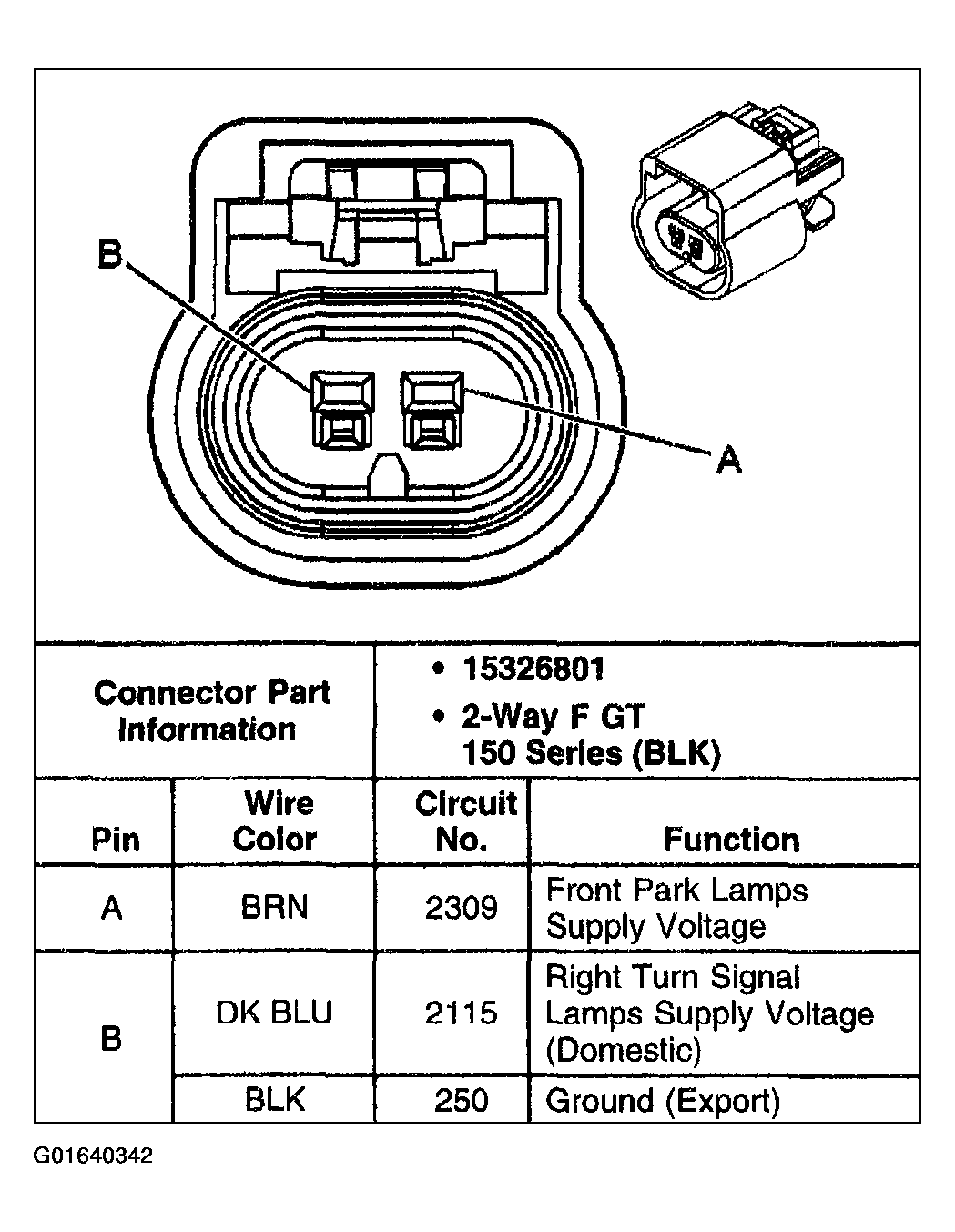

Fig 26: Locating Marker Lamp - RF (Chevrolet) Connector

G01640342

Courtesy of GENERAL MOTORS CORP.

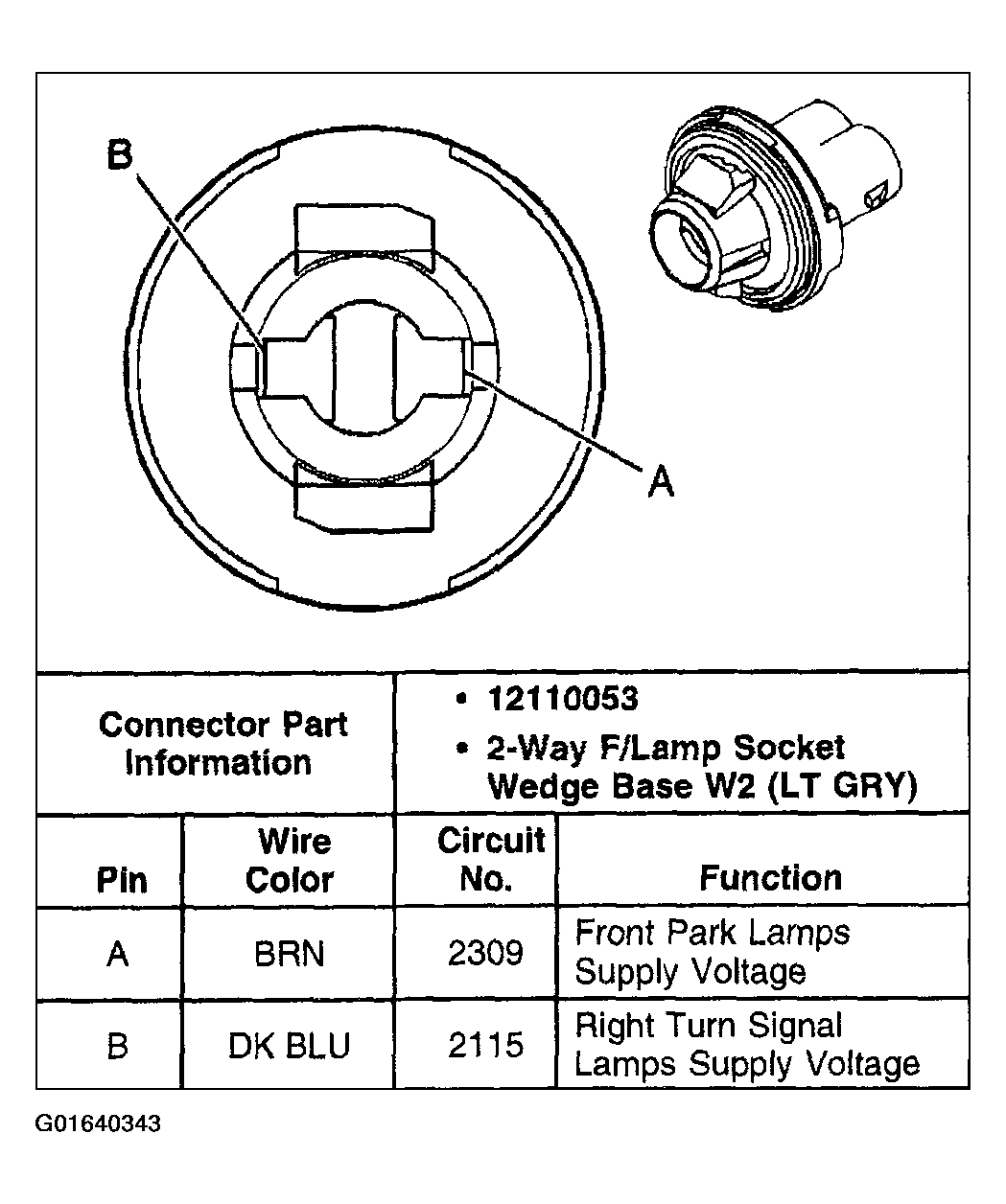

Fig 27: Locating Marker Lamp - RF (GMC/Oldsmobile) Connector

G01640343

Courtesy of GENERAL MOTORS CORP.

Fig 28: Locating Miniwedge (Door Jamb Switch) - Driver Connector

G01640344

Courtesy of GENERAL MOTORS CORP.

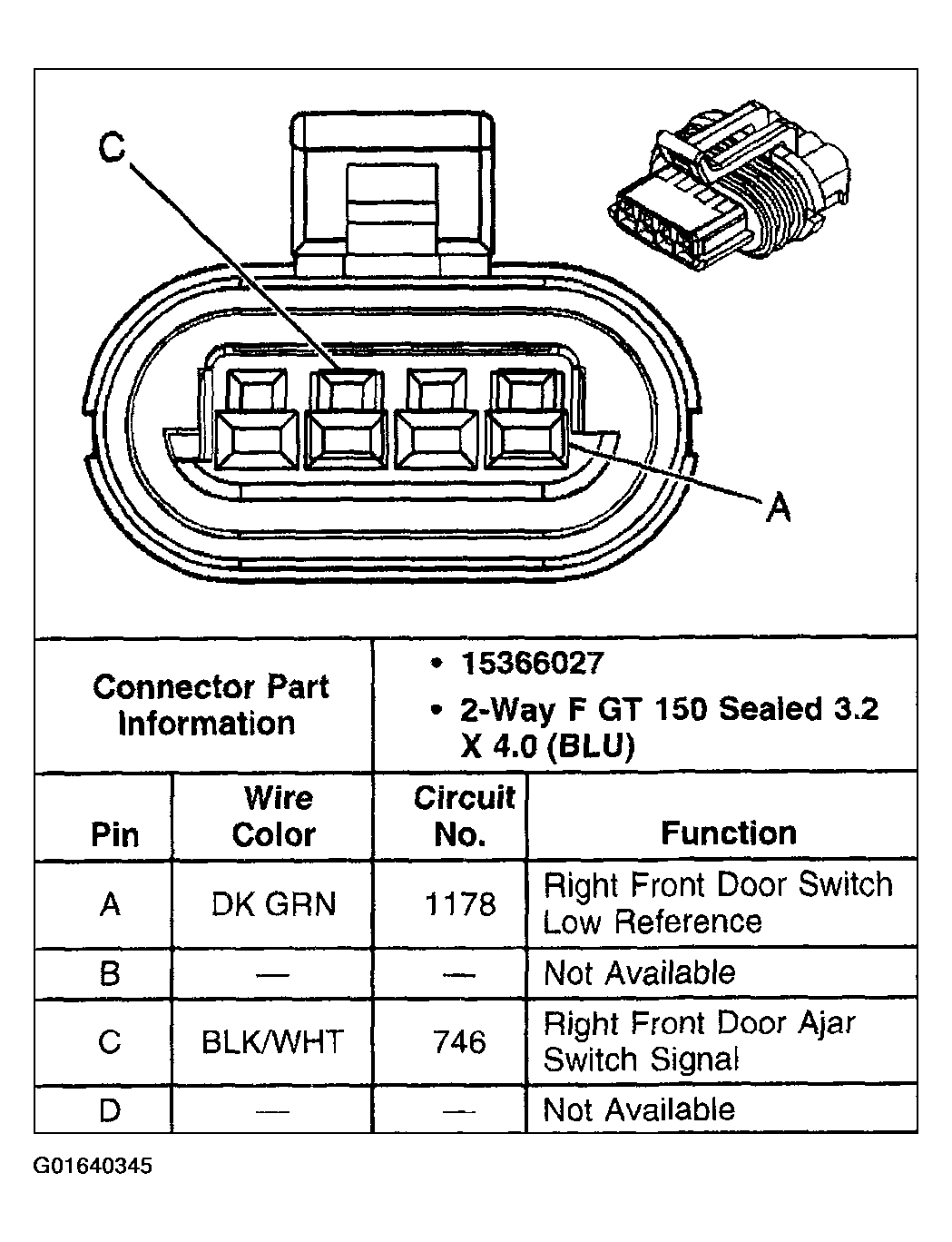

Fig 29: Locating Miniwedge (Door Jamb Switch) - Front Passenger Connector

G01640345

Courtesy of GENERAL MOTORS CORP.

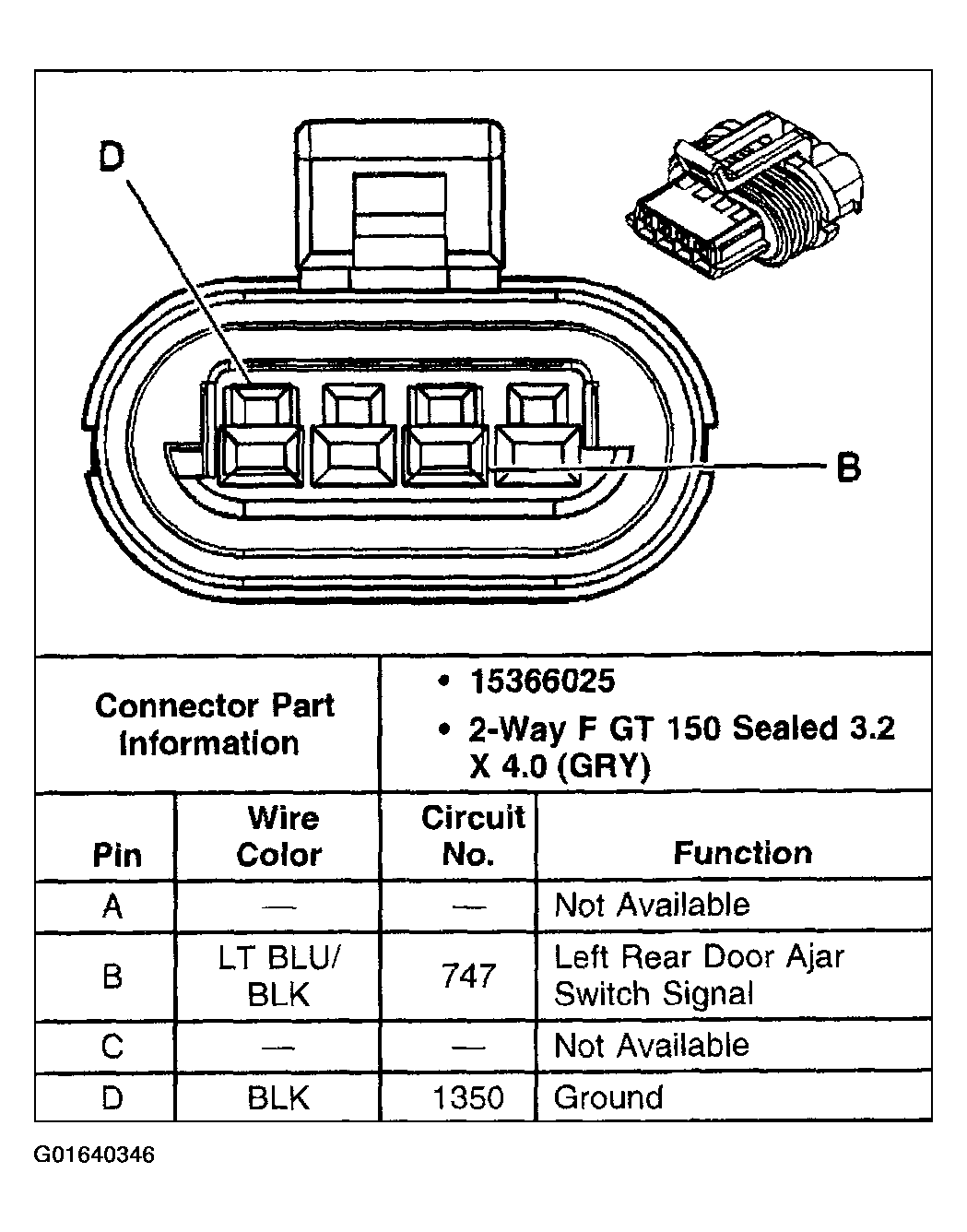

Fig 30: Locating Miniwedge (Door Jamb Switch) - LR Connector

G01640346

Courtesy of GENERAL MOTORS CORP.

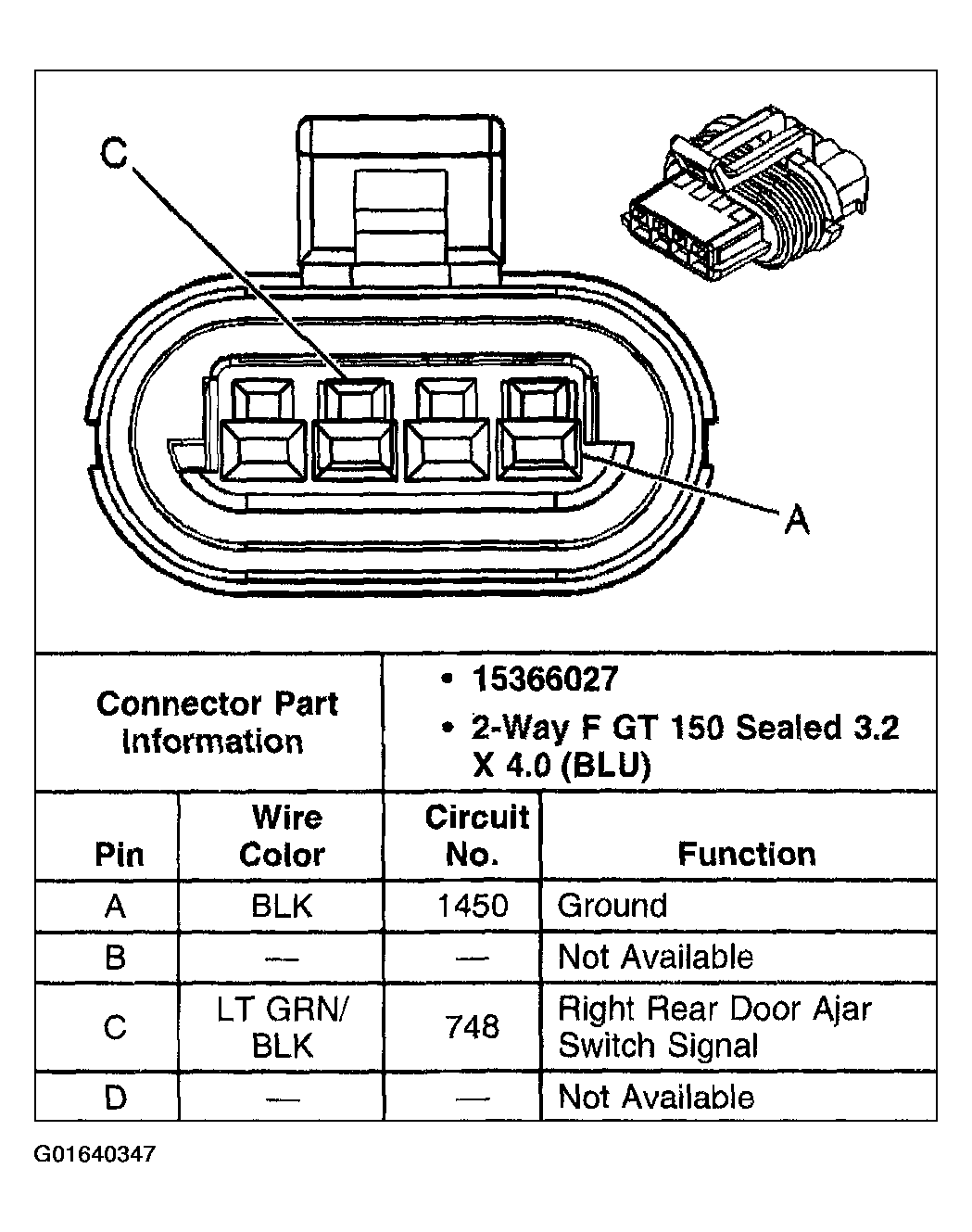

Fig 31: Locating Miniwedge (Door Jamb Switch) - RR Connector

G01640347

Courtesy of GENERAL MOTORS CORP.

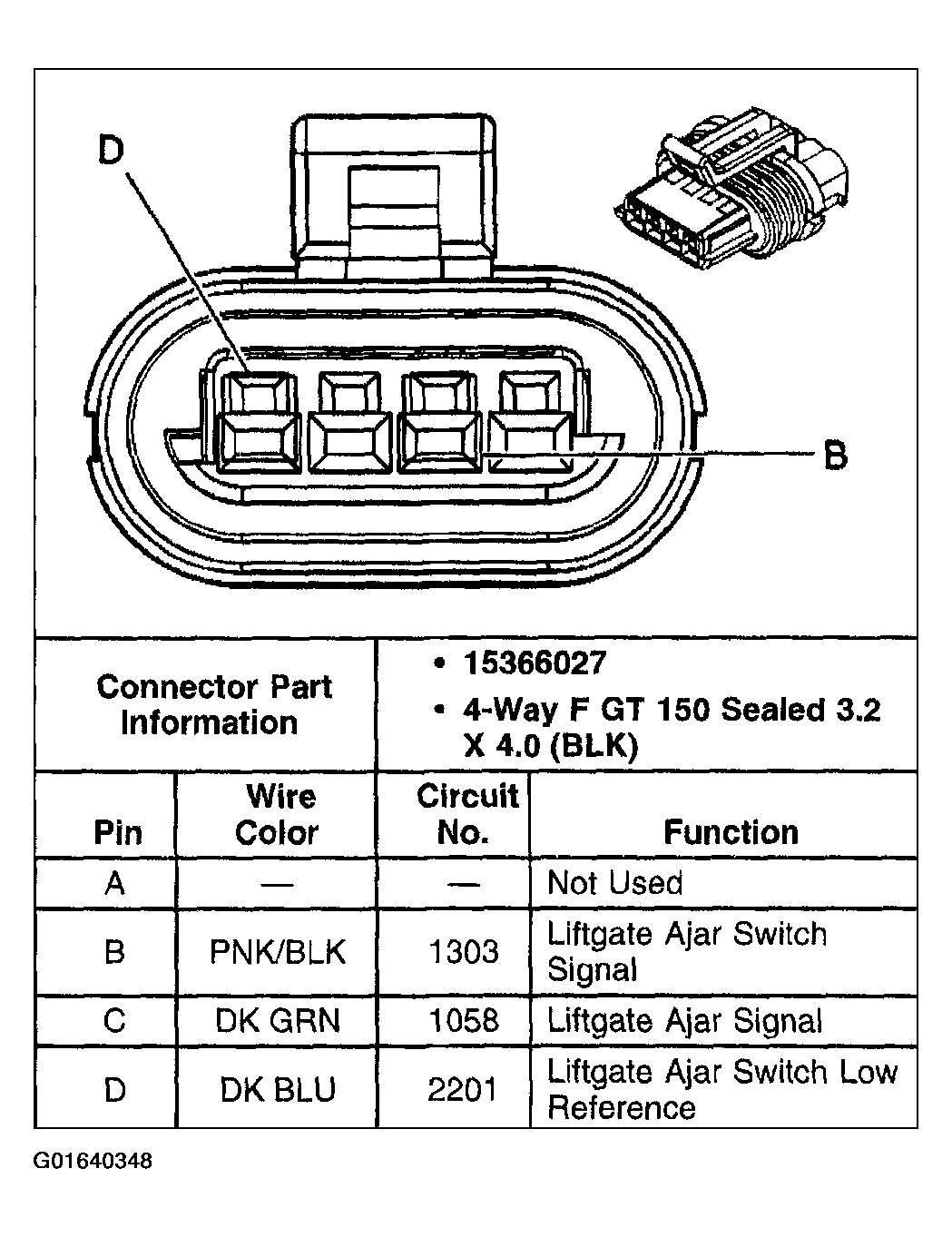

Fig 32: Locating Miniwedge (Door Jamb Switch) - Liftgate Connector

G01640348

Courtesy of GENERAL MOTORS CORP.

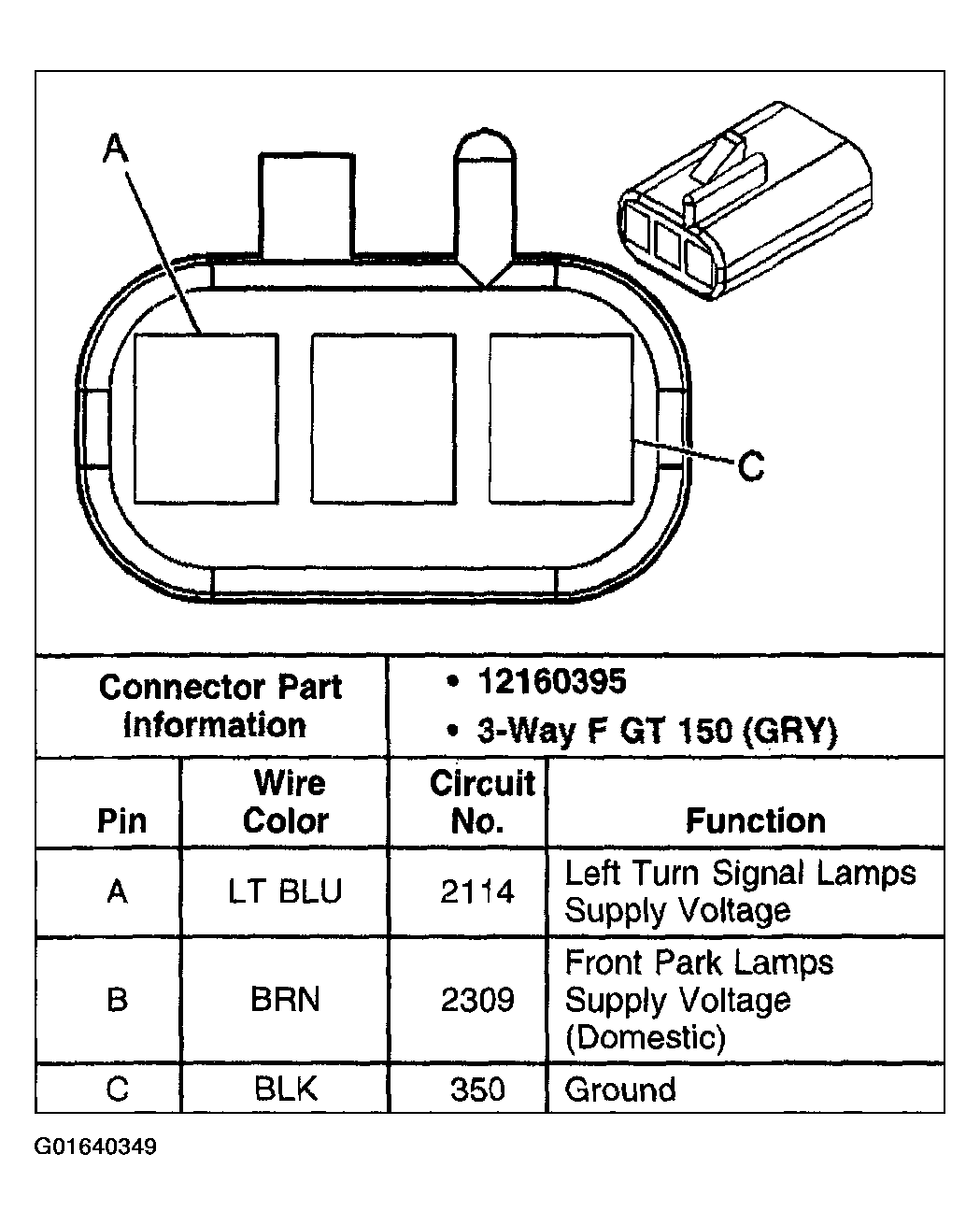

Fig 33: Locating Northface Cargo Lamp Connector

G01640349

Courtesy of GENERAL MOTORS CORP.

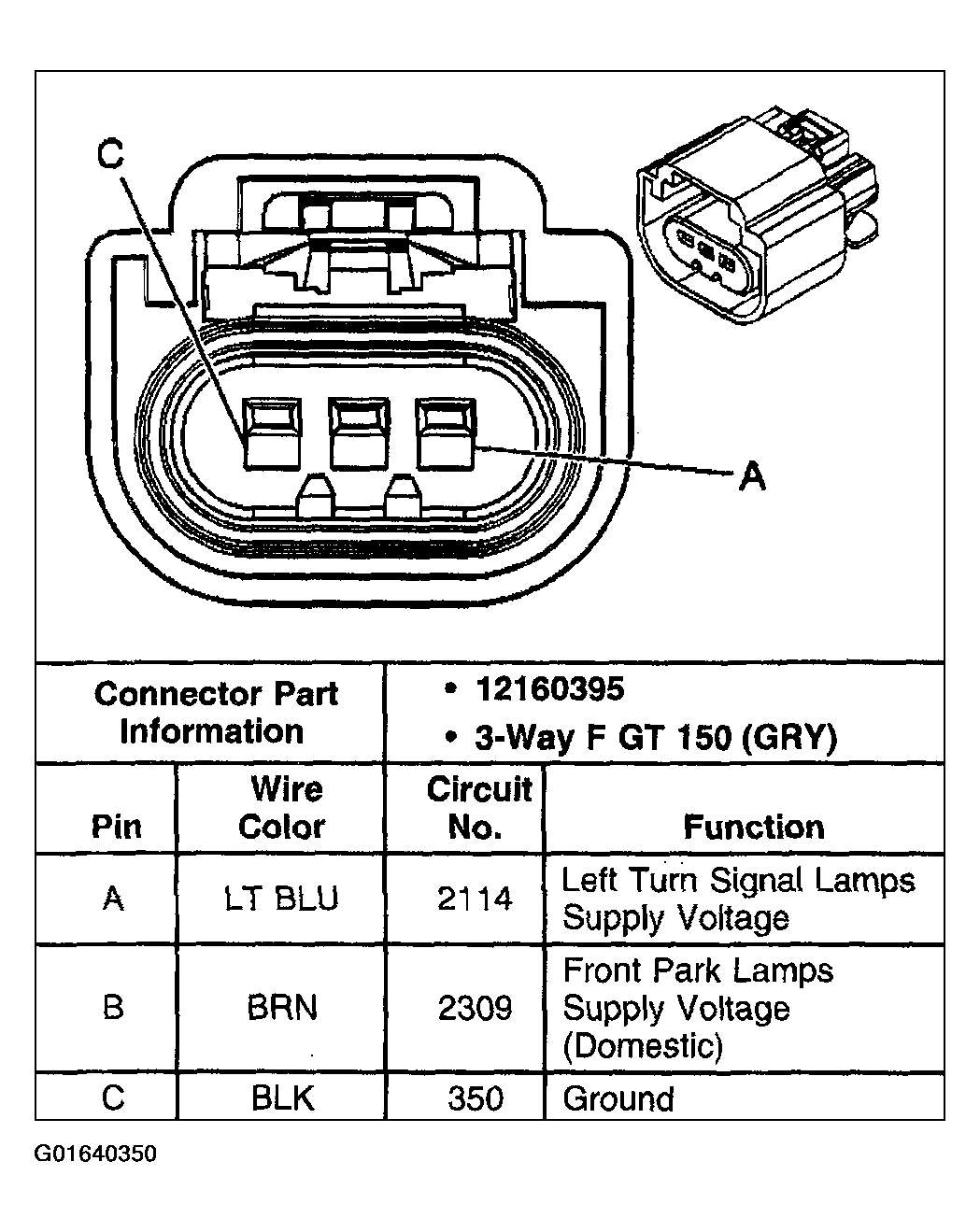

Fig 34: Locating Park/Turn Signal Lamp - LF (Chevrolet) Connector

G01640350

Courtesy of GENERAL MOTORS CORP.

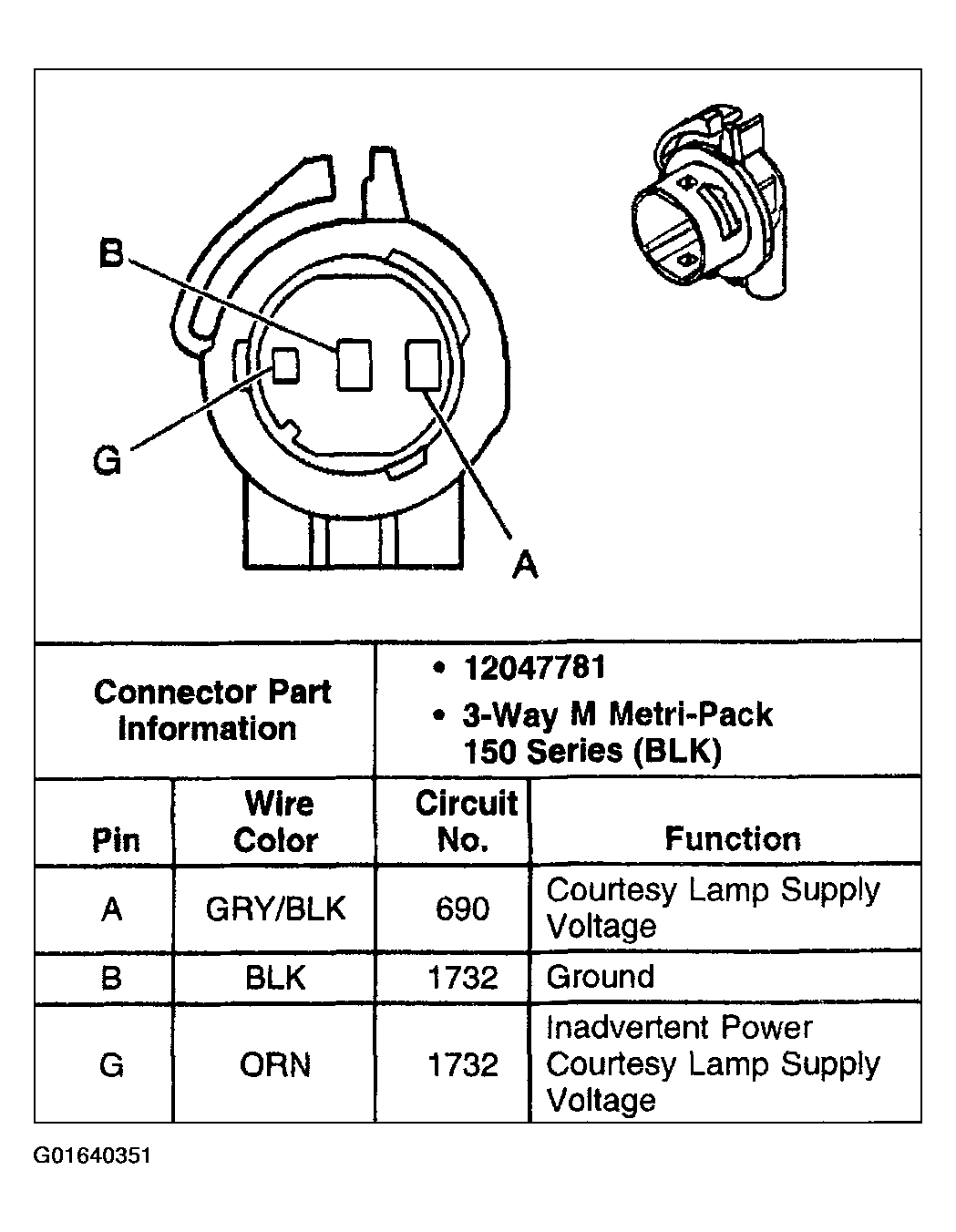

Fig 35: Locating Park/Turn Signal Lamp - LF (GMC/Oldsmobile) Connector

G01640351

Courtesy of GENERAL MOTORS CORP.

Fig 36: Locating Park/Turn Signal Lamp - RF (Chevrolet) Connector

G01640352

Courtesy of GENERAL MOTORS CORP.

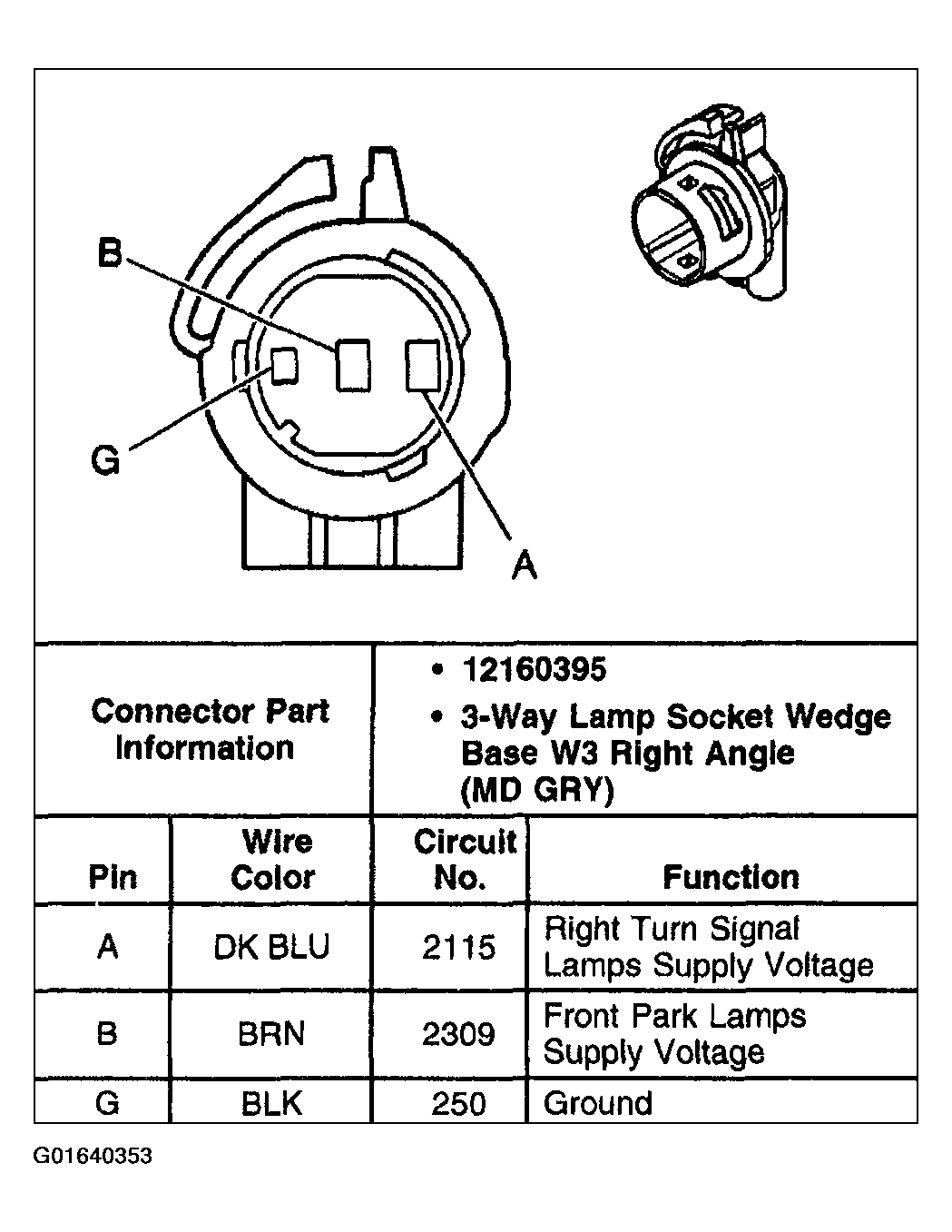

Fig 37: Locating Park/Turn Signal Lamp - RF (GMC/Oldsmobile) Connector

G01640353

Courtesy of GENERAL MOTORS CORP.

Fig 38: Locating Roof Lamp - Left Connector

G01640354

Courtesy of GENERAL MOTORS CORP.

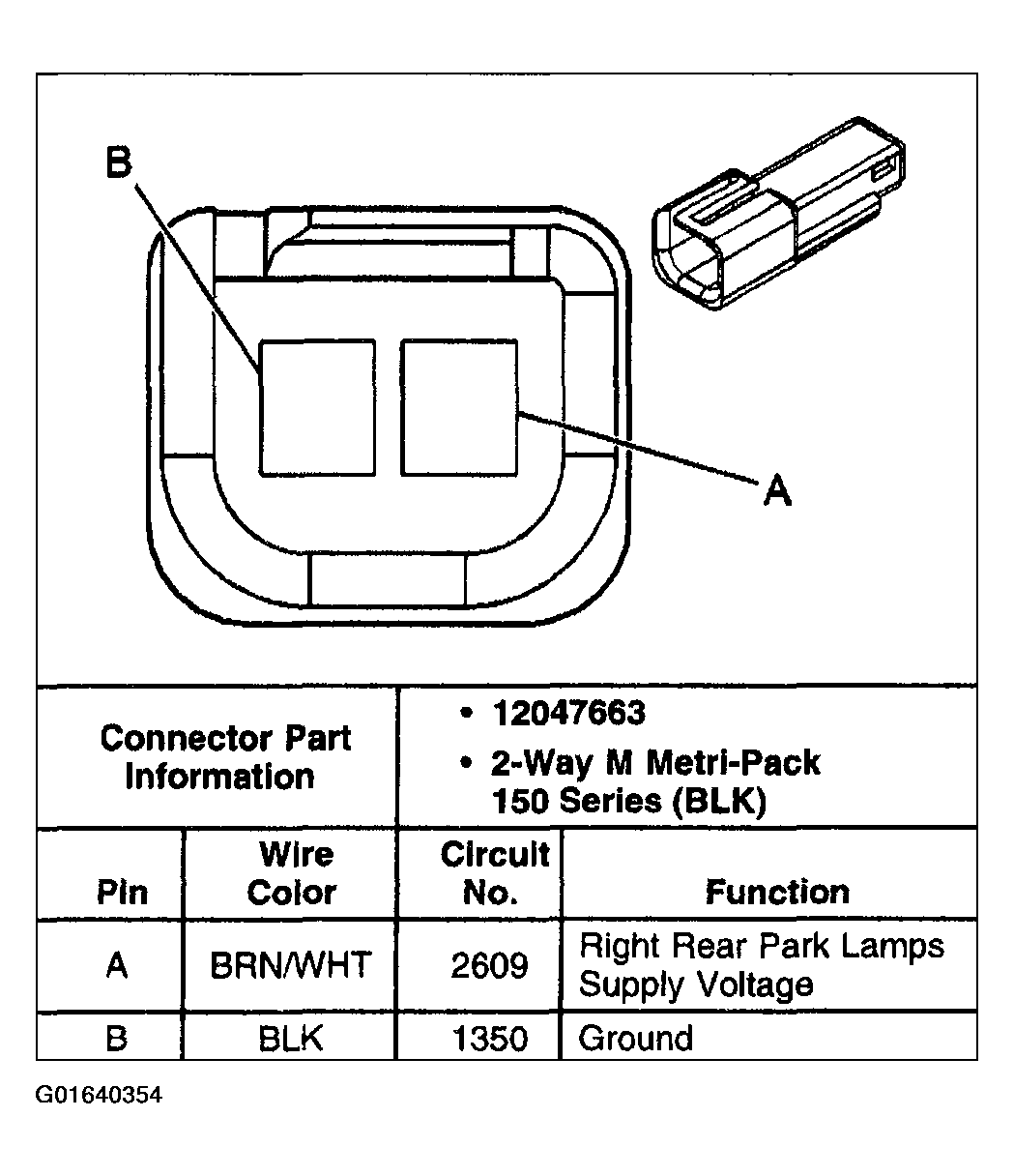

Fig 39: Locating Roof Lamp - Right Connector

G01640355

Courtesy of GENERAL MOTORS CORP.

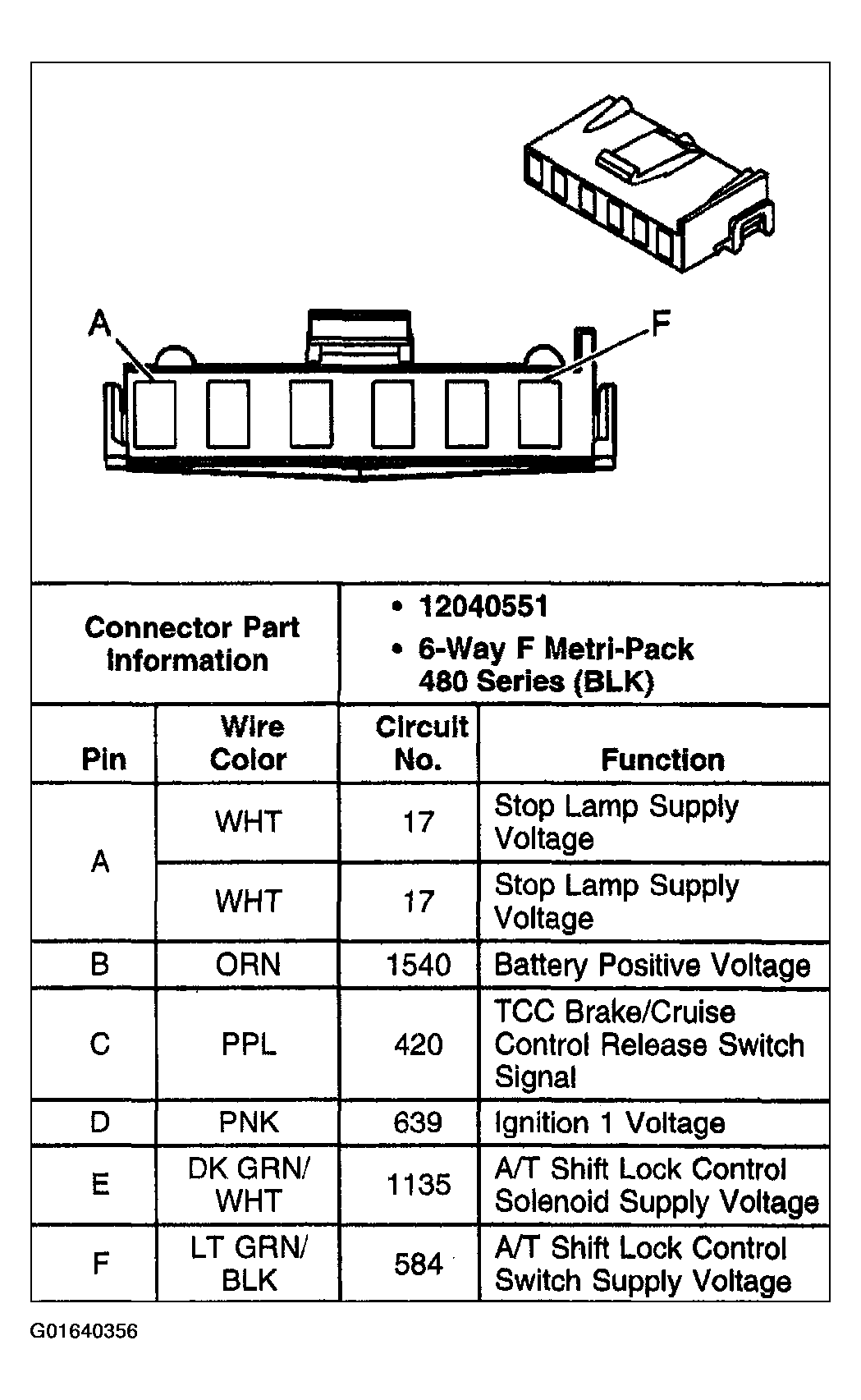

Fig 40: Locating Stop Lamp Switch Connector

G01640356

Courtesy of GENERAL MOTORS CORP.

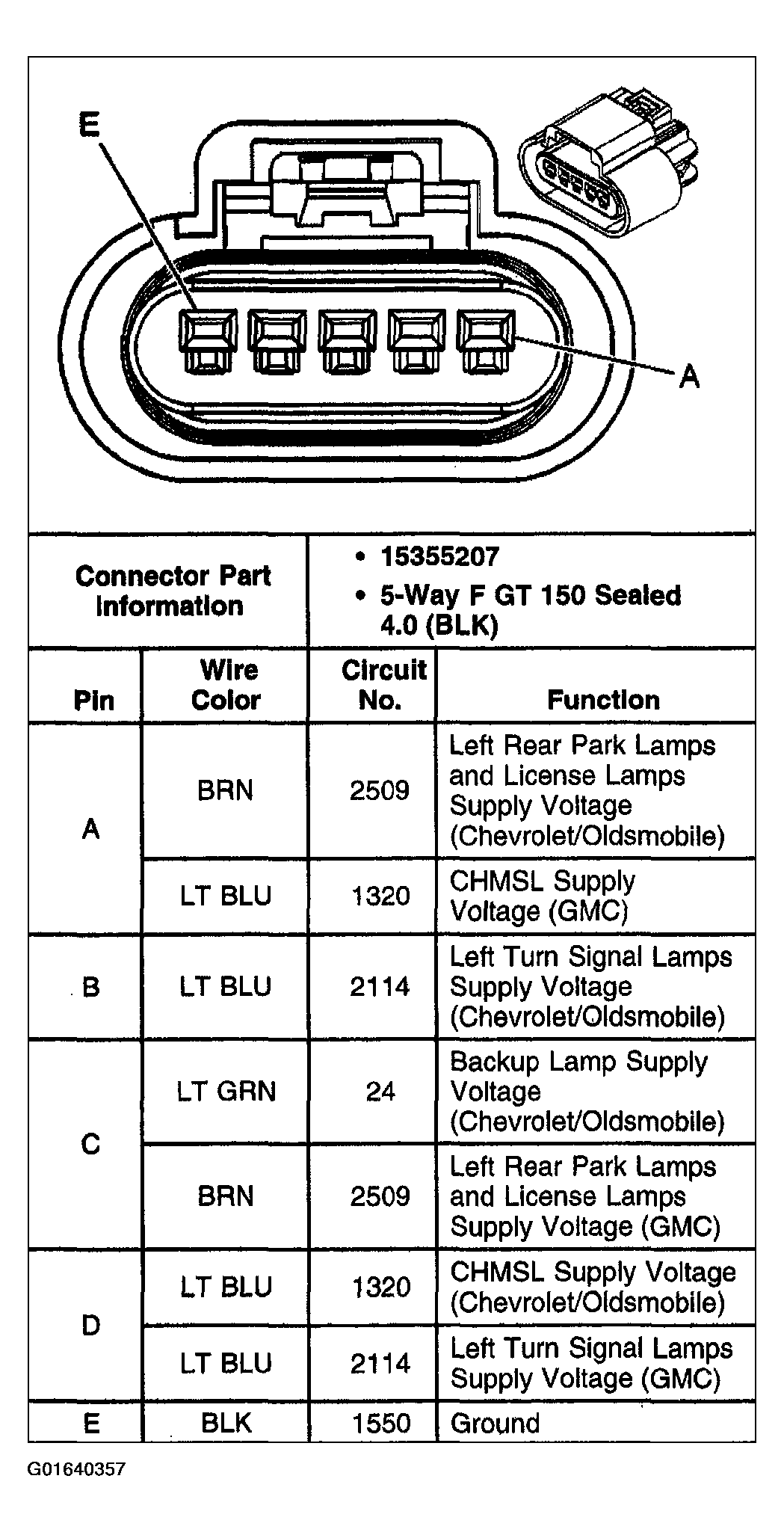

Fig 41: Locating Tail Lamp Assembly - Left (w/o T79) Connector

G01640357

Courtesy of GENERAL MOTORS CORP.

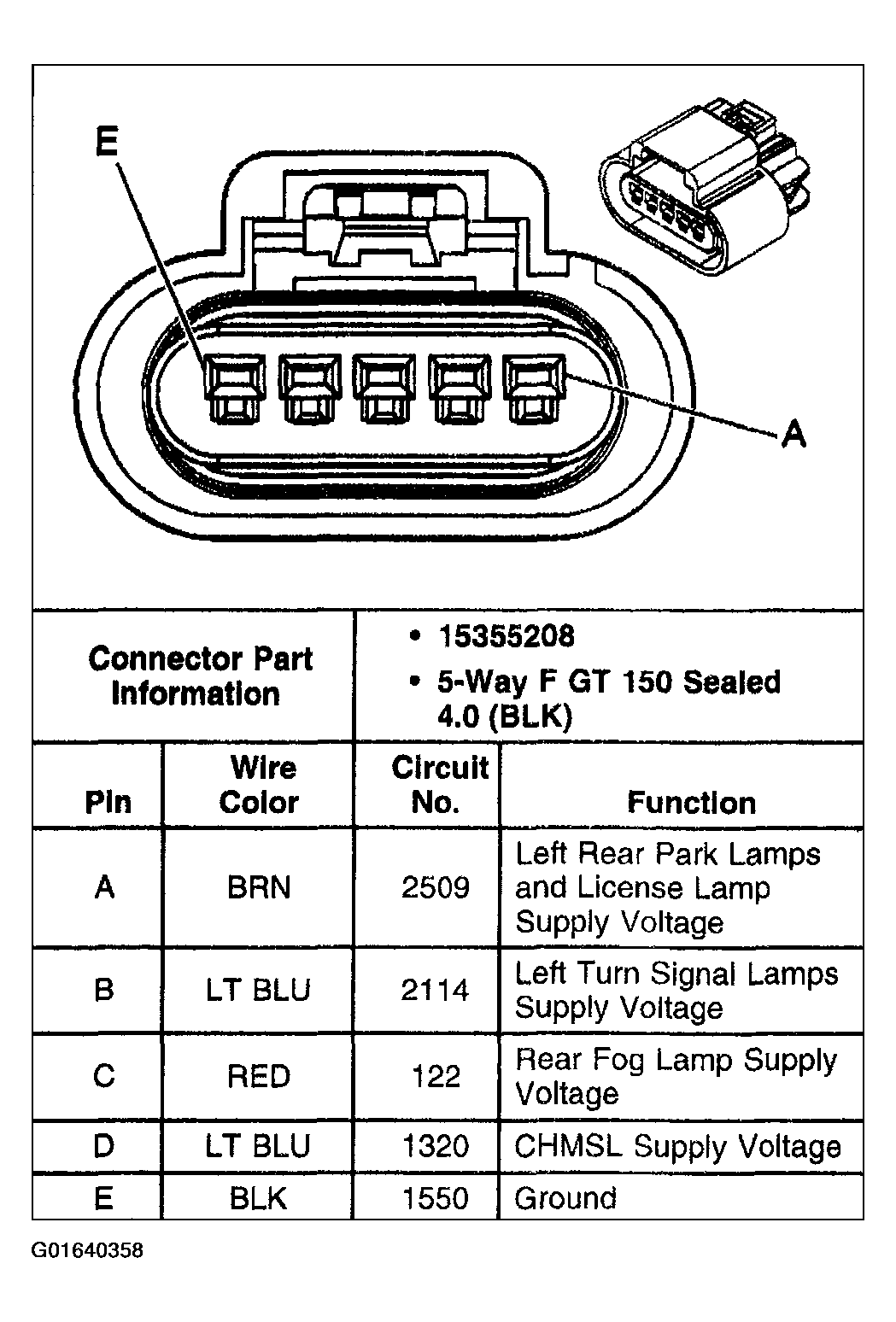

Fig 42: Locating Tail Lamp Assembly - Left (w/T79) Connector

G01640358

Courtesy of GENERAL MOTORS CORP.

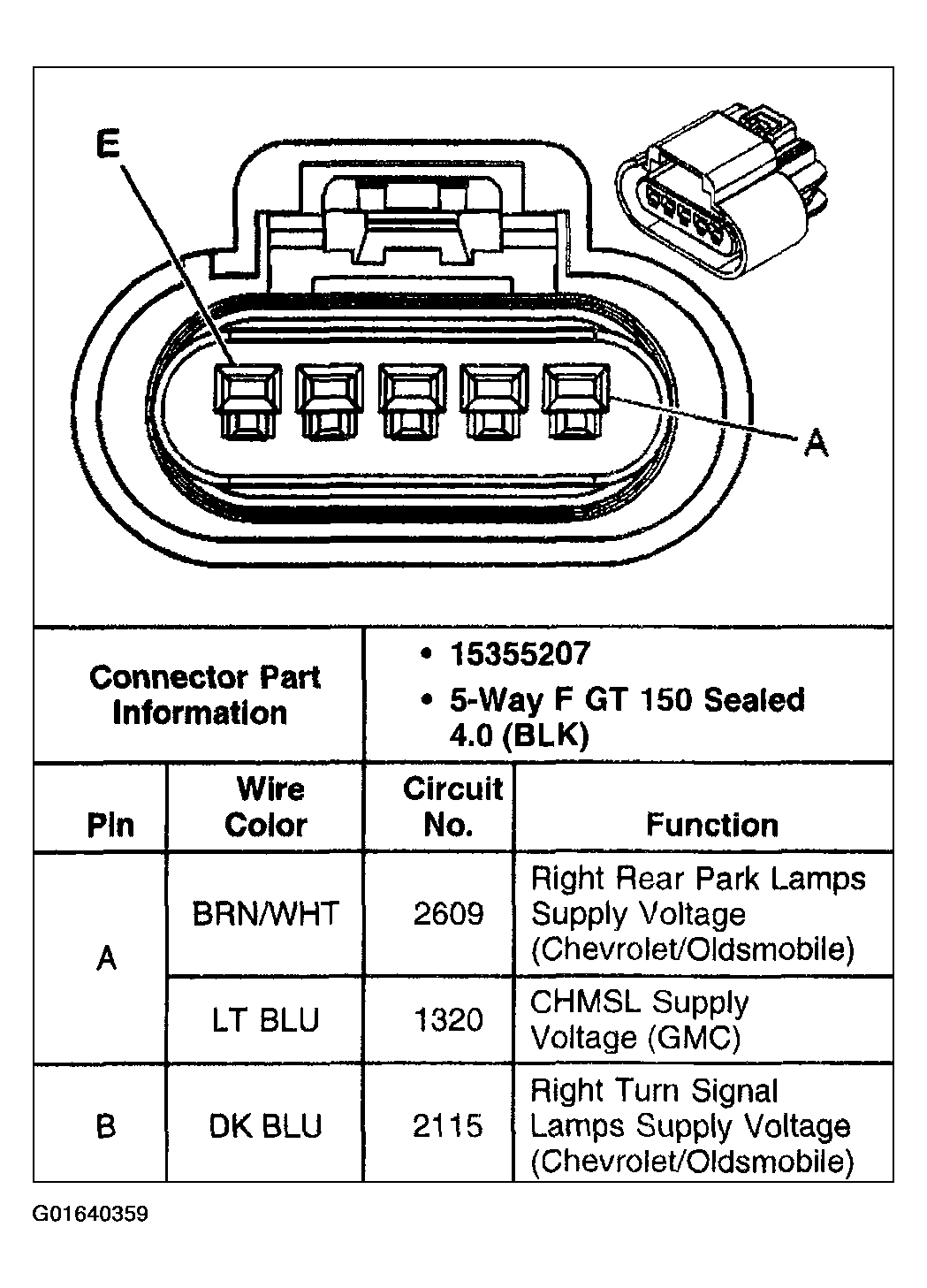

Fig 43: Locating Tail Lamp Assembly - Right Connector (1 Of 2)

G01640359

Courtesy of GENERAL MOTORS CORP.

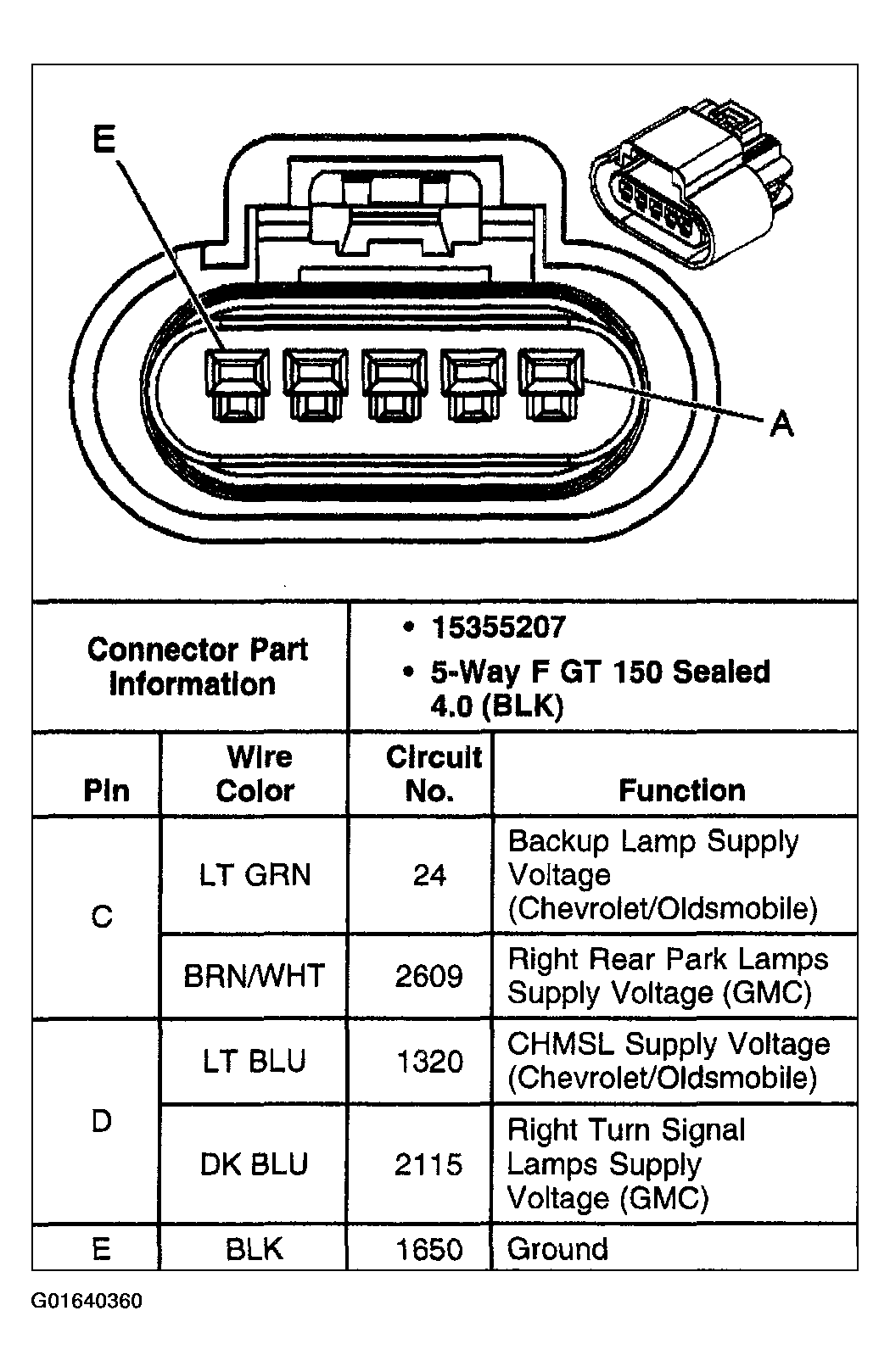

Fig 44: Locating Tail Lamp Assembly - Right Connector (2 Of 2)

G01640360

Courtesy of GENERAL MOTORS CORP.

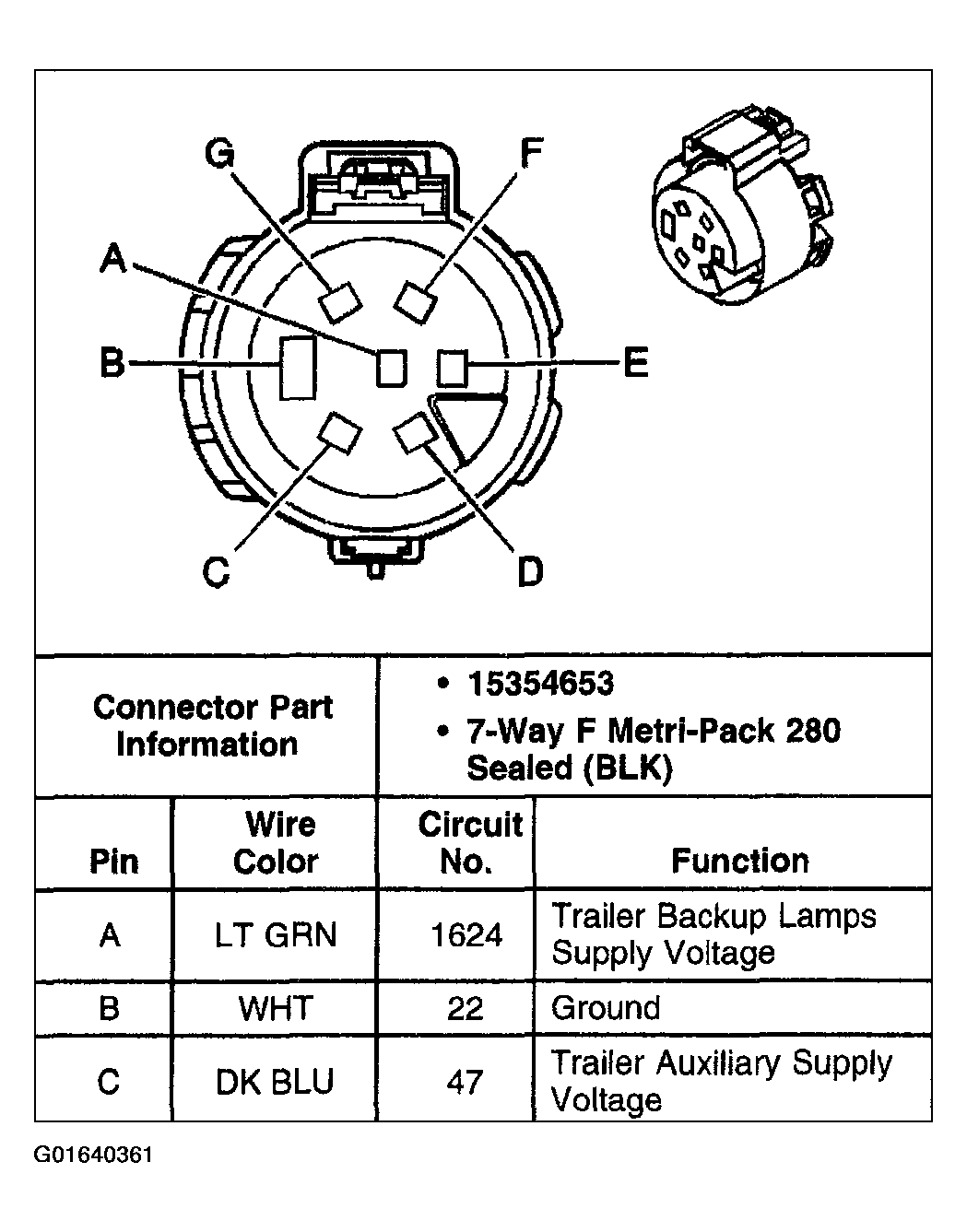

Fig 45: Locating Trailer Connector (1 Of 2)

G01640361

Courtesy of GENERAL MOTORS CORP.

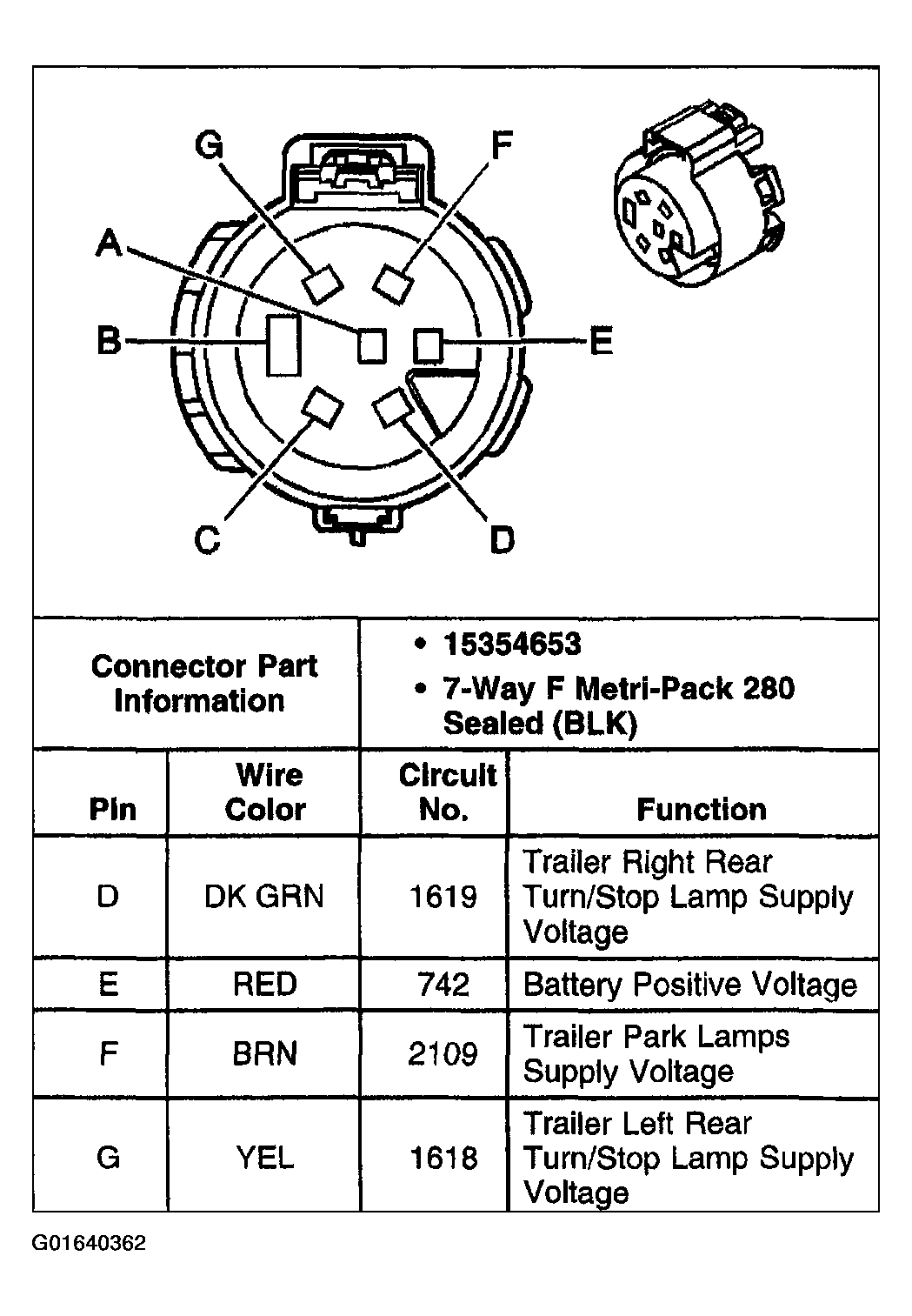

Fig 46: Locating Trailer Connector (2 Of 2)

G01640362

Courtesy of GENERAL MOTORS CORP.

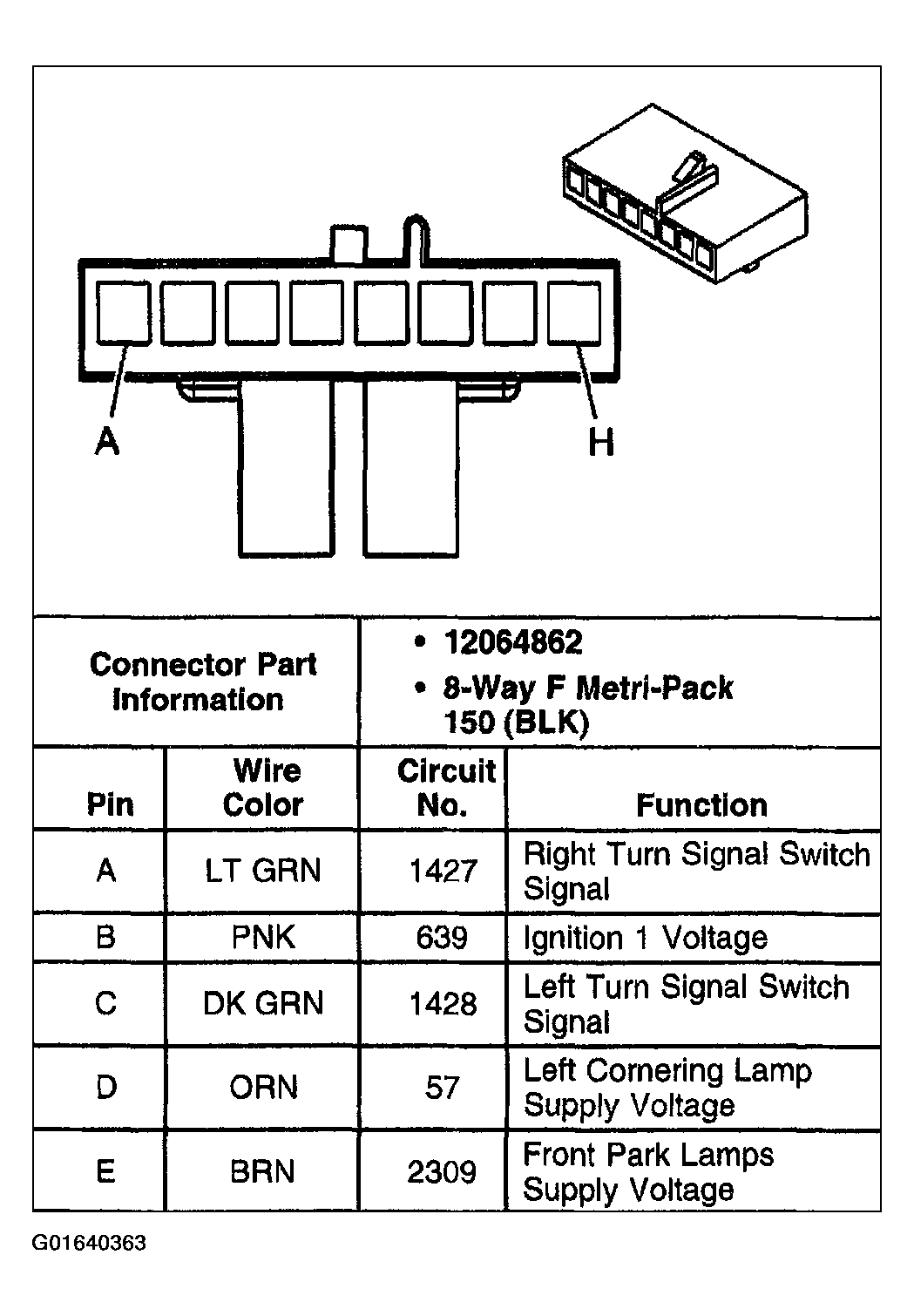

Fig 47: Locating Turn Signal/Multifunction Switch C1 Connector (1 Of 2)

G01640363

Courtesy of GENERAL MOTORS CORP.

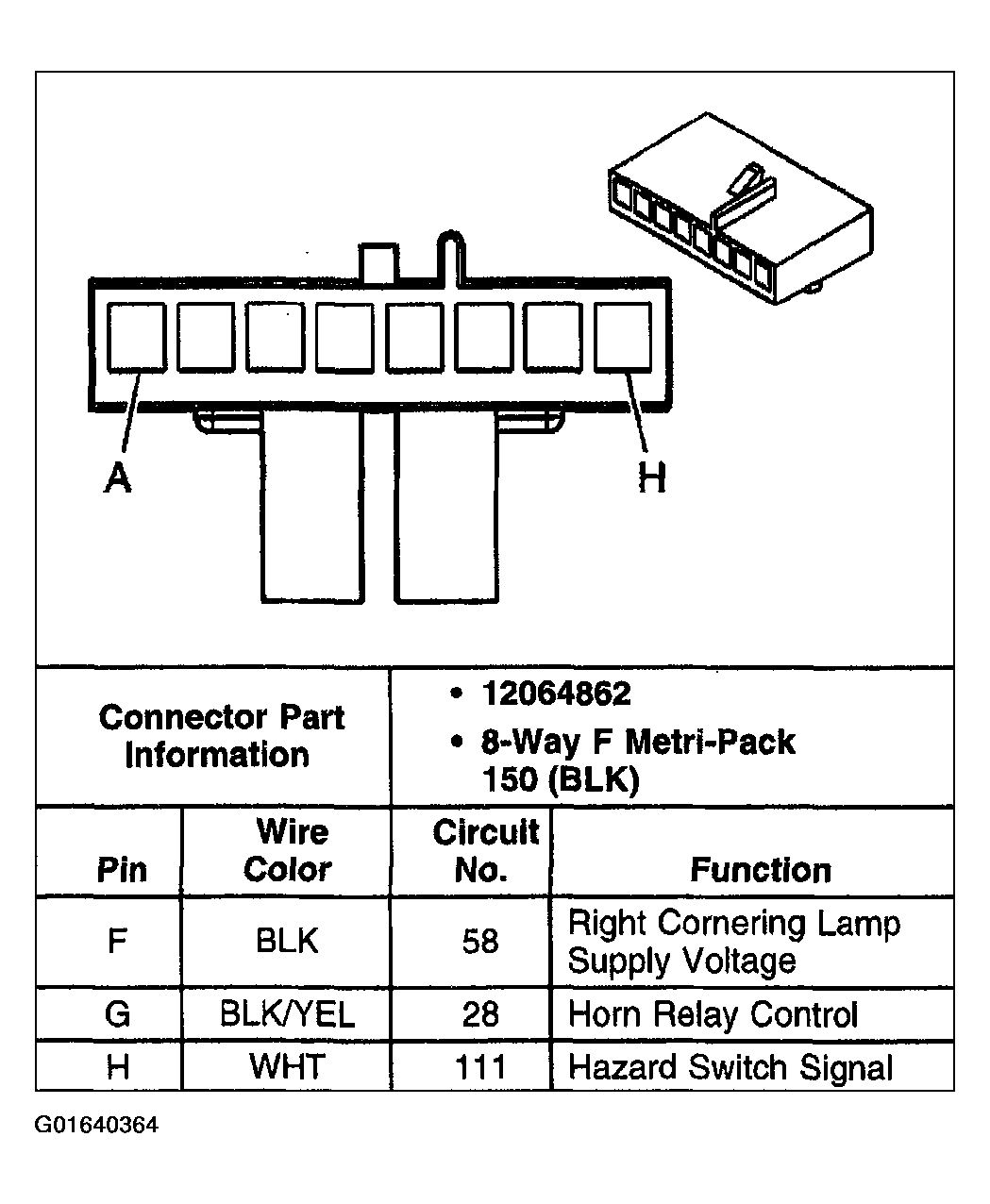

Fig 48: Locating Turn Signal/Multifunction Switch C1 Connector (2 Of 2)

G01640364

Courtesy of GENERAL MOTORS CORP.

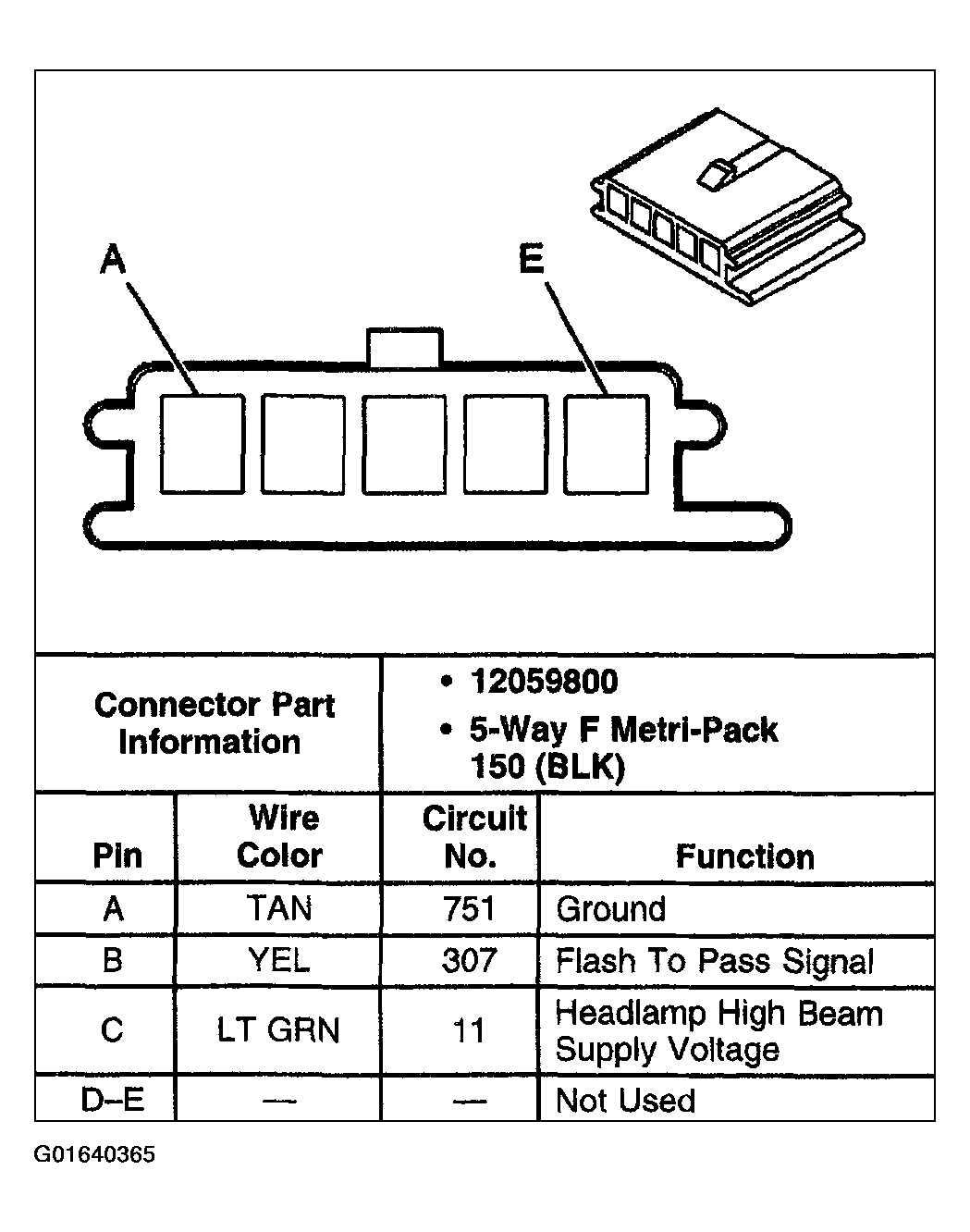

Fig 49: Locating Turn Signal/Multifunction Switch C2 Connector

G01640365

Courtesy of GENERAL MOTORS CORP.

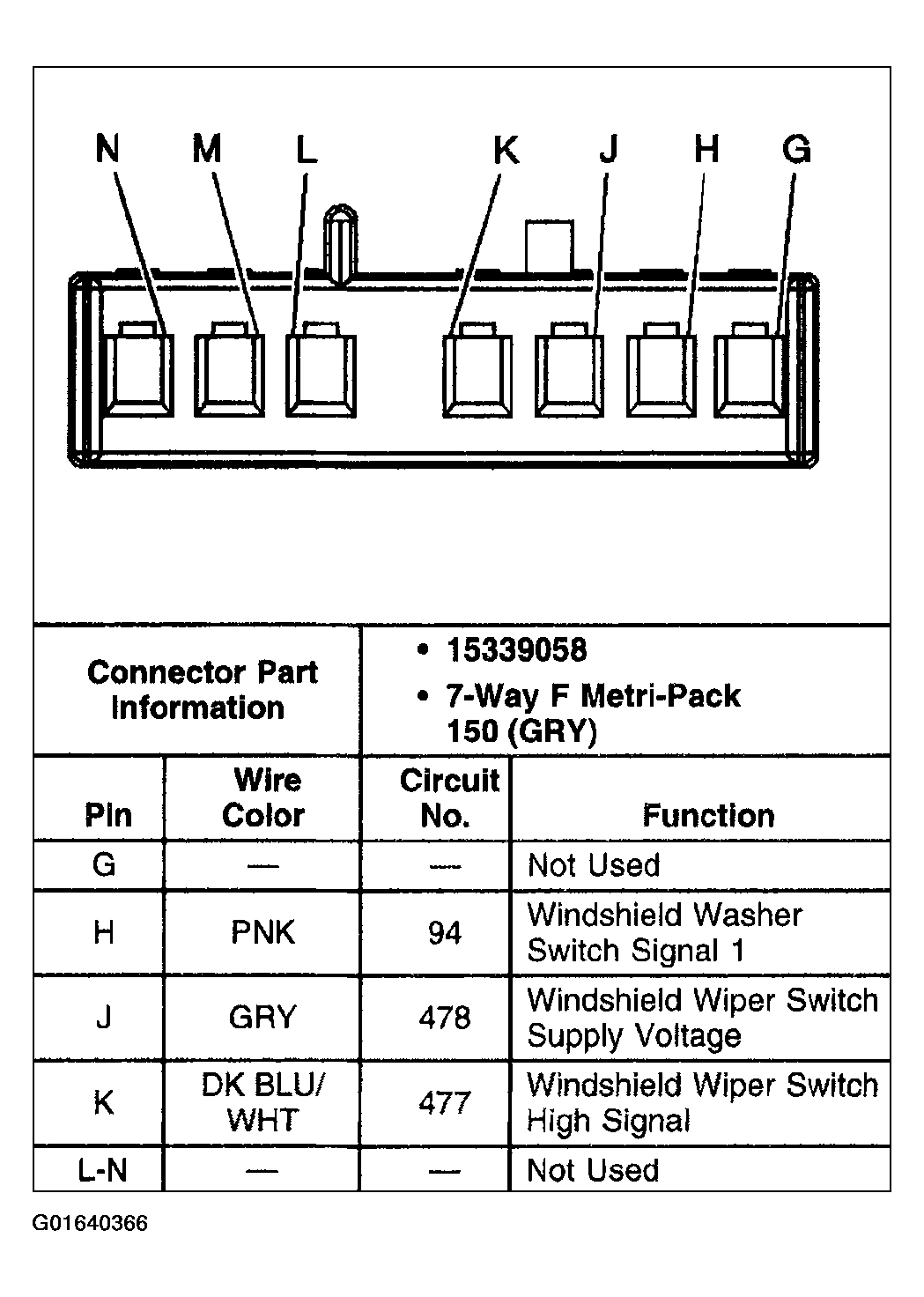

Fig 50: Locating Turn Signal/Multifunction Switch C3 Connector

G01640366

Courtesy of GENERAL MOTORS CORP.

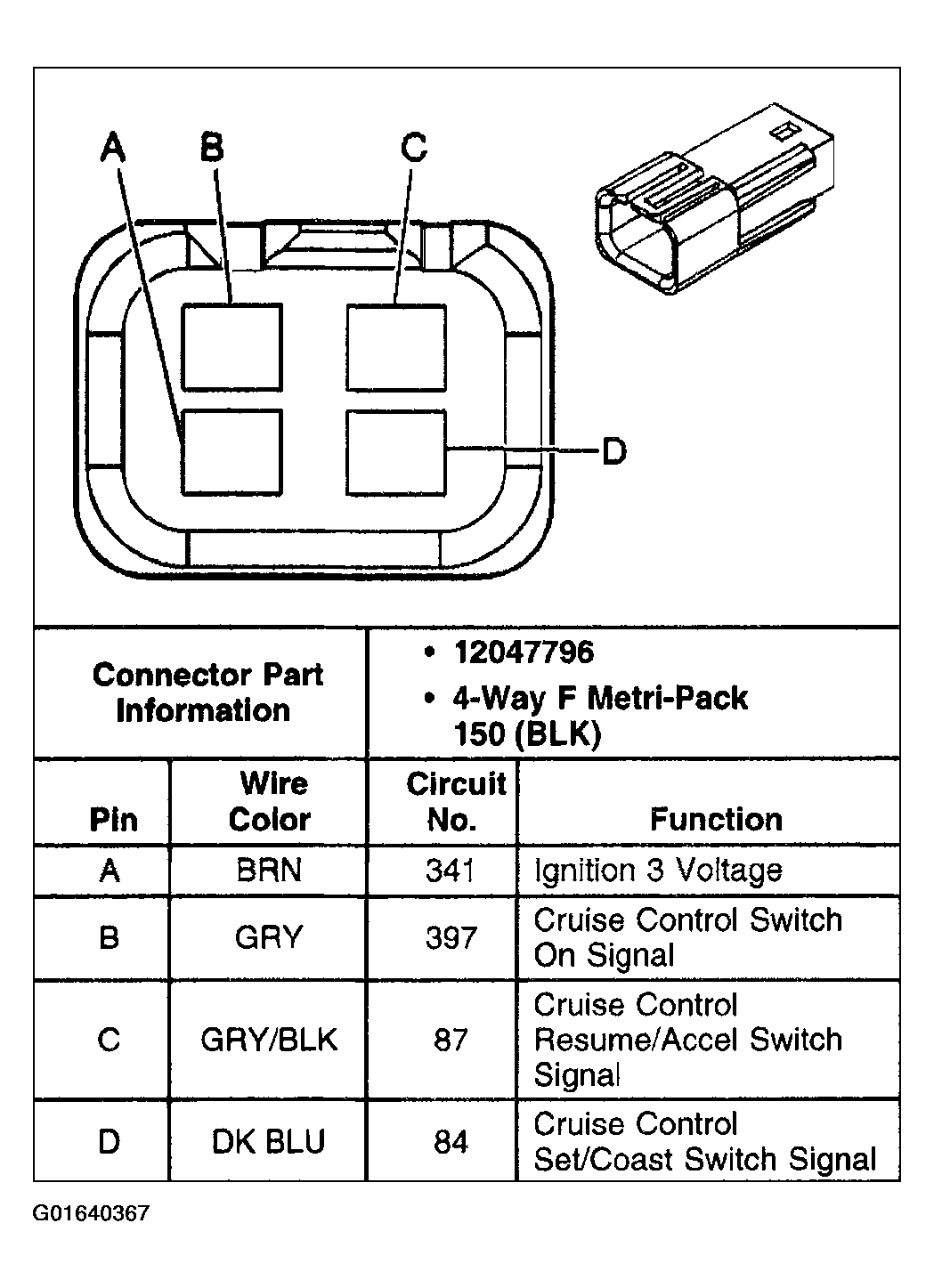

Fig 51: Locating Turn Signal/Multifunction Switch C4 Connector

G01640367

Courtesy of GENERAL MOTORS CORP.

Fig 52: Locating Turn Signal/Hazard Flasher Module Connector

G01640368

Courtesy of GENERAL MOTORS CORP.

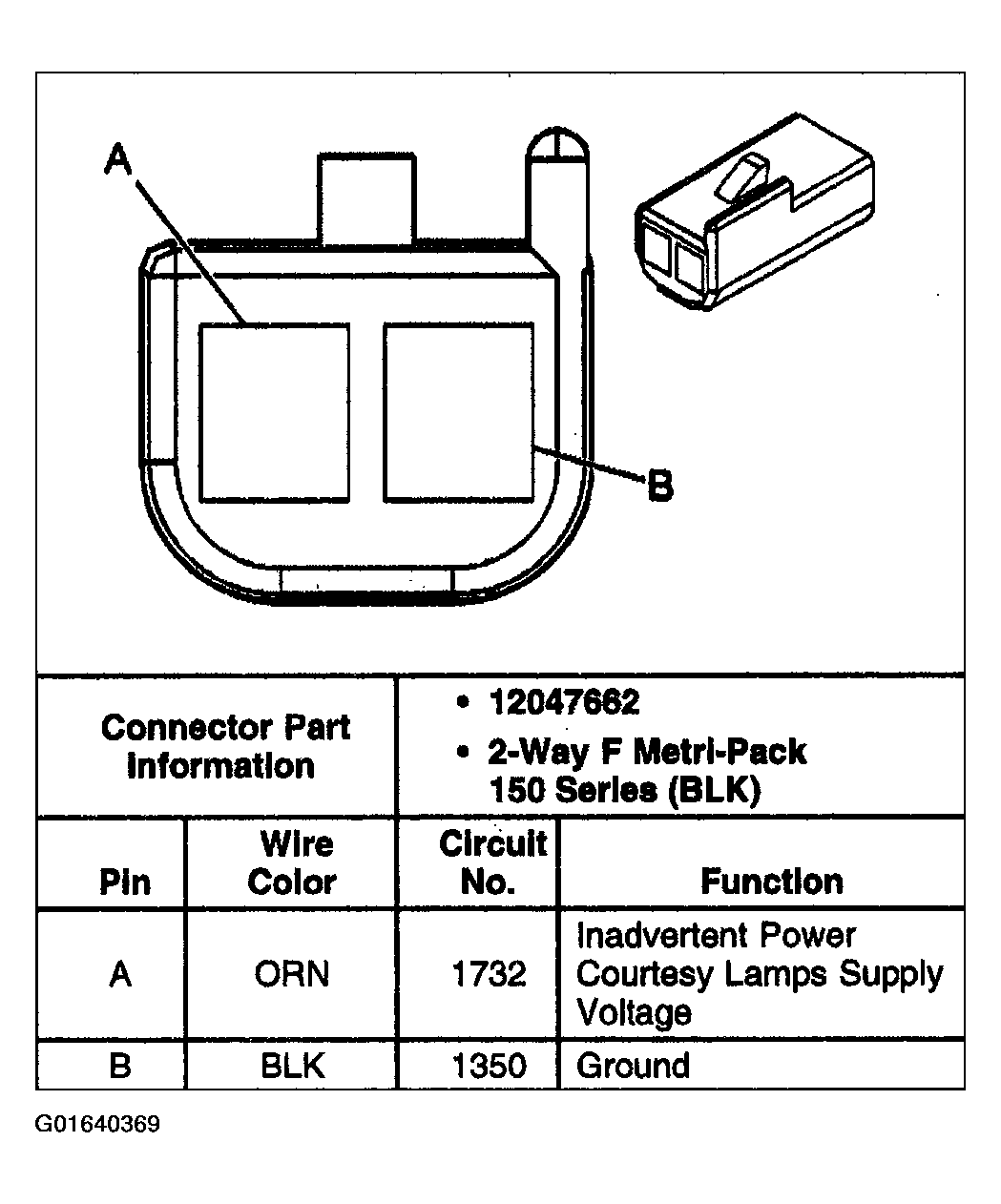

Fig 53: Locating Vanity Mirror Lamp - LF Connector

G01640369

Courtesy of GENERAL MOTORS CORP.

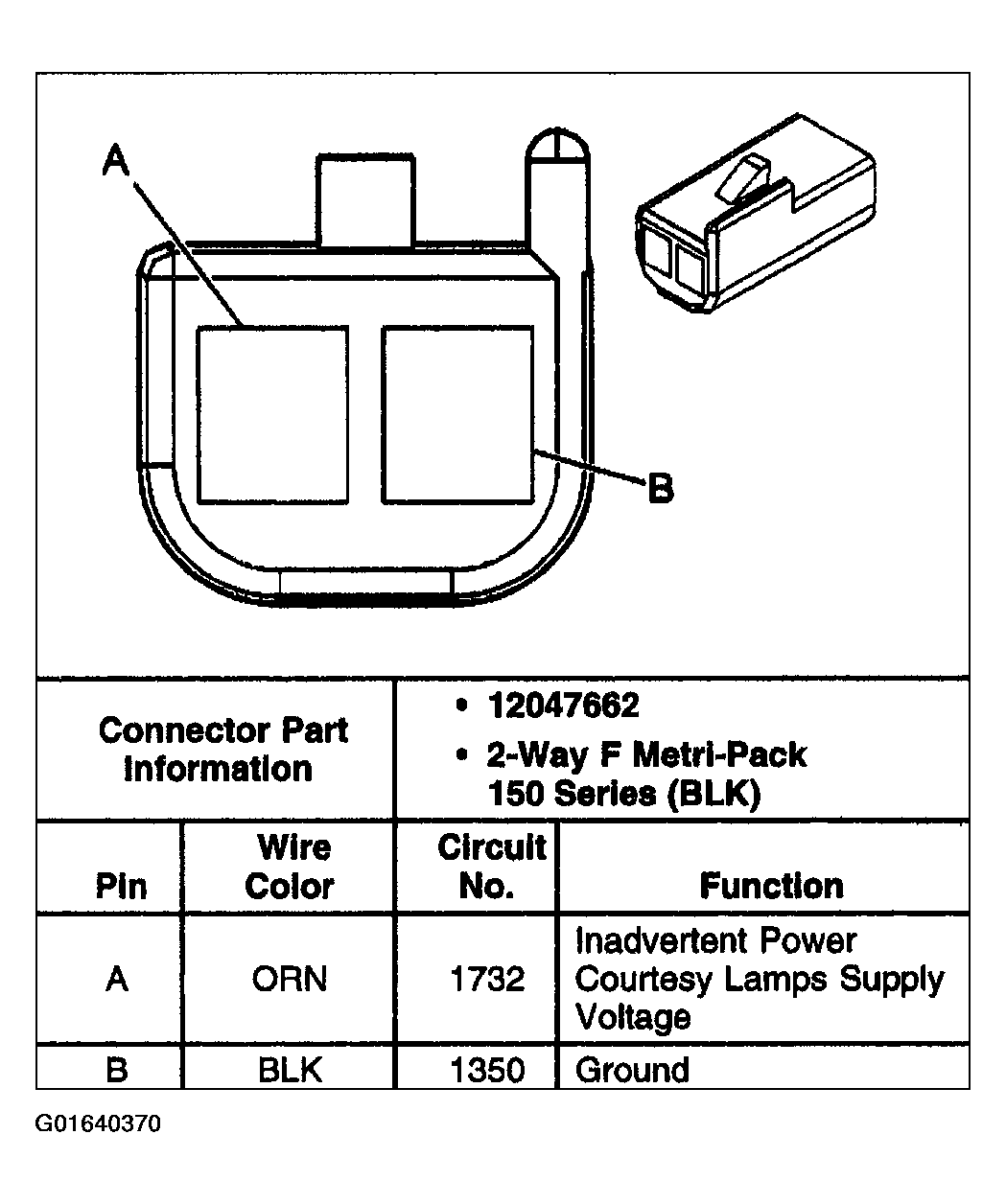

Fig 54: Locating Vanity Mirror Lamp - RF Connector

G01640370

Courtesy of GENERAL MOTORS CORP.
