Body Control Module (BCM)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

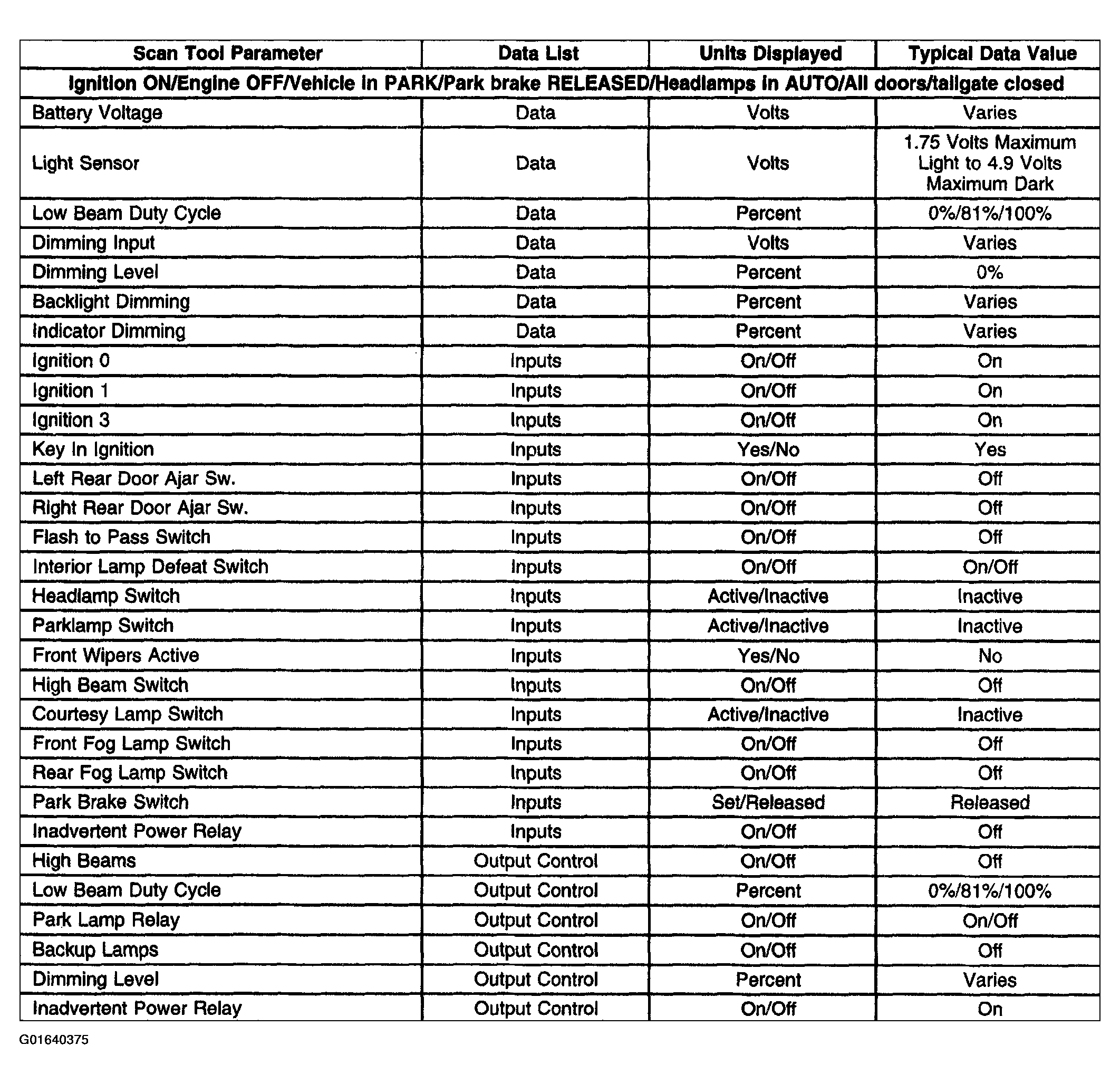

Fig 1: Scan Tool Data List Displayed Chart - Body Control Module
G01640375Courtesy of GENERAL MOTORS CORP.
