Removal Procedure

Important:  After installation, calibrate the new EBCM to the tire size that is appropriate to the vehicle.

1. Remove the fuel pipe shield (3) from the frame bracket (2) by removing the 2 nuts (4).

   Important:  Thoroughly wash all contaminants from around the EHCU (1). The area around the EHCU must be free from loose dirt to prevent contamination of disassembled ABS components.

2. Disconnect the electrical connectors from the EBCM.

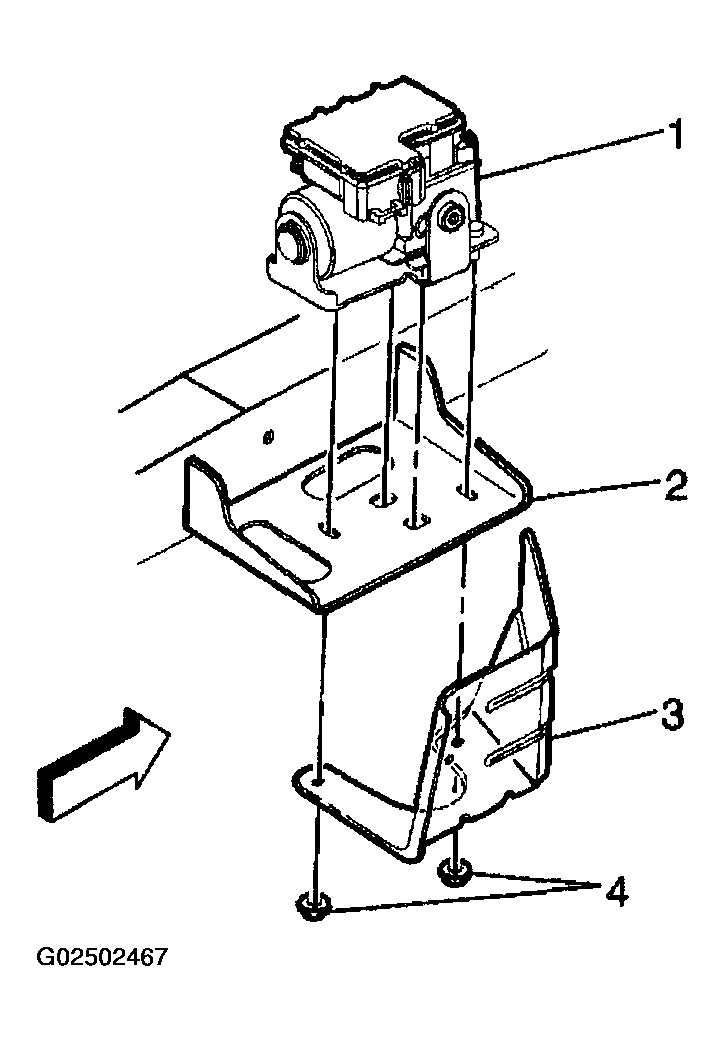

   Fig 1: Locating EBCM

   Courtesy of GENERAL MOTORS CORP.
3. Remove the 4 T 25 Torx® mounting screws (1) that fasten the EBCM (2) to the BPMV (5).
4. Remove the EBCM (2) from the BPMV (5). Removal may require a light amount of force.

   Important:  Do not use a tool to pry the EBCM or the BPMV. Excessive force will damage the EBCM.

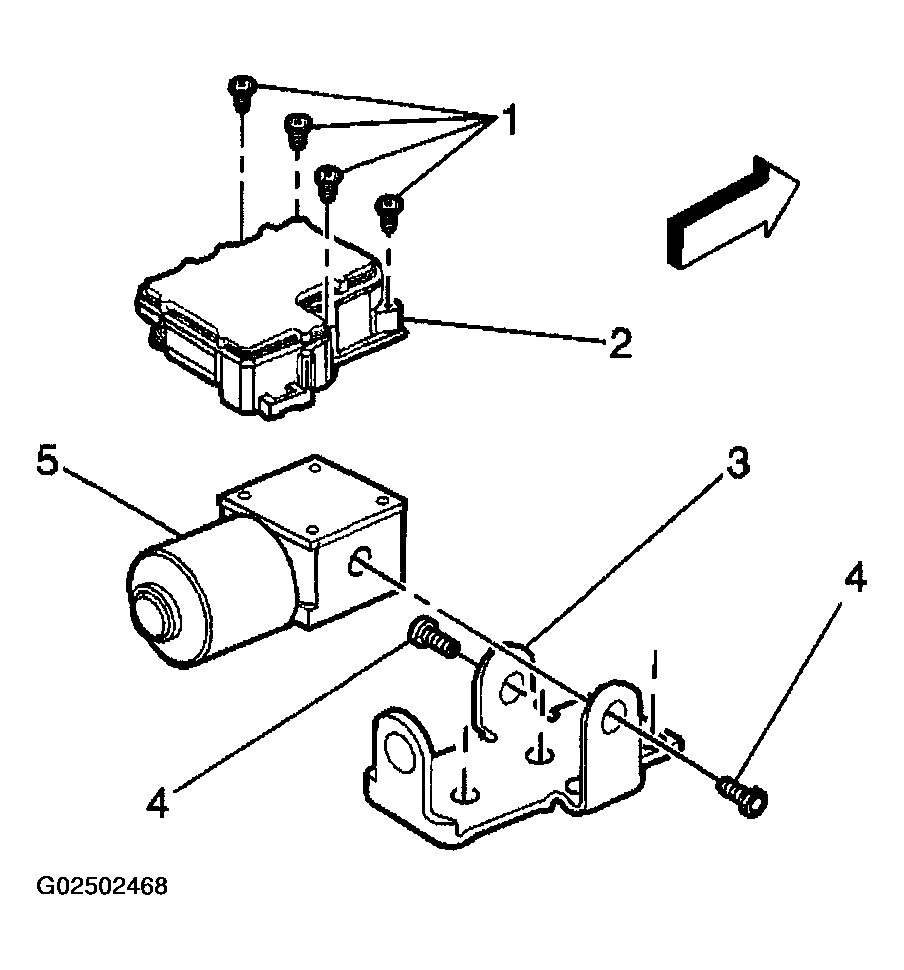

Fig 2: Removing EBCM From BPMV
Courtesy of GENERAL MOTORS CORP.
5. Clean the BPMV to EBCM mounting surfaces with a clean cloth.
