Fuel Injection Control Module Connector End View C2

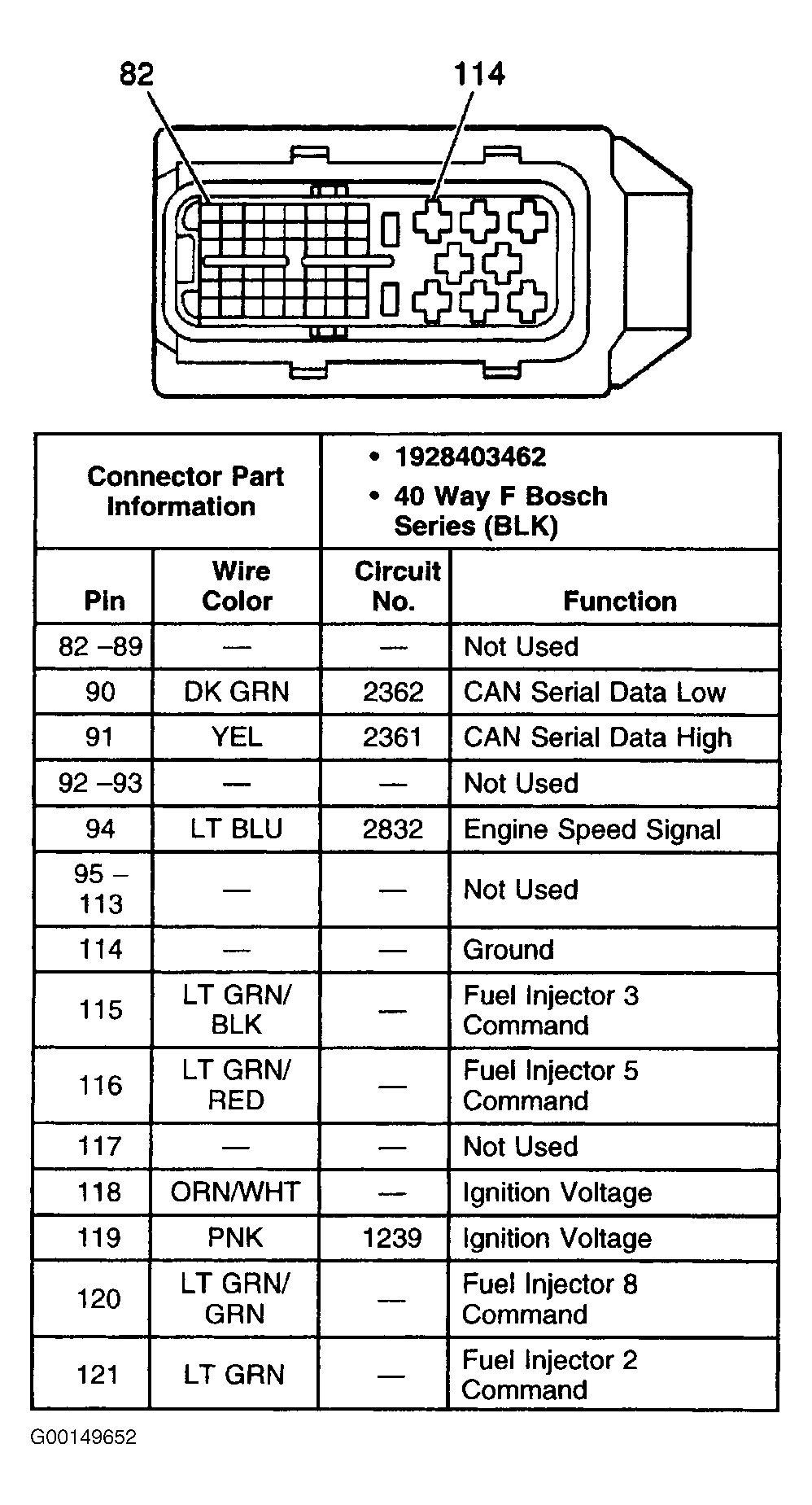

Fig 1: Fuel Injection Control Module Connector End View C2
G00149652Courtesy of GENERAL MOTORS CORP.
