Ignition Control Module Connector

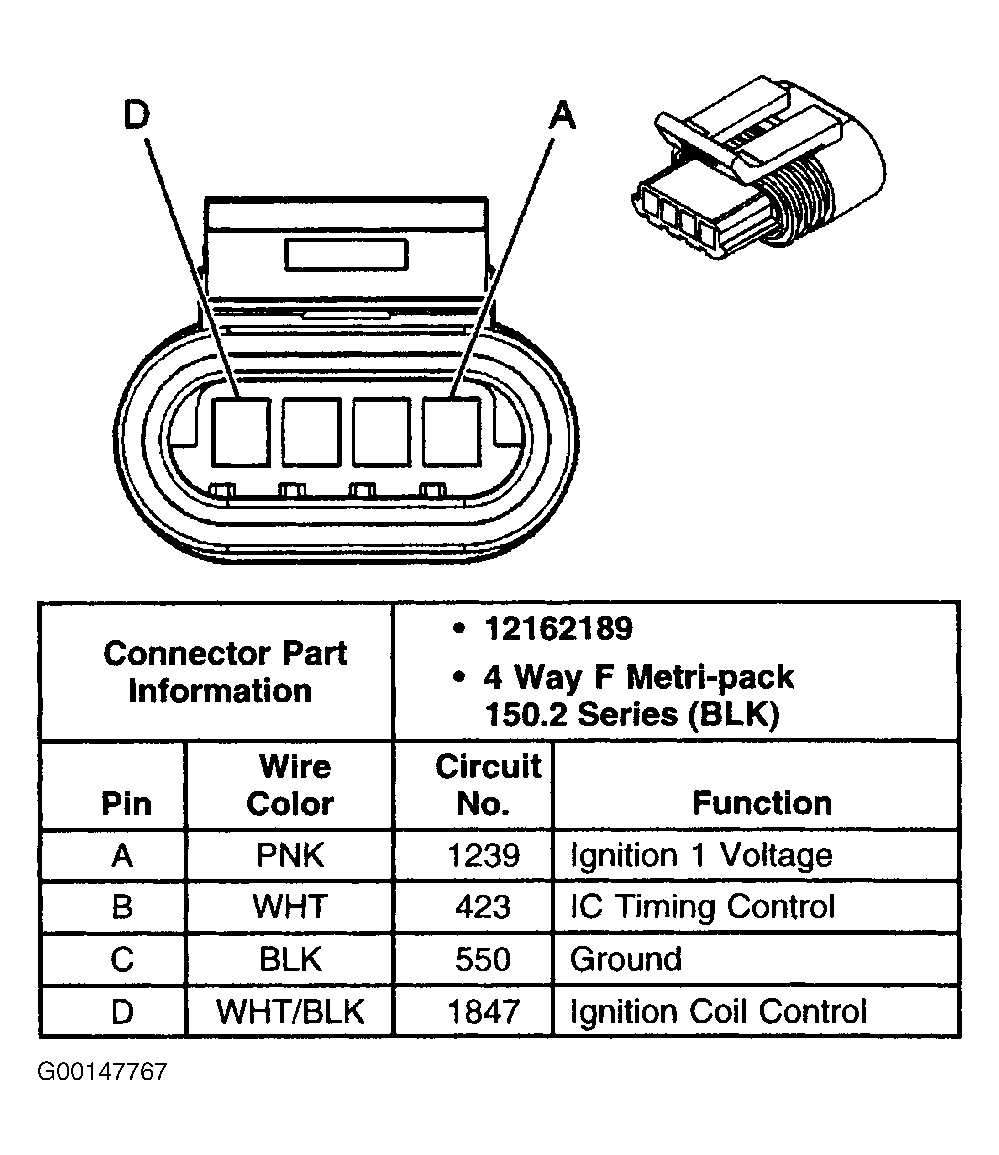

Fig 1: Ignition Control Module Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
