LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
GMC
>>
2003
>>
Envoy 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Component Locator
>>
Wiper/Washer System Connector End Views
>>
Windshield Wiper Motor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Windshield Wiper Motor

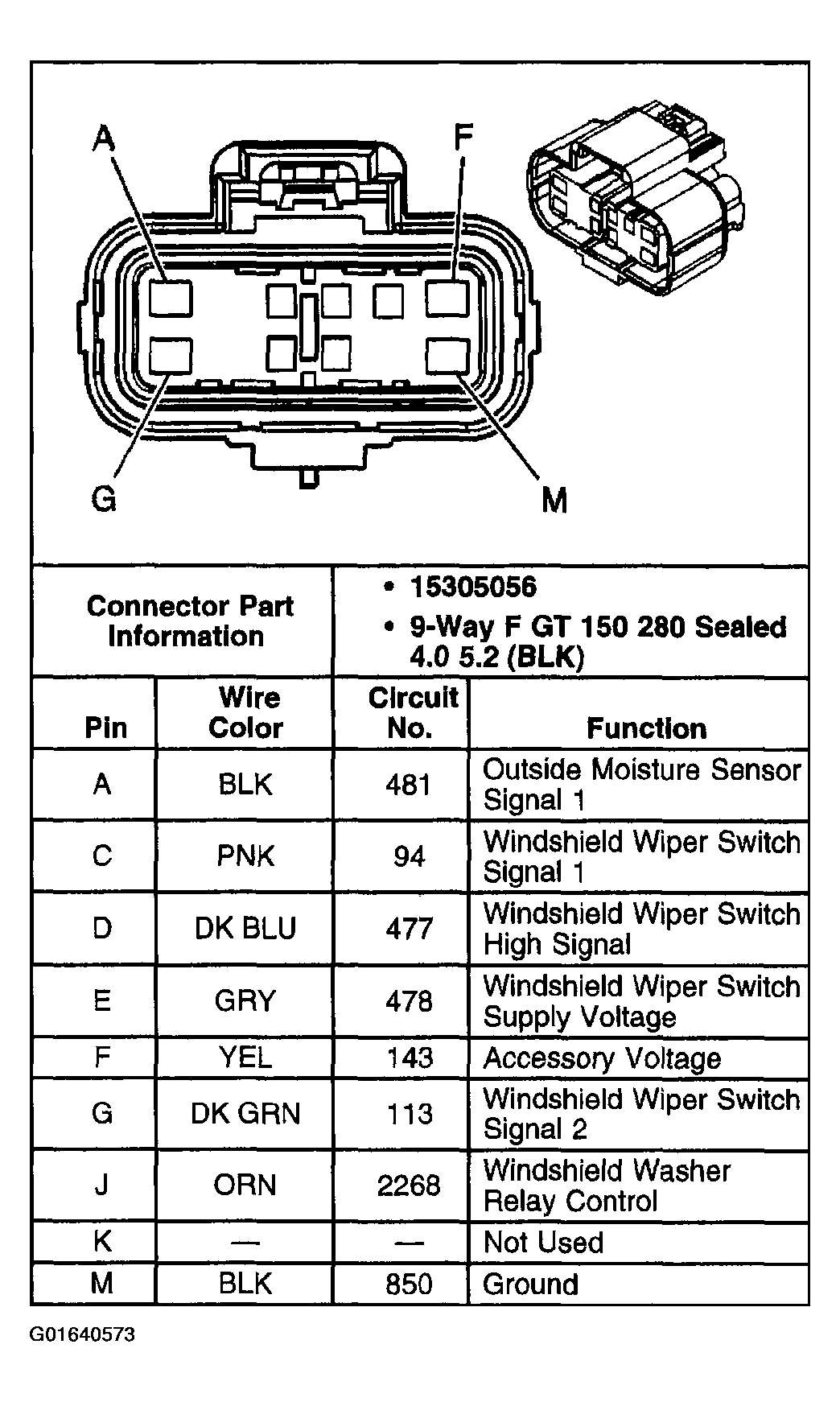

Fig 1: Identifying Windshield Wiper Motor Connector
Courtesy of GENERAL MOTORS CORP.
