Electrical Diagrams

Automatic Transmission Controls Schematics

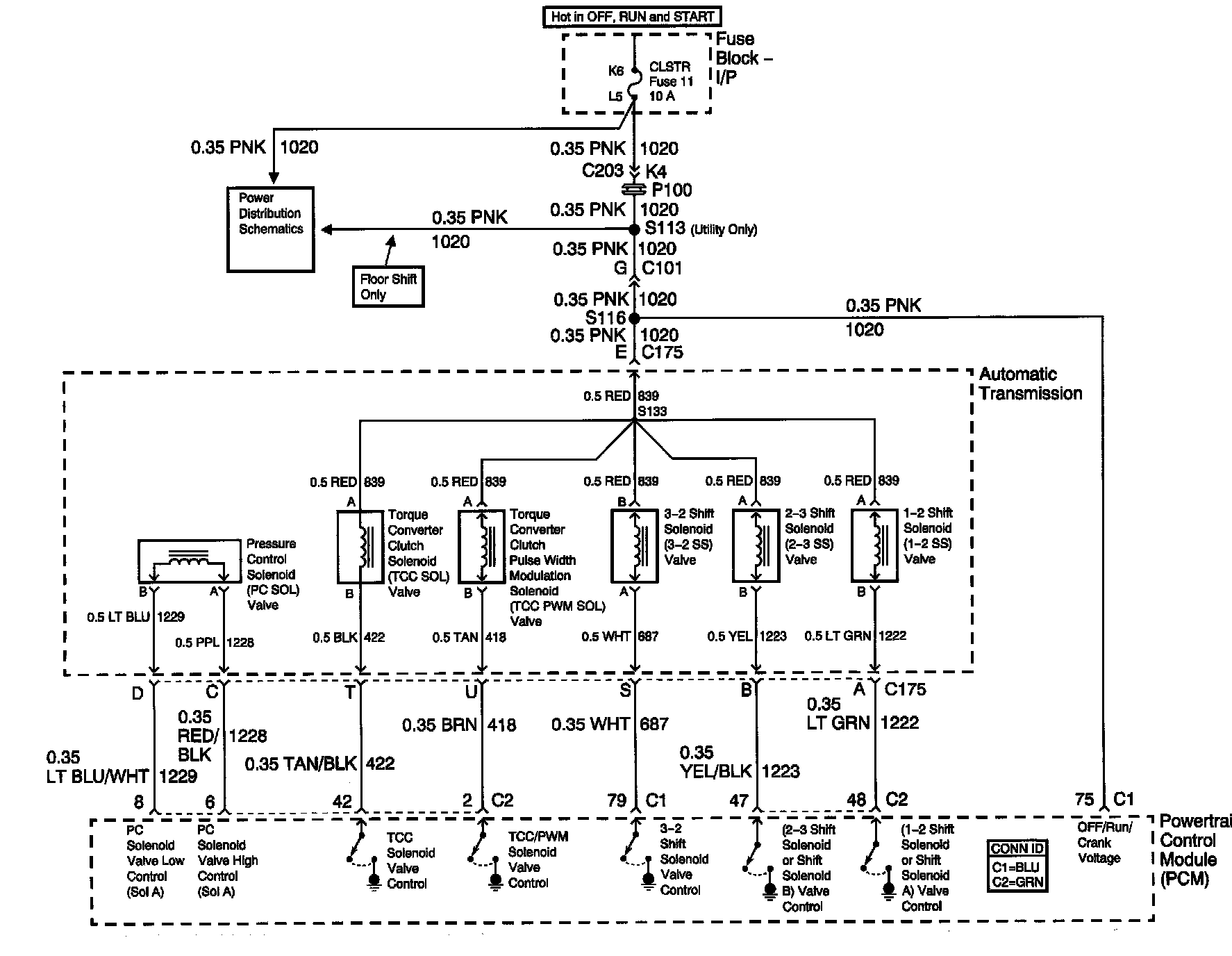

Valve Controls:

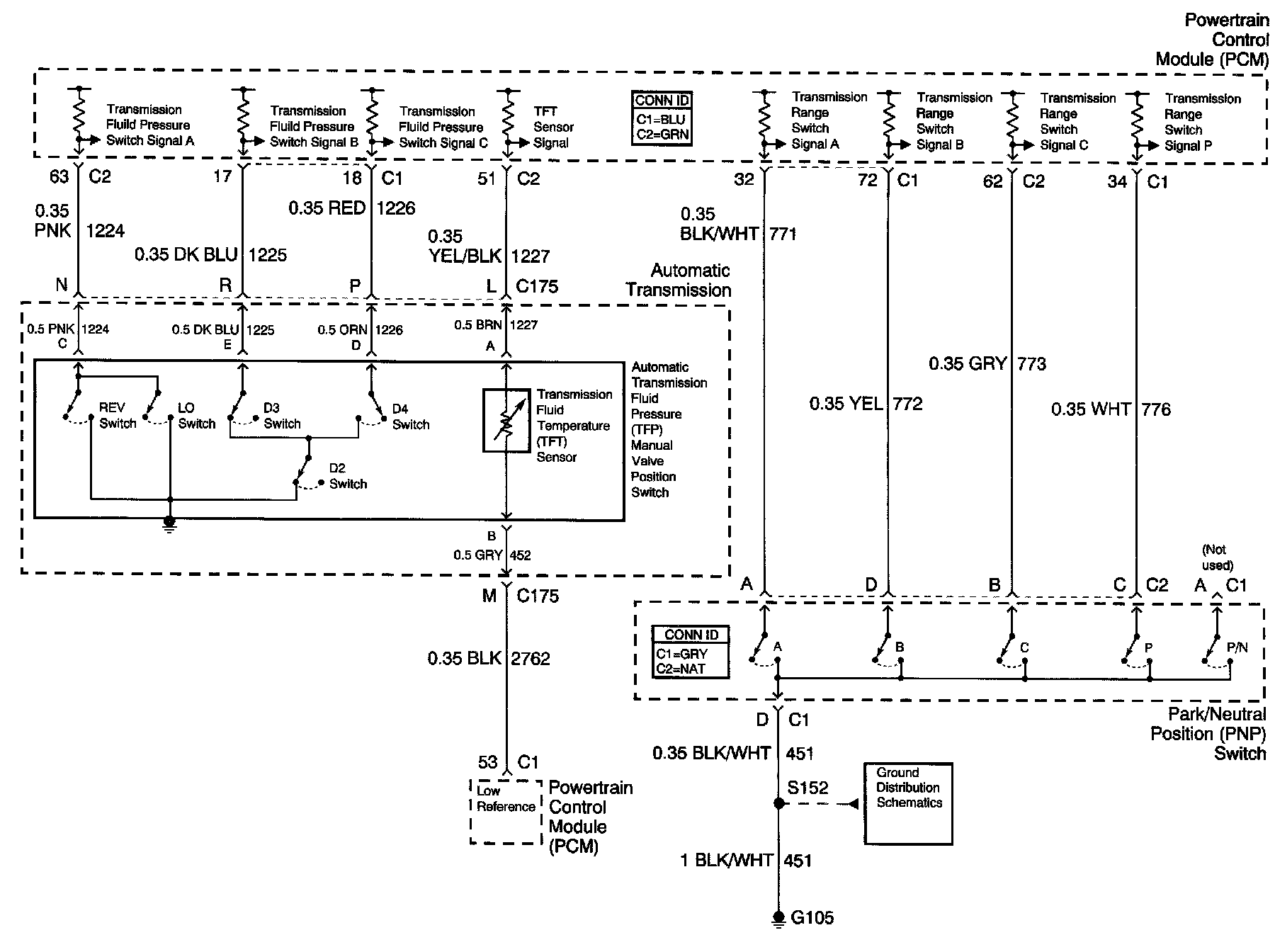

Switch Inputs And PNP Switch:

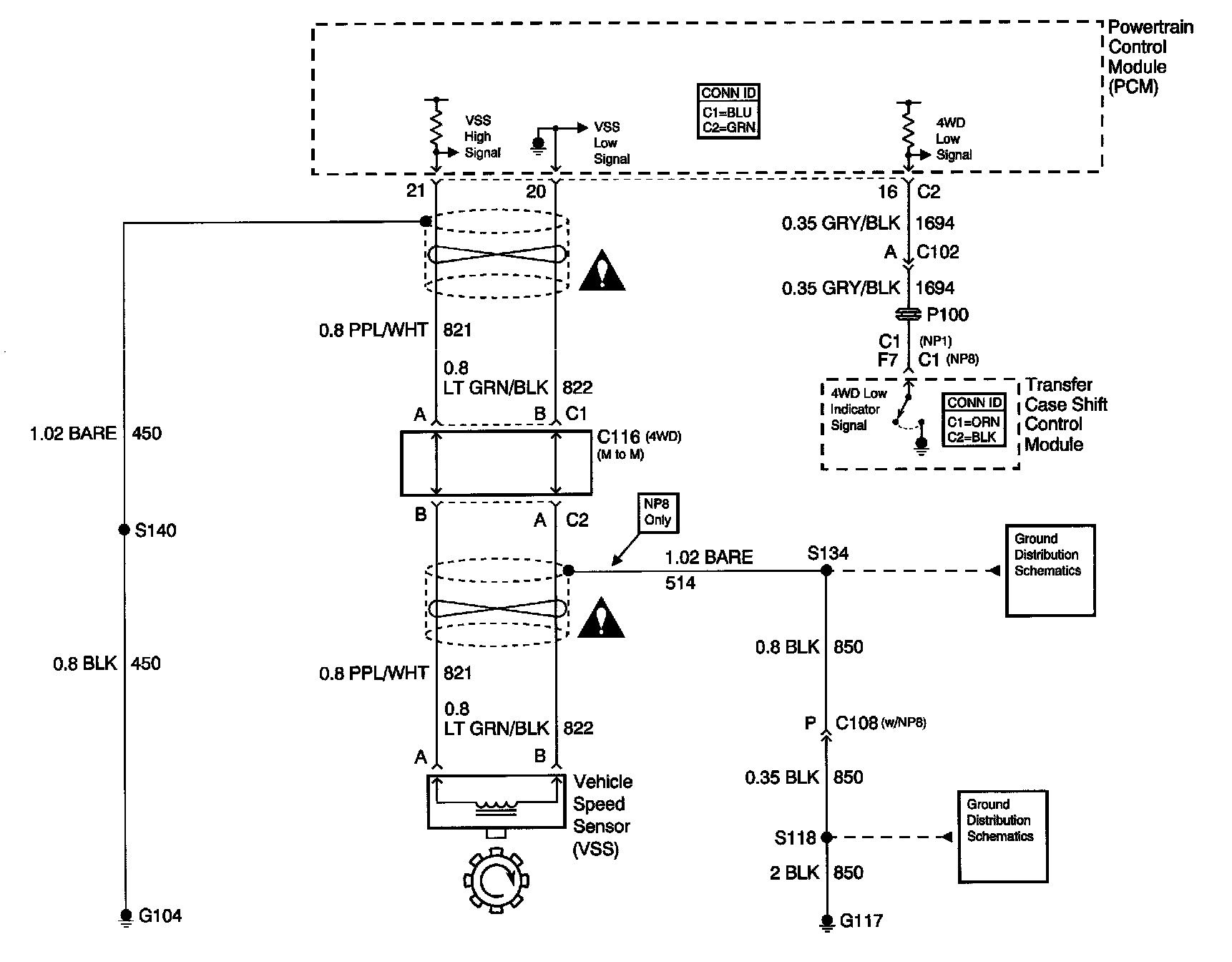

VSS Inputs, 4WD Low Indicator Signal:

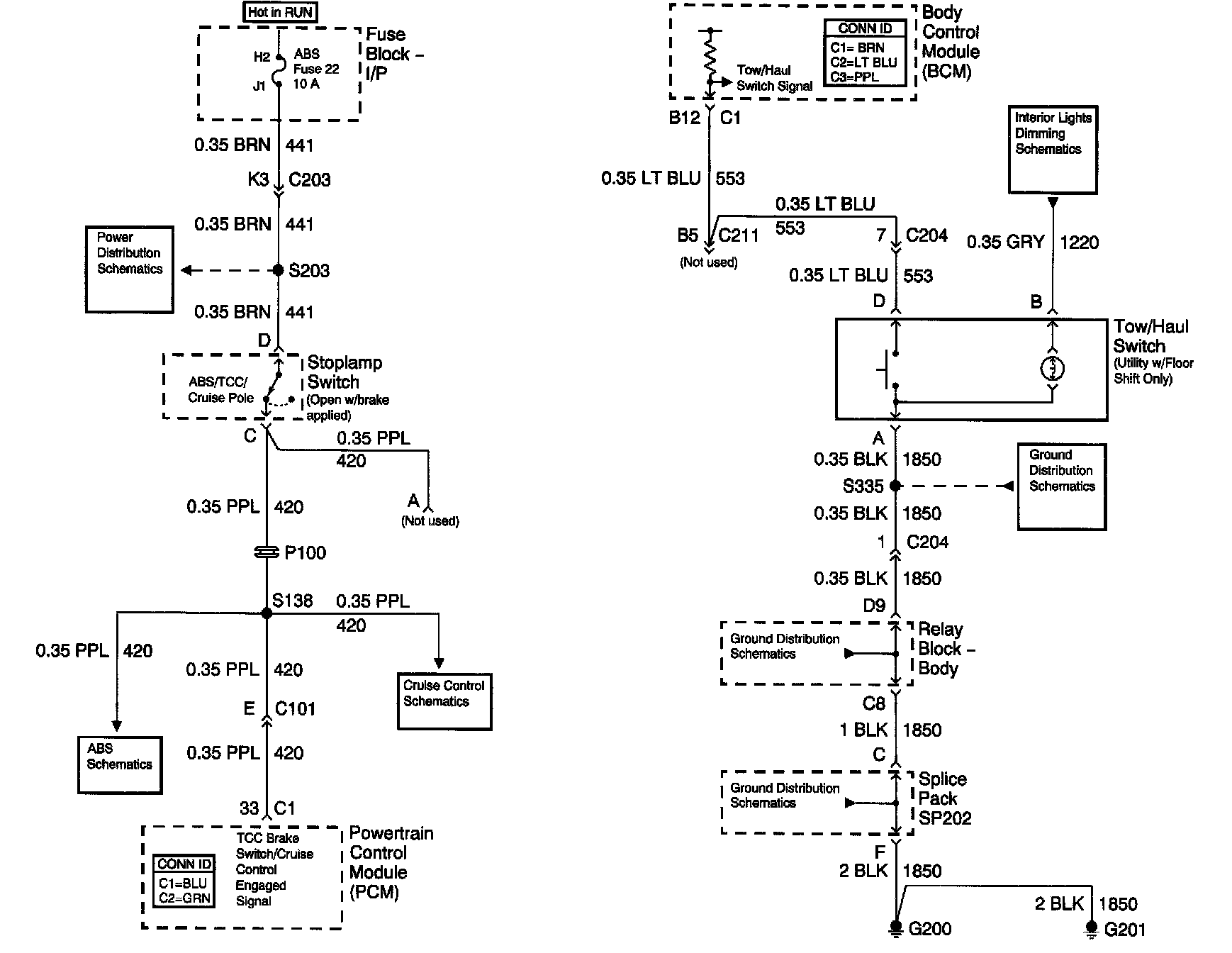

Brake Switch Input And Tow/Haul Switch:
