NVG 233-NP1

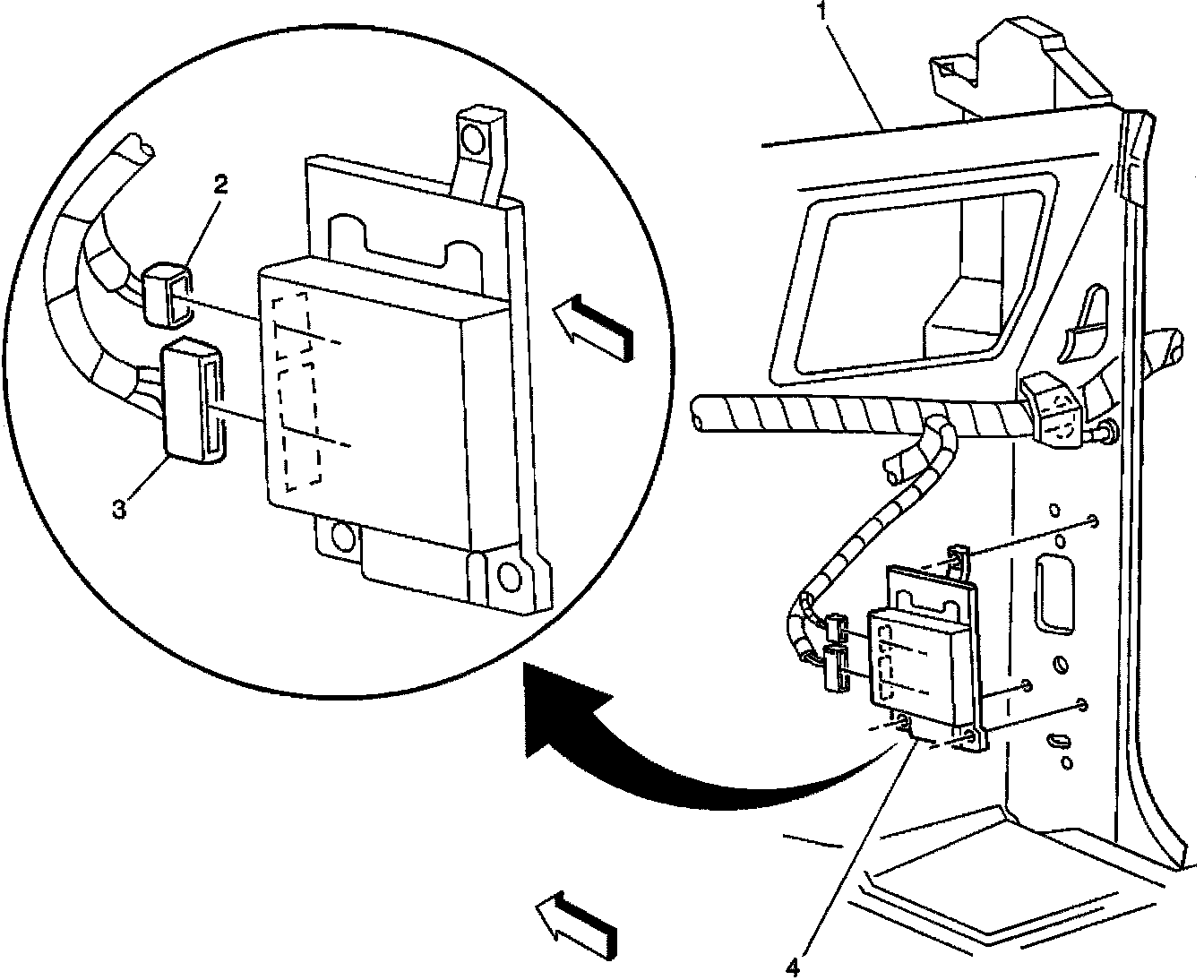

Transfer Case Shift Control Shift Module






1. Right Side Cowl Panel
2. Transfer Case Shift Control Module Connector
3. Transfer Case Shift Control Module Connector
4. Transfer Case Shift Control Module
