Test Description

The number below refers to the step number on the diagnostic table.

1. A DMM must be used in this step. A test lamp may give incorrect results. Testing for B+ supply from the BCM.
2. An illuminated test lamp at step 16 reveals a short to voltage in the serial data circuit.

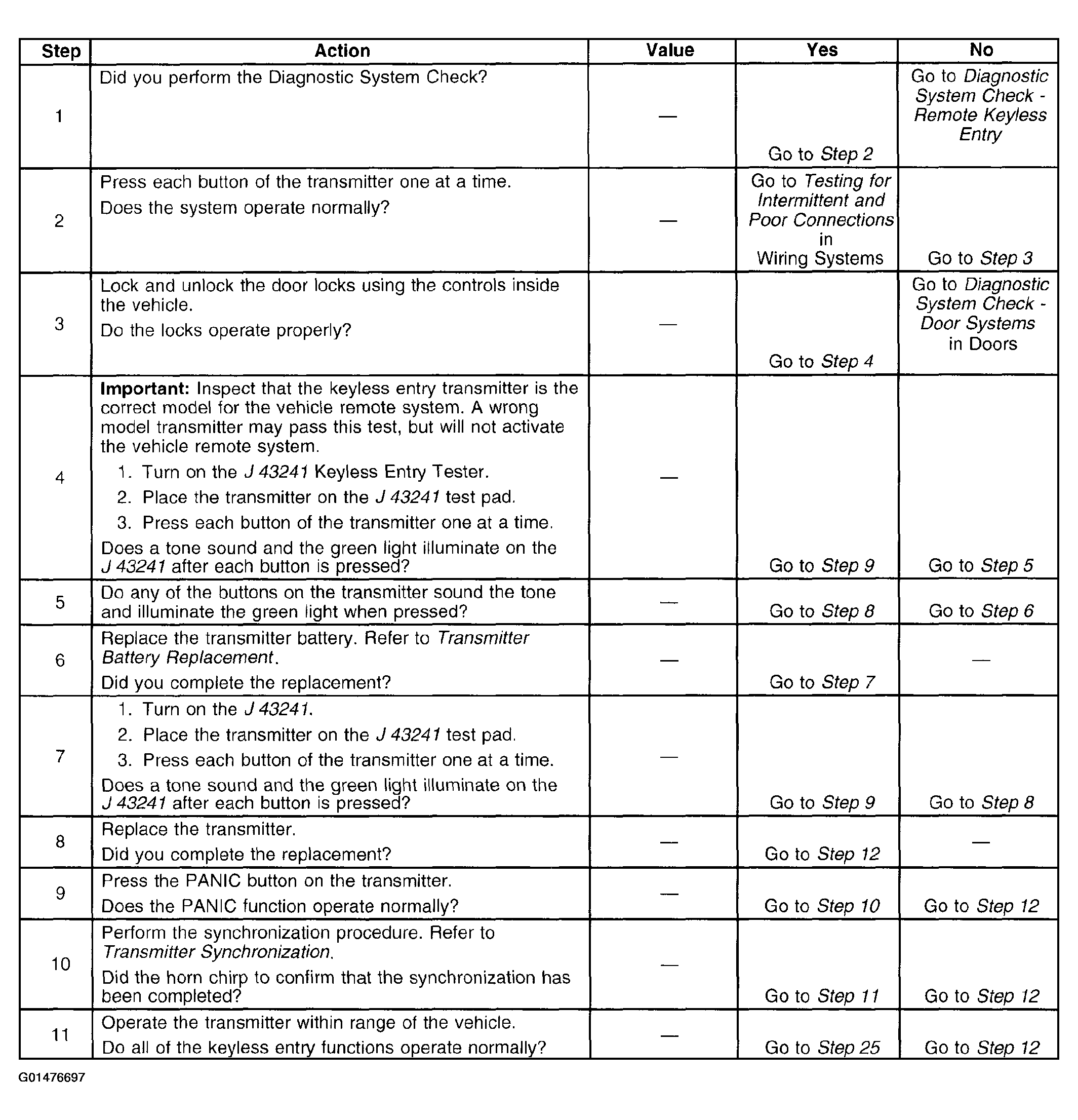

   Fig 1: Keyless Entry System Inoperative (1 Of 3)

   Courtesy of GENERAL MOTORS CORP.

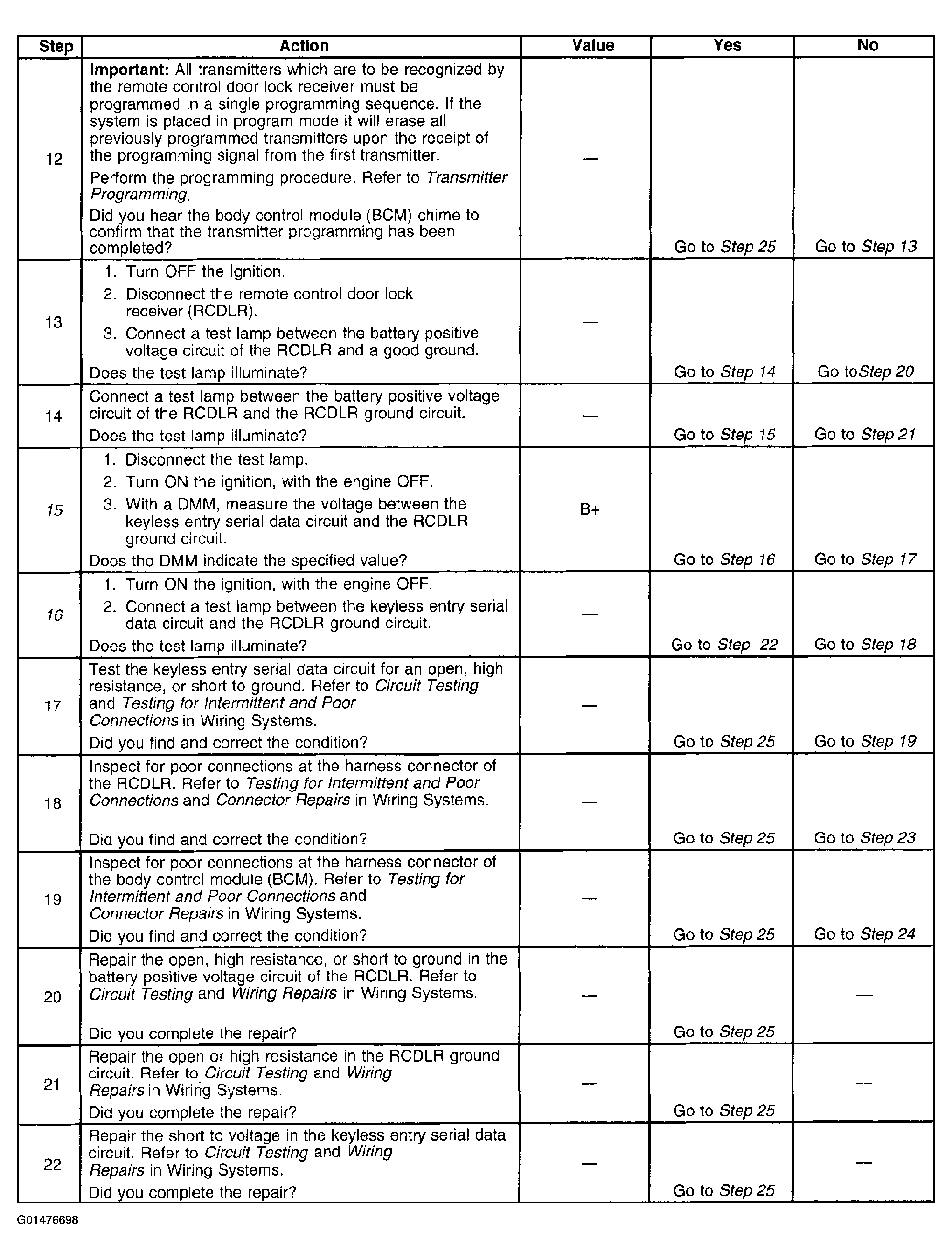

   Fig 2: Keyless Entry System Inoperative (2 Of 3)

   Courtesy of GENERAL MOTORS CORP.

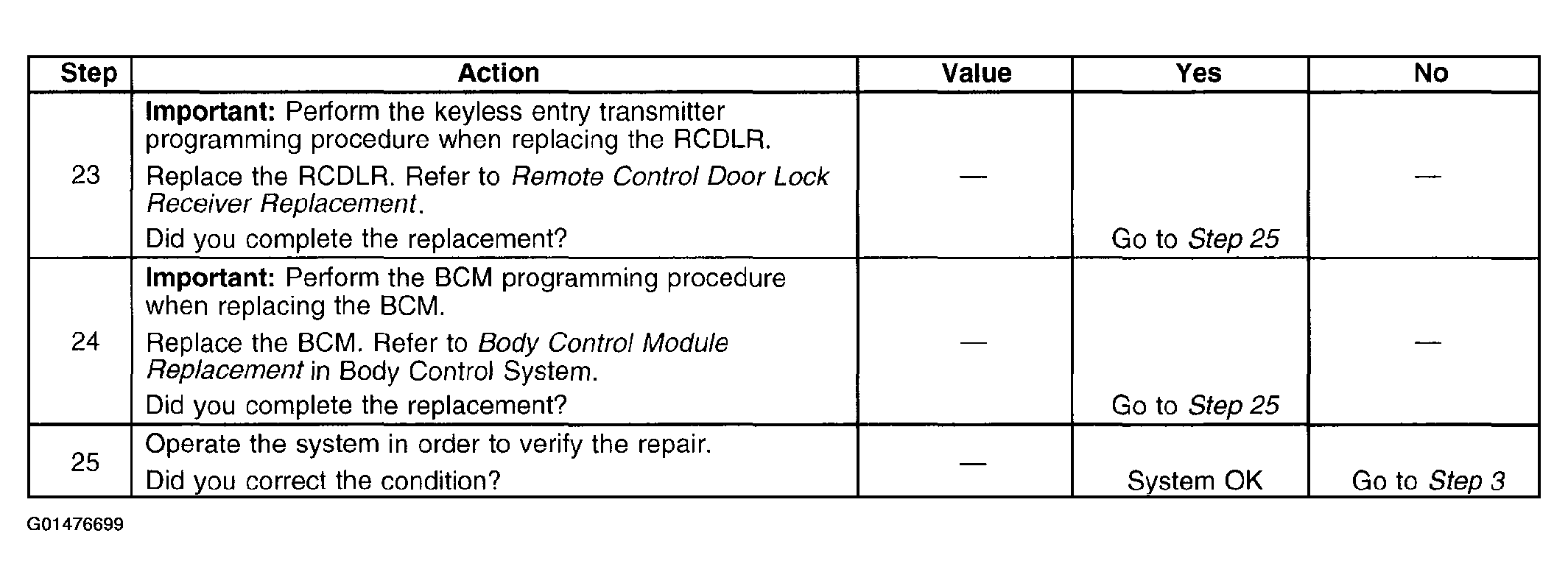

   Fig 3: Keyless Entry System Inoperative (3 Of 3)

   Courtesy of GENERAL MOTORS CORP.

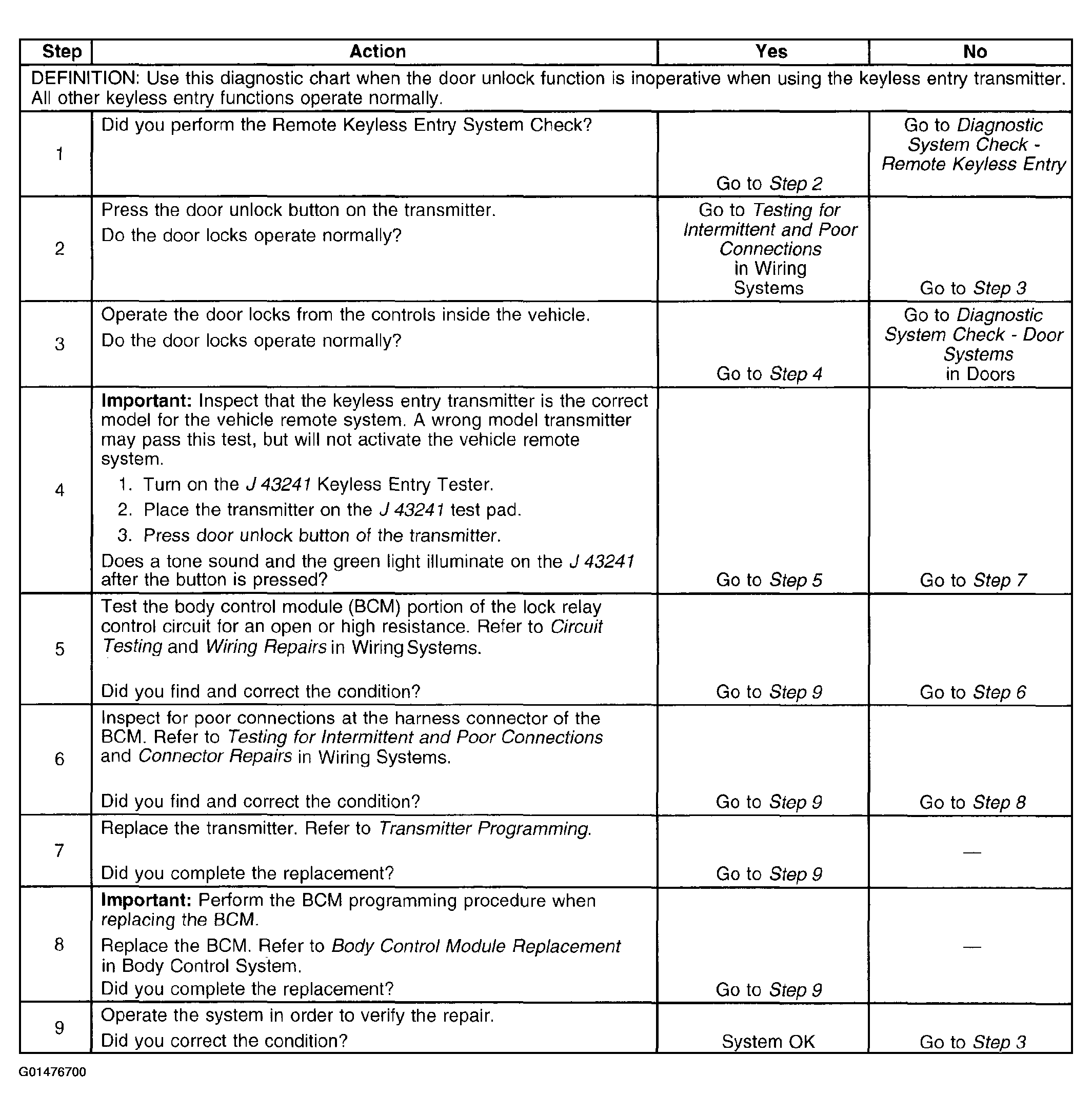

   Fig 4: Door Unlock Function Inoperative With Transmitter

   Courtesy of GENERAL MOTORS CORP.

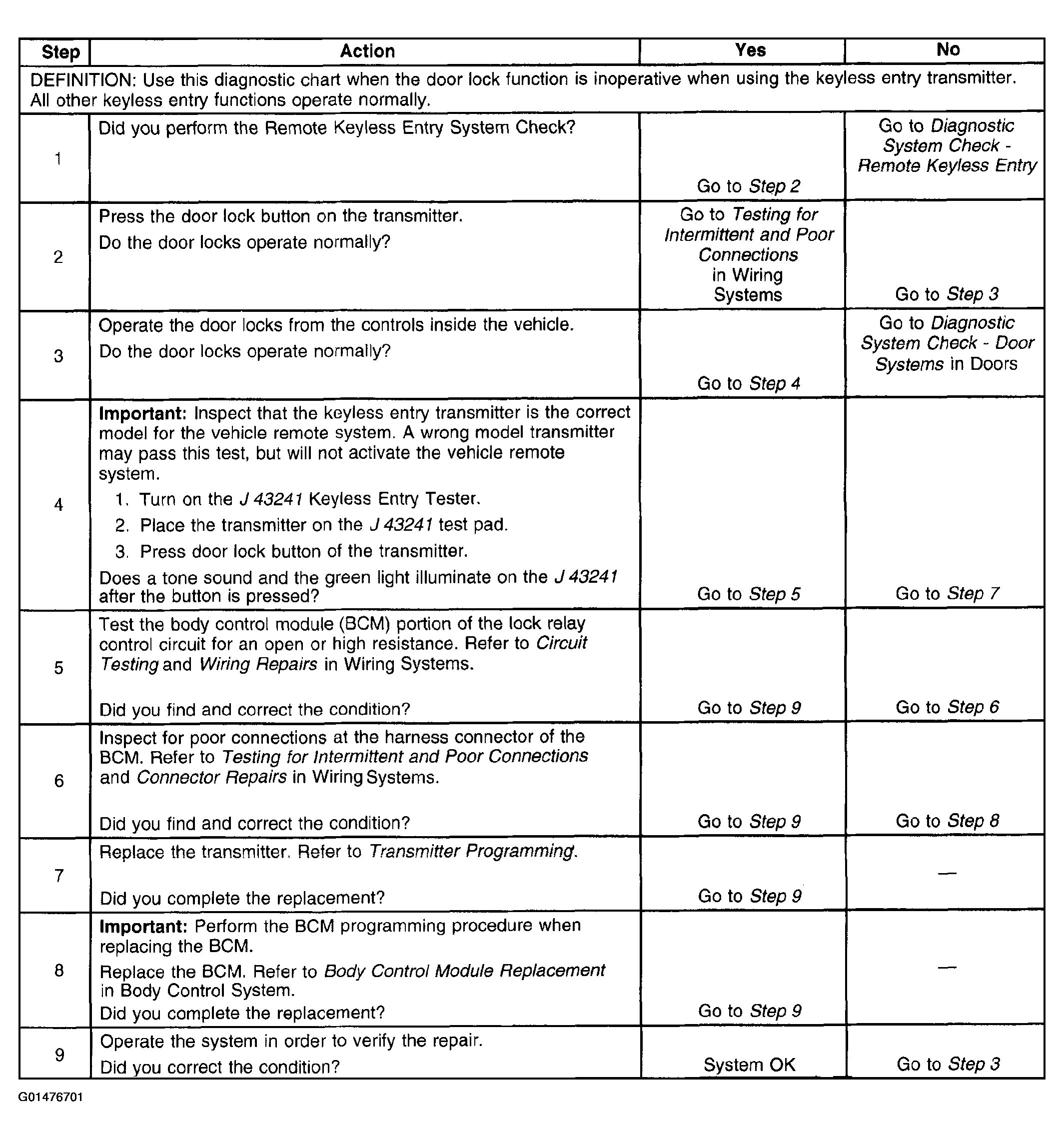

   Fig 5: Door Lock Function Inoperative With Transmitter

   Courtesy of GENERAL MOTORS CORP.
