Radio/Audio System Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

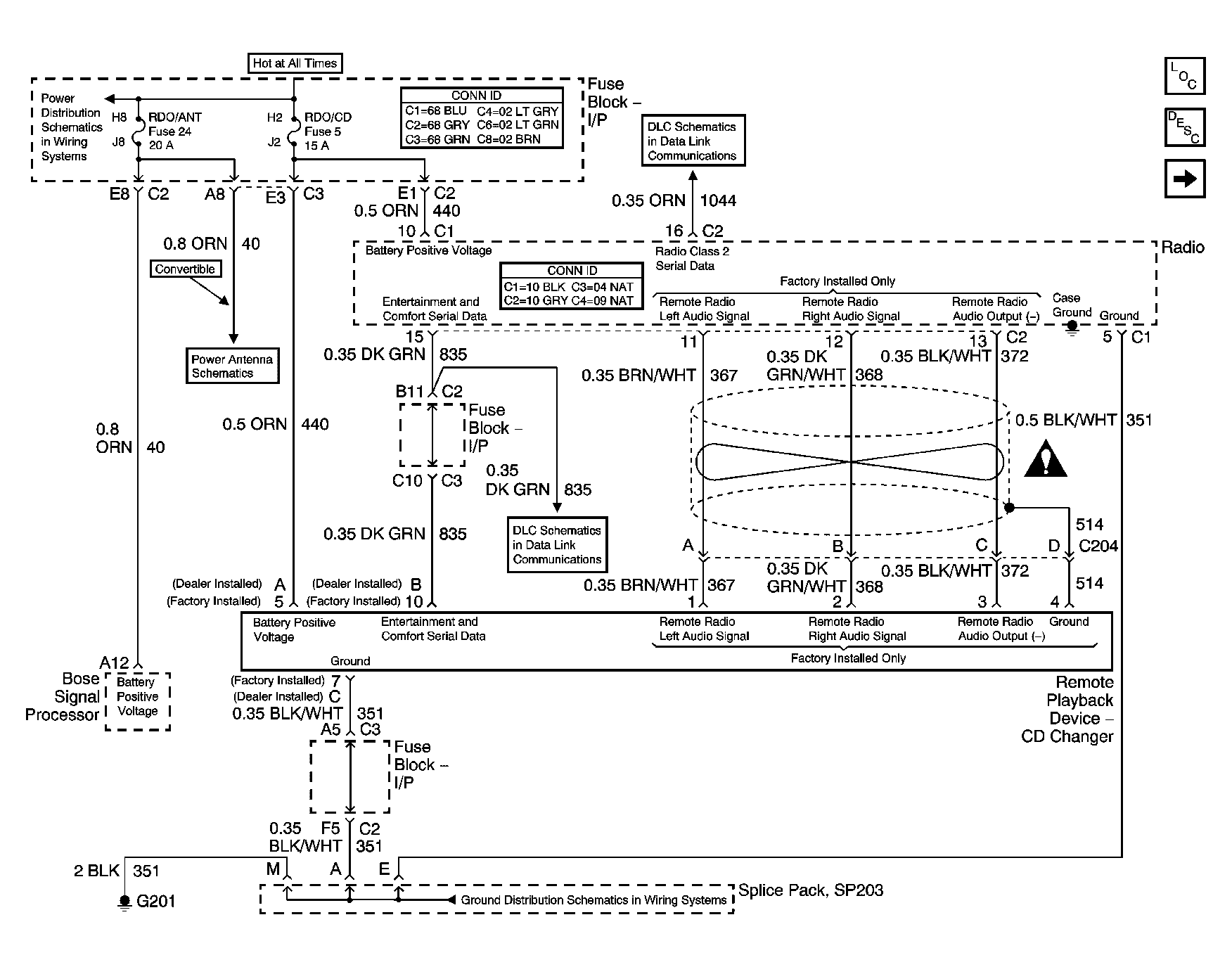

Fig 1: Power, Ground And DLC Schematic

Courtesy of GENERAL MOTORS CORP.

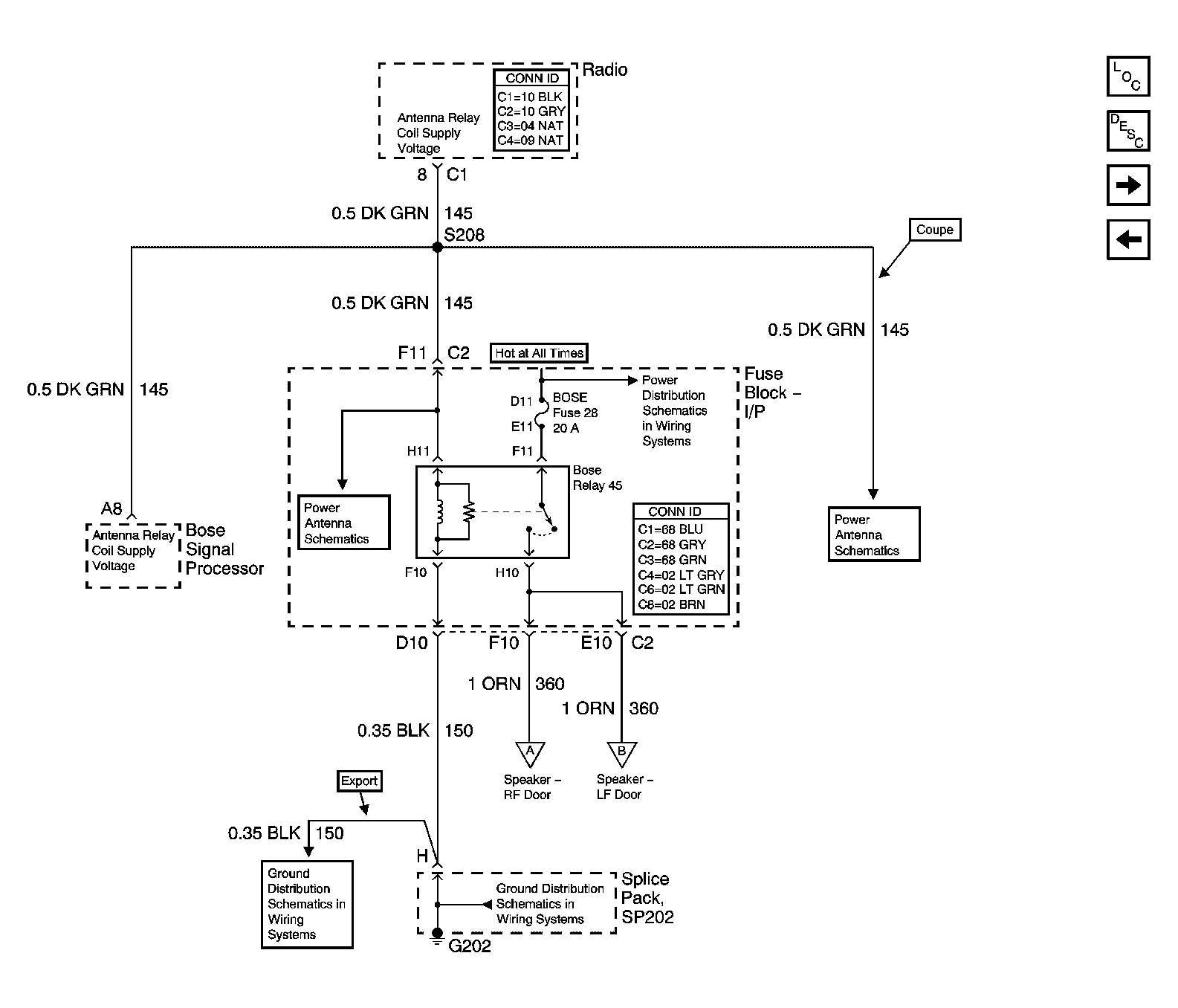

Fig 2: Bose Relay Control Schematic

Courtesy of GENERAL MOTORS CORP.

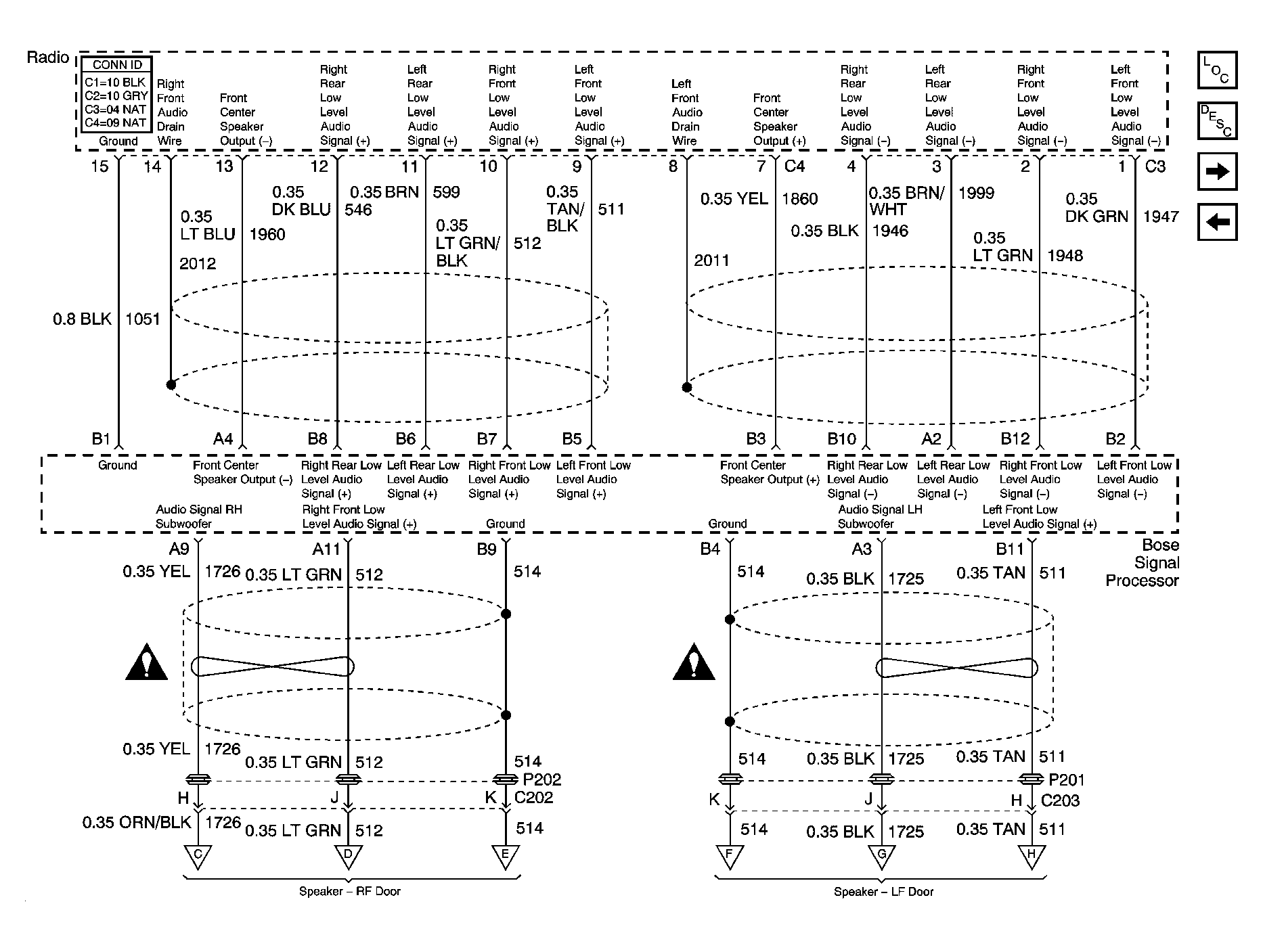

Fig 3: Bose Signal Processor Schematic

Courtesy of GENERAL MOTORS CORP.

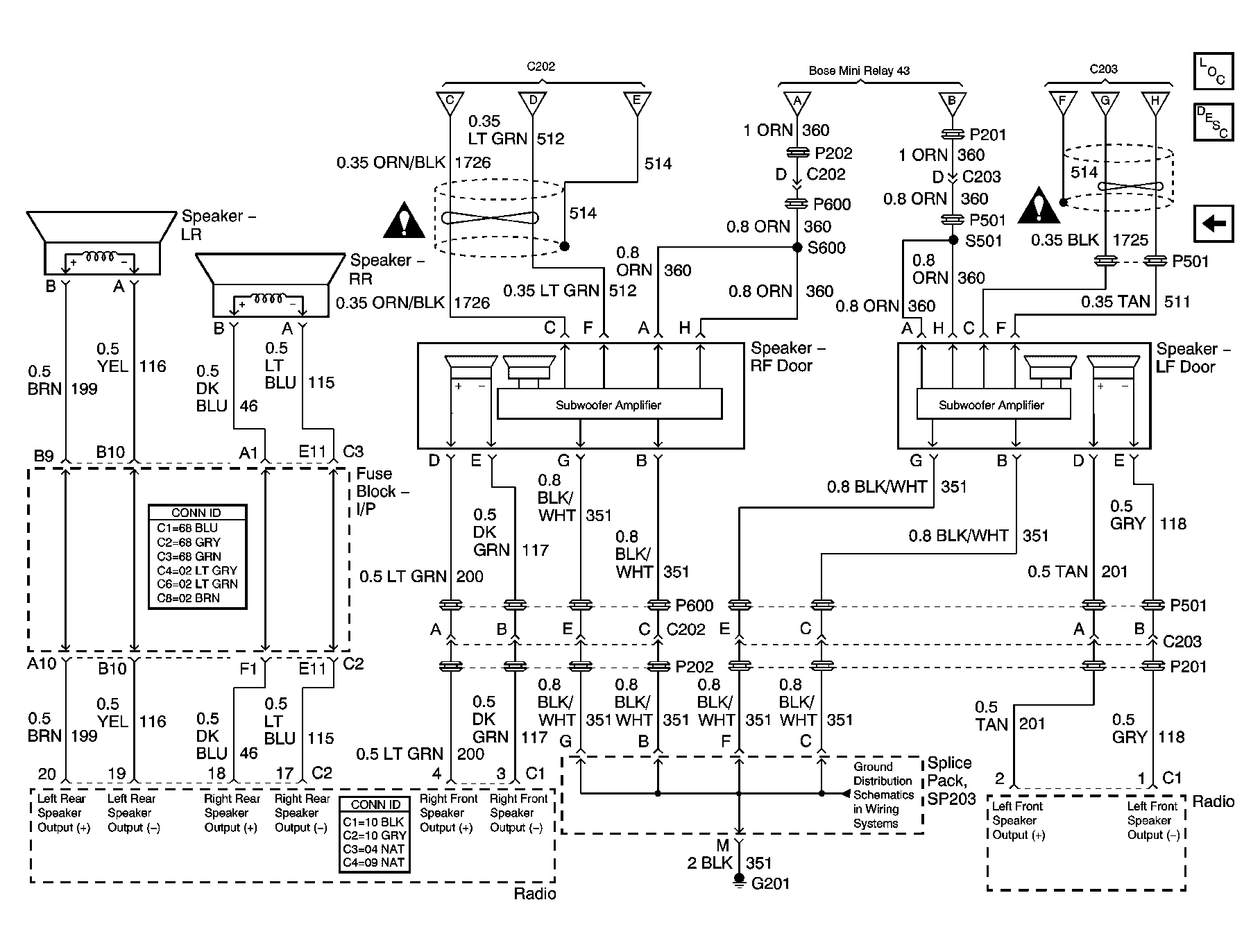

Fig 4: Front And Rear Speakers Schematic

Courtesy of GENERAL MOTORS CORP.
