Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

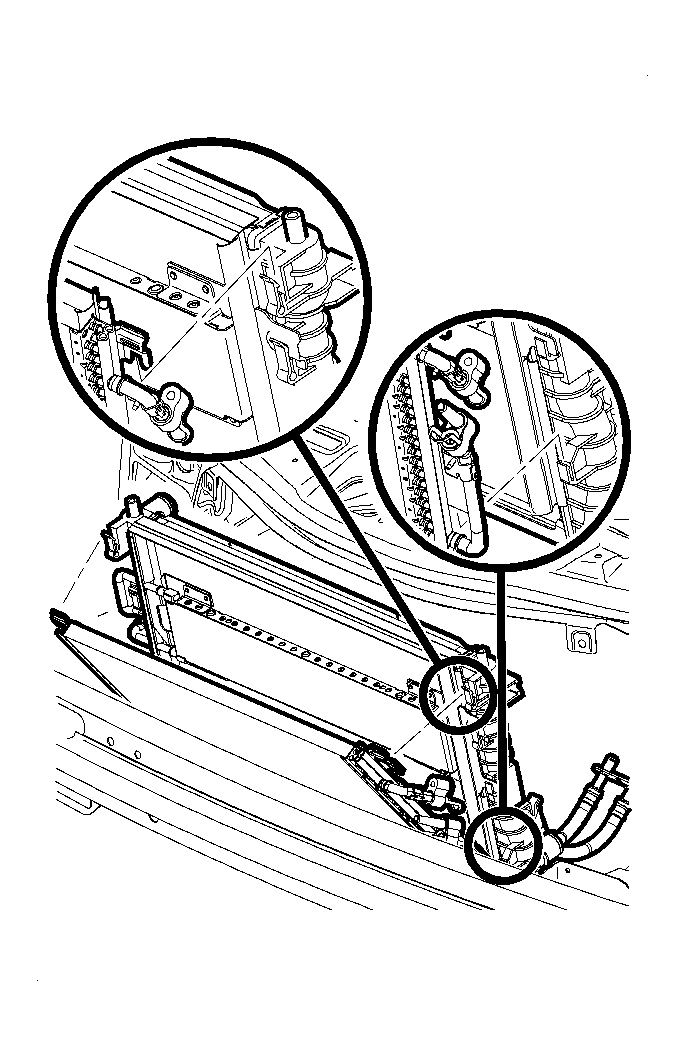

Fig 1: Condenser & Radiator

Courtesy of GENERAL MOTORS CORP.

Check radiator to condenser seal for proper position.
Install condenser by guiding lower and upper tabs into retention clips on radiator and pressing down to snap into place.

Fig 2: View Of CRFM Mounting Brackets To The Radiator Support

Courtesy of GENERAL MOTORS CORP.

Install upper CRFM bracket and mount assemblies.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install upper CRFM bracket bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 3: Compressor Hose, Nut, Condenser & Protective Cap

Courtesy of GENERAL MOTORS CORP.

Remove protective cap from the compressor hose and install a new sealing washer. Refer to Sealing Washer Replacement .
Install compressor hose to condenser with the nut.
Tighten: Tighten the nut to 16 N.m (12 lb ft).

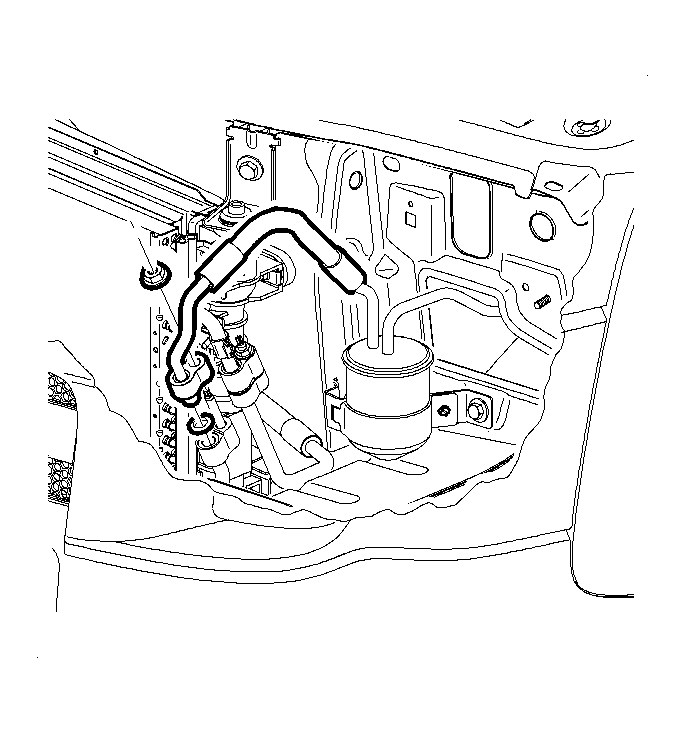

Fig 4: Receiver Dehydrator, Condenser & Seal Washer

Courtesy of GENERAL MOTORS CORP.

Install new seal washer. Refer to Sealing Washer Replacement .
Install the RD line to the condenser with the nut.
Tighten: Tighten the nut to 16 N.m (12 lb ft).

Fig 5: View Of CRFM Closeout/Splash Panel To Condenser

Courtesy of GENERAL MOTORS CORP.

Install CRFM closeout panel.

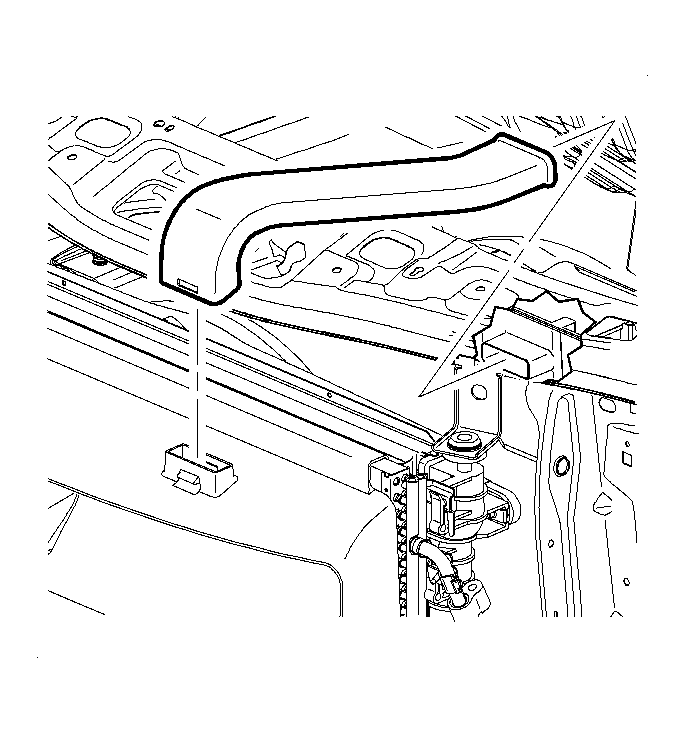

Fig 6: Battery Box Air Duct

Courtesy of GENERAL MOTORS CORP.

Install battery box air duct.
Install front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
Leak test the fittings using the J 39400-A . See Special Tools .
