Installation Procedure

  1. Install the switch assembly to the trim panel by snapping the switch into the plastic retaining clips.

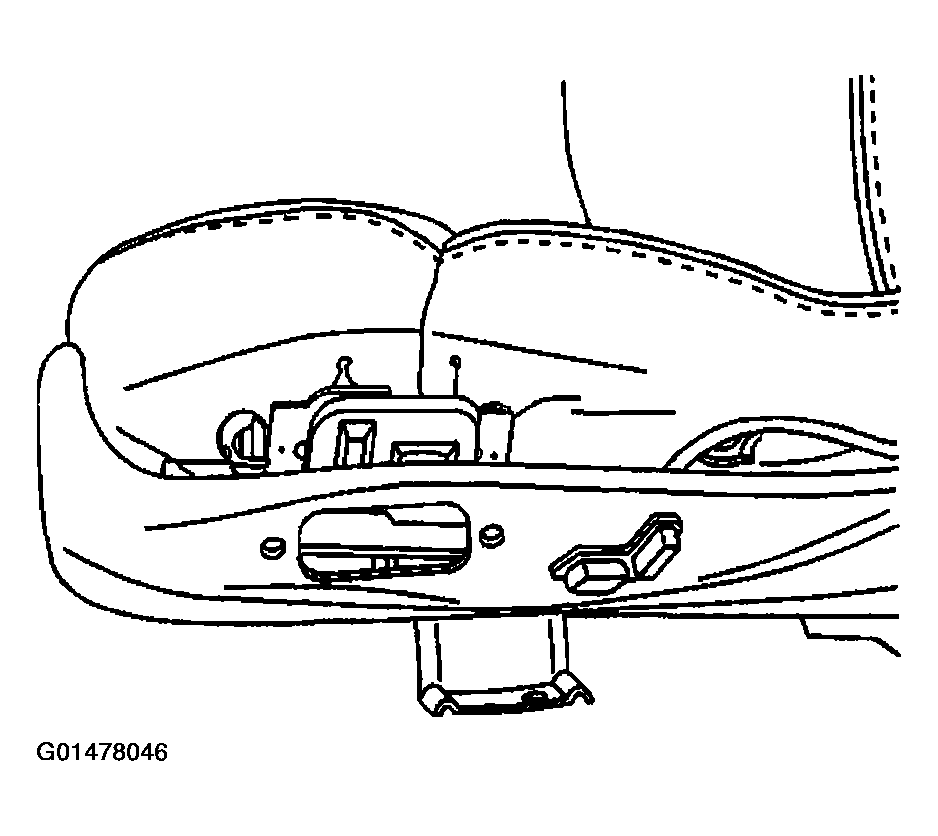

    Fig 1: Installing Switch Assembly To Trim Panel By Snapping Switch Into Plastic Retaining Clips
    G01478046Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector to the switch.

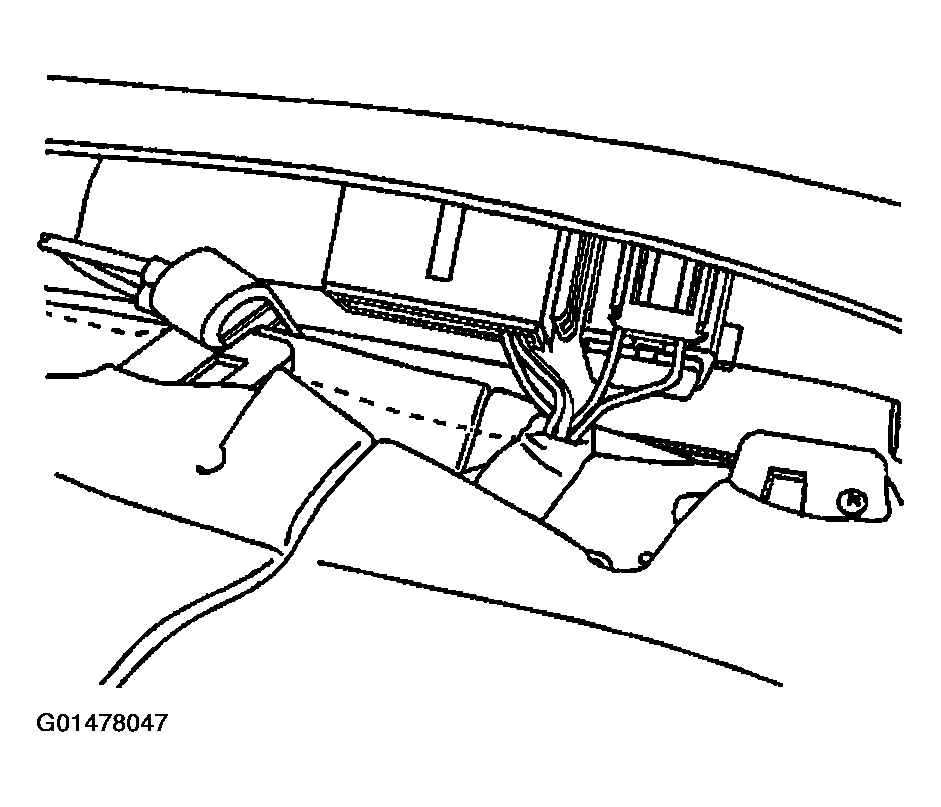

    Fig 2: Installing Electrical Connector To Switch
    G01478047Courtesy of GENERAL MOTORS CORP.
  3. Install the trim panel to the seat with 3 screws.
  4. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - Bucket  or SEAT REPLACEMENT - Bench .

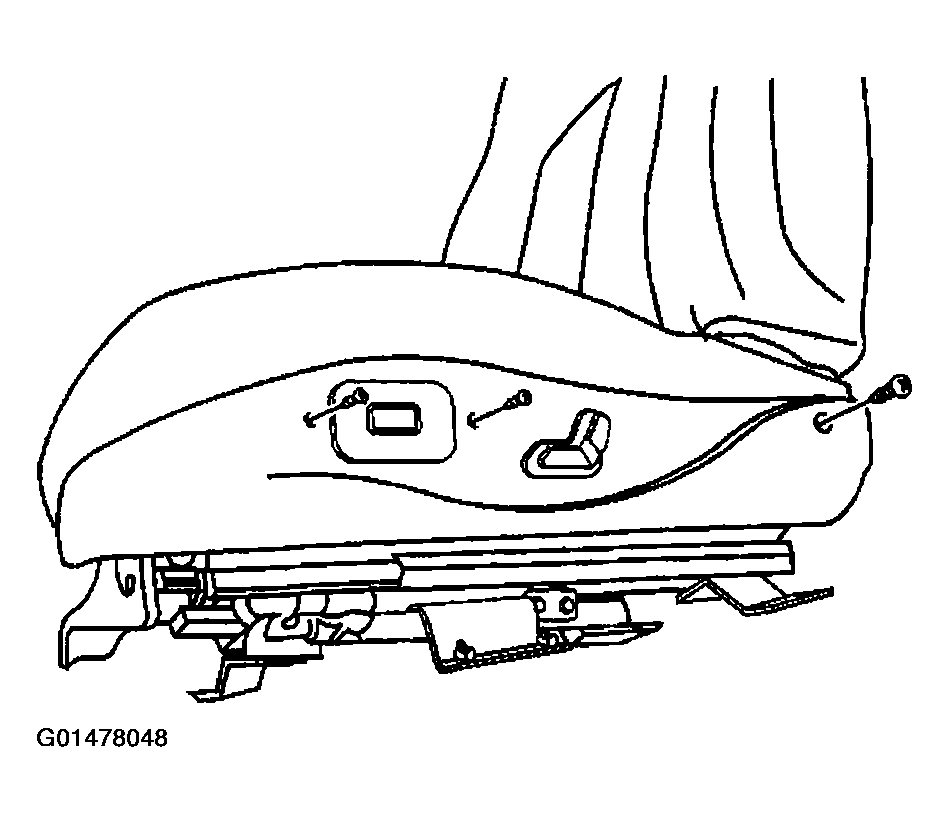

    Fig 3: Installing Trim Panel To Seat With Screws
    G01478048Courtesy of GENERAL MOTORS CORP.
