Power Door Systems Component Views

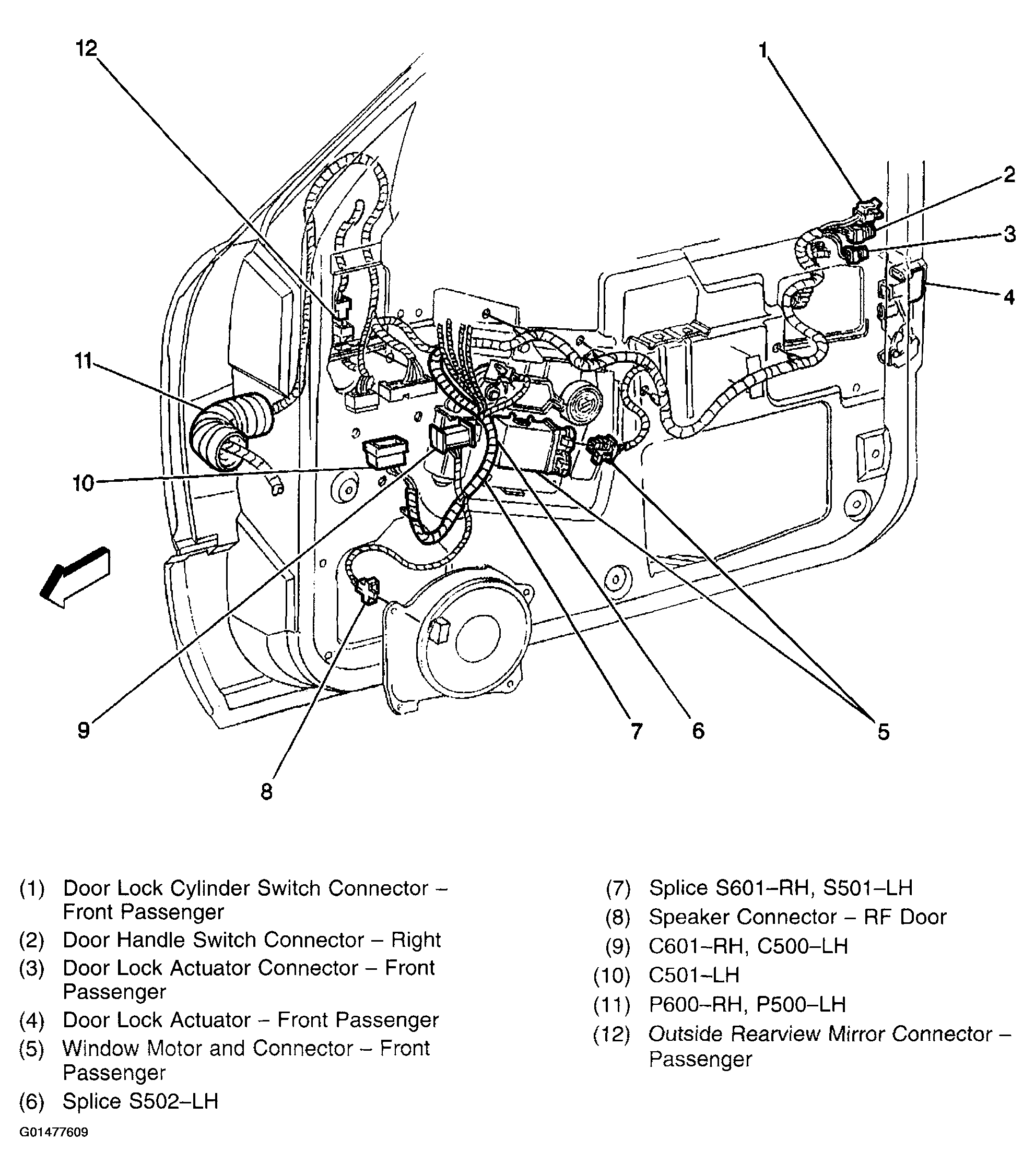

Fig 1: Front Passenger Door Shown, Driver Similar
Courtesy of GENERAL MOTORS CORP.

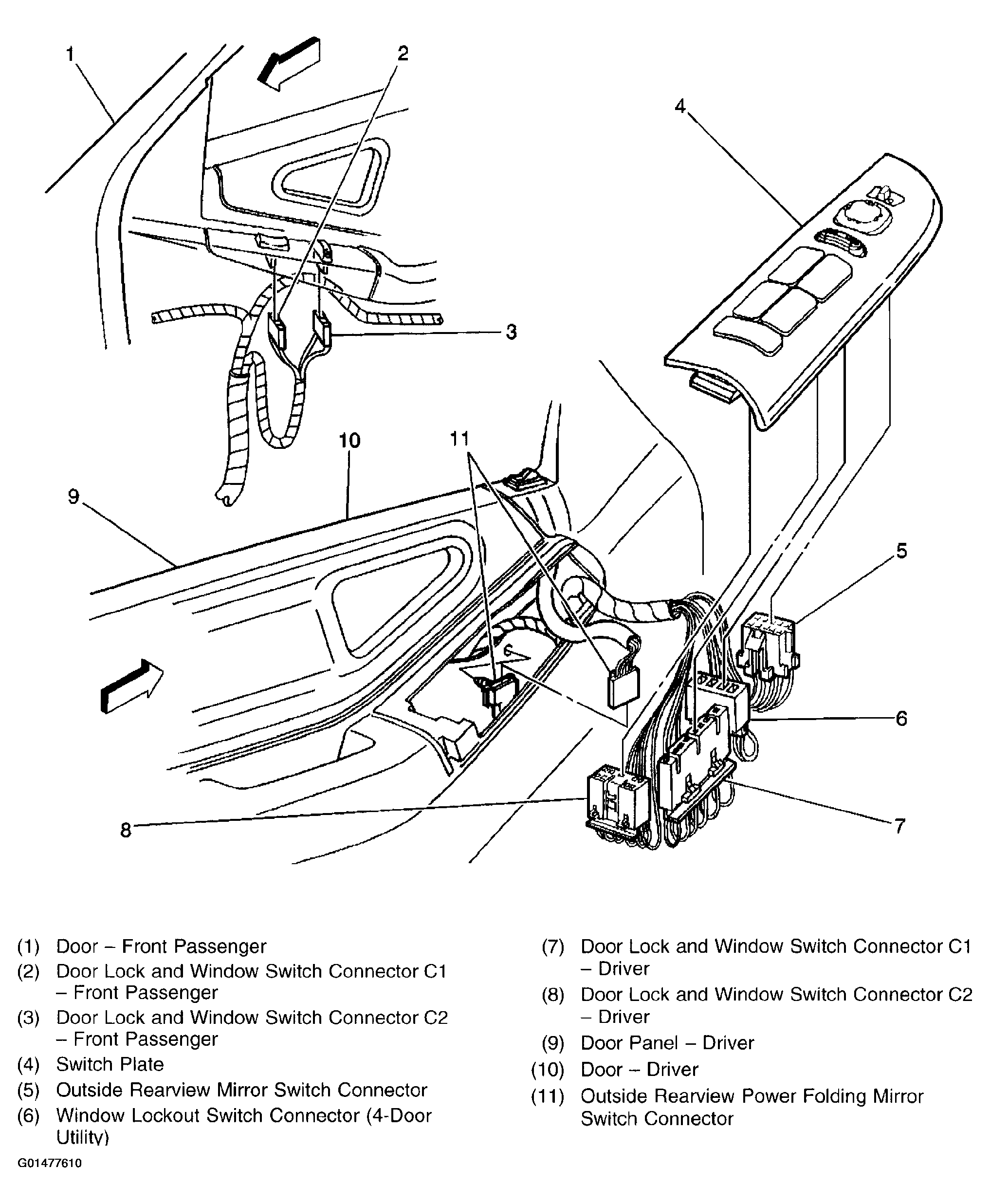

Fig 2: Door Harness Wiring Switches, Front
Courtesy of GENERAL MOTORS CORP.

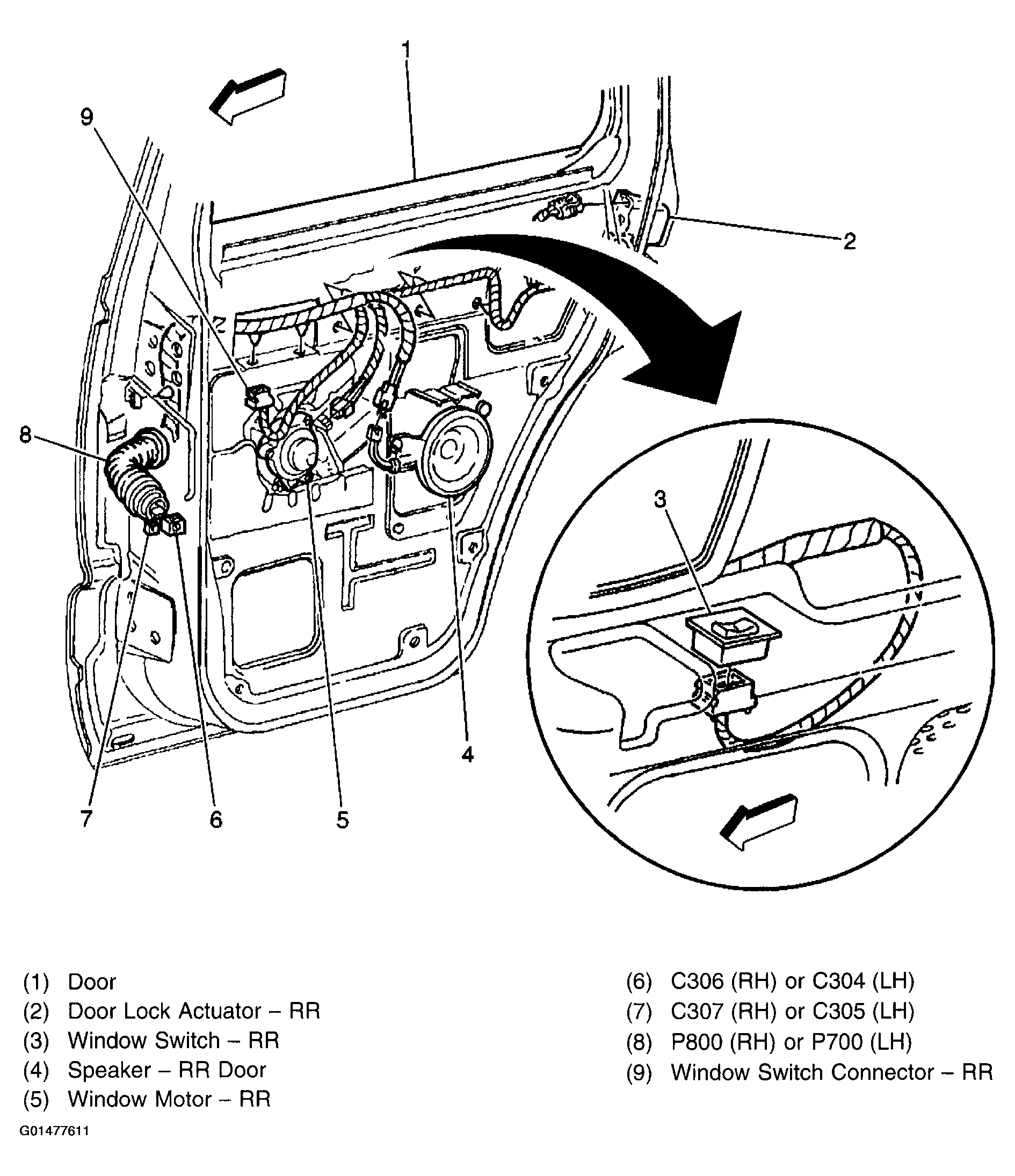

Fig 3: Door Wiring Harness (RR Shown, LR Similar)
Courtesy of GENERAL MOTORS CORP.

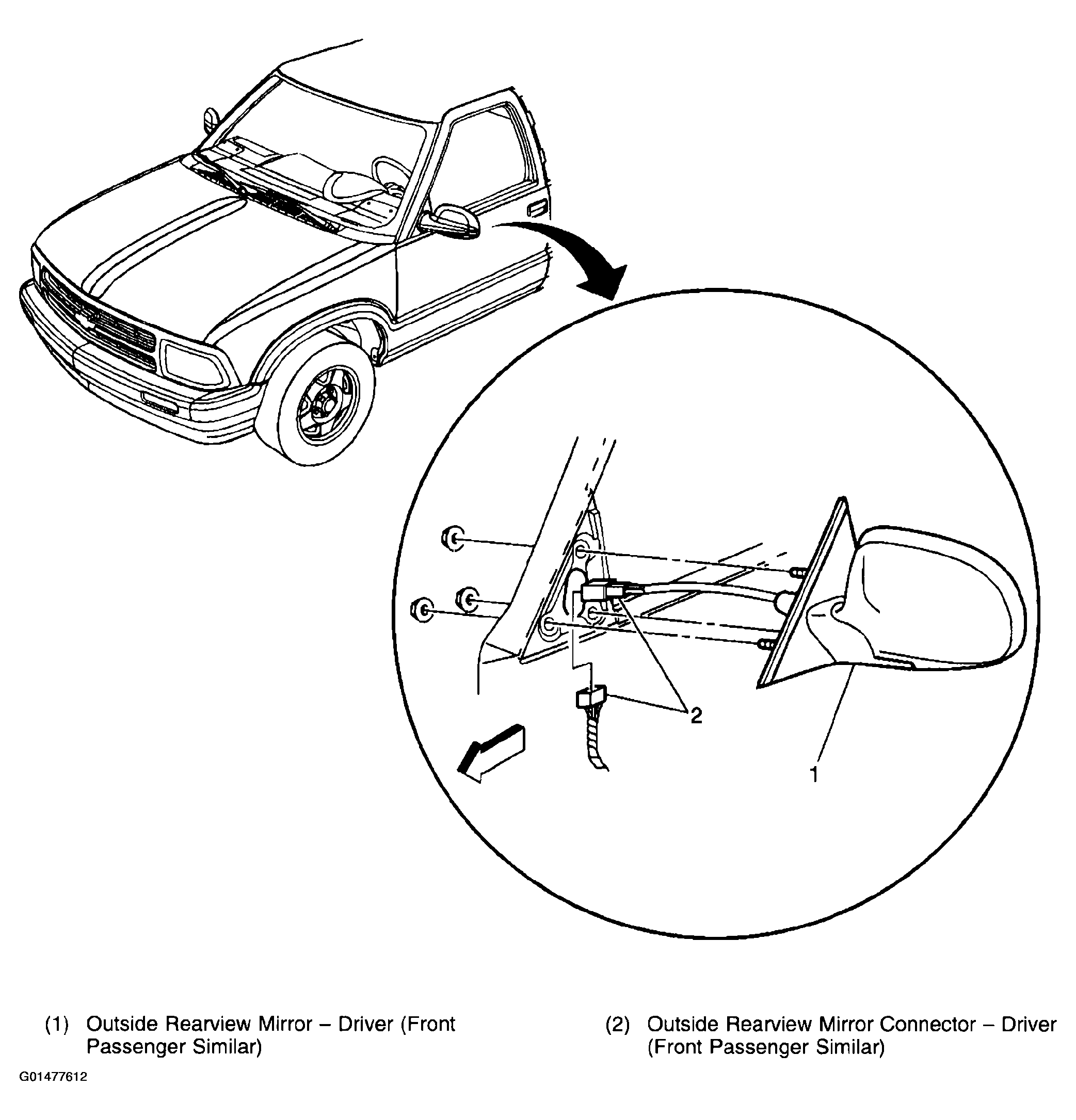

Fig 4: Outside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

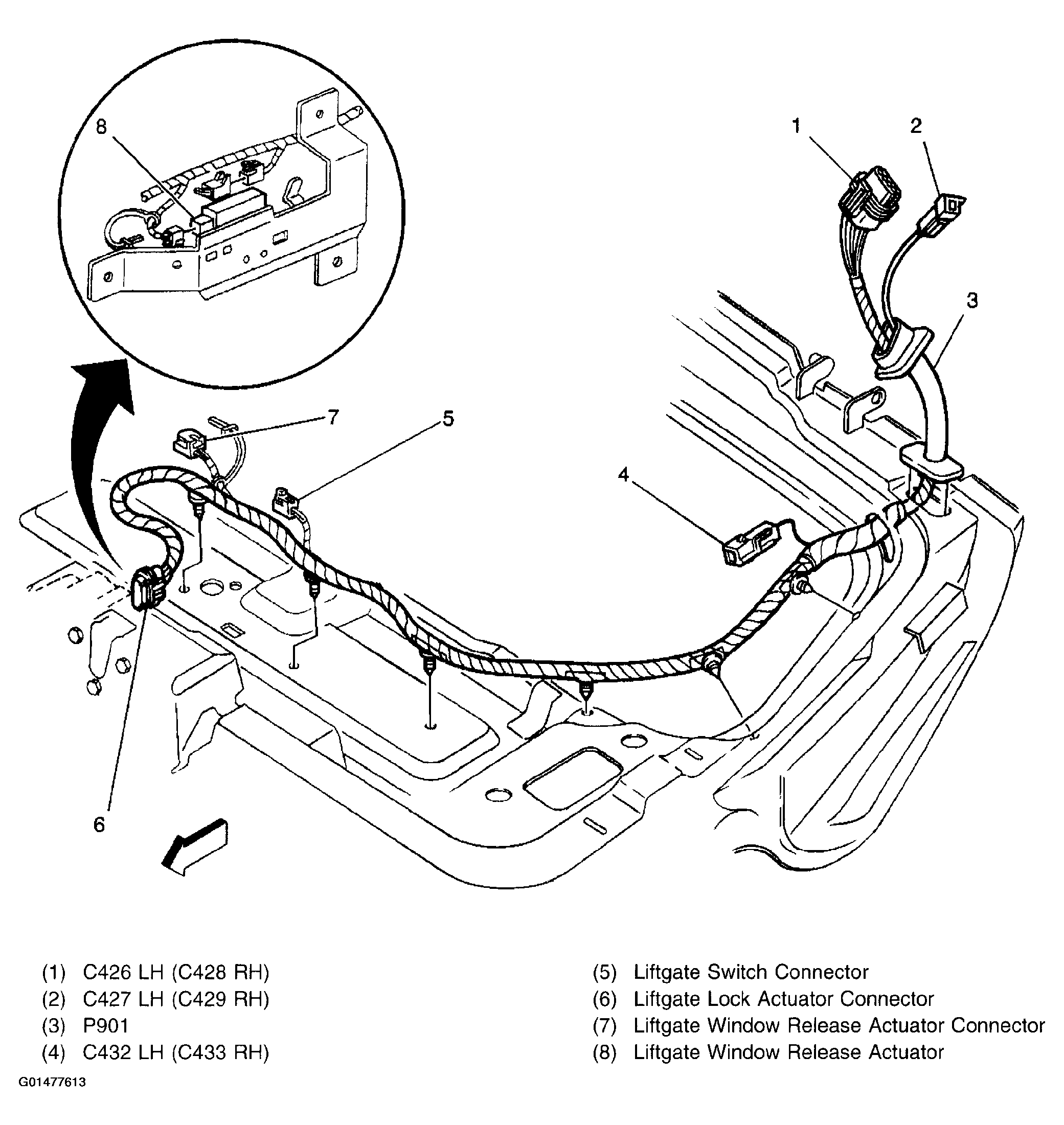

Fig 5: Liftgate LH (Utility)
Courtesy of GENERAL MOTORS CORP.

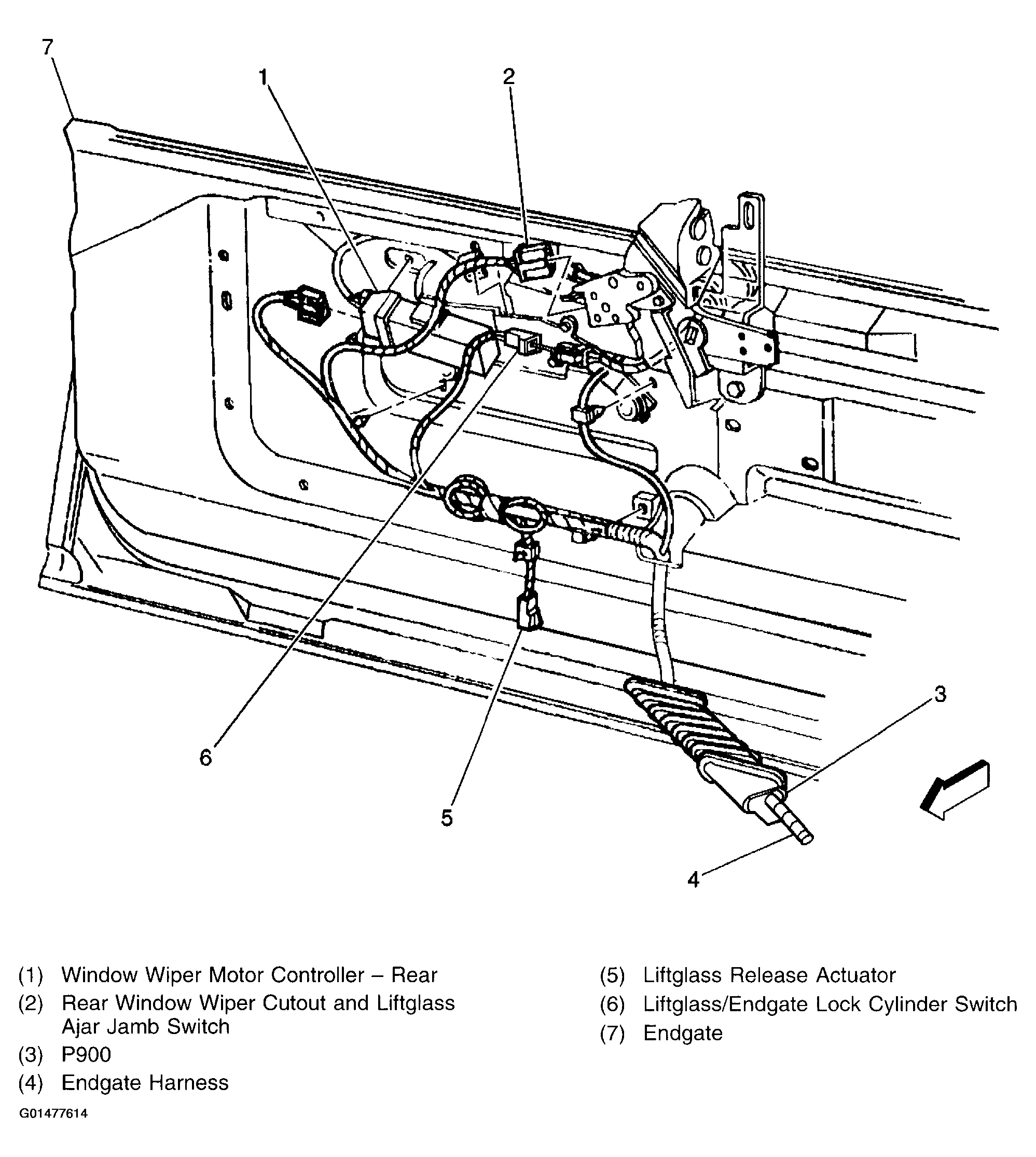

Fig 6: Endgate Harness Routing View
Courtesy of GENERAL MOTORS CORP.
