Power Door Systems Connector End Views

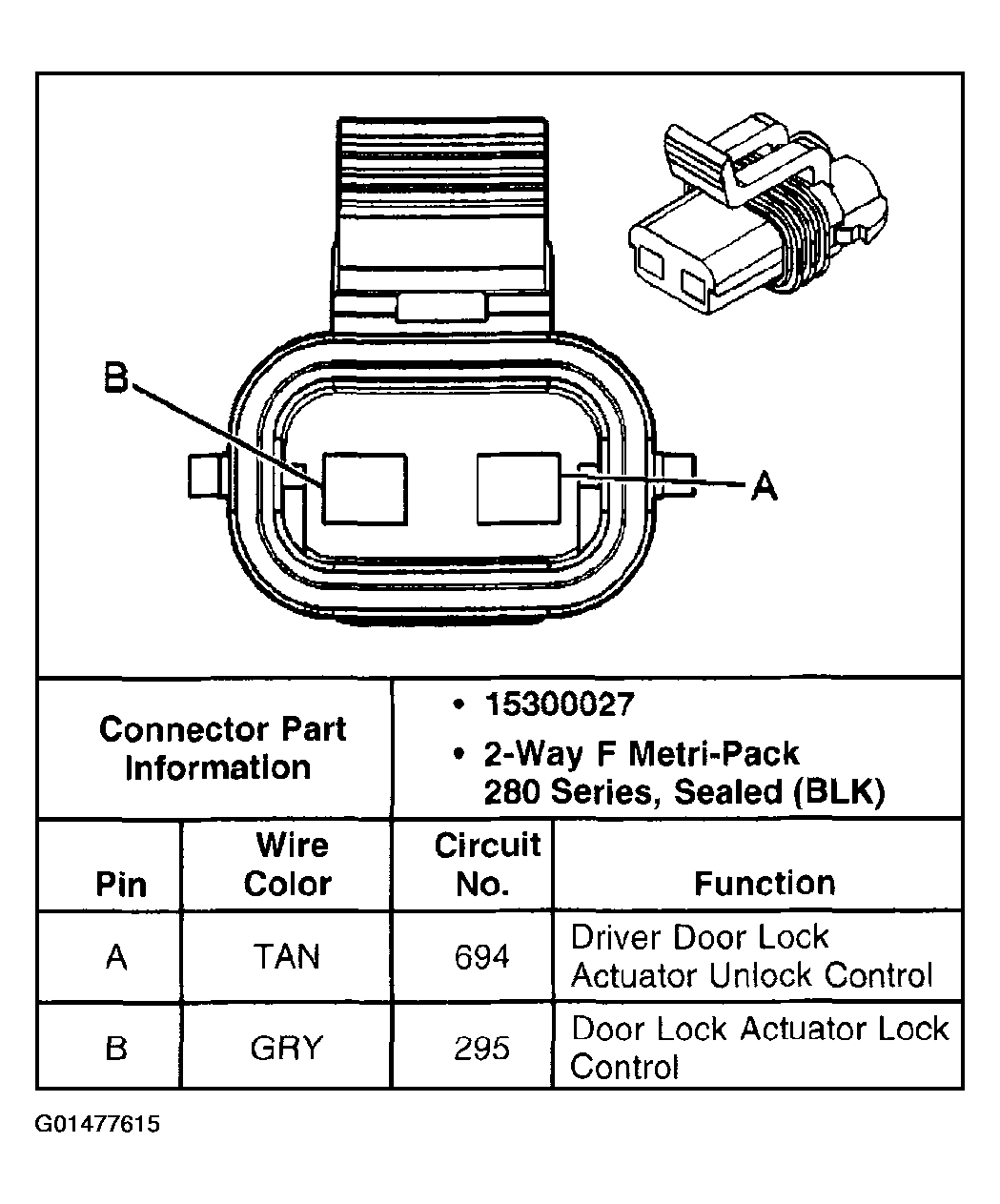

Fig 1: Door Lock Actuator - Driver

G01477615

Courtesy of GENERAL MOTORS CORP.

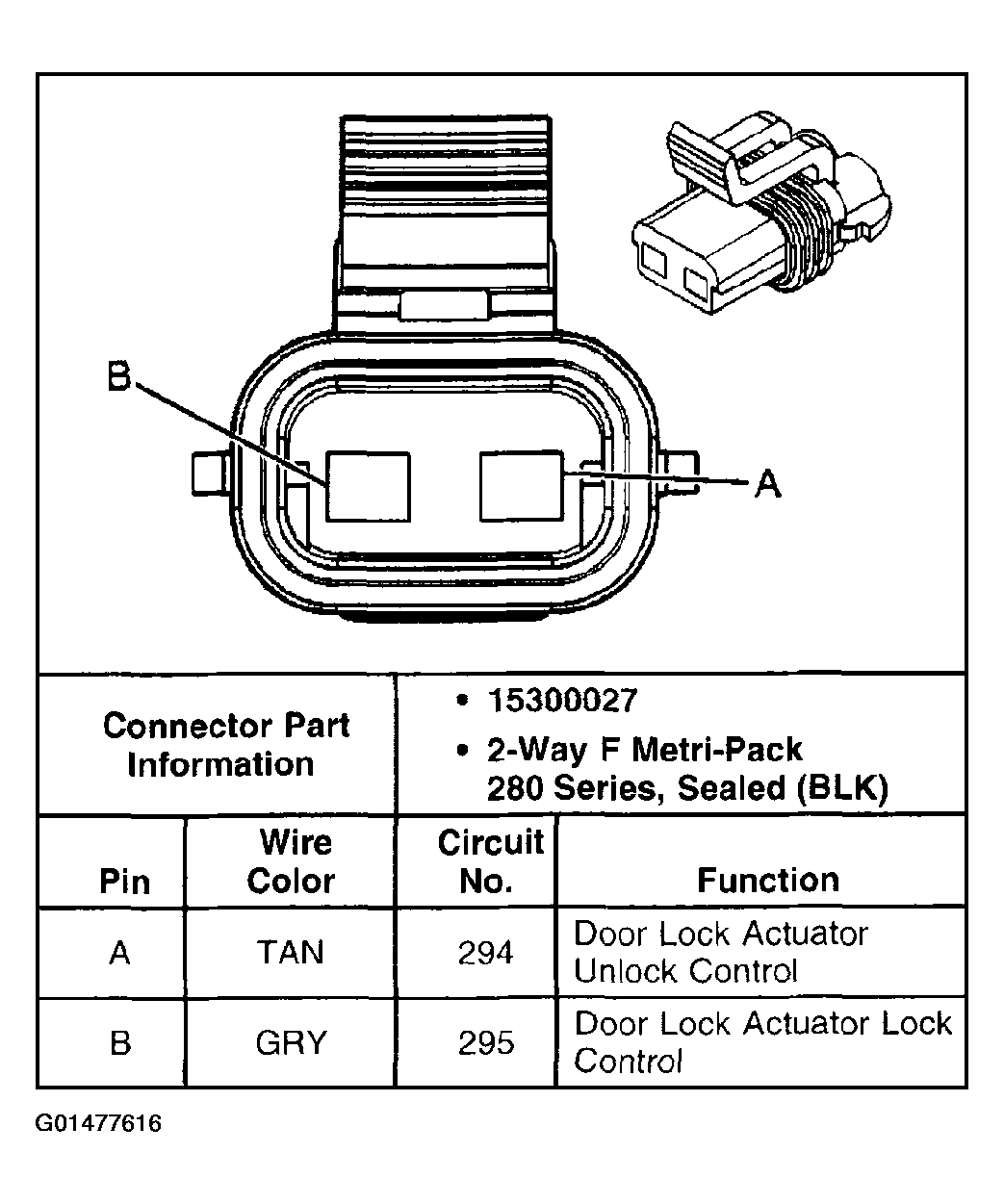

Fig 2: Door Lock Actuator - Front Passenger, RR & LR

G01477616

Courtesy of GENERAL MOTORS CORP.

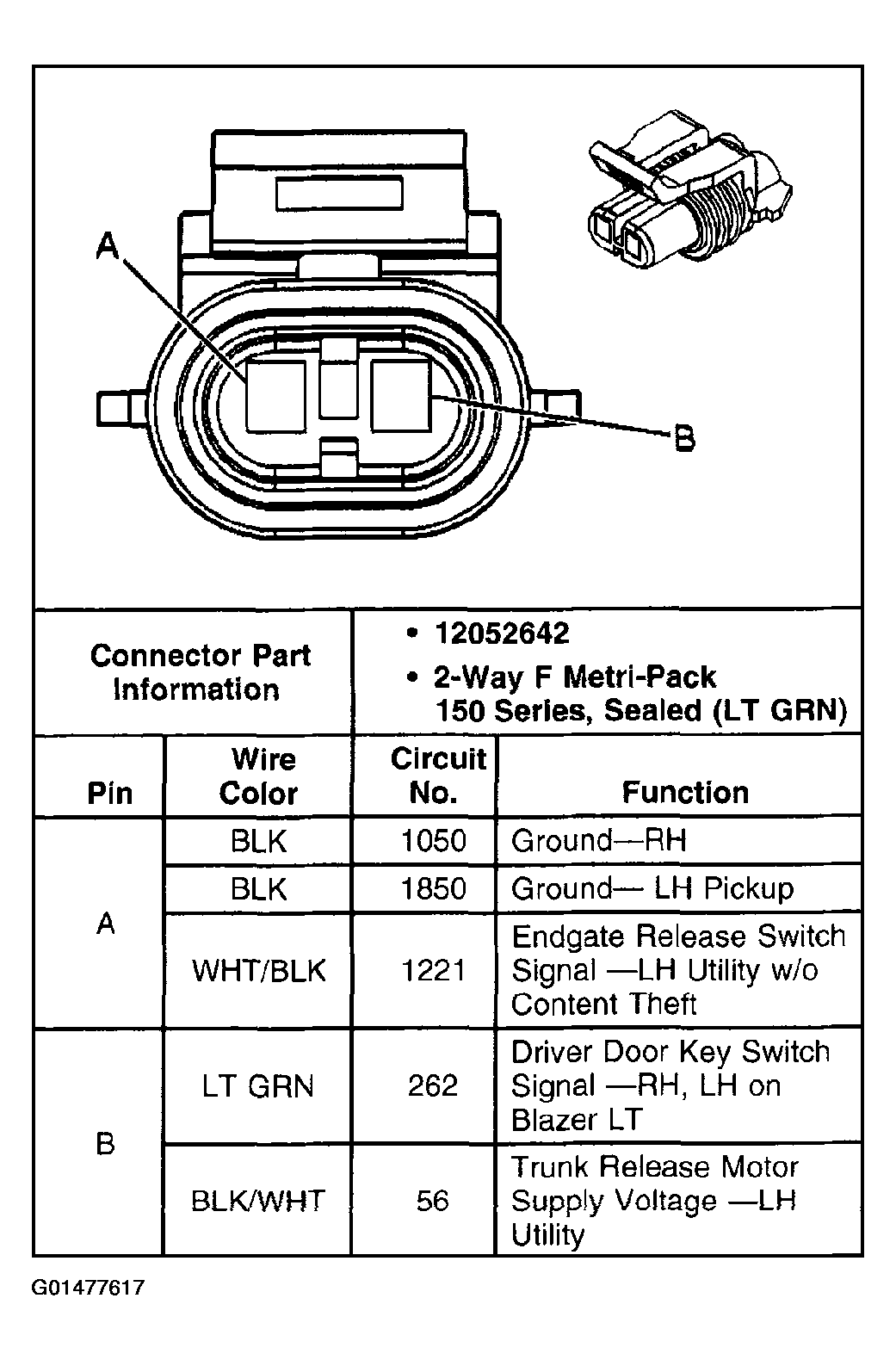

Fig 3: Door Lock Cylinder Switch - Driver/Front Passenger (Except LH Utility W/ Content Theft)

G01477617

Courtesy of GENERAL MOTORS CORP.

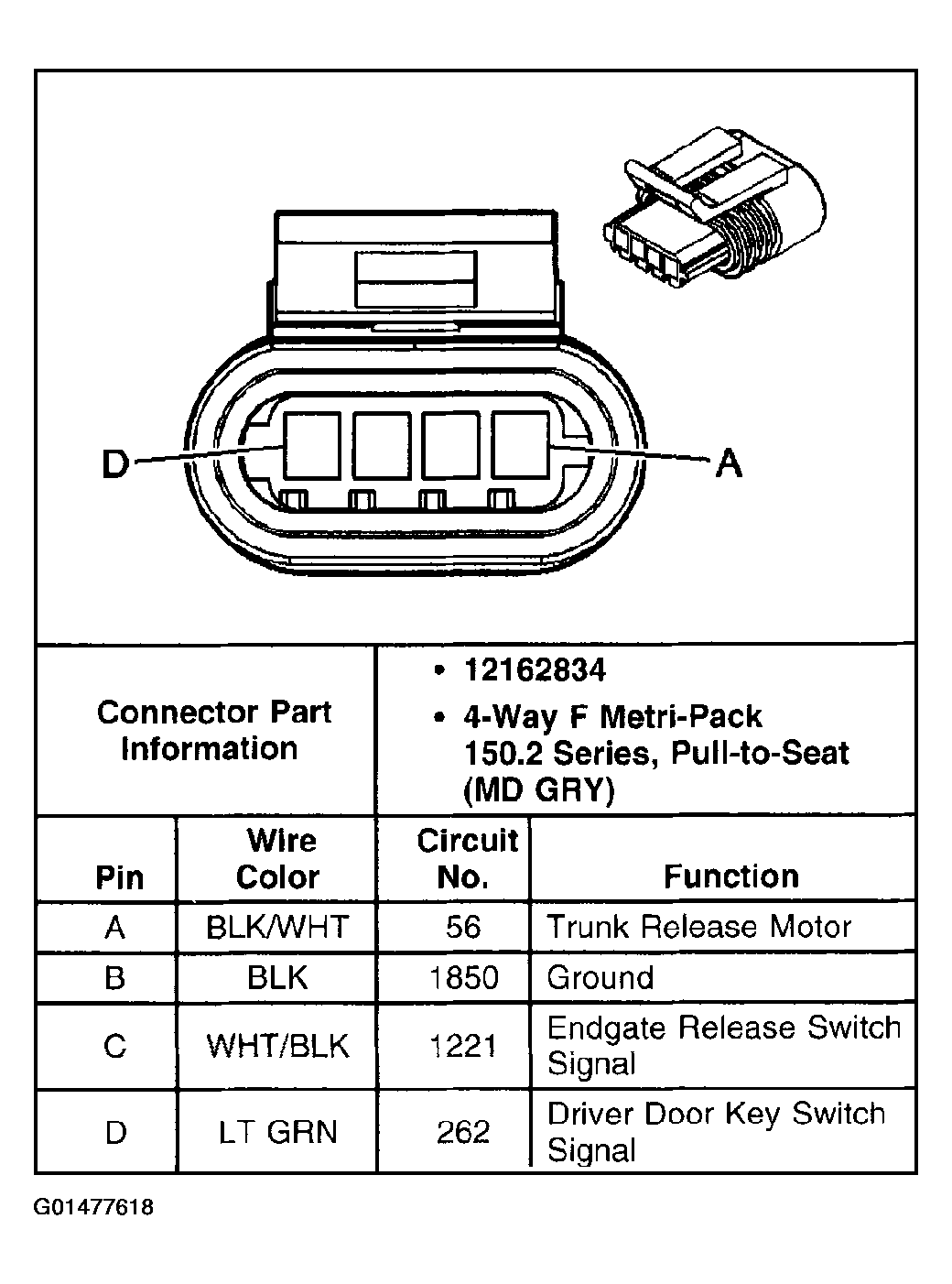

Fig 4: Door Lock Cylinder Switch - Driver (Utility W/ Content Theft)

G01477618

Courtesy of GENERAL MOTORS CORP.

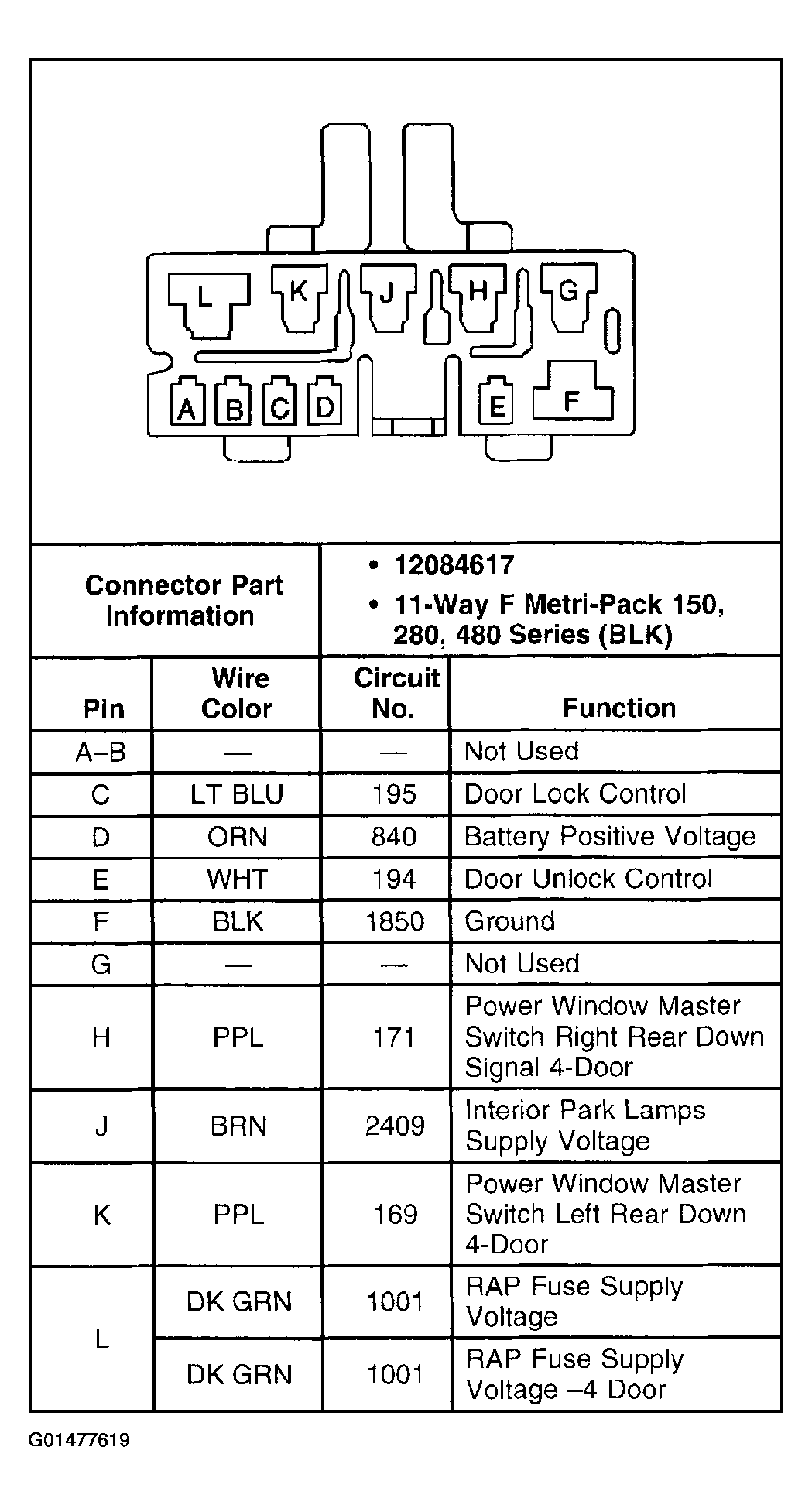

Fig 5: Door Lock & Window Switch - Driver C1

G01477619

Courtesy of GENERAL MOTORS CORP.

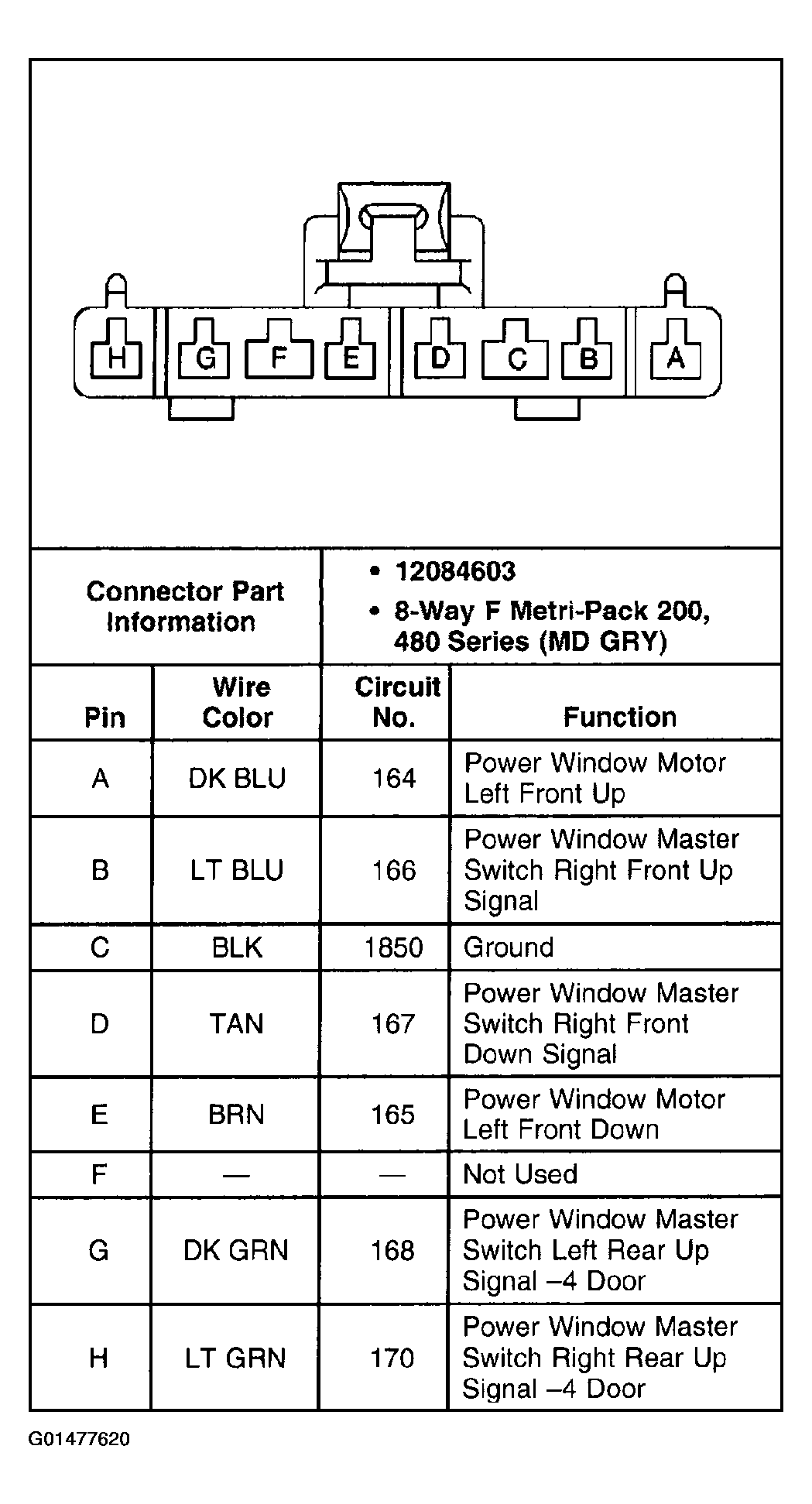

Fig 6: Door Lock & Window Switch - Driver C2

G01477620

Courtesy of GENERAL MOTORS CORP.

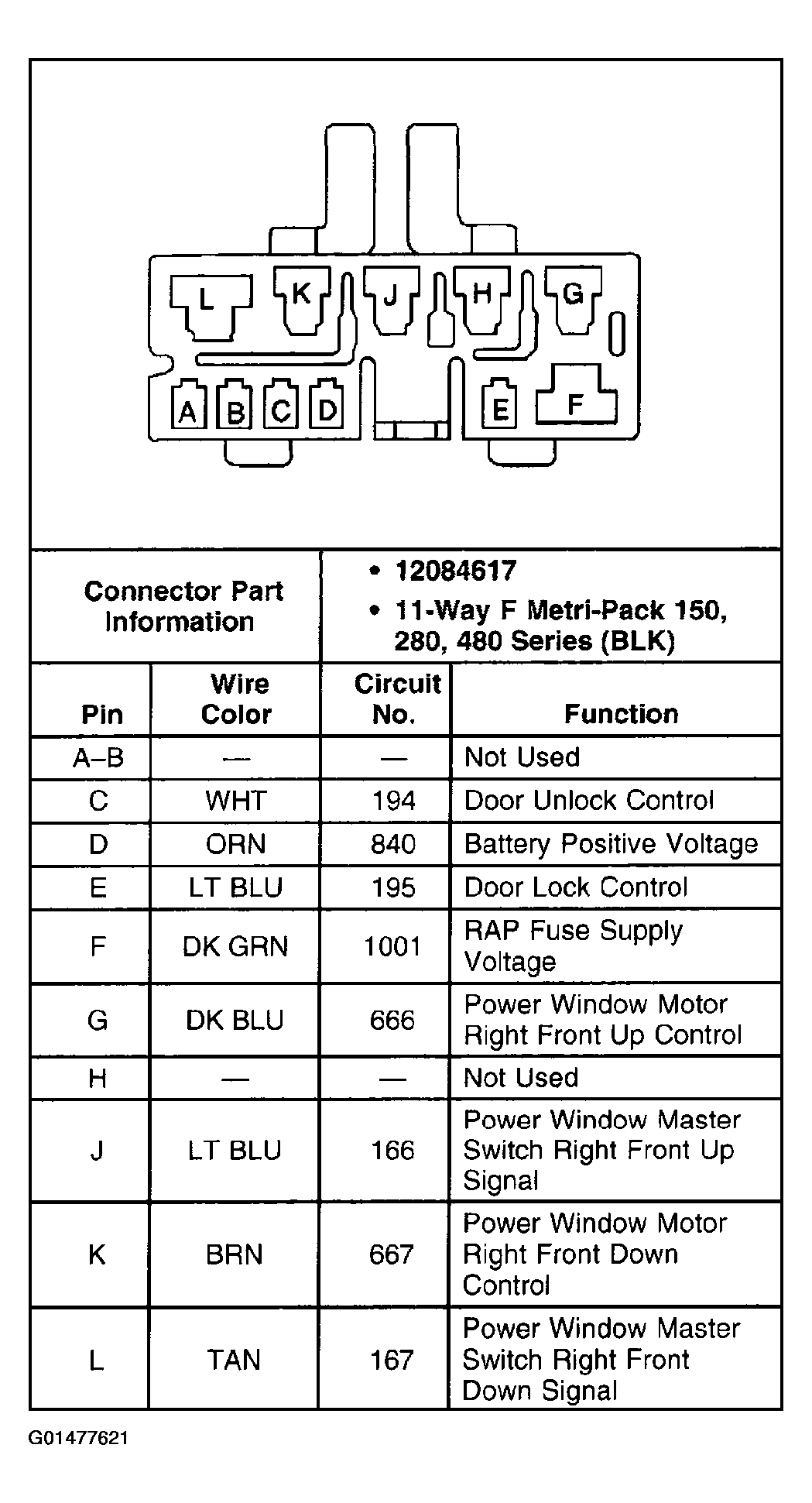

Fig 7: Door Lock & Windows Switch - Front Passenger C1

G01477621

Courtesy of GENERAL MOTORS CORP.

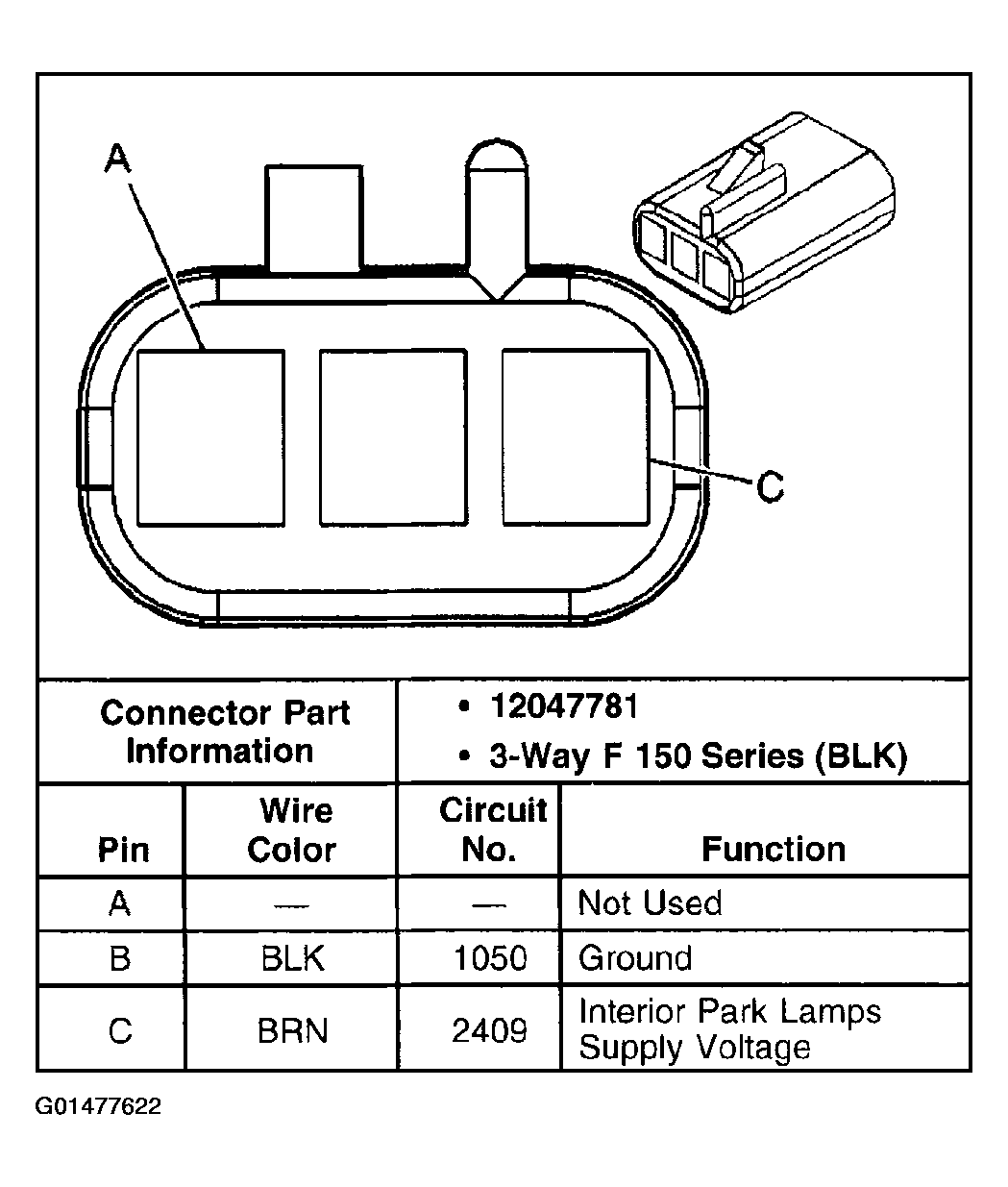

Fig 8: Door Lock & Window Switch - Front Passenger C2

G01477622

Courtesy of GENERAL MOTORS CORP.

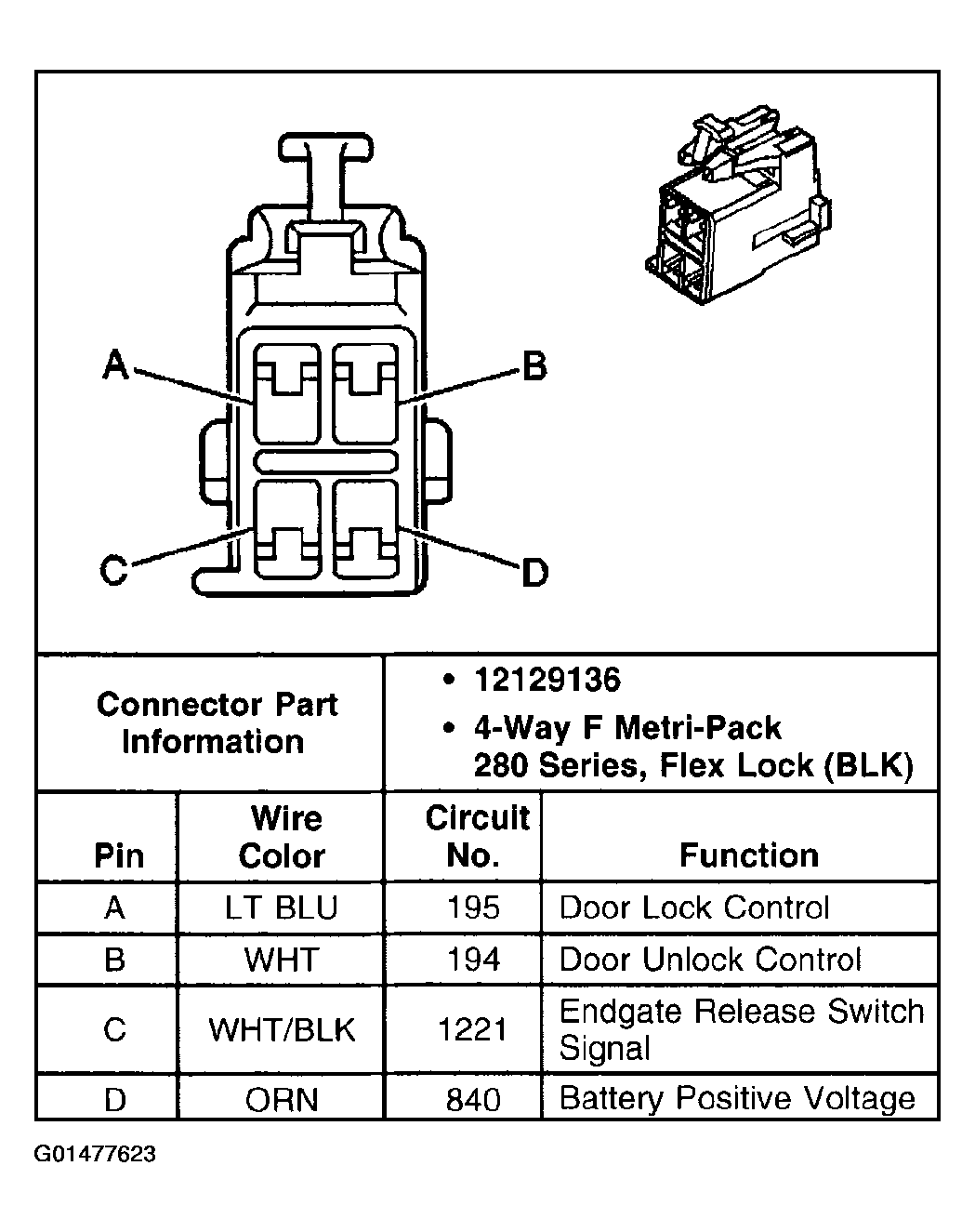

Fig 9: Liftglass/Endgate Lock Cylinder Switch

G01477623

Courtesy of GENERAL MOTORS CORP.

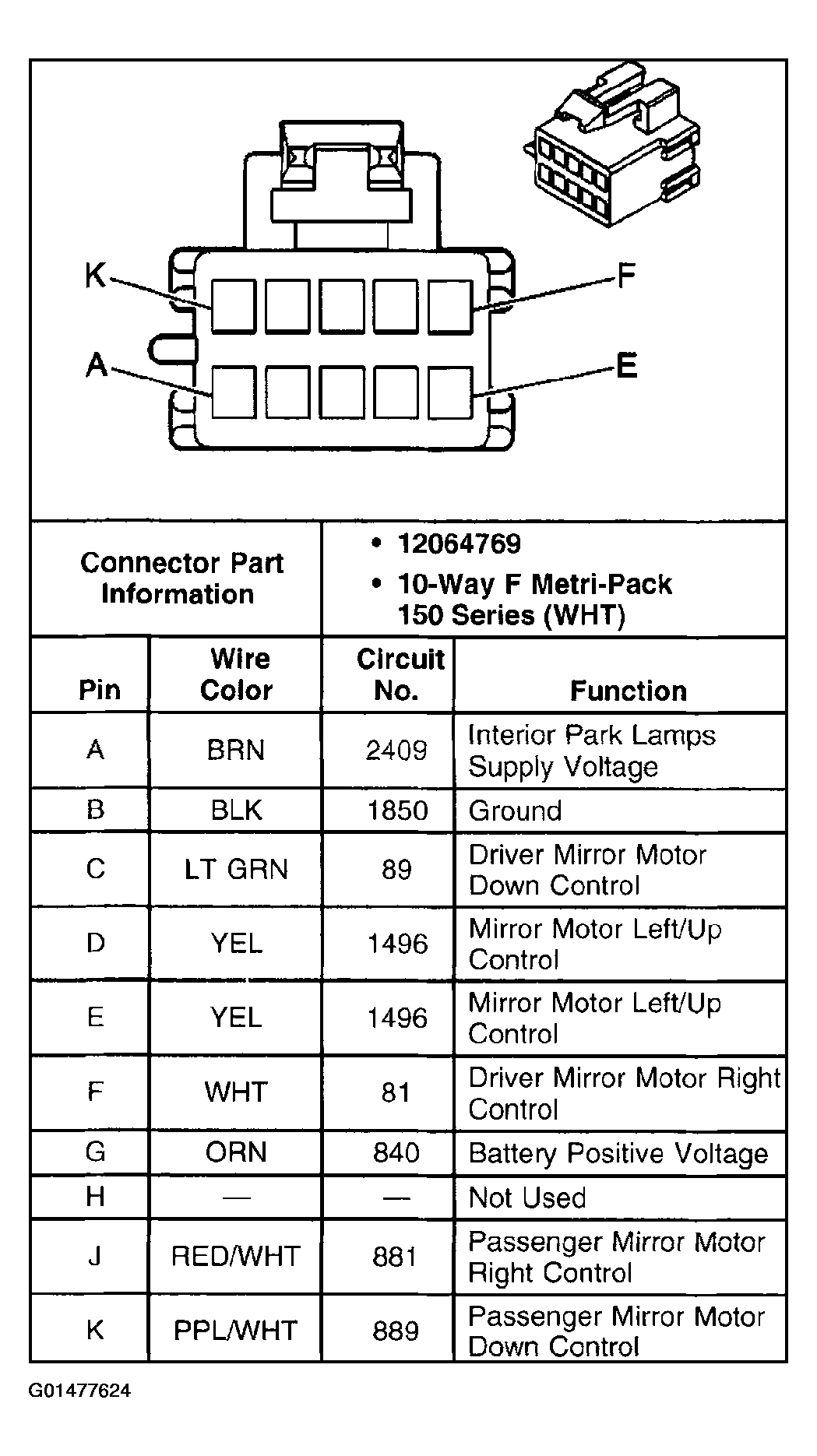

Fig 10: Outside Rearview Mirror Switch

G01477624

Courtesy of GENERAL MOTORS CORP.

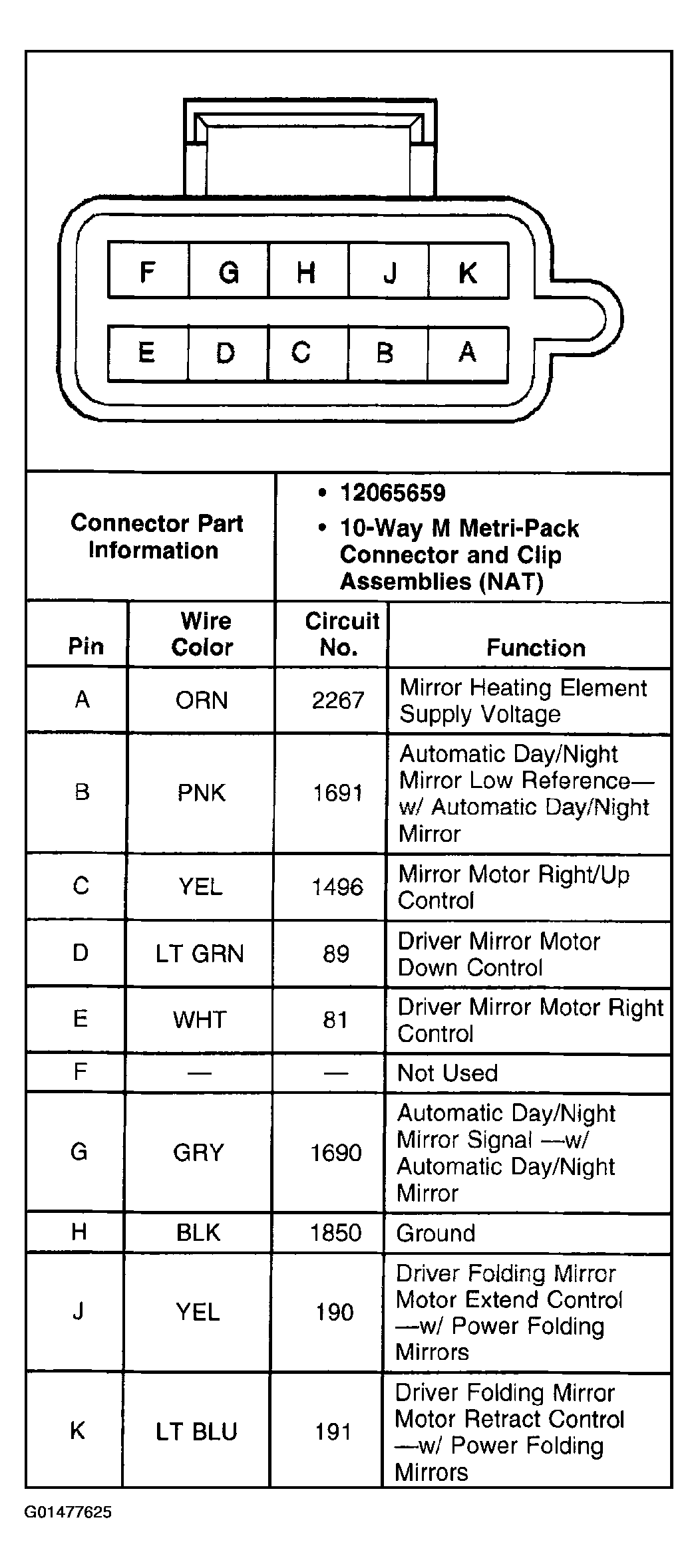

Fig 11: Outside Rearview Mirror - Driver

G01477625

Courtesy of GENERAL MOTORS CORP.

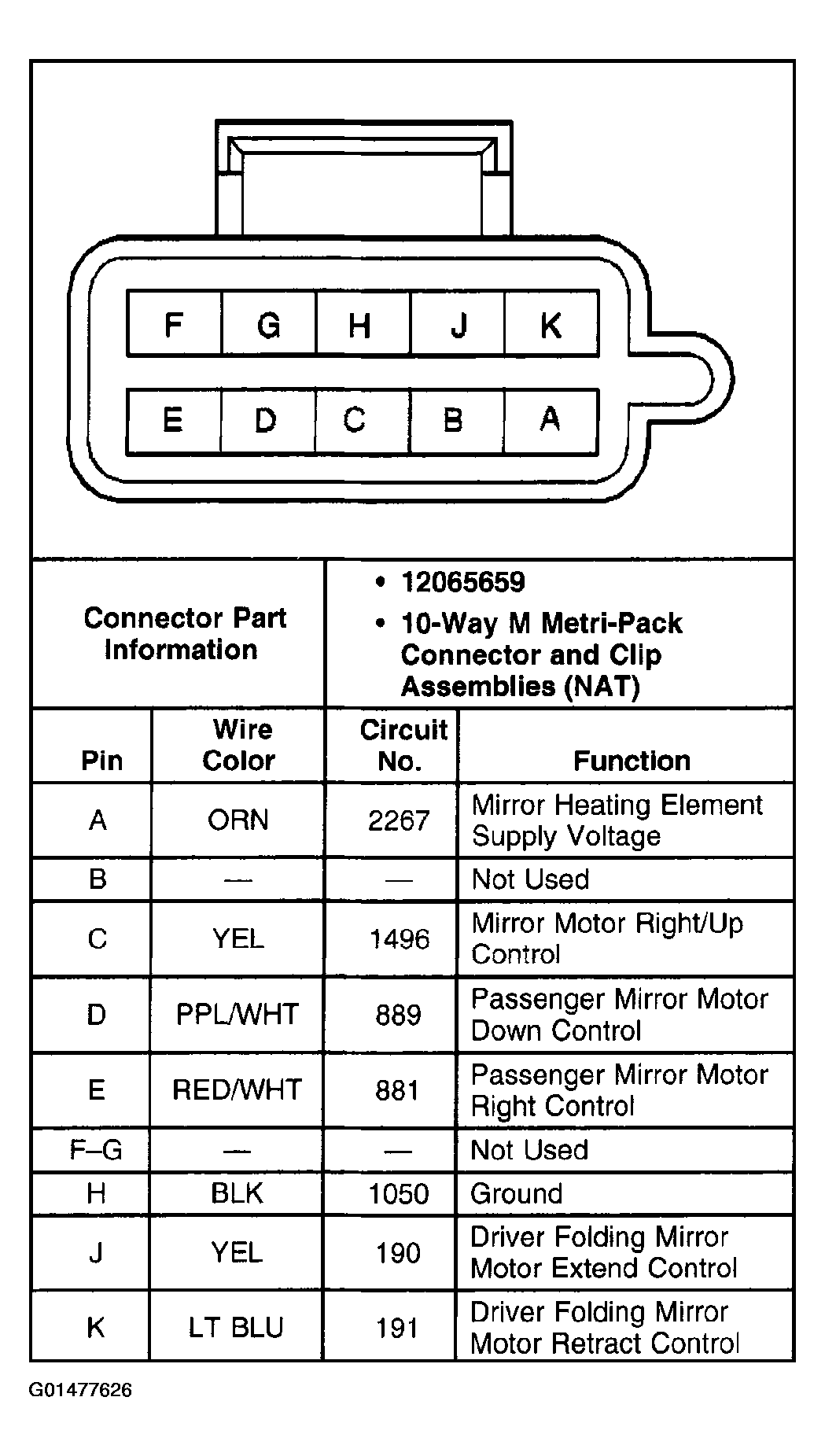

Fig 12: Outside Rearview Mirror - Front Passenger

G01477626

Courtesy of GENERAL MOTORS CORP.

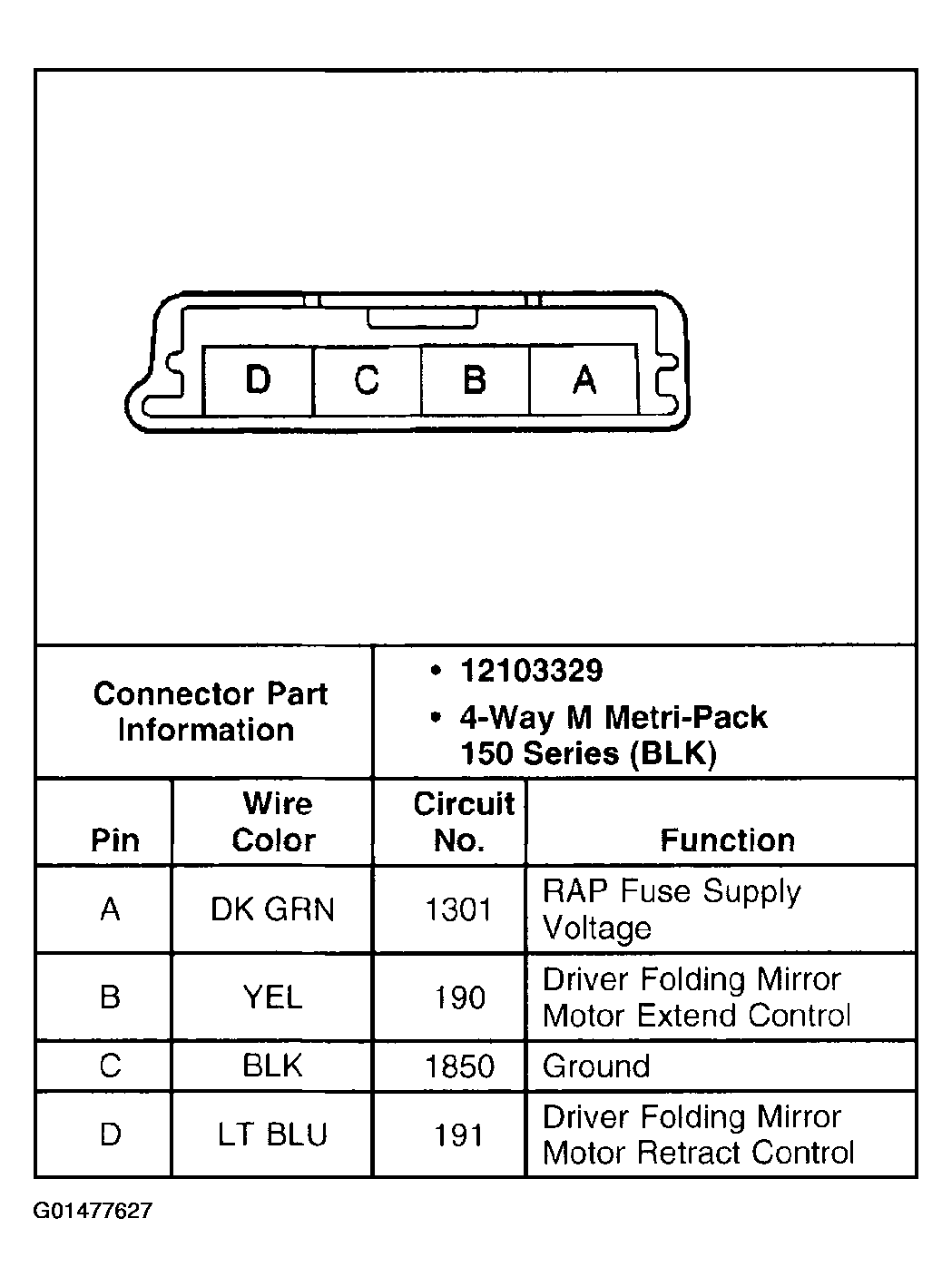

Fig 13: Outside Rearview Folding Mirror Switch (Export)

G01477627

Courtesy of GENERAL MOTORS CORP.

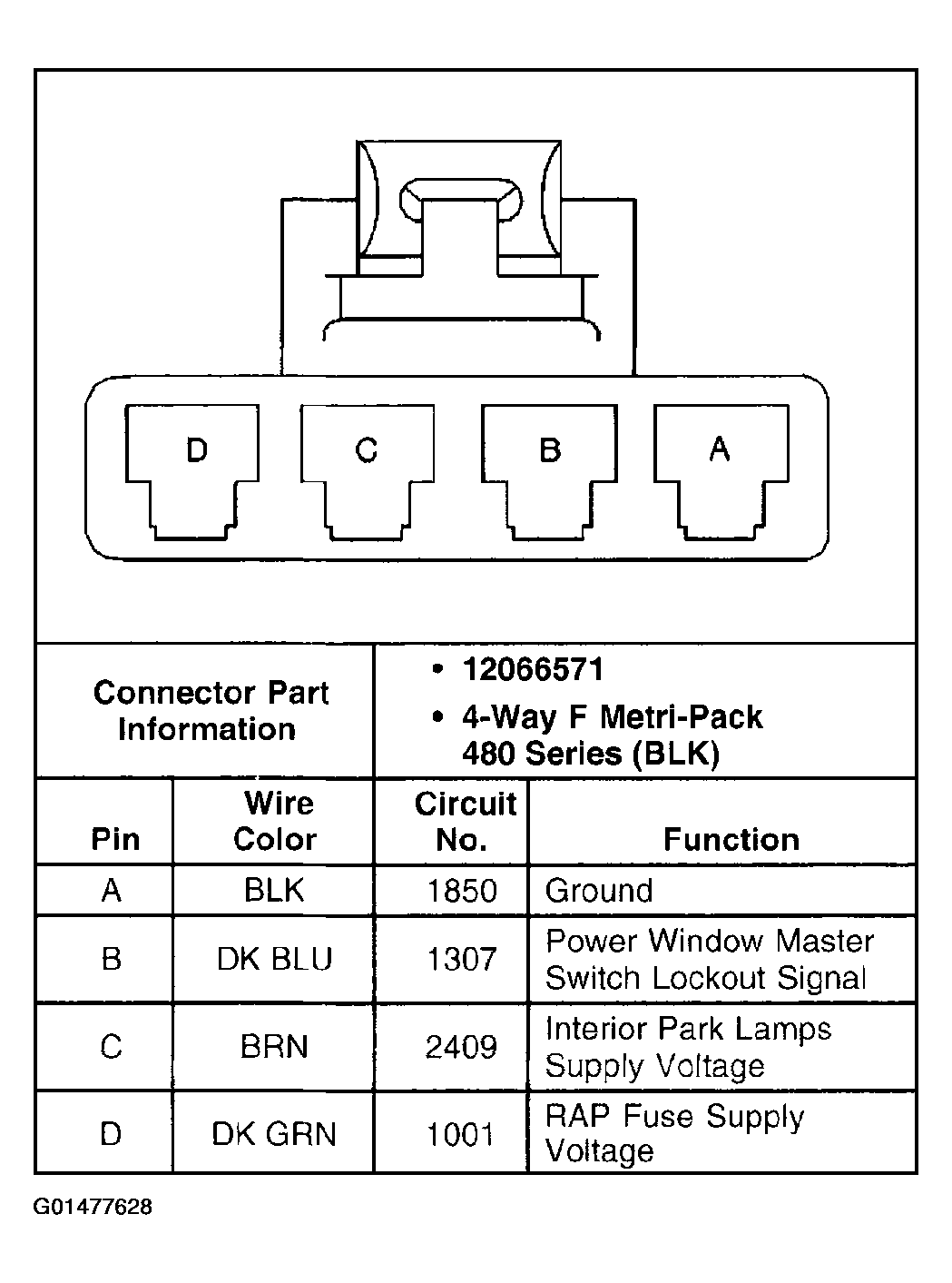

Fig 14: Window Lockout Switch

G01477628

Courtesy of GENERAL MOTORS CORP.

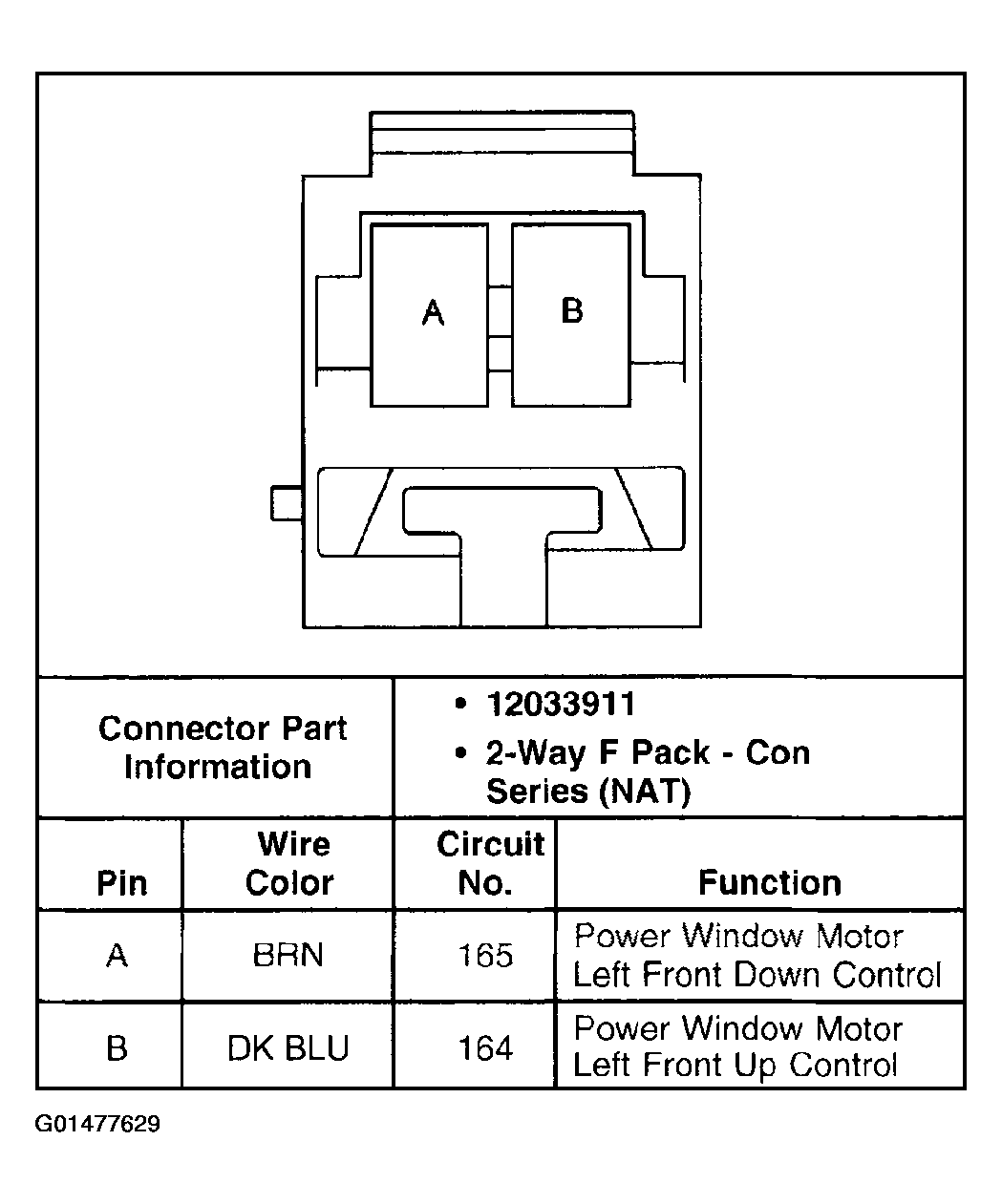

Fig 15: Window Motor - Driver

G01477629

Courtesy of GENERAL MOTORS CORP.

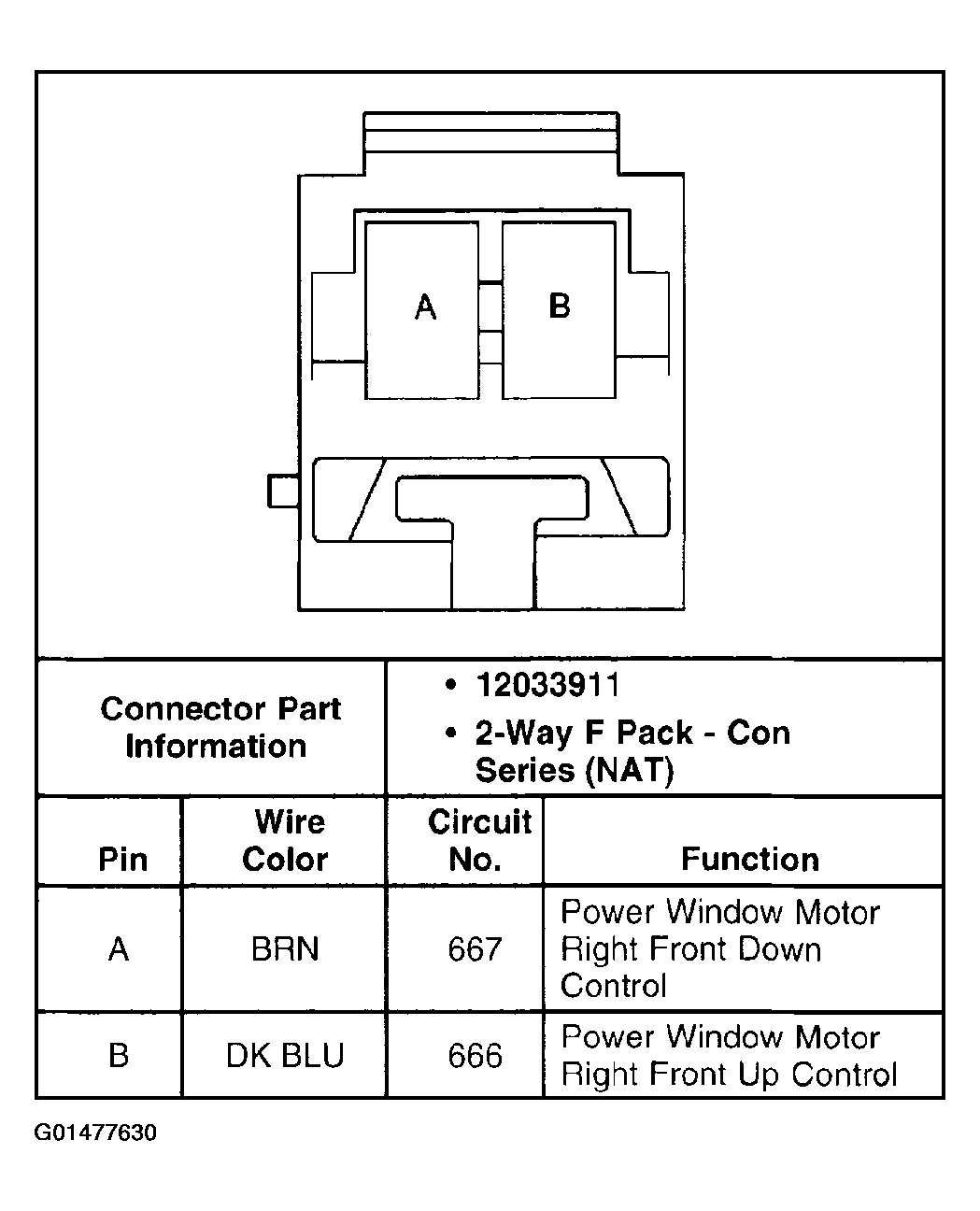

Fig 16: Window Motor - Front Passenger

G01477630

Courtesy of GENERAL MOTORS CORP.

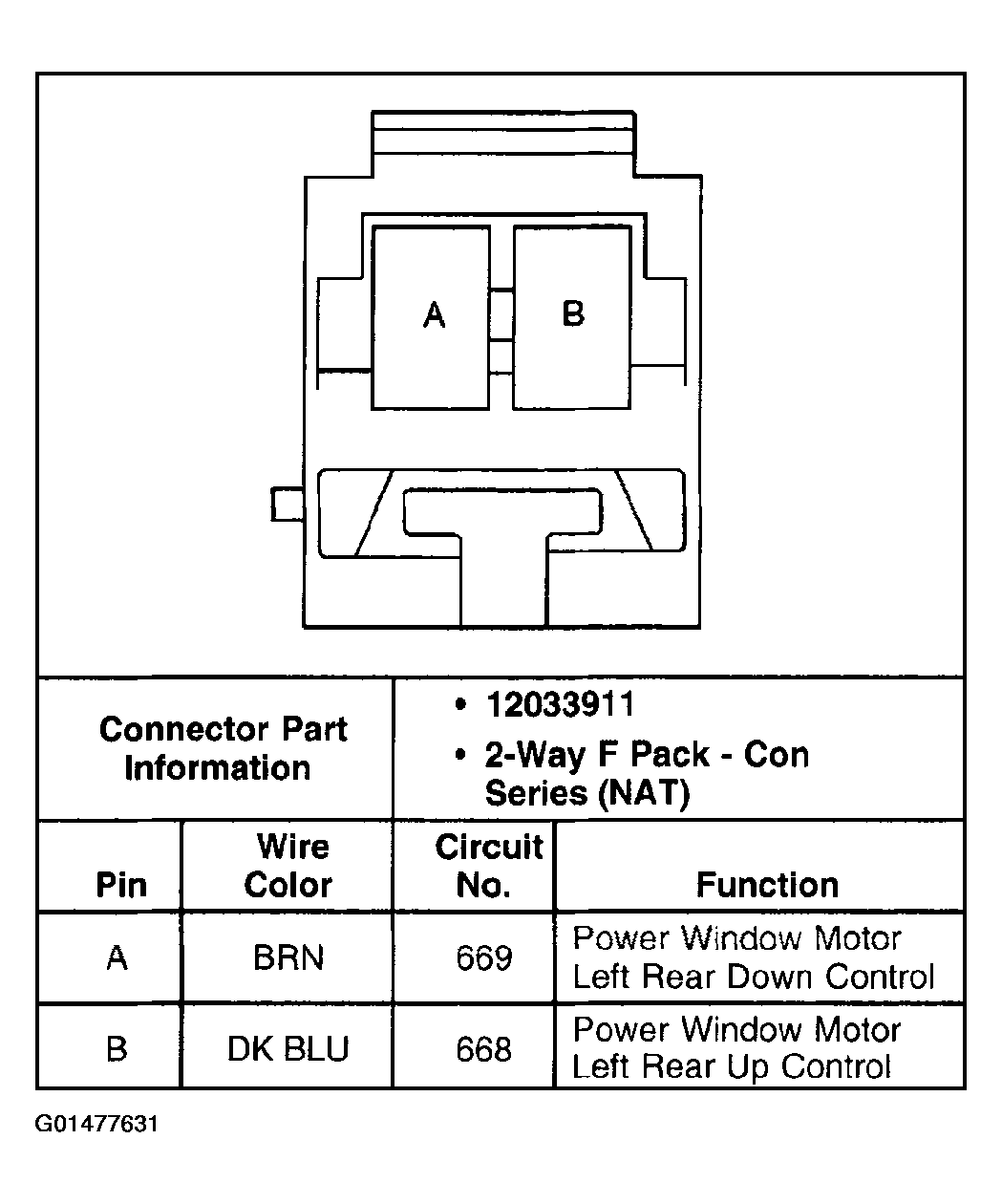

Fig 17: Window Motor - LR

G01477631

Courtesy of GENERAL MOTORS CORP.

Fig 18: Window Motor - RR

G01477632

Courtesy of GENERAL MOTORS CORP.

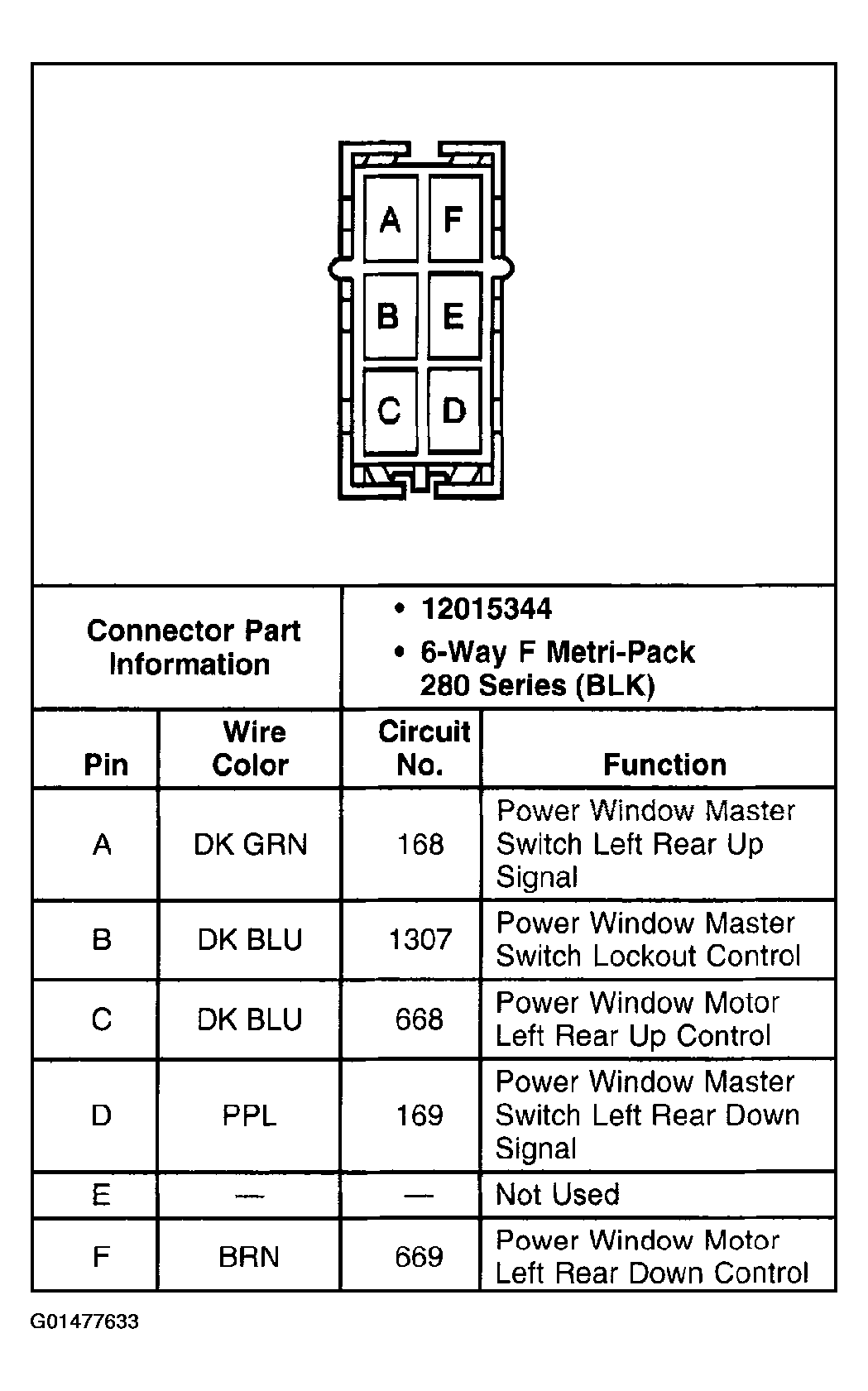

Fig 19: Window Switch - LR

G01477633

Courtesy of GENERAL MOTORS CORP.

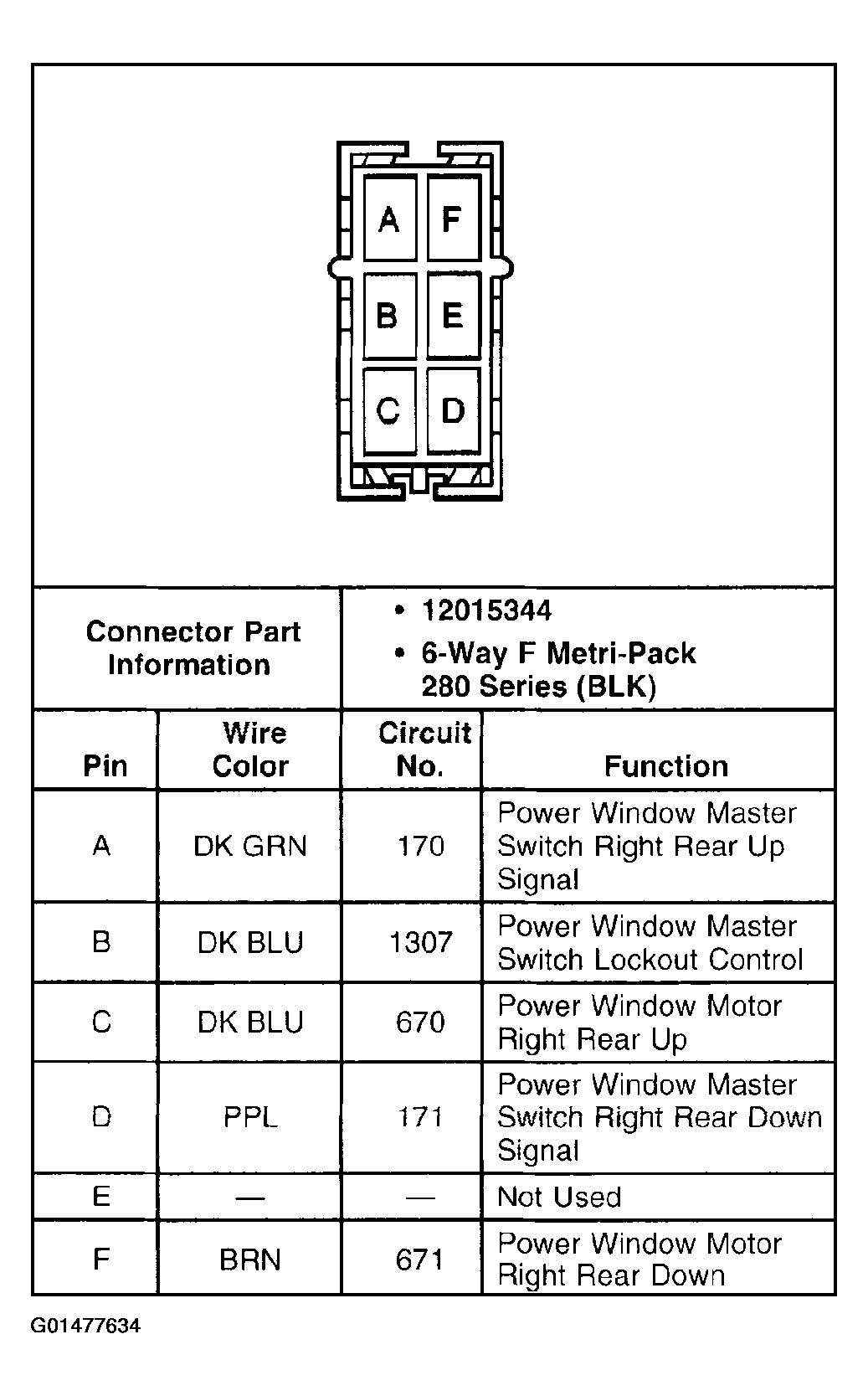

Fig 20: Window Switch - RR

G01477634

Courtesy of GENERAL MOTORS CORP.
