Scan Tool Output Controls

Fig 1: Body Control Module
G01477636Courtesy of GENERAL MOTORS CORP.

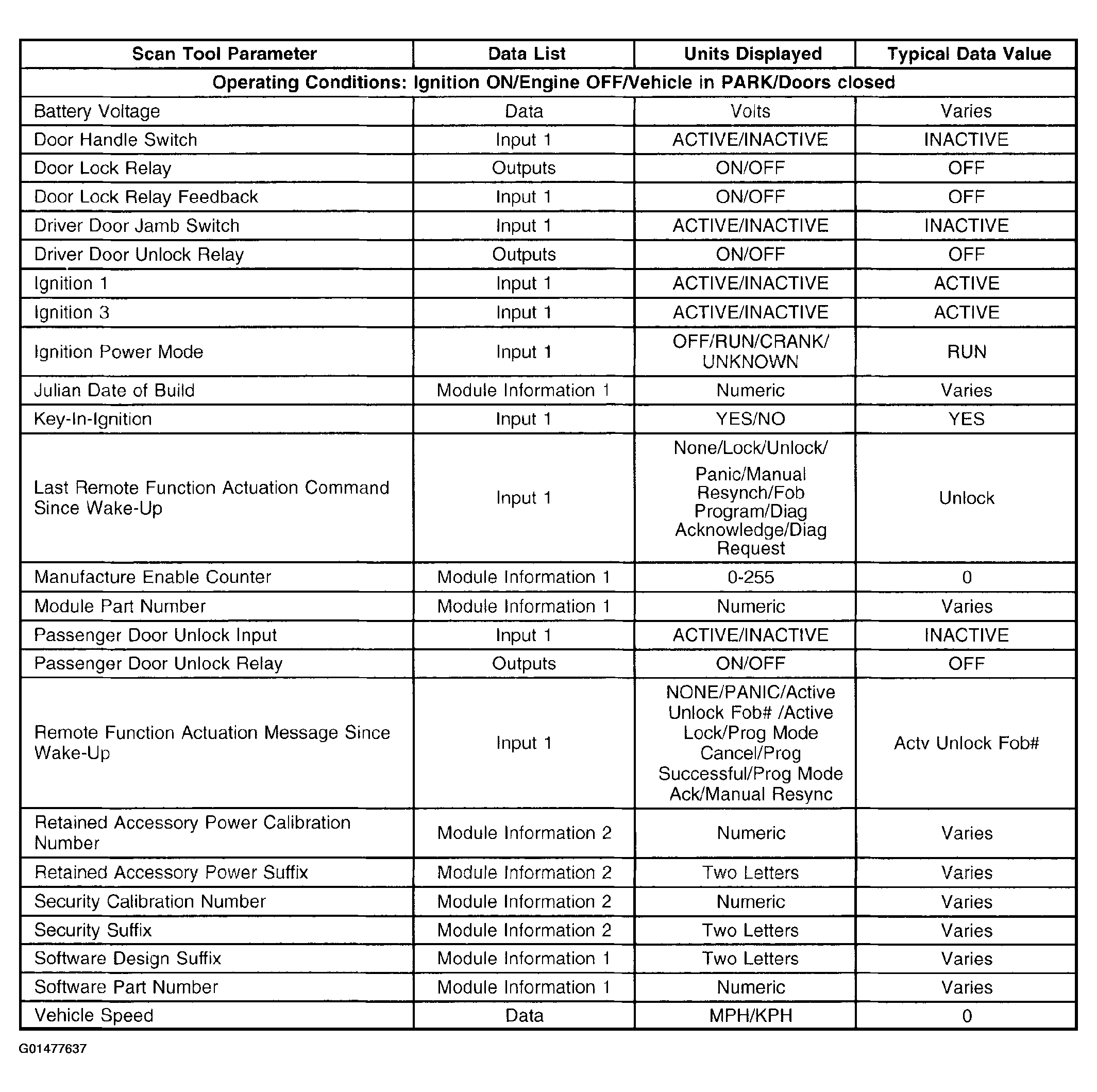

Fig 2: Scan Tool Data List
G01477637Courtesy of GENERAL MOTORS CORP.
