Removal Procedure

  1. Remove the battery. Refer to BATTERY REPLACEMENT  .

    Remove the battery tray retaining bolts.

  2. Remove the battery tray.

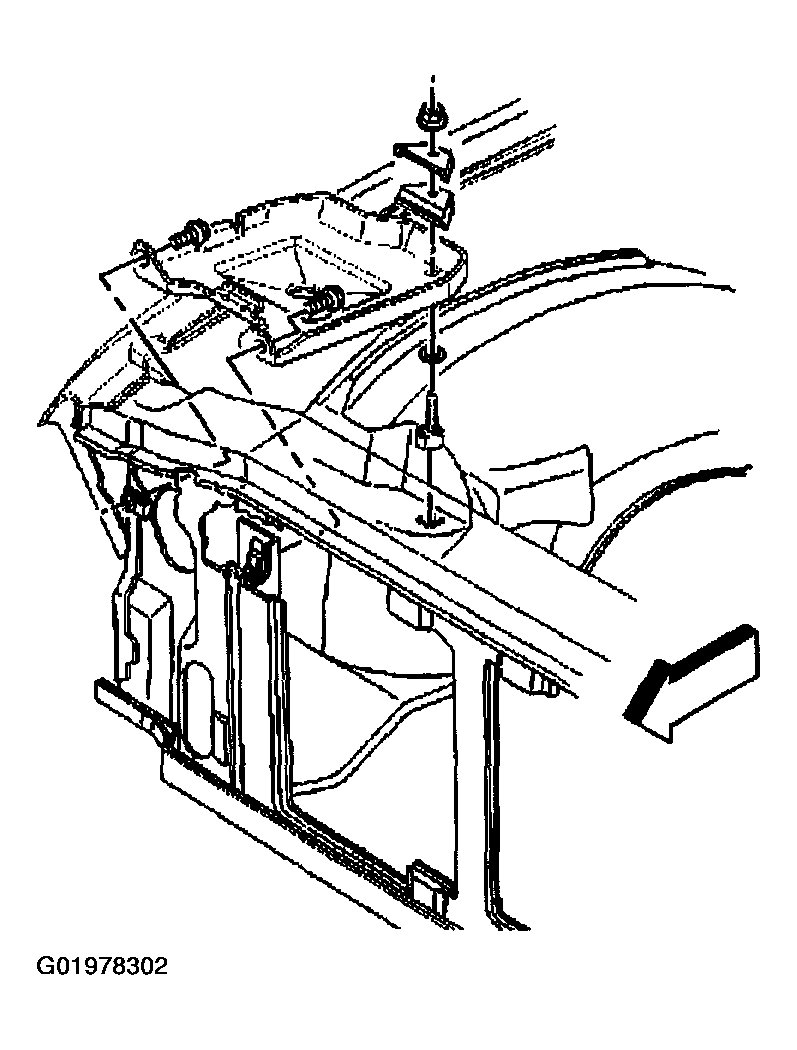

    Fig 1: Removing Battery Tray
    G01978302Courtesy of GENERAL MOTORS CORP.
