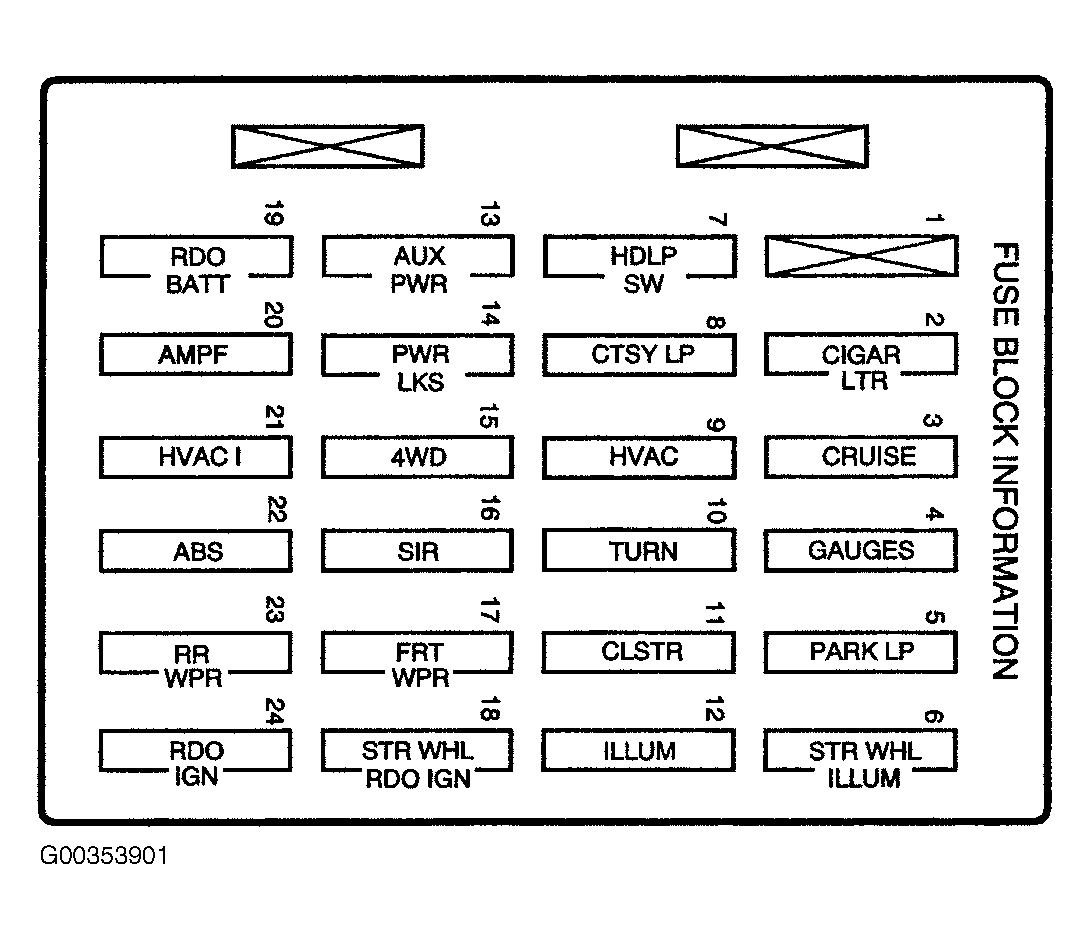

Instrument Panel Fuse Block
NOTE:
The instrument panel fuse block is located at the end of the instrument panel on the driver's side of the vehicle.
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002 BLAZER - JIMMY CANADIAN)
| Fuse/Circuit Breaker | Usage |
|---|---|
| A | Not Used |
| B | Not Used |
| 1 | Not Used |
| 2 | Cigarette Lighter, Data Link Connector |
| 3 | Cruise Control Module and Switch, Body Control Module, Heated Seats |
| 4 | Gages, Body Control Module, Instrument Panel Cluster |
| 5 | Parking Lamps, Power Window Switch, Body Control Module, Ashtray Lamp |
| 6 | Steering Wheel Radio Controls |
| 7 | Headlamps Switch, Body Control Module, Headlamp Relay |
| 8 | Courtesy Lamps, Battery Run-Down Protection |
| 9 | HVAC Control Head (Manual) |
| 10 | Turn Signal |
| 11 | Cluster, Engine Control Module |
| 12 | Interior Lights |
| 13 | Auxiliary Power |
| 14 | Power Locks Motor |
| 15 | 4WD Switch, Engine Controls (VCM, PCM, Transmission) |
| 16 | Supplemental Inflatable Restraint |
| 17 | Front Wiper |
| 18 | Steering Wheel Radio Controls |
| 19 | Radio, Battery |
| 20 | Amplifier |
| 21 | HVAC (Manual), HVAC I (Automatic), HVAC Sensors (Automatic) |
| 22 | Anti-Lock Brakes |
| 23 | Rear Wiper |
| 24 | Radio, Ignition |
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002 SONOMA & S10)
| Fuse/Circuit Breaker | Usage |
|---|---|
| A | Not Used |
| B | Not Used |
| 1 | Not Used |
| 2 | Cigarette Lighter, Data Link Connector |
| 3 | Cruise Control, Body Controls TBC, Cruise Module, Cruise Switch |
| 4 | Gages, Body Controls TBC, Instrument Panel Cluster, B+ Power |
| 5 | Parking Lamps, Power Window Switch, TBC, Ashtray Lamp |
| 6 | Steering Wheel, Illumination |
| 7 | Headlamp Switch, Body Controls TBC, Headlamp Relay |
| 8 | Courtesy Lamps, Inadvertent Power Relay |
| 9 | HVAC Control Head |
| 10 | Turn Signal |
| 11 | Instrument Panel Cluster, Engine Controls |
| 12 | Interior Illumination |
| 13 | Auxiliary Power |
| 14 | Power Locks |
| 15 | 4WD Switch, Engine Control (VCM, PCM, Transmission) |
| 16 | Supplemental Inflatable Restraint |
| 17 | Front Wiper |
| 18 | Steering Wheel, Radio, Ignition |
| 19 | Radio Battery |
| 20 | Amplifier |
| 21 | HVAC I, HVAC Control Head, HVAC Devices |
| 22 | Anti-Lock Brakes |
| 23 | Rear Wiper |
| 24 | Radio, Ignition |
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2003-04 ALL MODELS)
| Fuse | Usage |
|---|---|
| A | Not Used |
| B | Not Used |
| 1 | Not Used |
| 2 | Cigarette Lighter, Data Link Connector |
| 3 | Cruise Control Module and Switch, Body Control Module, Heated Seats |
| 4 | Gages, Body Control Module, Instrument Panel Cluster |
| 5 | Parking Lamps, Power Window Switch, Body Control Module, Ashtray Lamp |
| 6 | Steering Wheel Radio Controls |
| 7 | Headlamps Switch, Body Control Module, Headlamp Relay |
| 8 | Courtesy Lamps, Battery Run-Down Protection |
| 9 | Heating, Ventilation, Air Cooling Control Head (Manual) |
| 10 | Turn Signal |
| 11 | Cluster, Engine Control Module |
| 12 | Interior Lights |
| 13 | Auxiliary Power |
| 14 | Power Locks Motor |
| 15 | 4WD Switch, Engine Controls (VCM, PCM, Transmission) |
| 16 | Supplemental Inflatable Restraint |
| 17 | Front Wiper |
| 18 | Steering Wheel Radio Controls |
| 19 | Radio, Battery |
| 20 | Amplifier |
| 21 | Heating, Ventilation, Air Cooling (Manual), Heating, Ventilation, Air Cooling (Automatic), Heating, Ventilation, Air Cooling Sensors (Automatic) |
| 22 | Anti-Lock Brakes |
| 23 | Rear Wiper |
| 24 | Radio, Ignition |
