Tire Pressure Monitoring System Component Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

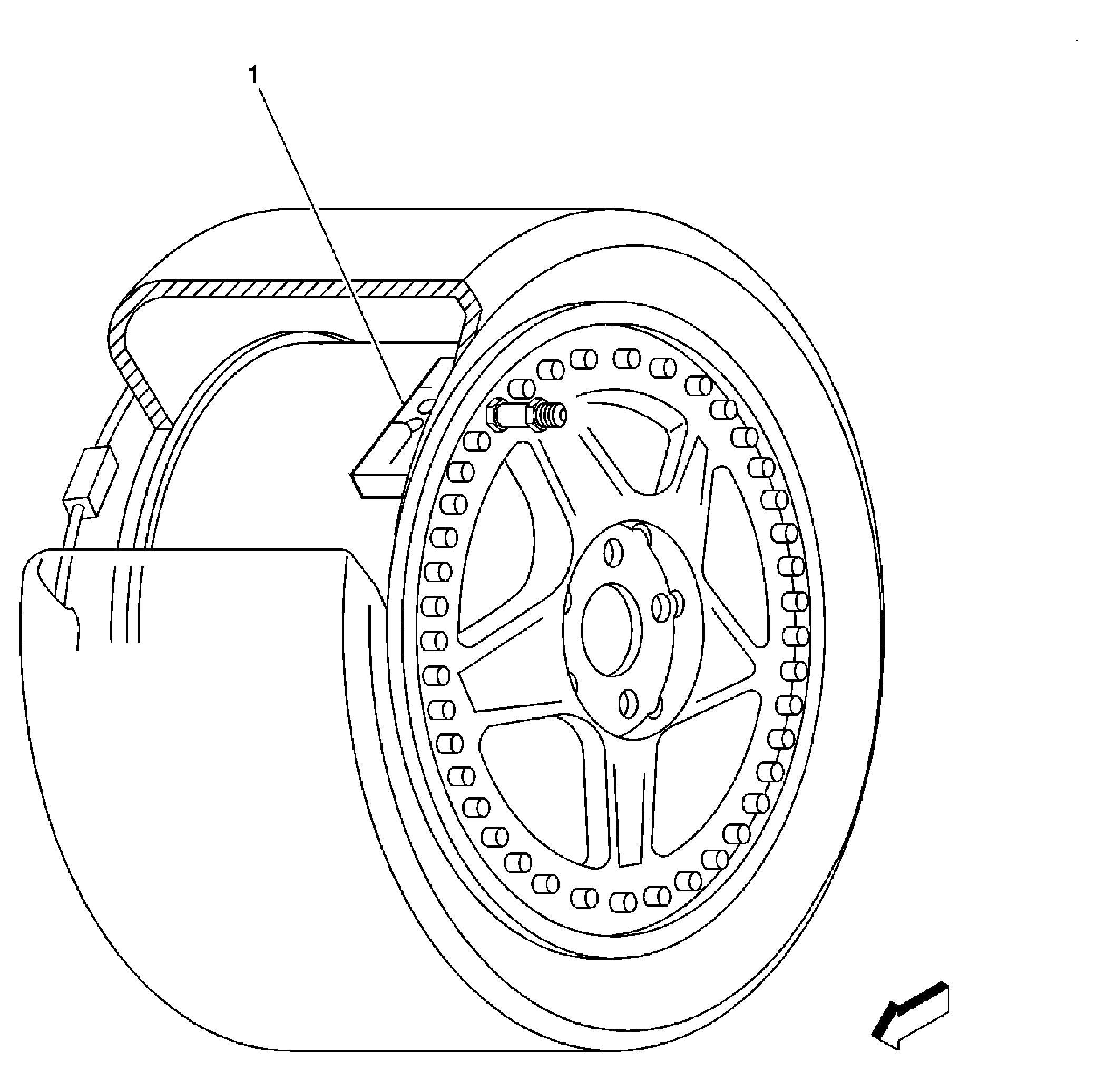

| Callout |
Component Name |
| 1 |
Tire Pressure Monitor Sensor |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Defogger Grid |
| 2 |
Electronic Suspension Control (ESC) Module |
| 3 |
Remote Control Door Lock Receiver (RCDLR) |
