Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

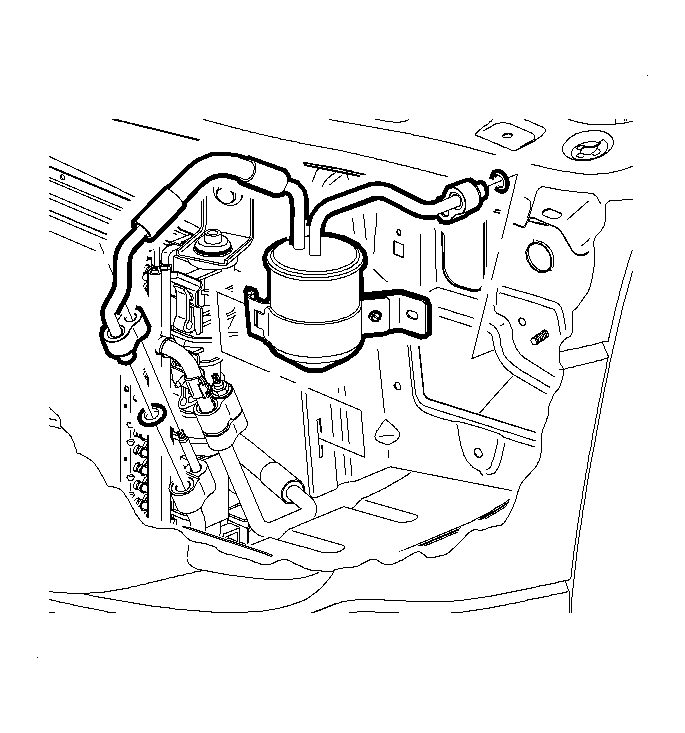

Fig 1: Receiver Dehydrator, Protective Caps & Liquid Line

Courtesy of GENERAL MOTORS CORP.

Remove the protective caps from the condenser, the liquid line, and the receiver dehydrator.
Add the specified amount of PAG oil to the receiver dehydrator. Refer to Refrigerant System Capacities .
Install new seal washers to the receiver dehydrator. Refer to Sealing Washer Replacement .
Install the receiver dehydrator to the vehicle.

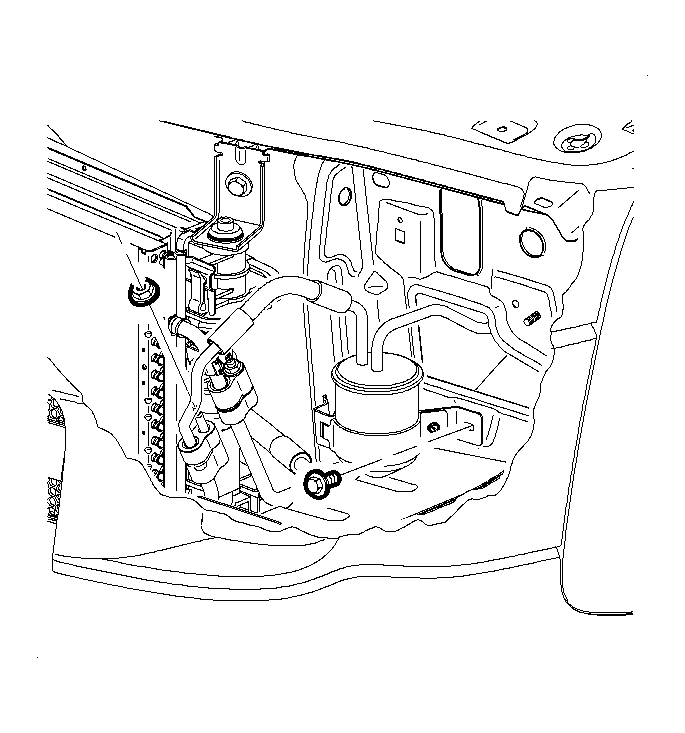

Fig 2: Liquid Line, Nut & Receiver Dehydrator

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

IMPORTANT: Use a large pair of pliers to hold the fitting. Be careful not to twist the line.

Install the receiver dehydrator nut to the liquid line.
Tighten: Tighten the nut to 16 N.m (12 lb ft).

Fig 3: Receiver Dehydrator, Nut & Condenser

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Use a large pair of pliers to hold the fitting. Be careful not to twist the line.

Install the receiver dehydrator nut to the condenser.
Tighten: Tighten the nut to 16 N.m (12 lb ft).
Position the receiver dehydrator in the vehicle.
Install the receiver dehydrator nut to the vehicle.
Tighten: Tighten the bolt to 10 N.m (89 lb in).
Install left head lamp. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement in Lighting Systems.
Evacuate and charge the A/C system. Refer to Refrigerant Recovery and Recharging .
Test the affected A/C joints for leaks using J 39400-A . See Special Tools .
