Installation Procedure

  1. Install the steering linkage shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the steering linkage shield bolts and the washers.

    Tighten

    Tighten the steering linkage shield bolts to 32 N.m (24 lb ft).

  3. Lower the vehicle.

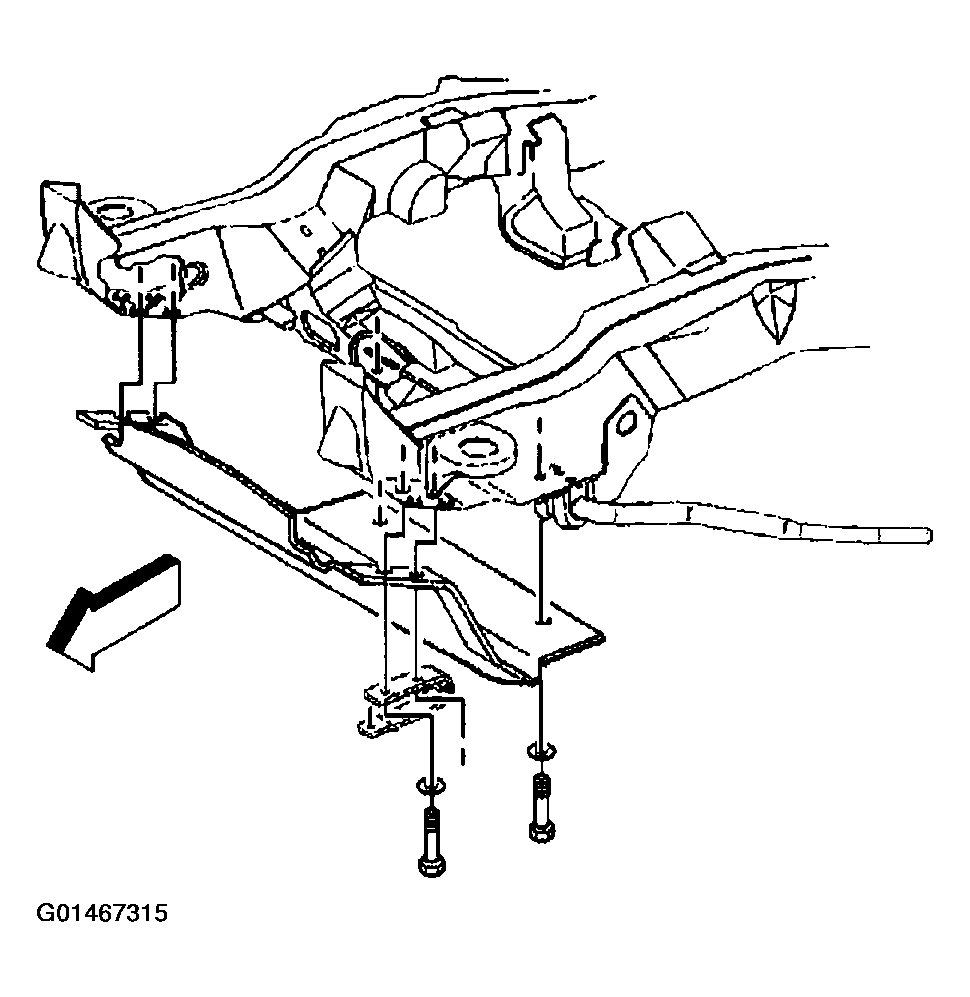

    Fig 1: Steering Linkage Shield Bolts & Washers
    G01467315Courtesy of GENERAL MOTORS CORP.
