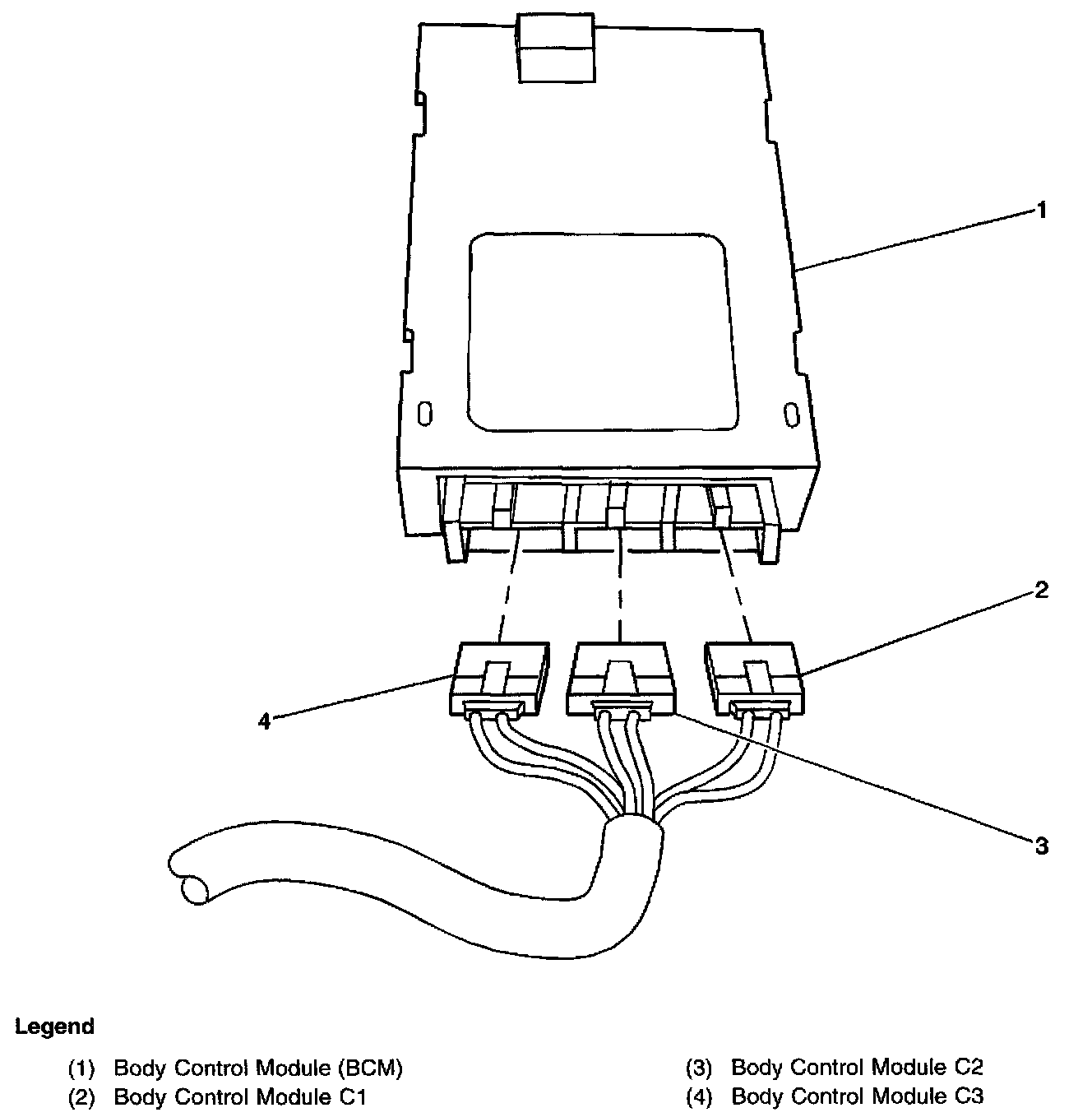

Body Control Module Connectors

Locations View:

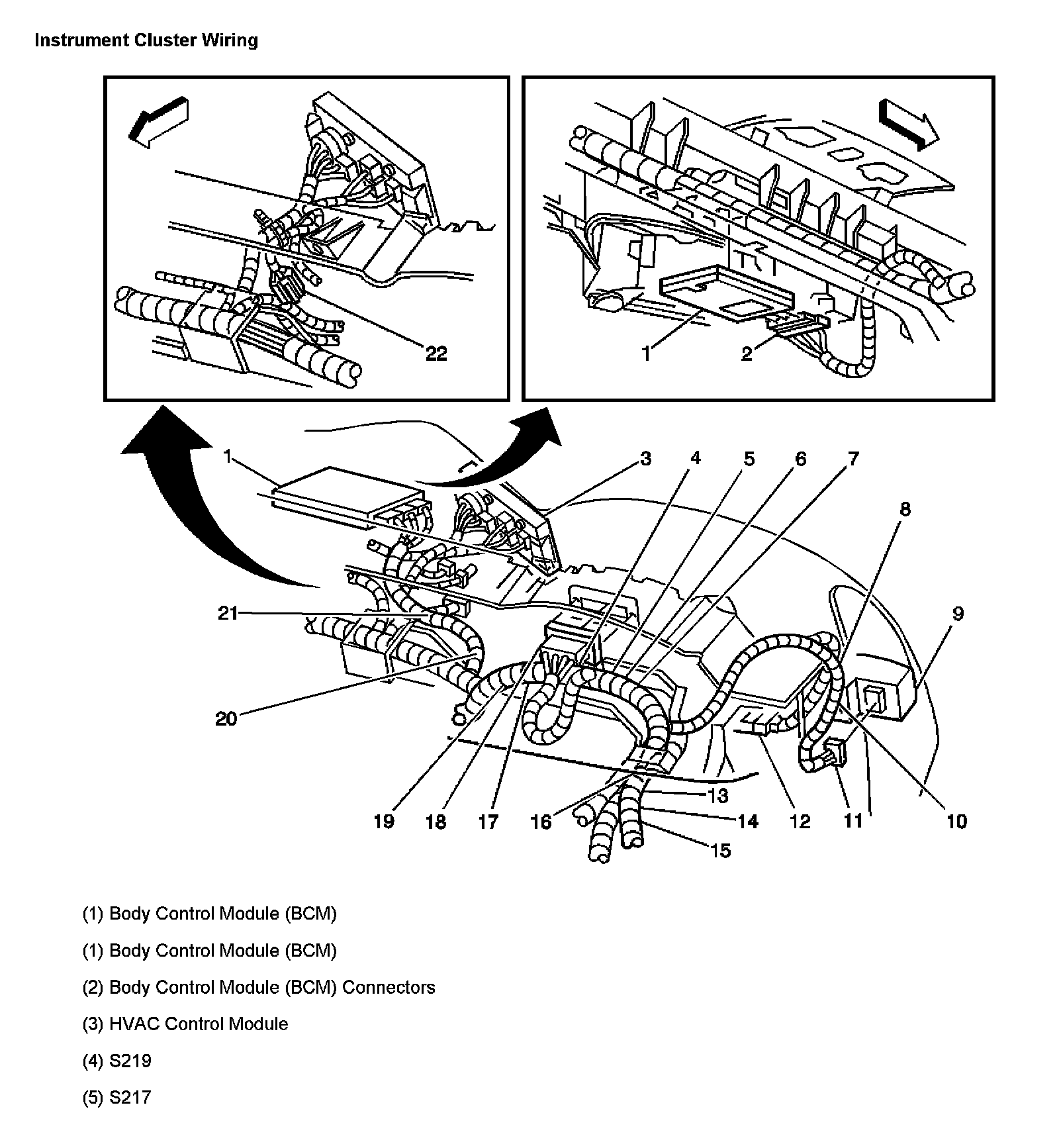

Instrument Cluster Wiring Part 1:



Instrument Cluster Wiring Part 2:

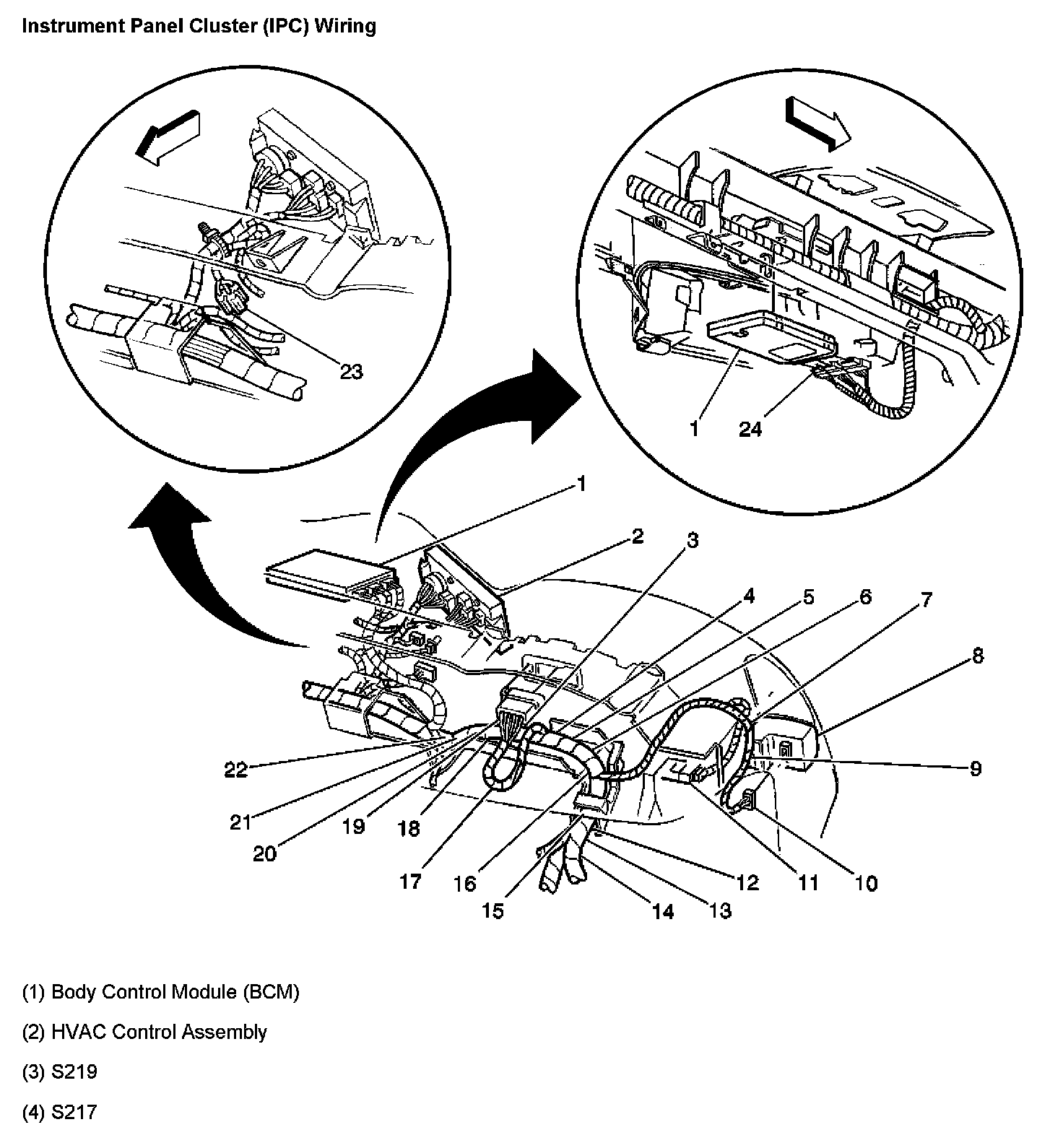

Instrument Panel Cluster (IPC) Wiring Part 1:

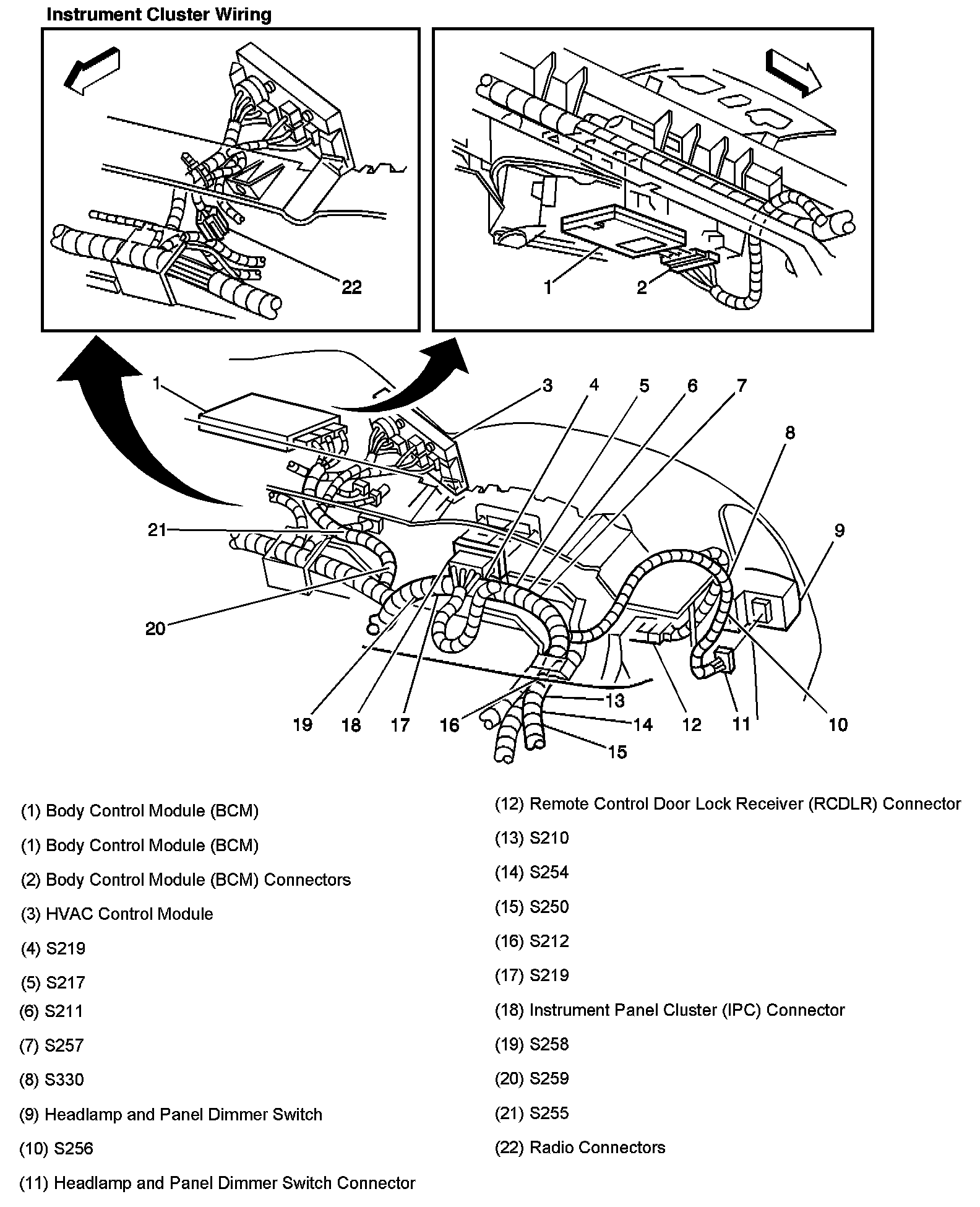

Instrument Cluster Wiring:

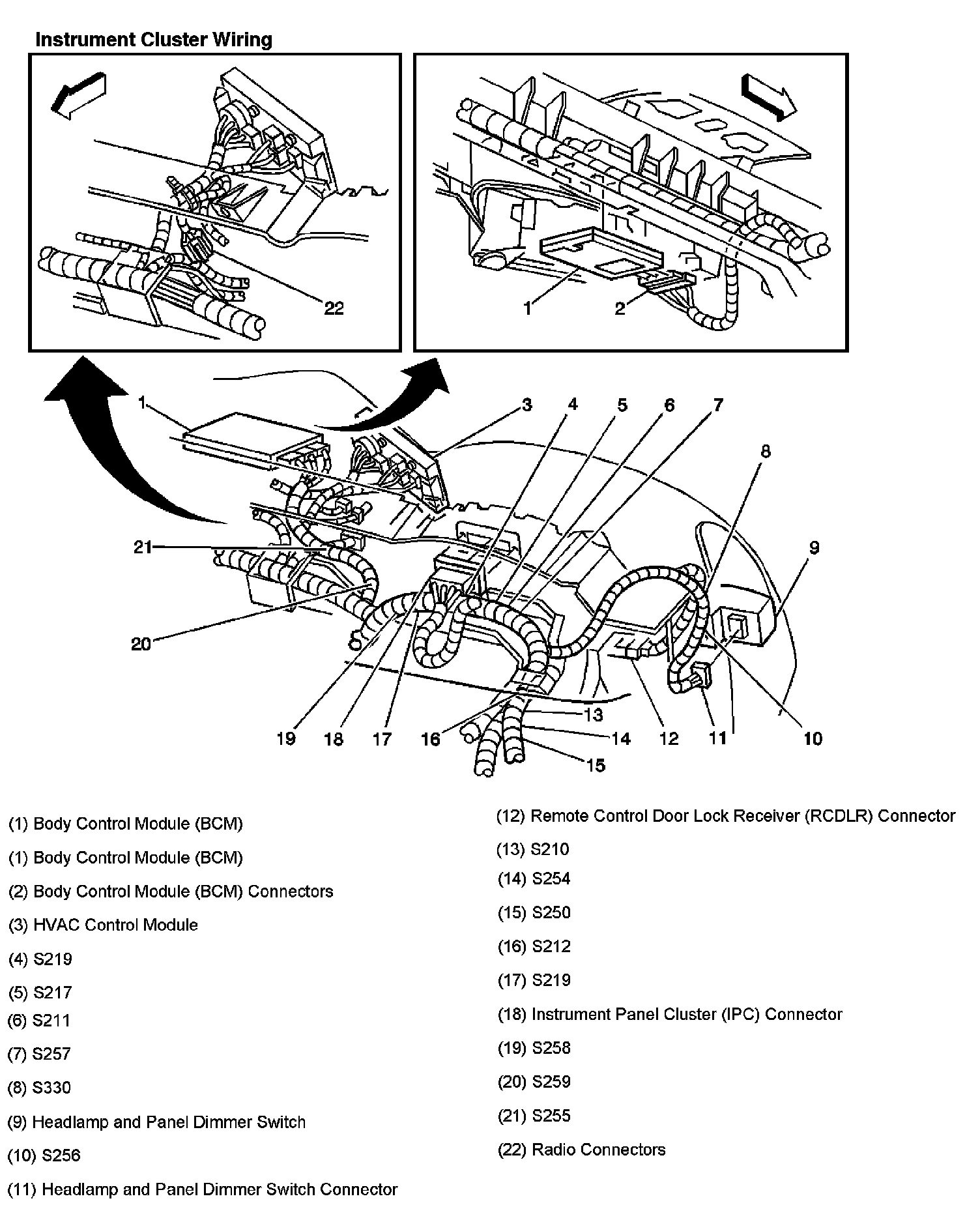

Instrument Cluster Wiring:
