Air Flow Meter/Sensor: Locations

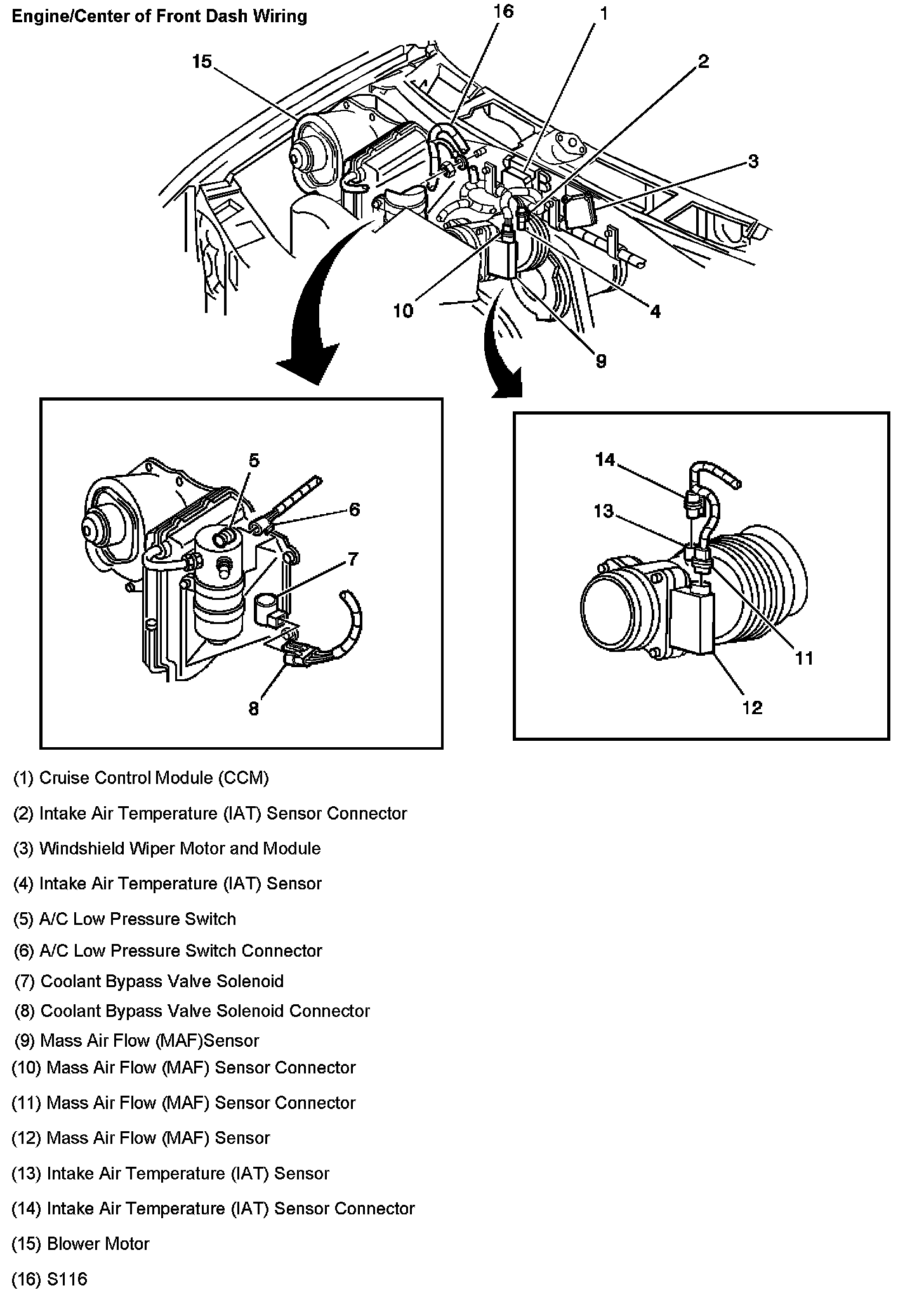

Engine/Center Of Front Dash Wiring:

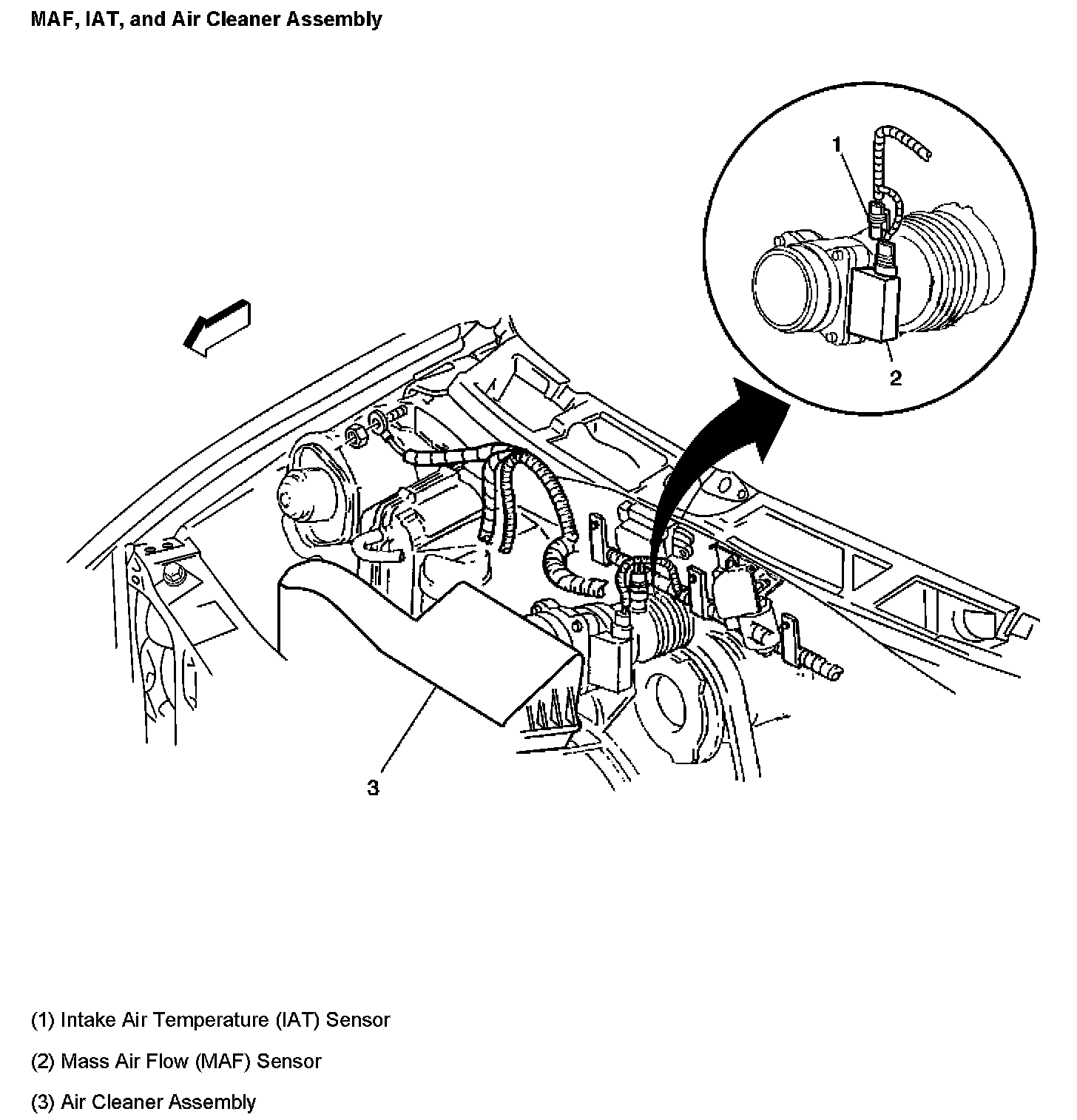

MAF, IAT, And Air Cleaner Assembly:

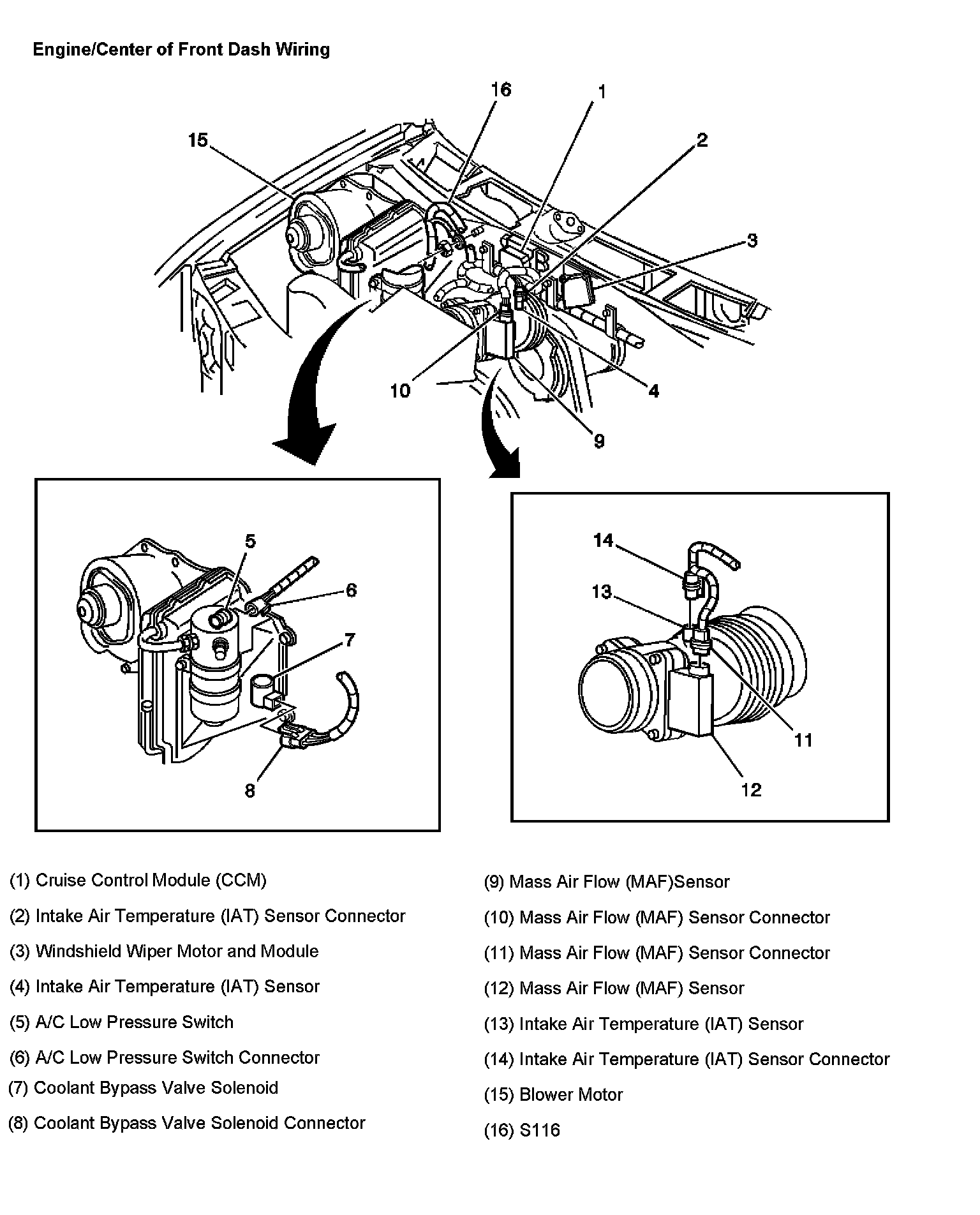

Engine/Center Of Front Dash Wiring:
