Knock Sensor: Locations

Locations View:

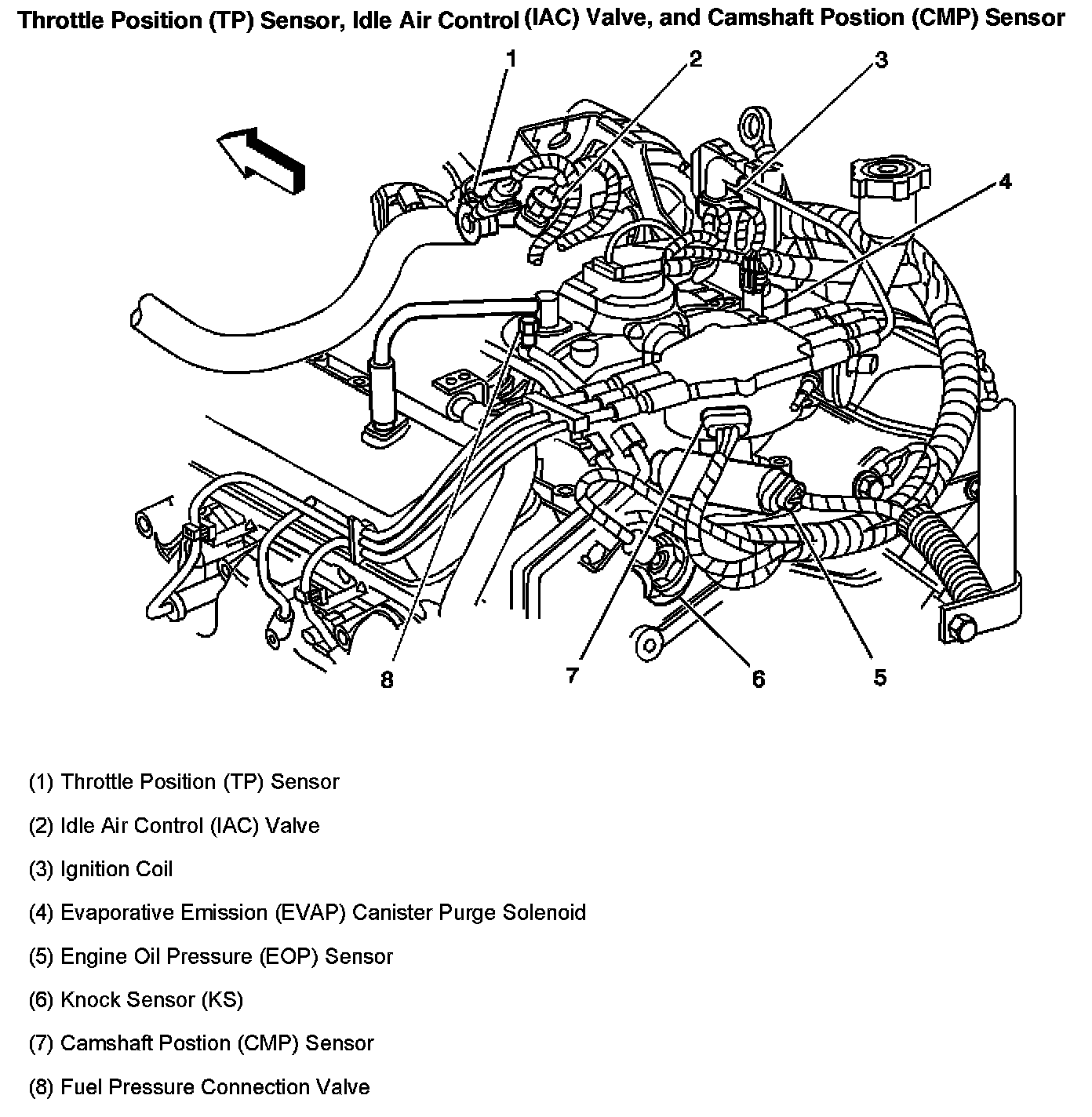

Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve, And Camshaft Postion (CMP) Sensor:
