Body Control Module (BCM)

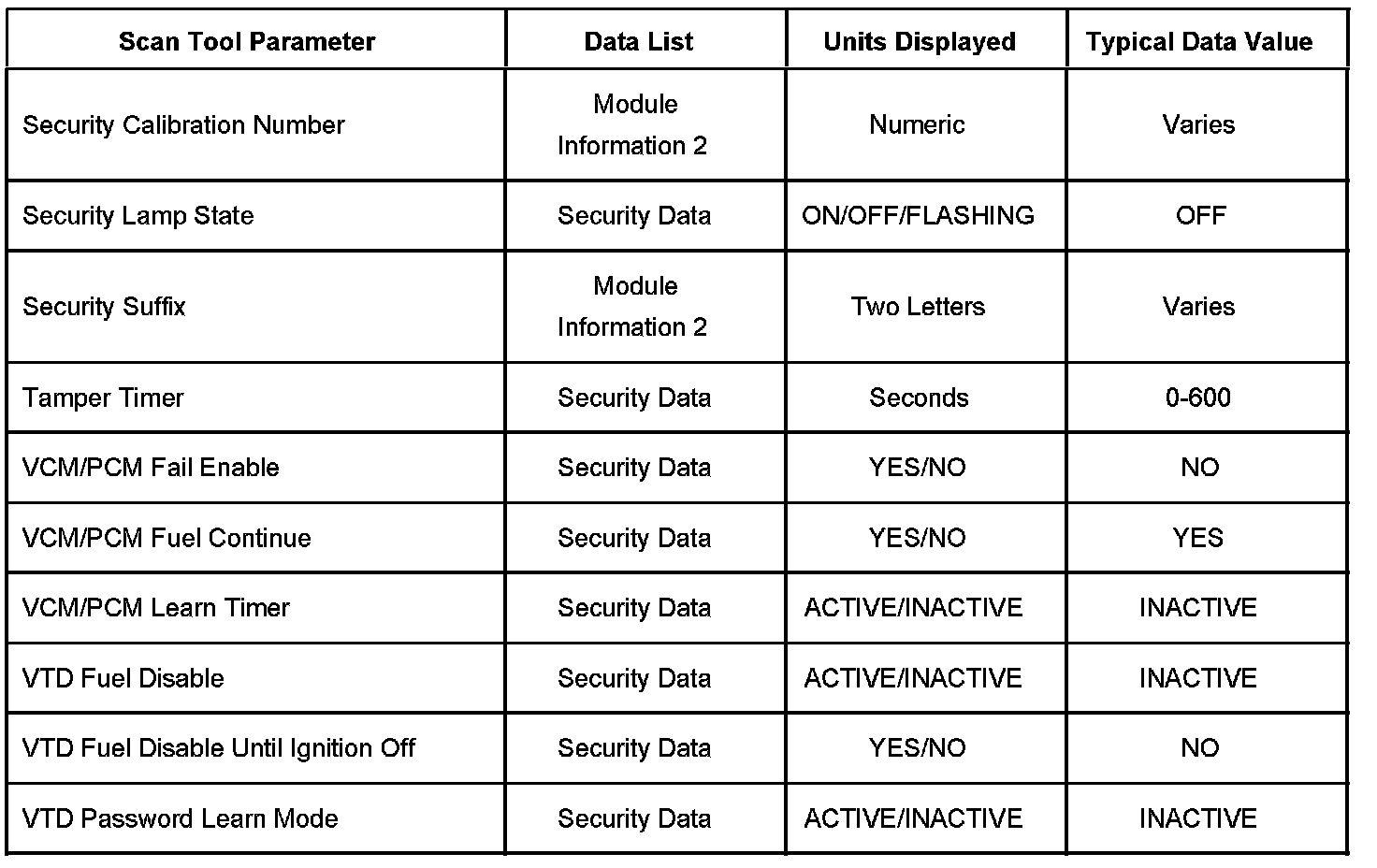

Body Control Module (BCM) Part 1:

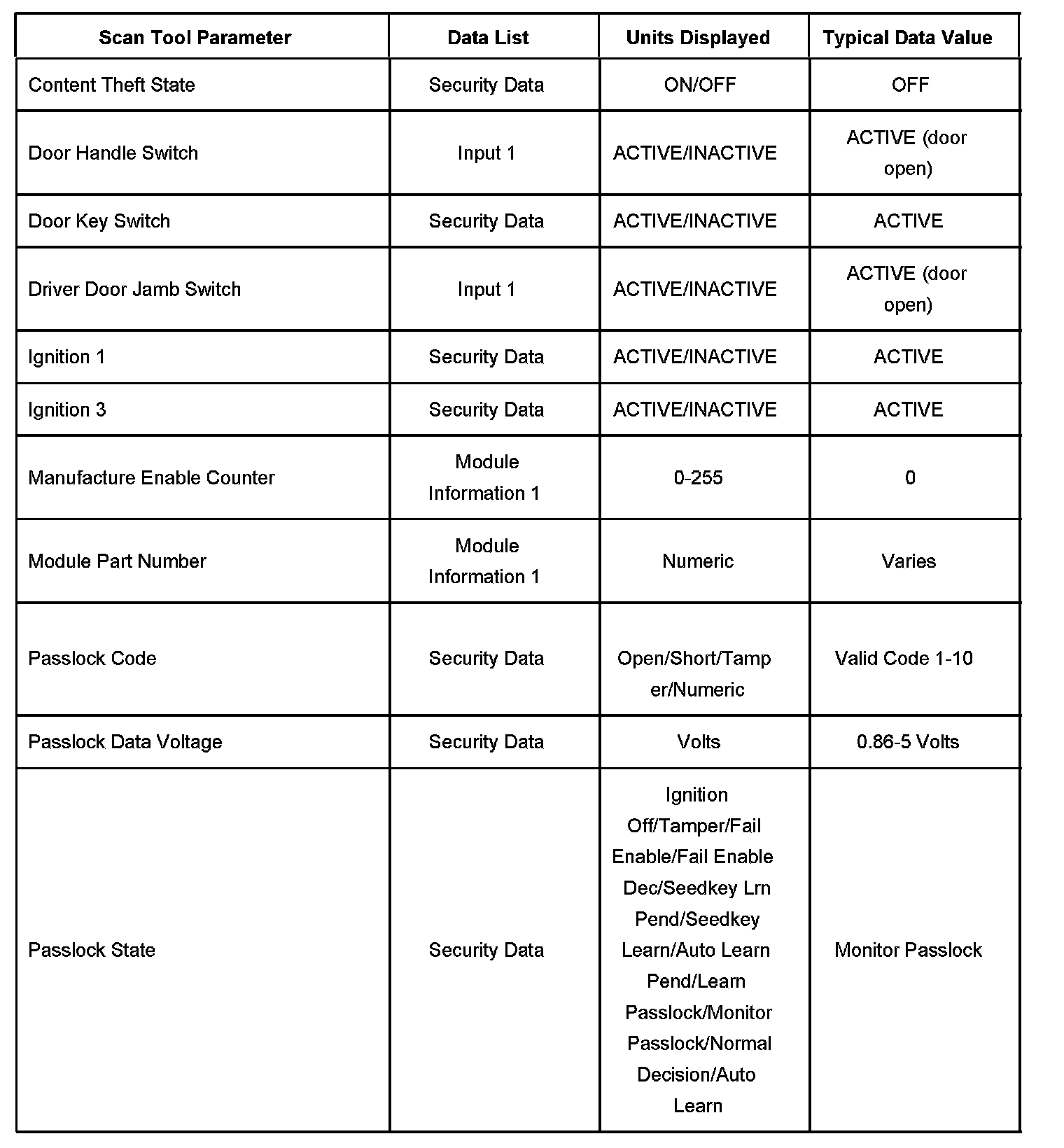

Body Control Module (BCM) Part 2:
Body Control Module (BCM) Part 3:
