Installation Procedure
- Install the windshield into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS .NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

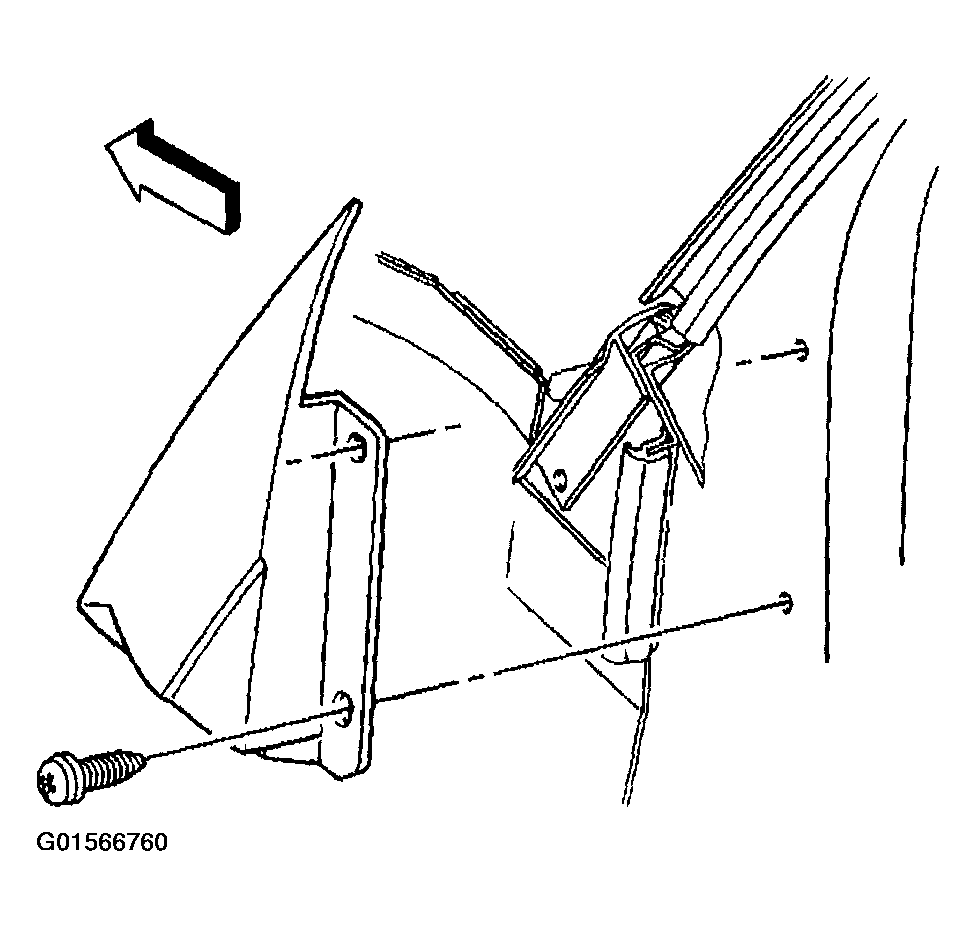

- Install the windshield frame filler panel with 2 screws.
Tighten
Tighten the windshield frame filler panel screws to 2 N.m (18 lb in).
- Install the door sealing weatherstrip to the upper pinchweld flange.
- Install the inside rearview mirror. Refer to REARVIEW MIRROR REPLACEMENT .
- Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
- Close the hood.
- Install the antenna, if necessary. Refer to FIXED ANTENNA REPLACEMENT
in Entertainment.
Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
- Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
